Pearson residuals are used in a to analyze the difference between observed cell counts and expected cell counts in a contingency table.

The formula to calculate a Pearson residual is:

r_ij = (O_ij – E_ij) / √E_ij

where:

• r_ij: The Pearson residual for the cell in the i^th column and j^th row
• O_ij: The observed value for the cell in the i^th column and j^th row
• E_ij: The expected value for the cell in the i^th column and j^th row

A similar metric is the Standardized (adjusted) Pearson residual, which is calculated as:

r_ij = (O_ij – E_ij) / √E_ij(1-n_i+)(1-n_+j)

where:

• r_ij: The Pearson residual for the cell in the i^th column and j^th row
• O_ij: The observed value for the cell in the i^th column and j^th row
• E_ij: The expected value for the cell in the i^th column and j^th row
• p_i+: The row total divided by the grand total
• p_+j: The column total divided by the grand total

Standardized Pearson residuals are normally distributed with a mean of 0 and standard deviation of 1. Any standardized Pearson residual with an absolute value above certain thresholds (e.g. 2 or 3) indicates a lack of fit.

The following example shows how to calculate Pearson residuals in practice.

Example: Calculating Pearson Residuals

Suppose researchers want to use a Chi-Square Test of Independence to determine whether or not gender is associated with political party preference.

They decide to take a simple random sample of 500 voters and survey them on their political party preference.

The following contingency table shows the results of the survey:

Before we calculate the Pearson residuals, we must first calculate the expected counts for each cell in the contingency table. We can use the following formula to do so:

For example, the expected value for Male Republicans is: (230*250) / 500 = 115.

We can repeat this formula to obtain the expected value for each cell in the table:

Next, we can calculate the Pearson residual for each cell in the table.

For example, the Pearson residual for the cell that contains Male Republicans would be calculated as:

• r_ij = (O_ij – E_ij) / √E_ij
• r_ij = (120 – 115) / √115
• r_ij = 0.466

We can repeat this formula to obtain the Pearson residual for each cell in the table:

Next, we can calculate the Standardized Pearson residual for each cell in the table.

For example, the Standardized Pearson residual for the cell that contains Male Republicans would be calculated as:

• r_ij = (O_ij – E_ij) / √E_ij(1-p_i+)(1-p_+j)
• r_ij = (120 – 115) / √115(1-250/500)(1-230/500)
• r_ij = 0.897

We can repeat this formula to obtain the Standardized Pearson residual for each cell in the table:

We can see that none of the Pearson Standardized Residuals have an absolute value greater than 3, which indicates that none of the cells contribute to a significant lack of fit.

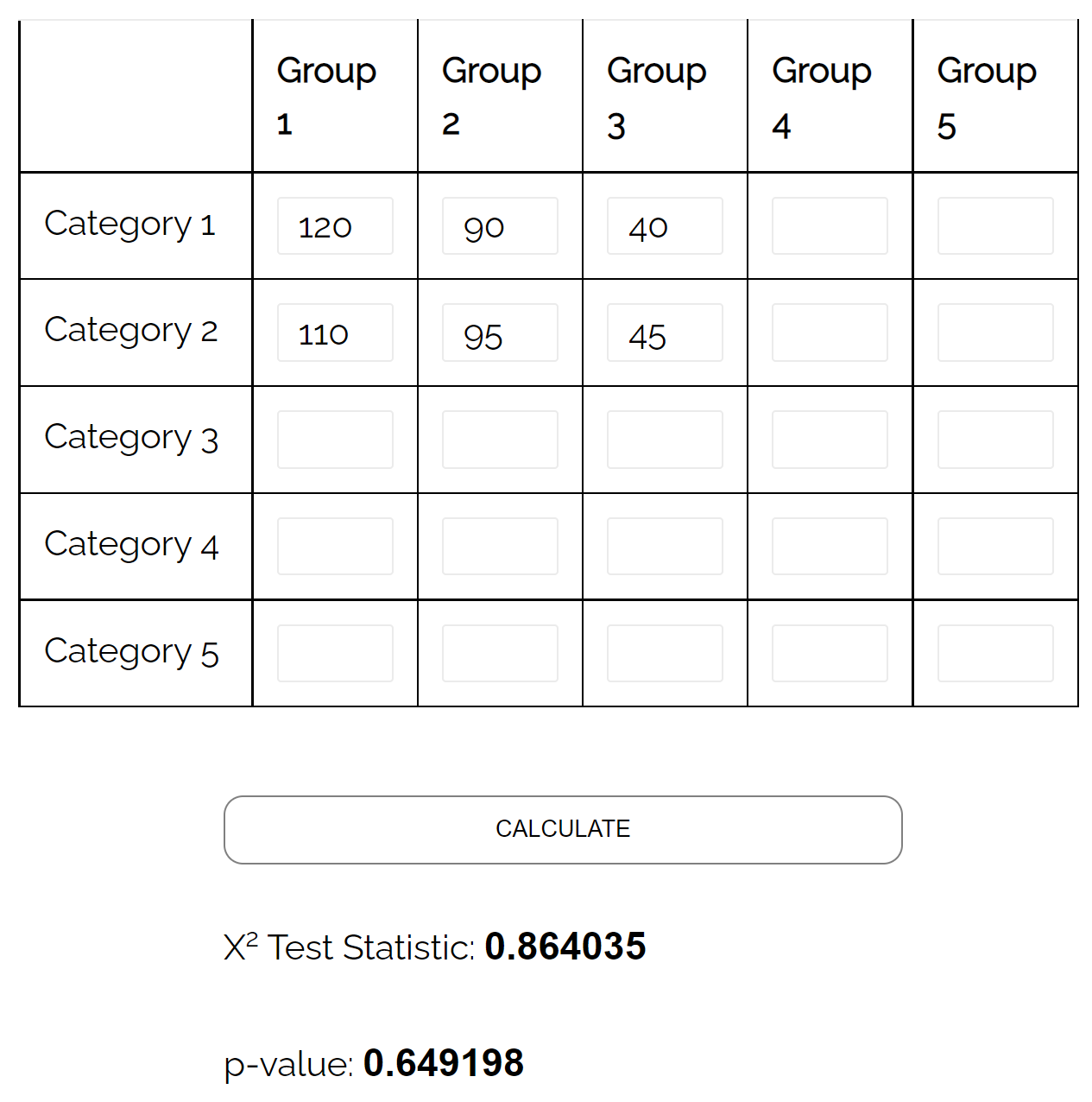

If we use to perform a Chi-Square Test of Independence, we’ll find that the p-value of the test is 0.649198.

Since this p-value is not less than .05, we do not have sufficient evidence to say that there is an association between gender and political party preference.
