How to Calculate and Interpret the Pearson Correlation Coefficient

The Pearson correlation coefficient (formally known as Pearson’s product-moment correlation coefficient) precisely measures the linear association between two statistical variables, X and Y. Its interpretation is crucial for data analysis:

• -1: Indicates a perfectly negative linear correlation, where all data points lie exactly on a straight line with a negative slope.
• 0: Indicates absolutely no linear correlation between the two variables.
• 1: Indicates a perfectly positive linear correlation, where all data points lie exactly on a straight line with a positive slope.

The Computational Formula for the Pearson Correlation Coefficient

The calculation of the Pearson correlation coefficient, denoted by r for a sample, involves standardizing the covariance of the variables by dividing it by the product of their standard deviations. This normalization ensures the resulting value is always between -1 and 1. The formula used for calculating r across a sample dataset is represented as:

While modern statistical software handles the heavy lifting, understanding the components of this formula—which incorporates the mean of X ($bar{x}$), the mean of Y ($bar{y}$), and the standard deviations—is invaluable for interpreting the result. The numerator calculates the sum of the products of the differences from the mean, reflecting the covariance, while the denominator scales this by the overall variability of X and Y.

To illustrate this process, consider the following small dataset composed of paired observations for variables X and Y:

Visualizing this data is always the first step. When these (X, Y) pairs are plotted on a scatterplot, we immediately gain a qualitative understanding of their relationship:

Based purely on this visual evidence, we can observe a clear positive association: as the values of X increase, the values of Y generally increase as well. To move beyond this qualitative assessment and accurately quantify the strength and direction of this linear relationship, we proceed with the formal calculation of the Pearson correlation coefficient.

Calculating the Numerator (Covariance)

The first step in calculating the Pearson coefficient is determining the numerator, which represents the sum of the products of the deviations from the means. This component effectively measures the covariance—how much X and Y vary together. We start by identifying the overall mean for each variable in our sample dataset. For the X values (2, 4, 6, 8), the mean ($bar{x}$) is 5. For the Y values (2, 6, 8, 12), the mean ($bar{y}$) is 7.

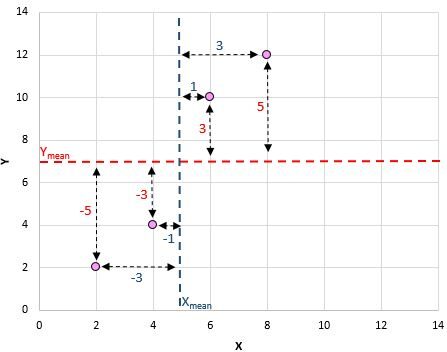

For every observed pair (X_i, Y_i), we calculate the difference between the observed value and its respective mean. We then multiply these two deviations together. For instance, considering the first pair (2, 2): the X deviation is $2 – 5 = -3$, and the Y deviation is $2 – 7 = -5$. Multiplying these results yields $(-3) times (-5) = 15$. This process is visualized below, focusing on how each point deviates from the central means:

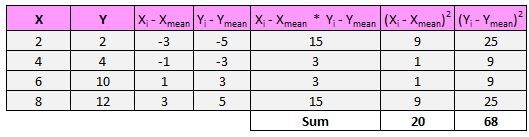

After calculating the product of deviations for all pairs, we sum these results to find the total covariance component. When a point falls into quadrants 1 or 3 (high X, high Y, or low X, low Y), the product is positive, indicating a positive correlation contribution. Performing this calculation for all pairs provides the complete numerator value:

The summation of these products is $15 + 3 + 3 + 15 = 36$. This value, 36, is the numerator of the Pearson correlation formula.

Calculating the Denominator (Scaling Factor)

The denominator serves to normalize the covariance measure, essentially ensuring that the correlation coefficient is scale-independent. It involves calculating the product of the square root of the sum of the squared deviations for X and the sum of the squared deviations for Y. This calculation is equivalent to multiplying the standard deviation of X by the standard deviation of Y, scaled by the sample size.

We must first find the sum of the squared differences for both X and Y independently. This involves squaring each deviation calculated earlier and summing them up. The squared deviations for X sum to 20, and the squared deviations for Y sum to 68:

Next, we multiply these two sums together: $20 times 68 = 1,360$. The final step for the denominator is to take the square root of this product: $sqrt{1,360} approx 36.88$.

With both the numerator (36) and the denominator (36.88) calculated, we can determine the final Pearson correlation coefficient: $r = 36 / 36.88 approx 0.976$. Since this value is extremely close to +1, it confirms the initial visual assessment from the scatterplot, indicating a very strong positive linear relationship between variables X and Y in this specific sample.

Interpreting the Pearson Coefficient Through Scatterplots

The utility of the Pearson correlation coefficient lies in its ability to simultaneously convey both the direction (positive, negative, or none) and the magnitude (weak, moderate, or strong) of the linear relationship. While the numerical value provides precision, plotting the data on a scatterplot offers critical visual confirmation, allowing analysts to immediately perceive the underlying data structure and identify potential issues like outliers.

The following visual examples demonstrate how different Pearson r values manifest in scatterplots, showcasing the spectrum of linear associations encountered in statistical analysis:

Strong Positive Relationship (r ≈ 1.0): In this scenario, the points cluster tightly along an upward sloping line. As the independent variable (X-axis) increases, the dependent variable (Y-axis) increases consistently and predictably.

Pearson correlation coefficient: 0.94

Weak Positive Relationship (r > 0, r < 0.5): Although the general trend is still upward—Y increases with X—the data points are much more dispersed. The loose scattering indicates that while a positive correlation exists, the predictive strength is low.

Pearson correlation coefficient: 0.44

No Relationship (r ≈ 0): The data points appear randomly scattered across the plot with no discernible direction, neither upward nor downward. This confirms that there is no linear dependency between the variables X and Y.

Pearson correlation coefficient: 0.03

Strong Negative Relationship (r ≈ -1.0): The data points form a tight cluster along a downward sloping line. This signifies that as the X variable increases, the Y variable decreases in a highly consistent manner.

Pearson correlation coefficient: -0.87

Weak Negative Relationship (r -0.5): A negative trend is visible, meaning Y decreases as X increases, but the points are widely scattered. The association is present but provides limited accuracy for prediction.

Pearson correlation coefficient: –0.46

Testing for Statistical Significance of the Correlation Coefficient

When analyzing data, we typically rely on a sample to draw inferences about a much larger population. A critical issue in correlation analysis is determining whether the correlation coefficient (r) found in our sample is large enough to confidently conclude that a real relationship exists in the underlying population, or if the observed correlation is simply due to random chance (sampling error). This necessity leads us to conduct significance testing.

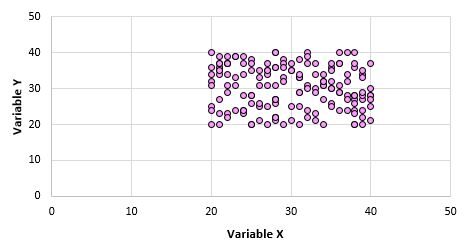

Consider a scenario where the entire population exhibits zero linear correlation. However, if we were to select a small, non-representative sample from this population, we might accidentally choose only points that happen to align linearly, leading to a sample r value far from zero. The illustration below highlights this potential bias, showing a population with zero correlation followed by a misleading sample:

If we drew the subsequent sample of points, calculating an r of 0.93 would suggest a strong association, despite the entire population exhibiting none:

To formally test the null hypothesis (H₀: $rho$ = 0, meaning the population correlation is zero), we calculate a test statistic T. This statistic transforms the correlation coefficient into a value that follows the well-known t-distribution, allowing us to determine the probability of obtaining our sample r if the null hypothesis were true. The formula for the t-test statistic is:

Test statistic T = r * $sqrt{frac{n-2}{1-r^2}}$

Here, n represents the number of paired observations in the sample, and the resulting T statistic follows a t-distribution with $n-2$ degrees of freedom. We then compare the calculated T value against a critical value or use it to find the p-value to assess statistical significance.

Significance Testing Example: Height and Weight

Let us apply the test statistic formula to a practical scenario involving the measurement of height and weight for $n=12$ individuals. This dataset is a sample intended to investigate the correlation between these two physical variables:

A visual inspection of the corresponding scatterplot confirms a visually strong, positive linear trend between height and weight:

The calculated Pearson coefficient for this specific sample is $r = 0.836$, indicating a strong positive correlation. We now proceed to determine if this relationship holds true for the larger population, setting our significance level (alpha) at $0.05$.

Using the formula for the t-test statistic, with $n=12$ and $r=0.836$: $T = 0.836 times sqrt{frac{12-2}{1-0.836^2}} approx 4.804$. With $n-2 = 10$ degrees of freedom, consulting the statistical tables shows that a t-score of 4.804 yields a two-tailed p-value of approximately $0.0007$. Since $0.0007$ is substantially less than our chosen alpha level of $0.05$, we reject the null hypothesis. We conclude that the observed correlation between height and weight is statistically significant.

Important Caveats and Limitations of Pearson’s r

While the Pearson coefficient is an indispensable tool for quantifying linear association, careful interpretation is required. Analysts must be aware of several critical limitations that can lead to misinterpretation if the data is not rigorously examined. The following three cautions are paramount for responsible statistical reporting:

1. Correlation Does Not Imply Causation. This is perhaps the most fundamental caution in statistics. Finding a strong correlation between two variables only indicates that they co-vary, not that one variable directly causes the other to change. Often, a third, unobserved variable (a confounding variable) drives the relationship observed between X and Y. A classic spurious example involves the positive correlation between increasing ice cream sales and increasing shark attacks. Both events peak during the summer months due to the confounding variable of warm weather driving both ice cream consumption and beach attendance.

2. Correlations are Sensitive to Outliers. The Pearson coefficient relies heavily on the mean and standard deviation, making it non-robust to extreme outliers. A single aberrant data point can dramatically skew the calculated r value, potentially creating the appearance of a strong correlation where none fundamentally exists, or suppressing a real one. This visualization shows a non-correlated dataset ($r=0.00$) being transformed by just one point:



   When this outlier is added, the coefficient jumps significantly to $r=0.878$, misleadingly suggesting a strong relationship:



   Visualization is therefore crucial for identifying and handling outliers appropriately.

3. It Does Not Capture Nonlinear Relationships. The Pearson coefficient measures the fitness of a straight line to the data. If the relationship between variables is curved, parabolic, or exponential, the PCC may yield a value near zero, incorrectly suggesting no relationship. The visualization below shows a clear, non-linear relationship (parabolic) that results in a Pearson $r$ of $0.00$ because the positive and negative deviations from the linear mean cancel out.



   Always utilize a scatterplot to ensure the relationship being measured is genuinely linear before relying on the Pearson coefficient.
