How to Easily Create and Customize Plot Legends in Pandas

Understanding the Core Mechanics of Plot Legends

The integration between Pandas and Matplotlib makes generating visualizations and their corresponding legends seamless. When you call the .plot() method on a DataFrame, Pandas automatically generates the visual elements and prepares the necessary data for the legend. However, the actual display and customization are handled by Matplotlib’s pyplot module, conventionally imported as plt. Understanding this underlying mechanism is key to effective customization.

The most basic operation involves invoking the plt.legend() function immediately after the plot generation command. If no arguments are passed to plt.legend(), Matplotlib attempts to automatically infer the labels from the column names of the DataFrame used for plotting. While this default behavior is often sufficient for simple charts, complex visualizations or those requiring specific labeling standards necessitate explicit definition of the legend parameters.

The general syntax for the plt.legend() function allows for profound control over appearance and positioning. Crucial parameters include a list of strings defining the desired labels, the loc argument specifying the location, and the title argument for adding an overarching description. By leveraging these parameters, users can override default settings and ensure the legend is perfectly aligned with the overall narrative of the data visualization.

You can use the following basic syntax to add a legend to a plot using Matplotlib, which is the underlying library used by Pandas plotting functions:

plt.legend(['A', 'B', 'C', 'D'], loc='center left', title='Legend Title')

This snippet demonstrates the explicit definition of four legend entries, forces the legend box to the ‘center left’ position within the plot area, and assigns a specific title, thereby providing complete control over these fundamental aspects of the legend display.

Preparing the Pandas DataFrame for Visualization

Before we can customize the legend, we need a viable DataFrame to plot. Data preparation is the critical first step. For clarity in our example, we will construct a simple DataFrame with several columns. Each column will represent a separate data series, which, when plotted, will require a corresponding entry in our legend. This setup is typical when comparing different categories or metrics across a single index.

In this scenario, we import the Pandas library and define a dictionary where the keys (‘A’, ‘B’, ‘C’, ‘D’) will naturally become the column names, and thus, the default labels for our legend. Although this specific example uses a single row indexed as ‘Values’, this structure is sufficient for demonstrating how column names translate into plot series and how they can be subsequently labeled using the plt.legend() function.

The following example initializes the data structure we will use throughout this demonstration. Note the use of pd.DataFrame() to instantiate our data object:

import pandas as pd

#create DataFrame
df = pd.DataFrame({'A':7, 'B':12, 'C':15, 'D':17}, index=['Values'])

This DataFrame, df, now contains four distinct series. When plotted, each series will be visually distinct (e.g., represented by a different color bar in a bar chart), demanding a clear legend to differentiate between ‘A’, ‘B’, ‘C’, and ‘D’.

Creating a Basic Chart and Implementing Custom Labels

Once the DataFrame is prepared, the next step is to generate the visualization. We choose a bar chart (kind='bar') as it effectively separates the visual representation of each column. By calling df.plot(), the visualization is rendered, but it typically relies on Matplotlib’s default settings for the legend, which often uses the column names directly.

To impose custom, user-friendly labels that might be more descriptive than simple column letters, we explicitly pass a list of strings to the plt.legend() function. The order of these labels is critical; they must correspond exactly to the order in which the series appear on the plot (which, by default, is the column order in the Pandas DataFrame). This manual specification gives the content writer or analyst absolute control over the narrative presented in the legend.

The following code snippet demonstrates how to import Matplotlib, generate the plot, and then immediately override the default legend labels with customized, descriptive strings. This is a foundational technique for enhancing the clarity of any visual data presentation:

import matplotlib.pyplot as plt

#create bar chart
df.plot(kind='bar')

#add legend to bar chart
plt.legend(['A Label', 'B Label', 'C Label', 'D Label'])

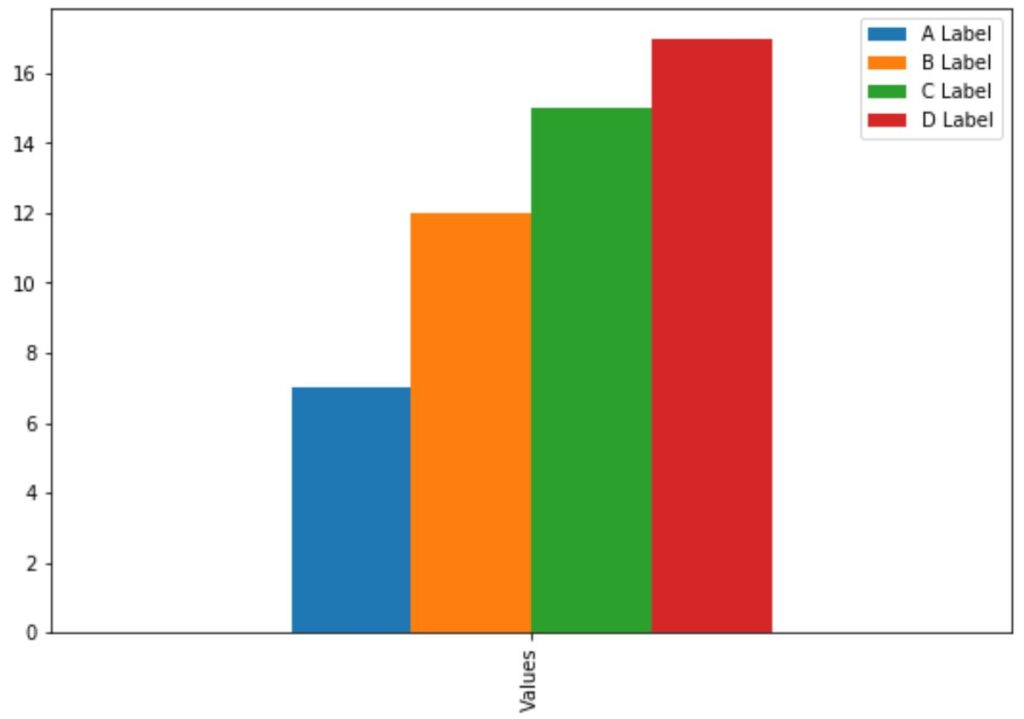

This command generates the initial visualization and applies the basic custom legend, resulting in the following output visualization:

Customizing Legend Position and Adding a Descriptive Title

One of the most frequent challenges in data visualization is ensuring the legend does not obscure important data points on the plot area. Matplotlib provides the loc argument within the plt.legend() function to manage this spatial challenge effectively. The loc argument accepts various string inputs (e.g., ‘upper right’, ‘lower center’, ‘center left’) or numerical codes (1-10) corresponding to standard positions around the plot. Choosing the optimal location often involves iterative testing to find the spot that provides the best balance between visibility and minimal data interference.

In addition to precise positioning, enhancing the legend with a title significantly improves context. The title argument allows the user to specify a string that appears centered and slightly larger at the top of the legend box. This is particularly useful when the legend represents categories derived from a specific variable, such as ‘Regional Sales Data’ or ‘Product Categories’. By providing this overarching context, the viewer can immediately grasp the meaning of the color-coded series.

The combination of the loc and title arguments transforms the legend from a simple list of labels into an organized, informative component of the graph. Below, we integrate these arguments into our previous plotting script, moving the legend to the 'upper left' and giving it the explicit title ‘Labels’:

import matplotlib.pyplot as plt

#create bar chart
df.plot(kind='bar')

#add custom legend to bar chart
plt.legend(['A Label', 'B Label', 'C Label', 'D Label'],
            loc='upper left', title='Labels')

Executing this script results in a plot where the legend is strategically placed and clearly labeled, improving overall readability, as shown in the updated figure:

Controlling Legend Aesthetics: Adjusting Font Size and Properties

Beyond positioning and labeling, the visual presentation of the legend, known as its aesthetics, significantly impacts the user experience. For plots intended for presentation slides, large posters, or documents with specific formatting requirements, adjusting the font size of the legend entries is often necessary. Matplotlib handles this customization through the prop argument in the plt.legend() function.

The prop argument expects a dictionary of font properties, allowing for fine-grained control over various textual attributes, including font family, weight, style, and, most commonly, size. By specifying {'size': X}, where X is an integer representing the desired point size, the analyst can ensure the legend text is appropriately scaled relative to the rest of the plot elements and the medium of display. This level of customization ensures adherence to corporate design standards or publication guidelines.

It is important to remember that changing the font size using prop affects all text within the legend box, including the title (if one is present). Careful selection of the size value is necessary to maintain visual harmony. The following code demonstrates how to significantly increase the font size of the legend entries to 20 points, making the legend prominent:

import matplotlib.pyplot as plt

#create bar chart
df.plot(kind='bar')

#add custom legend to bar chart
plt.legend(['A Label', 'B Label', 'C Label', 'D Label'], prop={'size': 20})

Upon execution, one will immediately notice that the font size in the legend is substantially larger, as intended by the prop setting. This visual alteration confirms the effectiveness of using the properties dictionary for aesthetic control.

Advanced Customization: Controlling Layout and Appearance

Beyond the basic arguments of location, title, and size, Matplotlib offers numerous advanced parameters within plt.legend() function for highly refined control over the legend’s layout and external appearance. Two notable parameters are ncol and frameon. The ncol parameter dictates the number of columns used to display the legend entries. For charts with many series, using multiple columns can save significant space, preventing the legend box from becoming overly elongated and infringing upon the plot area. For example, setting ncol=2 would arrange the four labels (‘A Label’ through ‘D Label’) into two rows and two columns.

The frameon argument controls the visibility of the box frame surrounding the legend. By default, frameon is typically True, drawing a visible rectangular border. Setting frameon=False removes this border entirely, which is often desirable for a cleaner, less intrusive aesthetic, allowing the legend text to float directly on the plot background or margin. This minimalist approach is popular in publications where visual clutter must be strictly minimized.

Other powerful parameters include fancybox, which applies rounded corners to the legend frame, and shadow, which adds a drop shadow for a subtle three-dimensional effect. For cases where the legend must sit outside the primary axes, the bbox_to_anchor argument allows for positioning the legend relative to the figure canvas or specific coordinates, offering the utmost flexibility in placement. This level of detail ensures that data analysts can meet highly specific formatting requirements for their data visualization projects, whether for academic publication or executive presentations.

Toggling Visibility and Managing Legend Objects

In dynamic plotting environments, such as interactive dashboards or sequential presentations, there may be a need to temporarily hide or show the legend without redrawing the entire visualization. Matplotlib provides object-oriented methods for managing this. When plt.legend() function is called, it returns a Matplotlib Legend object. By capturing this object, we gain access to its methods, including .set_visible().

The .set_visible(boolean) method accepts either True or False to control whether the legend is displayed on the axes. Setting it to False hides the legend entirely, useful for cleaning up space when the data series are self-explanatory or when a different legend key is temporarily being used. Setting it back to True restores the legend to its defined position and appearance.

Another essential function related to legend management is .set_title(), which, when applied to the stored legend object, allows for programmatic modification of the legend title after the initial plot creation. For example, if we defined our legend object as leg = plt.legend(...), we could later change the title using leg.set_title('New Title'). This approach emphasizes the object-oriented nature of Matplotlib, providing analysts with granular control over every aspect of the plot’s components, enabling highly efficient iterative design and presentation workflows.

Finally, remember that Pandas plotting is inherently sequential. Any custom legend creation using plt.legend() must occur after the df.plot() call to ensure that Matplotlib has registered the necessary visual handles for the data series before attempting to apply labels to them. This ensures that the customization efforts are correctly applied to the newly generated plot.
