How to Easily Create Interaction Plots in Excel

Understanding the Purpose of an Interaction Plot

An interaction plot serves as a critical diagnostic tool in disciplines ranging from biology and engineering to social sciences. Its primary function is to visualize the relationship between two independent variables and how their simultaneous presence or variation affects a single outcome, the dependent variable. When an interaction exists, the effect of one variable changes depending on the level of the other variable. Without this visual representation, such nuanced relationships are often obscured by simple summary statistics.

This visualization technique moves beyond examining simple main effects—the isolated impact of each factor—to explore the synergistic or inhibitory relationship between them. For instance, if Factor A only significantly impacts the outcome when Factor B is set to a high level, this conditional relationship is immediately apparent when viewing the interaction plot. The graph essentially displays the mean value of the dependent variable across every combination of the independent variables’ experimental conditions.

The following comprehensive, step-by-step tutorial demonstrates exactly how to structure the data, generate the plot, and, most importantly, accurately interpret the results of an interaction analysis using Microsoft Excel. We will use a classic experimental design example involving plant growth to illustrate these concepts clearly.

Defining the Experimental Factors and Data Preparation

Before plotting any data, meticulous preparation of the input table is paramount. For this example, we are investigating a standard 2×2 factorial design aimed at quantifying how environmental conditions influence biological outcomes. Specifically, we seek to understand the effects of two critical independent variables—sunlight exposure and watering frequency—on the dependent variable, which is the mean growth rate of a specific plant species, measured in inches.

Our experiment involves 60 plants, distributed equally across four unique experimental conditions. The factor of Sunlight Exposure has two levels: Low and High. Similarly, the factor of Watering Frequency also has two levels: Daily and Weekly. To create the interaction plot, we must first summarize the raw data into a compact table of cell means, where each cell represents the average growth observed under that specific combination of factors.

It is vital that the data table is structured correctly in Excel. One factor must be designated as the column header (often representing the factor that will form the separate lines in the plot), and the other factor must be used as the row headers (representing the X-axis categories). Following this convention ensures that Excel automatically generates a statistically meaningful plot configuration. Below is the structure used to input the calculated mean growth values:

Step 1: Entering the Data

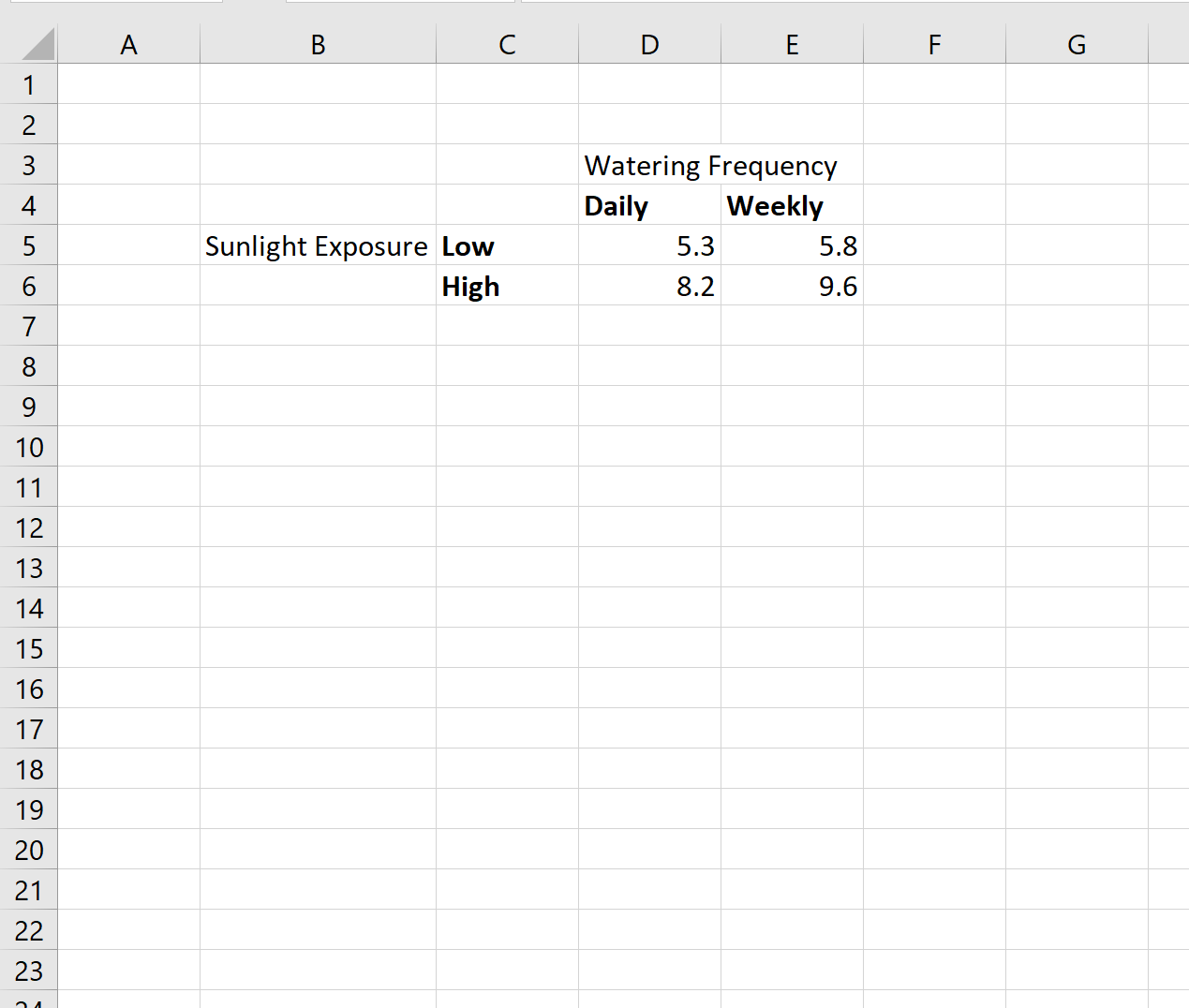

Using the data collected from the 60 experimental units, we calculate the observed mean plant growth for each combination of the two factors. This structured table provides a clear quantitative overview of the results before visualization. Note that the cell means represent the average growth in inches for the 15 plants assigned to that specific condition (60 plants / 4 conditions = 15 plants per cell).

The resulting structure provides four key mean values that define the subsequent plot:

• The mean growth for plants subjected to High Sunlight and Daily Watering was recorded at approximately 8.2 inches. This pairing represents the lowest growth outcome within the High Sunlight condition.
• Conversely, plants receiving High Sunlight paired with Weekly Watering achieved the highest mean growth in this condition, measuring around 9.6 inches. This suggests a potentially beneficial effect of less frequent watering when light is abundant.
• For the low light condition, plants receiving Low Sunlight and Daily Watering showed a mean growth of 5.3 inches. This is the lowest overall growth rate observed in the entire study.
• Finally, plants receiving Low Sunlight and Weekly Watering registered a mean growth of 5.8 inches. The minimal difference between 5.3 and 5.8 inches under low sunlight suggests that watering frequency has a negligible impact when sunlight is limited.

Step 2: Generating the Interaction Plot in Excel

The next crucial stage involves transforming the summarized mean data into a visual representation. In Excel, the correct chart type for an interaction plot is the standard 2-D Line Chart. Although the original text mentions using a 3D Surface Chart, the Line Chart provides a much clearer depiction of categorical interactions, where the X-axis represents the levels of one factor and the distinct lines represent the levels of the second factor.

To begin the plotting process, you must meticulously select the data range that contains the cell means and the associated labels. In our example, we select the range C4:E6, which encompasses the labels for the watering frequency (Daily, Weekly) and the calculated mean growth values corresponding to the two sunlight levels (Low, High). It is critical to include the row and column headers in the selection, as Excel uses this information to automatically assign the series names and axis labels.

Once the appropriate range is highlighted, navigate to the Insert tab located on the top ribbon of the Excel interface. Within the Charts group, select the Line Chart option. We recommend choosing the first 2-D Line chart type, specifically the one designated as ‘Line with Markers’, as the markers help clearly delineate the exact mean value points for each experimental condition, improving overall readability.

Upon executing this command, Excel instantly generates the foundational interaction plot. The X-axis will automatically display the levels of the factor defined in the rows (Watering Frequency: Daily vs. Weekly), while the two distinct lines represent the different levels of the column factor (Sunlight Exposure: Low vs. High). The Y-axis displays the resulting mean plant growth. This resulting line chart is the core visual tool required for statistical interpretation.

Step 3: Interpreting the Visual Results

Interpreting the interaction plot is an exercise in analyzing two core visual characteristics: the vertical separation between the lines and the slope of the individual lines. Vertical separation addresses the main effect of the factor represented by the lines (Sunlight), while the overall slope of the combined lines addresses the main effect of the factor represented by the X-axis (Watering Frequency). Finally, the degree to which the lines are parallel or non-parallel determines the presence or absence of an interaction effect.

It is important to remember that the interaction plot provides visual evidence, but formal conclusions regarding statistical significance must be confirmed by performing an analysis of variance (ANOVA). Nonetheless, the visual evidence is typically a strong indicator of the underlying statistical realities. By examining the plot, we can derive preliminary conclusions about the independent variables’ relative influence on plant growth.

Analyzing the Main Effect of Sunlight Exposure (Line Separation)

To assess the main effect of Sunlight Exposure, we examine the vertical distance between the two lines on the plot—the blue line (High Sunlight) and the orange line (Low Sunlight). A substantial vertical gap between the lines suggests a pronounced difference in the mean dependent variable scores across the levels of that factor, regardless of the second factor (Watering Frequency).

In this specific visualization, the lines are significantly far apart throughout the entire span of the X-axis. The line representing High Sunlight consistently resides much higher on the Y-axis (Mean Growth) than the line representing Low Sunlight. We observe average growth rates for low sunlight conditions hovering between 5 and 6 inches, whereas average growth rates for high sunlight conditions range dramatically higher, between 8 and 10 inches. This striking separation provides strong visual evidence that Sunlight Exposure has a statistically significant and powerful positive main effect on plant growth. More sunlight generally leads to greater growth, irrespective of the watering schedule.

This observation aligns with botanical expectations, confirming that light intensity is a primary determinant of photosynthetic efficiency and overall plant biomass accumulation. The magnitude of this difference strongly suggests that, if a researcher were required to prioritize only one factor for maximizing plant growth, increasing sunlight exposure would yield the most substantial overall improvement.

Analyzing the Main Effect of Watering Frequency (Overall Slope)

To determine the main effect of Watering Frequency, the factor represented on the X-axis, we must evaluate the overall slope or trend across both lines. If both lines exhibit a similar steep positive or negative slope as we move from Daily Watering to Weekly Watering, this indicates a strong main effect for watering frequency. Conversely, if both lines are relatively flat, it suggests a minimal main effect.

In our plot, the lines are generally flat across the X-axis. When we compare the mean growth at “Daily” watering to “Weekly” watering, the overall change is minimal, considering the magnitude of change caused by sunlight. This lack of a pronounced slope for either line suggests that, averaged across all sunlight conditions, Watering Frequency likely does not exert a statistically significant main effect on plant growth. The plants perform similarly whether watered daily or weekly, on average.

While this overall flatness is a quick diagnostic, it is crucial to inspect each line individually for consistency. For the low sunlight condition, the growth difference between daily (5.3 in) and weekly (5.8 in) watering is marginal. For the high sunlight condition, the growth actually increases slightly from daily (8.2 in) to weekly (9.6 in) watering, indicating that under high light, less frequent watering might be slightly beneficial. However, when these effects are averaged, the overall main effect remains modest or non-existent.

Identifying and Understanding the Interaction Effect (Parallelism)

The most critical function of the interaction plot is to diagnose the presence of an interaction effect. An interaction exists if the effect of one factor is conditional upon the level of the other factor. Visually, this is represented by whether the lines on the plot are parallel. If the lines are exactly or very close to parallel, no interaction is present. If the lines are clearly non-parallel, or if they cross over each other, a significant interaction is likely.

In the current visualization, the two lines representing High and Low Sunlight are observably parallel. This parallelism suggests that the difference in growth observed between daily and weekly watering is roughly the same regardless of whether the plants are in low light or high light conditions. Therefore, we can conclude that there is no significant interaction effect between watering frequency and sunlight exposure on plant growth.

This conclusion means that the positive effect of sunlight on plant growth is maintained consistently across both watering schedules. Similarly, the marginal effect of changing the watering frequency remains marginal, whether the sunlight is high or low. The factors operate independently of one another. Had the lines crossed—for example, if daily watering was best in low light but detrimental in high light—this non-parallel pattern would be definitive proof of a conditional, or interacting, relationship.

Conclusion: The Power of Interaction Plots in Research

The process of creating and interpreting an interaction plot in Excel is an invaluable skill for any researcher working with multivariate data. It allows for the rapid visual assessment of complex relationships, distinguishing between simple additive effects (main effects) and synergistic or antagonistic conditional effects (interaction effects). While Excel provides the visualization, the researcher provides the critical interpretation, transforming plotted lines into meaningful scientific insights.

For our plant growth study, the interaction plot clearly demonstrated that Sunlight Exposure is the overwhelmingly dominant factor. Furthermore, the plot provided assurance that manipulating watering frequency does not fundamentally alter the benefits derived from high sunlight. This conclusion, supported by the visual evidence of parallel lines, saves time and resources by directing future experimentation toward maximizing the key influential factor—sunlight—rather than spending effort optimizing a non-interacting variable like watering frequency. This powerful statistical understanding serves as the foundation for further advanced statistical modeling, such as a formal Two-Way ANOVA.
