Standardized residuals are a way to measure how far away from the expected value a given observation is. In R, standardized residuals can be calculated using the resid() function. This function takes a model object and the data used to fit the model as input and returns the standardized residuals for each observation as output. This allows us to easily measure how far off the expected values our observations are.
A residual is the difference between an observed value and a predicted value in a regression model.
It is calculated as:
Residual = Observed value – Predicted value

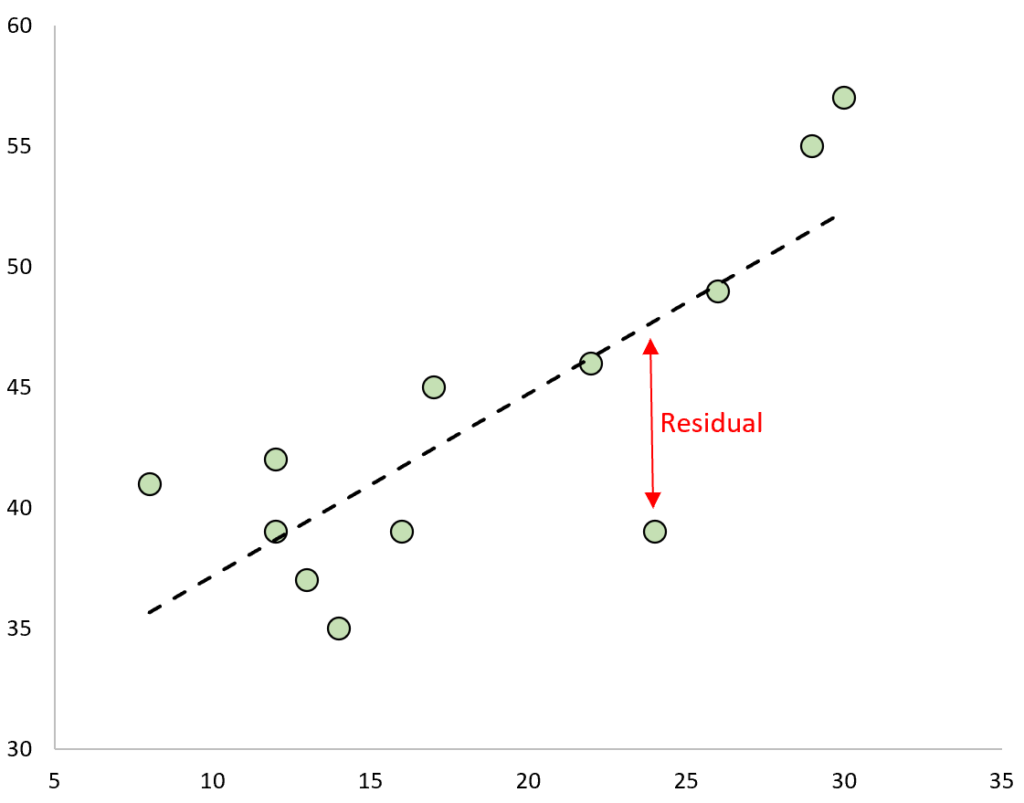

If we plot the observed values and overlay the fitted regression line, the residuals for each would be the vertical distance between the observation and the regression line:
One type of residual we often use to identify outliers in a regression model is known as a standardized residual.
It is calculated as:
ri = ei / s(ei) = ei / RSE√1-hii
where:
- ei: The ith residual
- RSE: The residual standard error of the model
- hii: The leverage of the ith observation
In practice, we often consider any standardized residual with an absolute value greater than 3 to be an outlier.
This tutorial provides a step-by-step example of how to calculate standardized residuals in R.
Step 1: Enter the Data
First, we’ll create a small dataset to work with in R:
#create data data <- data.frame(x=c(8, 12, 12, 13, 14, 16, 17, 22, 24, 26, 29, 30), y=c(41, 42, 39, 37, 35, 39, 45, 46, 39, 49, 55, 57)) #view data data x y 1 8 41 2 12 42 3 12 39 4 13 37 5 14 35 6 16 39 7 17 45 8 22 46 9 24 39 10 26 49 11 29 55 12 30 57
Step 2: Fit the Regression Model
Next, we’ll use the lm() function to fit a :
#fit model model <- lm(y ~ x, data=data) #view model summary summary(model) Call: lm(formula = y ~ x, data = data) Residuals: Min 1Q Median 3Q Max -8.7578 -2.5161 0.0292 3.3457 5.3268 Coefficients: Estimate Std. Error t value Pr(>|t|) (Intercept) 29.6309 3.6189 8.188 9.6e-06 *** x 0.7553 0.1821 4.148 0.00199 ** --- Signif. codes: 0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1 Residual standard error: 4.442 on 10 degrees of freedom Multiple R-squared: 0.6324, Adjusted R-squared: 0.5956 F-statistic: 17.2 on 1 and 10 DF, p-value: 0.001988
Step 3: Calculate the Standardized Residuals
Next, we’ll use the built-in rstandard() function to calculate the standardized residuals of the model:
#calculate the standardized residuals standard_res <- rstandard(model) #view the standardized residuals standard_res 1 2 3 4 5 6 1.40517322 0.81017562 0.07491009 -0.59323342 -1.24820530 -0.64248883 7 8 9 10 11 12 0.59610905 -0.05876884 -2.11711982 -0.06655600 0.91057211 1.26973888
We can add the standardized residuals back to the original data frame if we’d like:
#column bind standardized residuals back to original data frame final_data <- cbind(data, standard_res) #view data frame x y standard_res 1 8 41 1.40517322 2 12 42 0.81017562 3 12 39 0.07491009 4 13 37 -0.59323342 5 14 35 -1.24820530 6 16 39 -0.64248883 7 17 45 0.59610905 8 22 46 -0.05876884 9 24 39 -2.11711982 10 26 49 -0.06655600 11 29 55 0.91057211 12 30 57 1.26973888
We can then sort each observation from largest to smallest according to its standardized residual to get an idea of which observations are closest to being outliers:
#sort standardized residuals descending
final_data[order(-standard_res),]
x y standard_res
1 8 41 1.40517322
12 30 57 1.26973888
11 29 55 0.91057211
2 12 42 0.81017562
7 17 45 0.59610905
3 12 39 0.07491009
8 22 46 -0.05876884
10 26 49 -0.06655600
4 13 37 -0.59323342
6 16 39 -0.64248883
5 14 35 -1.24820530
9 24 39 -2.11711982
From the results we can see that none of the standardized residuals exceed an absolute value of 3. Thus, none of the observations appear to be outliers.
Step 4: Visualize the Standardized Residuals
Lastly, we can create a scatterplot to visualize the values for the predictor variable vs. the standardized residuals:
#plot predictor variable vs. standardized residuals
plot(final_data$x, standard_res, ylab='Standardized Residuals', xlab='x')
#add horizontal line at 0
abline(0, 0)
