How can I calculate Studentized Residuals in R?

Understanding Residuals and Their Significance

In the realm of statistical modeling, particularly linear regression, understanding the discrepancy between the actual data points and the values predicted by the model is paramount. This discrepancy is known as a residual. Formally, a residual is the difference between the observed value of the dependent variable and the value predicted by the regression line. Analyzing these residuals is crucial because they provide insight into how well the chosen model fits the underlying data structure.

While standard residuals are useful for general diagnostics, they lack standardization, making it difficult to compare their magnitudes across different data points or models, especially if the variance of the errors is not constant (a condition known as heteroscedasticity). Therefore, statisticians often turn to standardized or, even better, studentized versions of these metrics. By normalizing residuals, we can establish universal benchmarks for identifying problematic data points that might unduly influence the model’s parameters.

The calculation of residuals is an intrinsic part of fitting any statistical model in R. When a model is fitted, the software computes a residual for every single data point used in the training process. These raw residuals are simply the vertical distances from the data points to the fitted regression line. However, the interpretation of a raw residual is limited because it doesn’t account for the inherent variability of the estimates, particularly the leverage of the specific observation involved. This is where studentized metrics become essential tools for rigorous model diagnostics.

Defining the Studentized Residual

A studentized residual is a refined version of the standard residual, calculated by dividing the residual by its estimated standard deviation. Unlike standardized residuals, which use a single estimate for the standard deviation of all errors, studentized residuals are more robust as they use an estimate of the error variance based on a model fitted without the corresponding observation itself. This “leave-one-out” approach makes the studentized residual a more accurate measure of the extent to which a specific data point is an outlier relative to the rest of the dataset.

The primary advantage of using studentized residuals lies in their utility for identifying influential data points and outliers. Because these values are standardized and adjusted for varying error variances across the predictor space, they often follow a known distribution (a t-distribution with specific degrees of freedom), which facilitates hypothesis testing and establishing clear thresholds. The common practice in statistical analysis dictates that any observation yielding a studentized residual with an absolute value greater than 3 is typically flagged as a potential outlier requiring further investigation. This threshold serves as a powerful rule of thumb for initial data scrutiny.

Understanding the distinction between residual types is crucial for effective model critique. While raw residuals tell you the magnitude of the error, standardized residuals normalize this error using the overall error variance. Studentized residuals, conversely, incorporate the leverage of the point and calculate the error variance specifically excluding that point, providing the most robust measure of how unusual that observation is compared to the model built on the remaining data. Therefore, whenever searching for influential points or verifying assumptions like normality and homoscedasticity, the studentized residual is often the preferred metric.

The Role of the MASS Package in R

To efficiently calculate studentized residuals in R, we utilize the powerful capabilities provided by the Modern Applied Statistics with S (MASS) package. This package, co-authored by statistical giants W.N. Venables and B.D. Ripley, is fundamental to many advanced statistical procedures in R. It provides the specific function, studres(), designed to compute these diagnostics directly from a fitted regression model object.

The syntax for applying this function is remarkably straightforward, emphasizing R’s commitment to simplicity in complex analysis. The function requires only one argument: the fitted model object. The general syntax is: studres(model), where model is any object representing a fitted linear model (typically created using the lm() function). Once executed, the function returns a vector of studentized residual values, one corresponding to each observation used in the model fitting process.

Before using this crucial diagnostic function, users must ensure the MASS package is loaded into the current R session. If the package is not already installed, it must be acquired from CRAN (Comprehensive R Archive Network). The ease with which complex diagnostics like studentized residuals are obtained underscores why R remains the dominant environment for statistical computing, providing ready access to sophisticated tools necessary for comprehensive model validation.

Setting Up the Linear Regression Model in R

To provide a concrete example, we will employ the built-in R dataset mtcars, which contains data on 32 automobiles. Our goal is to model the relationship between a car’s fuel efficiency, measured in miles per gallon (mpg), and its engine displacement (disp). This foundational step requires fitting a simple linear regression model before we can proceed to calculate the diagnostics needed to check for potential outliers.

The code block below demonstrates the necessary R commands to define and fit this initial model. We use the standard lm() function, specifying mpg as the dependent variable and disp as the independent (predictor) variable, using the mtcars dataset. This creates the primary model object, which serves as the input for calculating the studentized residuals later on. This model fitting process estimates the parameters (intercept and slope) that define the line of best fit through the data points.

#build simple linear regression model
model <- lm(mpg ~ disp, data=mtcars)

It is crucial to verify that the model has been correctly specified and fitted before moving on to residual analysis. While this simple example is straightforward, in real-world scenarios involving multiple predictors or complex data structures, ensuring model validity through initial checks is a necessary precursor to advanced diagnostic analysis. Once the model object is successfully generated, it contains all the information—including the raw residuals—needed by the studres() function to derive the studentized values.

Executing the Studentized Residual Calculation

With the linear model successfully fitted, the next logical step is to calculate the studentized residuals for every observation. This is achieved by first loading the necessary library and then invoking the studres() function on our fitted model object. This process immediately transforms the raw prediction errors into standardized, leverage-adjusted metrics, making them directly comparable across the dataset.

The R code snippet below illustrates this process. We first use the library(MASS) command to load the MASS package, granting access to the required function. We then assign the resulting vector of studentized residuals to a new variable, stud_resids. Viewing the head of this new vector confirms the calculation has been executed, providing the first few studentized residual values associated with the initial vehicles in the mtcars dataset.

library(MASS)

#calculate studentized residuals
stud_resids <- studres(model)

#view first three studentized residuals
head(stud_resids, 3)

    Mazda RX4 Mazda RX4 Wag    Datsun 710
   -0.6236250    -0.6236250    -0.7405315

The output shows the individual studentized residual values for the first three observations. These numerical values themselves indicate the degree of deviation, standardized by the error variance adjusted for the observation’s leverage. Values close to zero suggest the model predicts the outcome well for that specific point, while magnitudes approaching or exceeding the absolute value of 3 signal potential outliers that warrant careful attention during the diagnostic phase of the statistical analysis.

Visualizing Studentized Residuals for Outlier Detection

While numerical inspection is helpful, visualizing the relationship between the predictor variable and the studentized residuals provides a far more intuitive and effective way to identify patterns, check for model assumptions, and quickly spot potential outliers. A standard residual plot graphs the studentized residuals against the fitted values or, in the case of a simple regression, against the predictor variable itself.

The following code block generates a scatter plot using the disp (displacement) values on the x-axis and the newly calculated stud_resids on the y-axis. By adding a horizontal line at y=0 using abline(0, 0), we establish a clear baseline. Points lying far from this zero line represent observations where the actual value deviates significantly from the model’s prediction.

#plot predictor variable vs. studentized residuals
plot(mtcars$disp, stud_resids,  ylab='Studentized Residuals', xlab='Displacement')

#add horizontal line at 0
abline(0, 0)

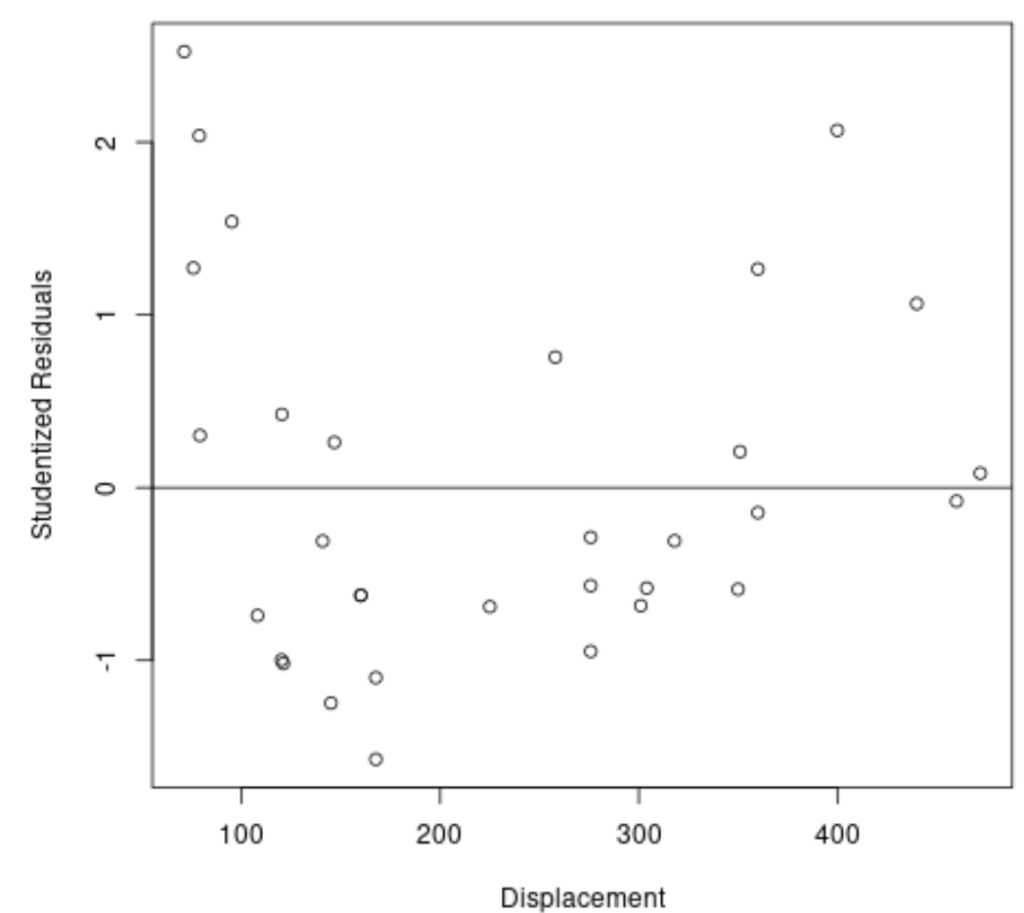

The resulting plot, as seen below, allows for immediate visual assessment of the residual distribution. When examining this plot, we are specifically looking for any points that fall outside the critical zone defined by the absolute value of 3. If any point were found above +3 or below -3 on the y-axis, it would strongly suggest that the corresponding data point is an outlier that might be biasing the estimates of our linear model. In this specific example, the visual inspection confirms that all points lie comfortably within the acceptable range, indicating no clear outliers are present based on this metric.

Integrating Results: Adding Residuals to the Dataset

For ongoing data analysis, it is often practical and necessary to merge the calculated diagnostic metrics, such as the studentized residual values, back into the original dataset. This integration allows analysts to directly inspect the characteristics of the individual data points that exhibit the highest or lowest residual values, facilitating deeper investigation into specific observations.

The process of merging is straightforward in R using the cbind() function, which binds columns together. We create a new dataframe, final_data, containing the key variables from the original mtcars dataset (mpg and disp) alongside the calculated stud_resids vector. Because the residuals vector retains the observation names (the row names of the mtcars dataset), the merging operation is seamless and preserves the integrity of the data structure.

#add studentized residuals to orignal dataset
final_data <- cbind(mtcars[c('mpg', 'disp')], stud_resids)

#view final dataset
head(final_data)

                   mpg disp stud_resids
Mazda RX4         21.0  160  -0.6236250
Mazda RX4 Wag     21.0  160  -0.6236250
Datsun 710        22.8  108  -0.7405315
Hornet 4 Drive    21.4  258   0.7556078
Hornet Sportabout 18.7  360   1.2658336
Valiant           18.1  225  -0.6896297

By viewing the output of the head(final_data) command, we confirm that each vehicle now has its corresponding fuel efficiency, engine displacement, and the diagnostic studentized residual neatly aligned. This integrated dataframe is the foundational material for the next step: systematically identifying the observations that are statistically most extreme and therefore most deserving of detailed scrutiny.

Identifying Potential Influential Observations

Even if no clear outliers (values > |3|) are identified through plotting, it is highly informative to identify which observations are closest to this threshold. These observations, while not strictly classified as outliers, exert the most leverage or represent the largest standardized deviations, thus indicating points where the model performs the poorest relative to the general trend.

To pinpoint these potentially influential data points, we can sort the complete dataset based on the magnitude of the studentized residual in descending order. This brings the observations with the largest positive residuals (the most underpredicted points) to the top of the list, followed by the largest negative residuals (the most overpredicted points) towards the bottom.

The use of the R function order(-stud_resids) achieves this descending sort efficiently. By examining the sorted list, analysts can quickly identify the specific vehicle models that deviate most significantly from the relationship established by the regression equation, enabling targeted qualitative analysis of these particular data points to determine if they represent measurement errors, unique characteristics, or simply natural statistical variation.

#sort studentized residuals descending
final_data[order(-stud_resids),]

                     mpg  disp stud_resids
Toyota Corolla      33.9  71.1  2.52397102
Pontiac Firebird    19.2 400.0  2.06825391
Fiat 128            32.4  78.7  2.03684699
Lotus Europa        30.4  95.1  1.53905536
Honda Civic         30.4  75.7  1.27099586
Hornet Sportabout   18.7 360.0  1.26583364
Chrysler Imperial   14.7 440.0  1.06486066
Hornet 4 Drive      21.4 258.0  0.75560776
Porsche 914-2       26.0 120.3  0.42424678
Fiat X1-9           27.3  79.0  0.30183728
Merc 240D           24.4 146.7  0.26235893
Ford Pantera L      15.8 351.0  0.20825609
Cadillac Fleetwood  10.4 472.0  0.08338531
Lincoln Continental 10.4 460.0 -0.07863385
Duster 360          14.3 360.0 -0.14476167
Merc 450SL          17.3 275.8 -0.28759769
Dodge Challenger    15.5 318.0 -0.30826585
Merc 230            22.8 140.8 -0.30945955
Merc 450SE          16.4 275.8 -0.56742476
AMC Javelin         15.2 304.0 -0.58138205
Camaro Z28          13.3 350.0 -0.58848471
Mazda RX4 Wag       21.0 160.0 -0.62362497
Mazda RX4           21.0 160.0 -0.62362497
Maserati Bora       15.0 301.0 -0.68315010
Valiant             18.1 225.0 -0.68962974
Datsun 710          22.8 108.0 -0.74053152
Merc 450SLC         15.2 275.8 -0.94814699
Toyota Corona       21.5 120.1 -0.99751166
Volvo 142E          21.4 121.0 -1.01790487
Merc 280            19.2 167.6 -1.09979261
Ferrari Dino        19.7 145.0 -1.24732999
Merc 280C           17.8 167.6 -1.57258064

From the sorted output, we clearly see that the “Toyota Corolla” has the highest studentized residual (2.52), indicating it is the most underpredicted observation in the dataset relative to the fitted model. While this value is below the critical threshold of 3, its proximity suggests it is the most extreme data point in terms of model fit, perhaps due to its unusually high fuel efficiency relative to its small displacement.

Conclusion and Further Reading

The process of calculating and interpreting studentized residuals is an indispensable component of rigorous regression diagnostics. By leveraging the MASS package in R, we can quickly transform raw prediction errors into robust, standardized metrics that accurately reflect the extremity of each observation relative to the overall model structure. This standardization is critical for detecting influential data points or outliers that could otherwise distort the interpretation of regression coefficients and compromise the validity of statistical inferences.

The ability to integrate these residuals back into the original dataset and sort the resulting values provides a powerful, systematic method for pinpointing observations that require qualitative scrutiny. Whether confirming the absence of severe outliers or identifying specific cases for further investigation, the use of studentized residuals ensures that the statistical model is robust and that any conclusions drawn are based on a sound understanding of the data’s relationship to the fitted regression line.

Mastering these diagnostic techniques is foundational for anyone performing advanced statistical analysis in R. For those interested in expanding their knowledge of regression analysis and other critical diagnostic tools, the following related resources provide excellent pathways for continued learning:
