How to Create a Scatterplot with a Regression Line in R

The Significance of Scatterplots in Statistical Computation

In the expansive field of data science and statistical computing, the ability to visualize the relationship between variables is paramount. A scatterplot serves as one of the most fundamental tools for exploratory data analysis, providing a clear graphical representation of how two numerical variables interact. By plotting individual data points on a Cartesian plane, researchers can quickly identify patterns, trends, and potential outliers that might otherwise remain hidden in raw tabular data. This visual approach is essential for formulating hypotheses and determining the appropriateness of subsequent mathematical modeling techniques.

When working within the R programming language, generating these visualizations is highly efficient due to the language’s robust built-in graphical capabilities. The primary objective of creating a scatterplot is often to assess the degree of correlation between an independent variable and a dependent variable. Whether the relationship appears linear, curvilinear, or entirely random, the scatterplot provides the necessary empirical context. For professionals in fields ranging from economics to bioinformatics, mastering these visualization techniques in R is a core competency that facilitates more accurate data interpretation and decision-making.

Furthermore, the integration of a regression line, also known as a line of best fit, elevates the scatterplot from a simple descriptive tool to a predictive one. This line represents the mathematical trend that minimizes the distance between all data points and the line itself, typically calculated using the Ordinary Least Squares method. By superimposing this line onto the scatterplot, analysts can visually confirm the strength and direction of a linear relationship. This process is critical when performing simple linear regression, as it allows for a direct comparison between observed values and the values predicted by the model.

The following guide provides a comprehensive overview of how to construct these visualizations in R. We will explore the initialization of datasets, the application of the plot() function, and the subsequent addition of statistical layers such as regression lines and interval estimates. By adhering to these structured steps, you can produce professional-grade graphics that effectively communicate complex statistical findings to both technical and non-technical audiences.

Initializing the Dataset for Regression Analysis

Before any visualization can occur, it is necessary to establish a structured data frame containing the variables of interest. In R, a data frame is a versatile table-like structure where each column represents a variable and each row represents an observation. For the purposes of this demonstration, we will generate a synthetic dataset that simulates a positive linear relationship. This allows us to focus on the mechanics of the code without the noise often found in real-world data. Creating a clear and concise data structure is the foundation of any successful statistical modeling project.

The construction of a data frame involves defining vectors for both the x-axis (independent variable) and the y-axis (dependent variable). In our example, the x-values represent a sequential range, while the y-values are specifically curated to follow a generally increasing trend with some inherent variability. This variability is crucial because it reflects the stochastic nature of real-world phenomena, where variables rarely align perfectly with a mathematical function. Understanding how to manipulate these data structures is a prerequisite for advanced data manipulation and analysis.

Once the data is structured, it can be easily referenced within various R functions. The use of the data.frame() function ensures that the relationship between the x and y coordinates is preserved, allowing for seamless plotting and modeling. It is considered a best practice to name your variables descriptively, although in simple examples, ‘x’ and ‘y’ are often used for clarity. Below is the R code required to initialize this sample dataset, providing the raw material for our scatterplot and subsequent regression analysis.

#create some fake data
data <- data.frame(x = c(1, 1, 2, 3, 4, 4, 5, 6, 7, 7, 8, 9, 10, 11, 11),
                   y = c(13, 14, 17, 12, 23, 24, 25, 25, 24, 28, 32, 33, 35, 40, 41))

#create scatterplot of data

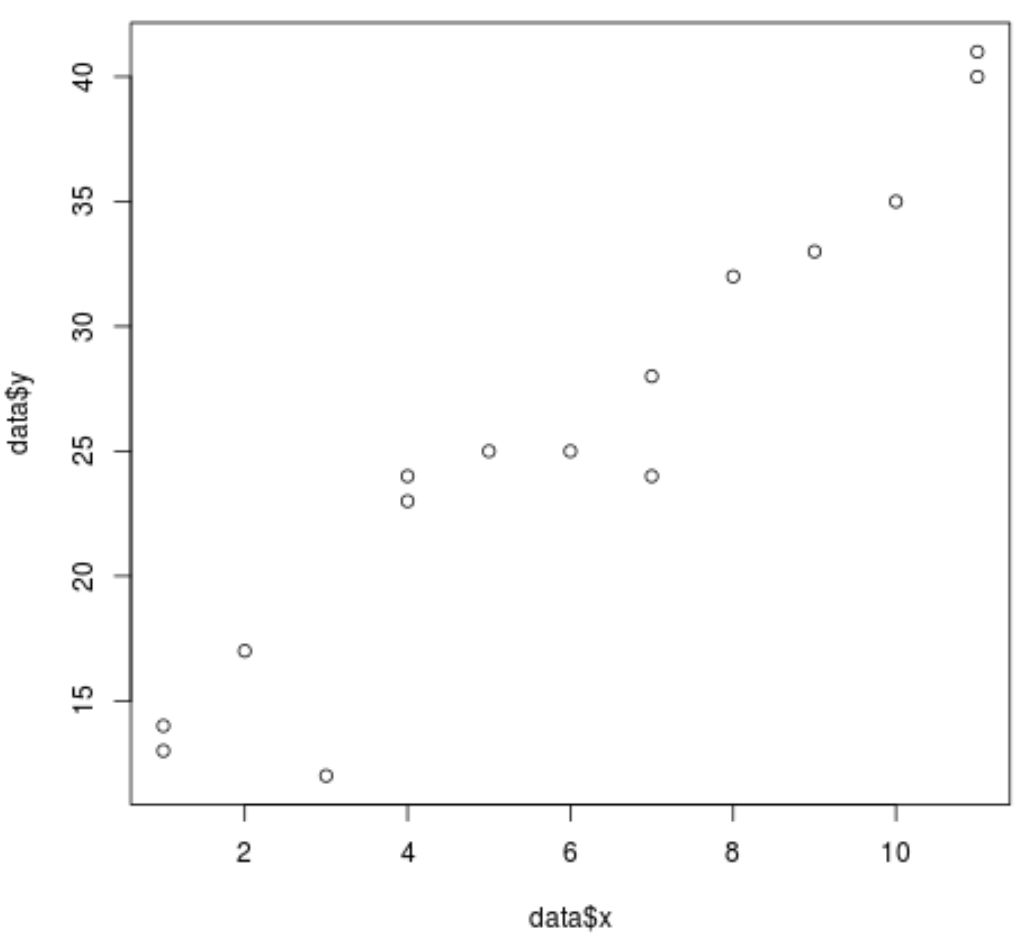

plot(data$x, data$y)

Executing the Plot Function for Basic Visualization

The plot() function in R is a versatile tool used to create a wide variety of data visualizations. When passed two numerical vectors, it defaults to generating a scatterplot. This initial visual output is often referred to as a “base R” plot, as it does not require any external libraries like ggplot2. While simple, these base plots are incredibly powerful for quick data inspection and provide a high degree of customization through various internal arguments. Understanding the syntax of plot(x, y) is fundamental for any R user.

In the generated output, each point corresponds to an (x, y) pair from the dataset. The x-axis represents the predictor or independent variable, while the y-axis represents the response or dependent variable. By observing the distribution of these points, an analyst can perform an initial assessment of the linearity of the relationship. If the points appear to cluster around an imaginary straight line, it suggests that a linear regression model may be appropriate for further analysis. If the points are scattered without a discernible pattern, the correlation may be weak or non-existent.

One of the primary advantages of the plot() function is its speed and simplicity. During the initial phases of a project, an analyst may need to generate dozens of scatterplots to understand the interactions between different variables in a large dataset. The ability to produce these plots with a single line of code allows for rapid iteration. As we progress, we will see how this basic visualization can be enhanced with additional statistical information to provide a more comprehensive view of the data’s underlying structure.

Implementing Simple Linear Regression Models

To move beyond mere observation and into the realm of statistical inference, we must fit a mathematical model to our data. In R, the lm() function is the standard tool for fitting linear models. The function uses a formula syntax, typically expressed as y ~ x, which tells R to model the dependent variable ‘y’ as a function of the independent variable ‘x’. This function calculates the coefficients—the intercept and the slope—that define the line of best fit through the Ordinary Least Squares method.

The resulting model object contains a wealth of information regarding the relationship between the variables. This includes the residuals (the difference between observed and predicted values), the R-squared value (a measure of how well the model explains the variability of the data), and the p-value, which indicates the statistical significance of the relationship. Before visualizing the regression line, it is often useful to inspect the summary of this model to ensure that the linear assumptions are met and that the model possesses explanatory power.

The transition from a raw scatterplot to a regression model is a critical step in data analysis. It transforms a collection of points into a predictive equation that can be used to estimate outcomes for new values of ‘x’. This process is the cornerstone of predictive modeling and is used extensively in academic research and industry applications. By storing the results of the lm() function in a named object, we can easily access its properties for visualization and further computation.

#fit a simple linear regression model
model <- lm(y ~ x, data = data)

#add the fitted regression line to the scatterplot

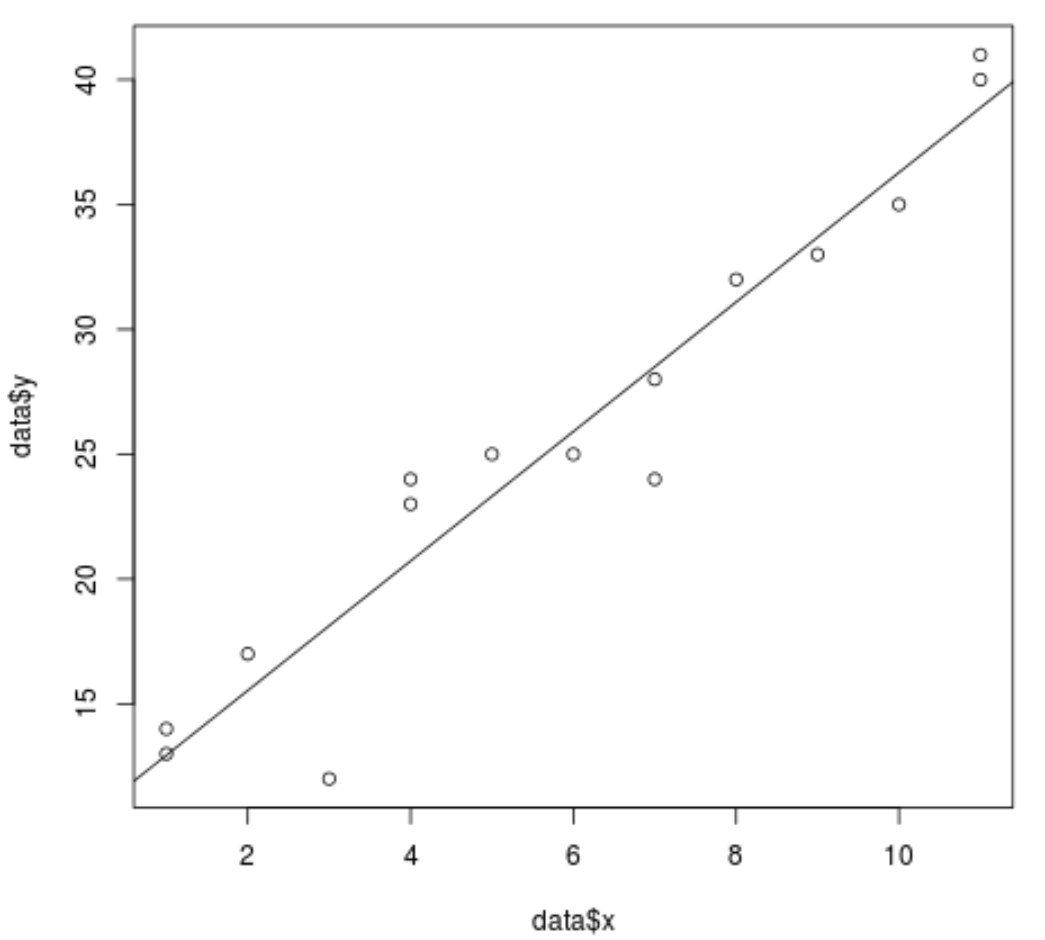

abline(model)

Integrating the Regression Line via the Abline Function

Once the linear regression model has been calculated, the next logical step is to visualize it. In R, the abline() function is specifically designed to add straight lines to an existing plot. When an lm object is passed directly to abline(), the function automatically extracts the intercept and slope coefficients and draws the corresponding regression line. This provides an immediate visual confirmation of the model’s fit relative to the actual data points.

The addition of the regression line serves several purposes. First, it allows the analyst to visually inspect the residuals—the vertical distances between the data points and the line. If the points are distributed randomly above and below the line, it suggests that the model is a good fit. Second, the slope of the line provides a visual cue regarding the strength and direction of the relationship. A steep upward slope indicates a strong positive correlation, while a horizontal line would suggest no relationship at all.

Furthermore, the abline() function is highly customizable. Users can modify the color, thickness, and style of the line to make it stand out from the data points. For instance, using a distinct color like ‘steelblue’ or ‘red’ can make the trend more apparent in a complex plot. This layer of visualization is essential for communicating the results of a regression analysis, as it provides a clear and intuitive summary of the mathematical relationship defined by the model.

Quantifying Uncertainty with Confidence Intervals

While the regression line provides an estimate of the mean relationship between variables, it is equally important to acknowledge the uncertainty inherent in that estimate. This is where confidence intervals become indispensable. A confidence interval provides a range of values within which we expect the true population mean to lie, with a certain level of confidence (typically 95%). Visualizing these intervals helps to convey the precision of our regression model.

In R, we can calculate these intervals using the predict() function. By specifying interval=”confidence”, the function generates the lower and upper bounds for the expected mean value at each point along the x-axis. These bounds are then plotted as additional lines (often dashed) on either side of the main regression line. The width of the interval is usually narrowest near the mean of the independent variable and widens as we move toward the edges of the data, reflecting increased uncertainty in those regions.

Including confidence intervals in a scatterplot is a hallmark of rigorous statistical analysis. it prevents the viewer from over-interpreting the regression line as an absolute truth and instead presents it as an estimate with associated margins of error. This level of detail is particularly important in scientific publishing and data-driven decision-making, where understanding the reliability of a trend is just as important as the trend itself.

#define range of x values
newx = seq(min(data$x),max(data$x),by = 1)

#find 95% confidence interval for the range of x values
conf_interval <- predict(model, newdata=data.frame(x=newx), interval="confidence",
                         level = 0.95)

#create scatterplot of values with regression line
plot(data$x, data$y)
abline(model)

#add dashed lines (lty=2) for the 95% confidence interval

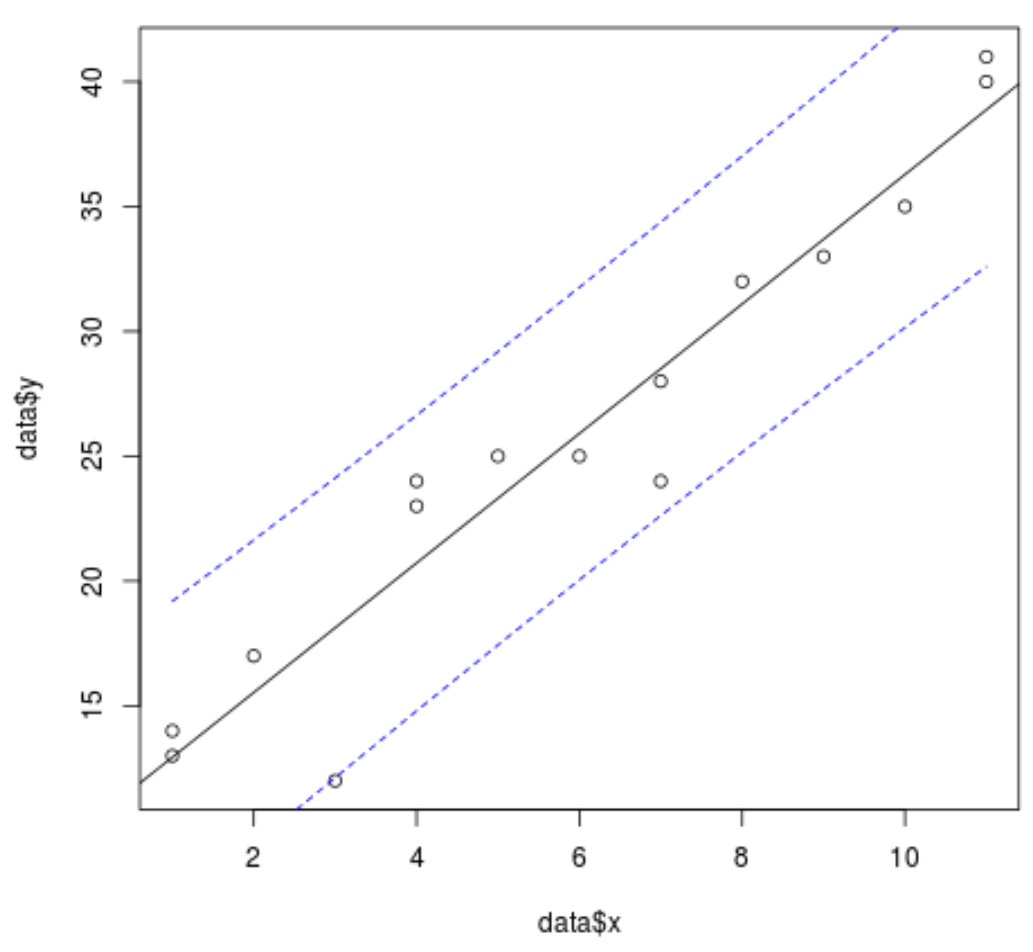

lines(newx, conf_interval[,2], col="blue", lty=2)
lines(newx, conf_interval[,3], col="blue", lty=2)

Visualizing Prediction Intervals for Model Validation

Distinct from confidence intervals are prediction intervals, which serve a different but equally vital purpose. While a confidence interval focuses on the uncertainty of the mean, a prediction interval accounts for both the uncertainty in the mean and the inherent variability of individual data points. Consequently, a prediction interval is always wider than a confidence interval, as it aims to encompass the range where a single new observation is likely to fall.

To implement this in R, the predict() function is again utilized, but with the argument interval=”prediction”. This is particularly useful for forecasting and risk assessment. If a researcher wants to know not just the average outcome, but the range of possible outcomes for a specific individual case, the prediction interval provides that information. In a visualization, these are typically represented by another set of dashed lines, often in a different color to distinguish them from confidence intervals.

Visualizing prediction intervals provides a realistic view of the model’s predictive power. If the interval is extremely wide, it suggests that while a trend may exist, individual predictions will have high variance and low precision. Understanding this distinction is crucial for anyone involved in predictive analytics or machine learning, as it highlights the limitations of the linear model in capturing the full complexity of the underlying data.

#define range of x values
newx = seq(min(data$x),max(data$x),by = 1)

#find 95% prediction interval for the range of x values
pred_interval <- predict(model, newdata=data.frame(x=newx), interval="prediction",
                         level = 0.95)

#create scatterplot of values with regression line
plot(data$x, data$y)
abline(model)

#add dashed lines (lty=2) for the 95% confidence interval
lines(newx, pred_interval[,2], col="red", lty=2)
lines(newx, pred_interval[,3], col="red", lty=2)

Refining Graphical Parameters for Professional Presentation

The default settings of R plots are functional but often lack the aesthetic polish required for formal reports or presentations. Fortunately, the plot() and abline() functions offer a plethora of arguments to customize nearly every aspect of the visualization. By modifying the plot character (pch), axis labels (xlab, ylab), and main title (main), an analyst can transform a basic chart into a professional-grade infographic that is easy to read and interpret.

For example, changing the pch argument allows you to choose from different symbols for your data points; pch=16 is a popular choice as it creates solid circles that are easier to see than the default open circles. Adding clear, descriptive labels to the axes is perhaps the most important refinement, as it ensures that the viewer understands exactly what variables are being compared. A well-chosen title provides the necessary context for the entire analysis, making the graphic self-explanatory.

Colors also play a significant role in data communication. By using the col argument in abline(), you can highlight the regression line in a color that contrasts with the data points, such as ‘steelblue’. These small changes collectively improve the readability and impact of the visualization. In the competitive field of data science, the ability to present findings clearly and attractively is a significant advantage. The final code snippet below demonstrates how to combine all these aesthetic enhancements into a single, polished plot.

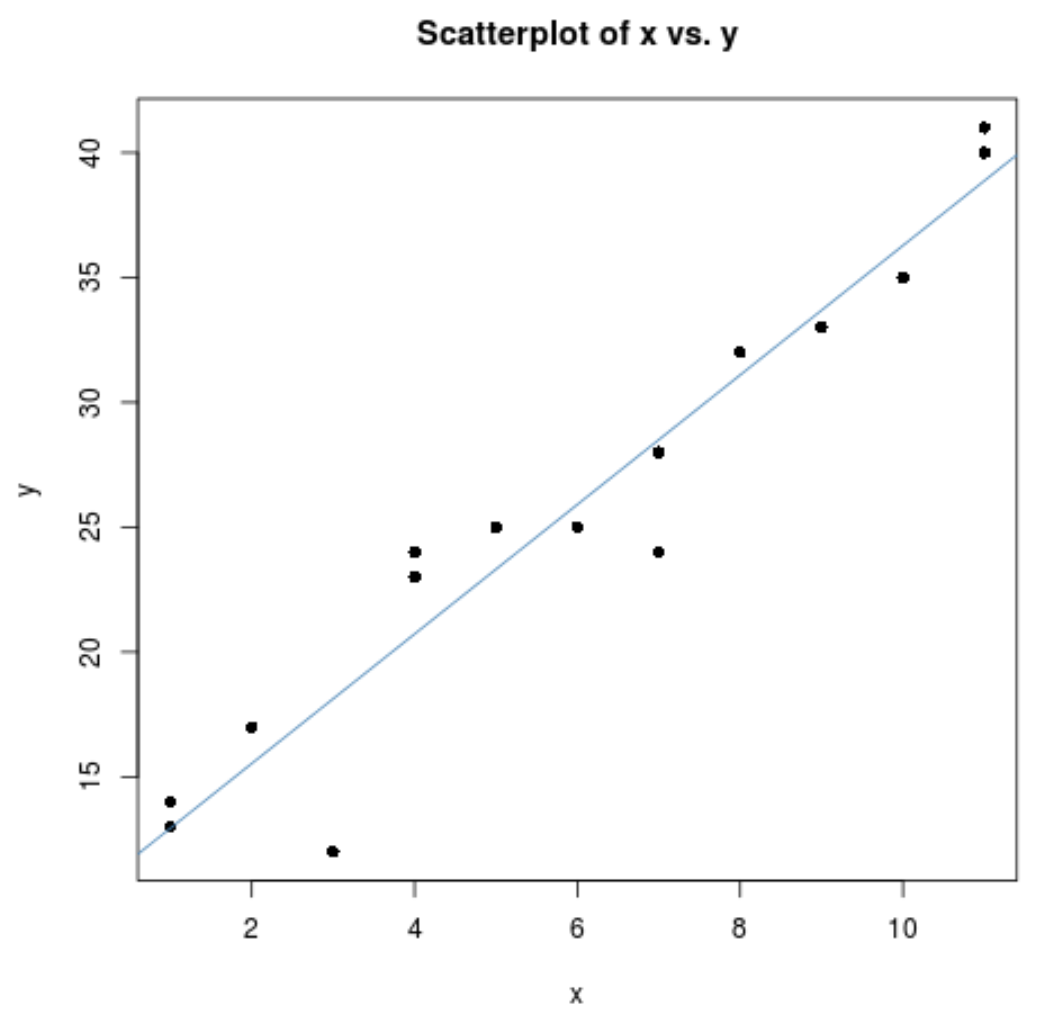

plot(data$x, data$y,
     main = "Scatterplot of x vs. y", #add title
     pch=16, #specify points to be filled in
     xlab='x', #change x-axis name
     ylab='y') #change y-axis name

abline(model, col='steelblue')#specify color of regression line

Conclusion and Best Practices in R Visualization

Creating a scatterplot with a regression line in R is a fundamental skill that bridges the gap between raw data and statistical insight. Throughout this guide, we have explored the journey from data initialization to the final aesthetic refinements of a plot. By using the plot(), lm(), and abline() functions, you can build a powerful visual narrative that describes the linear relationship between variables while acknowledging the statistical uncertainty through confidence and prediction intervals.

As you continue to develop your skills in statistical computing, remember that data visualization is an iterative process. It is often helpful to experiment with different graphical parameters and interval types to see which best represents the story your data is trying to tell. Always prioritize clarity and accuracy; a plot should never mislead the viewer or obscure the underlying data distribution. Following standardized practices, such as labeling axes and identifying the model used, ensures that your work remains transparent and reproducible.

Ultimately, the goal of these visualizations is to facilitate a deeper understanding of the data. Whether you are conducting academic research, performing business analytics, or exploring a personal project, the combination of R’s mathematical rigor and graphical flexibility makes it an ideal environment for linear regression analysis. By mastering these techniques, you are better equipped to extract meaningful conclusions from complex datasets and communicate those findings effectively to the world.
