Foundations of Range-Based Calculations in Excel

To effectively manage quantitative information, one must often filter or categorize values that exist within a specific corridor of numbers. In Microsoft Excel, this is most efficiently achieved by nesting an AND function inside the primary IF function. This dual-layered approach ensures that both the lower and upper bounds are respected simultaneously before the formula triggers a positive response. Without this logical combination, a user would be forced to use multiple nested statements, which can lead to increased computational complexity and a higher margin for manual error during the formula’s construction.

The core logic of the “between” operation relies on Boolean logic, where the software evaluates several conditions and returns a single “TRUE” or “FALSE” result. When analyzing financial reports, scientific data, or inventory levels, this precision is vital. For example, a quality control manager might only want to flag items where the temperature recorded is between two safety thresholds. By implementing a standardized formula, the spreadsheet becomes an automated auditing tool, reducing the time required for manual oversight and enhancing the overall integrity of the organizational data management strategy.

Furthermore, the flexibility of Microsoft Excel allows these formulas to be dynamic. Rather than hard-coding the numeric limits into the formula itself, an expert user might reference other cells that contain those limits. This allows for instantaneous updates across the entire spreadsheet simply by changing one or two input values. Such scalability is what separates basic users from those proficient in high-level data analysis, providing a robust framework for handling fluctuating parameters in real-time environments.

You can use the following formula to return a value in Excel only if it falls between two specific numbers:

=IF(AND(B2>=20, B2<=30), B2, "")

This particular formula checks if the value in cell B2 is between 20 and 30. This represents a closed interval in mathematical terms, meaning both 20 and 30 are included in the successful range.

If the value is between these numbers, then the formula simply returns the value, allowing the user to isolate and highlight relevant data points for further inspection.

Otherwise, the formula returns a blank, which is represented by two double quotes in the syntax. This creates a clean visual aesthetic by hiding irrelevant data that does not meet the specified criteria.

The following example shows how to use this formula in practice, providing a comprehensive look at how these functions behave within a real-world dataset context.

The Architecture of the IF and AND Functions

Understanding the inner workings of the IF function is essential for anyone looking to master Microsoft Excel. At its most basic level, the function acts as a gatekeeper, asking a single question and providing two possible outcomes. However, the complexity of real-world data analysis often requires more than a single “Yes/No” question. This is where the AND function serves as a vital companion, acting as a logical bridge that aggregates multiple tests into a single requirement for the primary function to execute.

When the AND function is invoked, it evaluates every argument within its parentheses. Only if every single argument evaluates to “TRUE” will the function itself return “TRUE” to the IF function. In the context of a range check, we use logical operators to define the floor and the ceiling of our range. Specifically, we utilize the “greater than or equal to” (>=) operator for the lower limit and the “less than or equal to” (<=) operator for the upper limit, ensuring a comprehensive evaluation of the cell's content.

This structural synergy is particularly powerful because it can be expanded to include even more conditions. For instance, a user could check if a number is between 20 and 30 and also ensure that the cell is not empty. By layering these conditions within the AND function, the user maintains a high level of control over the data flow. This prevents errors that might occur when a spreadsheet interprets a blank cell as zero, which might otherwise fall within an unintended numerical range.

Practical Application: Return Value if Between Two Numbers in Excel

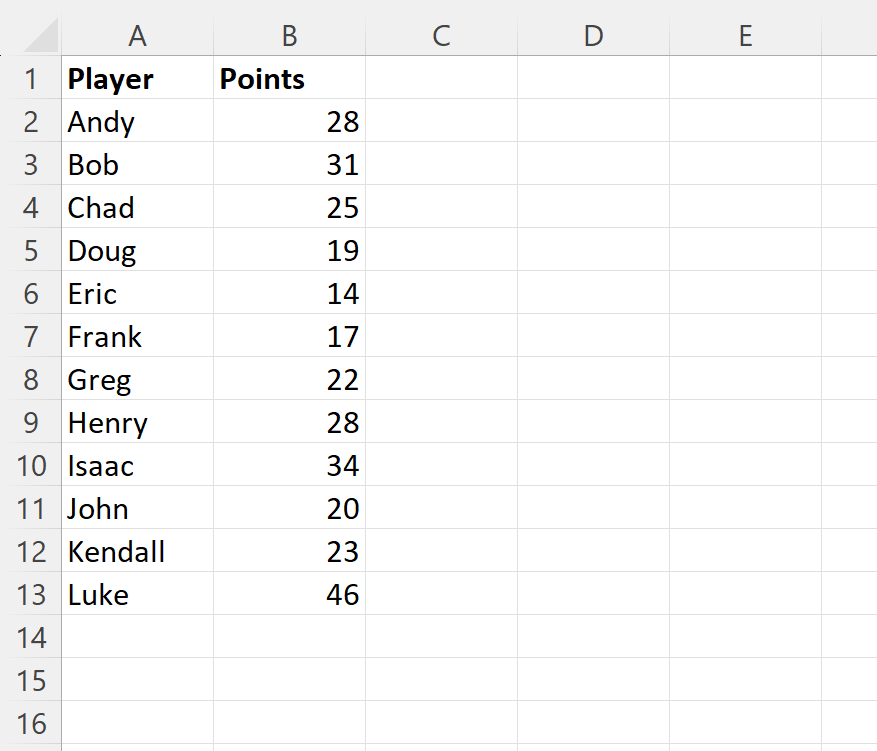

Suppose we have the following dataset in Excel that contains information about points scored by various basketball players throughout a competitive season:

In this scenario, we are interested in identifying players whose scoring performance falls within a very specific “mid-tier” range. Analyzing player performance often requires segmenting statistics to find outliers or consistent performers. By using logical operators, we can filter the “Points” column without deleting the original data, which is a best practice in data management. This allows the primary dataset to remain intact while generating a secondary, filtered view for reporting purposes.

The objective here is to isolate players who scored at least 20 points but no more than 30 points. This type of range filtering is common in sports analytics where coaches look for “efficient” scorers who hit certain benchmarks. By applying the IF function effectively, we can automate this identification process, which is far more reliable than manually scanning the rows, especially as the dataset grows from a few dozen rows to several thousand entries.

Using the Microsoft Excel interface, we position our formula in an adjacent column to the raw data. This setup provides a clear visual comparison between the original score and the filtered result. It also enables the use of additional spreadsheet features, such as conditional formatting or pivot tables, which can further analyze the data once it has been categorized by our initial “between” formula.

We can use the following formula to check if each value in the Points column is between 20 and 30:

=IF(AND(B2>=20, B2<=30), B2, "")

We can type this formula into cell C2 and then click and drag it down to each remaining cell in column C to apply the logic across the entire dataset:

If the value in column B is between 20 and 30, then column C simply returns the value, confirming that the player’s performance meets our criteria.

Otherwise, column C returns a blank, indicating that the value falls outside the 20-to-30 point range. This creates a focused list that highlights only the relevant players.

Note that you could also return other values using the IF function if you’d like to customize the output for a specific report or presentation.

Customizing Formula Outputs for Qualitative Analysis

While returning the original number is useful for mathematical data analysis, there are many instances where a qualitative label is more effective for the end-user. In professional settings, managers often prefer a clear “Status” indicator rather than raw numbers. By modifying the IF function to return strings of text, we can transform a technical spreadsheet into a user-friendly dashboard that communicates information at a glance.

This customization is achieved by replacing the “value_if_true” and “value_if_false” arguments within the formula. Instead of referencing the cell itself, we can insert text enclosed in double quotation marks. This allows for the creation of categorical data, such as “In Range” versus “Out of Range,” or “Qualified” versus “Ineligible.” This step is crucial in data management as it prepares the data for high-level summaries and visualizations where discrete categories are required.

For example, you could instead use the following formula to return either “Yes” or “No” to indicate if a value falls between 20 and 30:

=IF(AND(B2>=20, B2<=30), "Yes", "No")

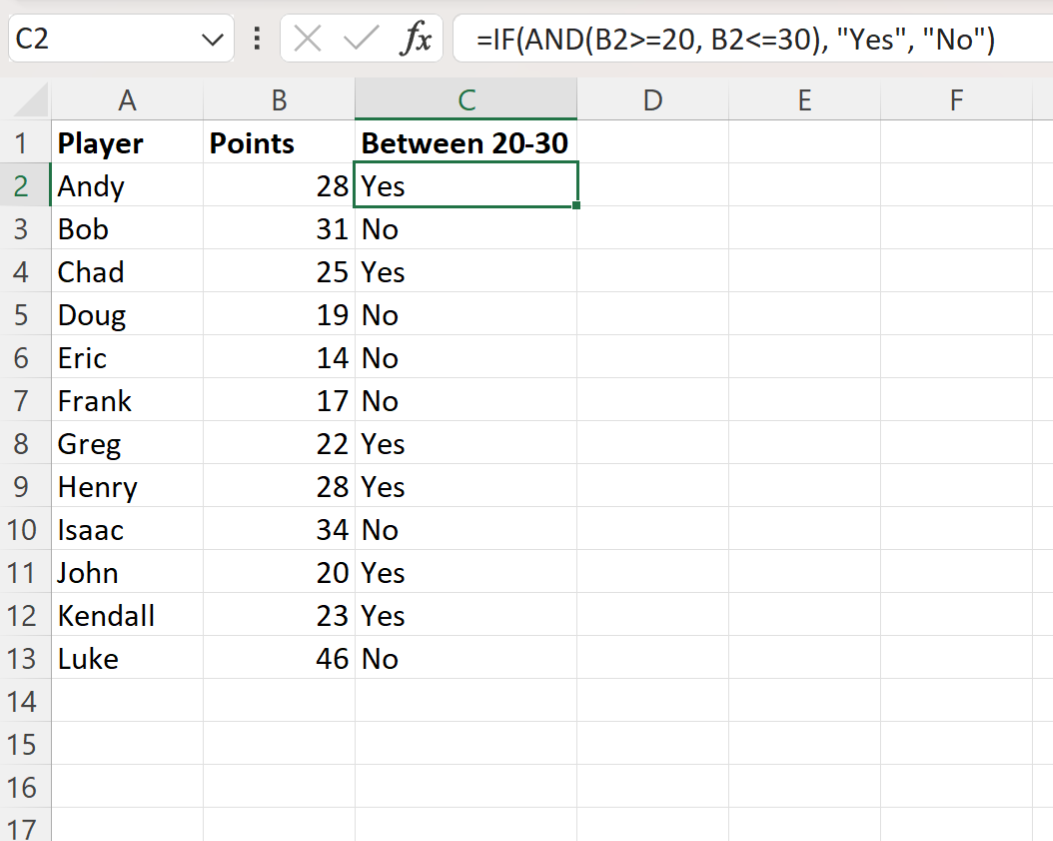

The following screenshot shows how to use this modified formula in practice, illustrating the shift from quantitative to qualitative output:

Column C now returns either “Yes” or “No” to indicate if the corresponding value in column B is between 20 and 30. This makes the dataset much easier to filter using standard Microsoft Excel filter toggles.

Technical Considerations for Logical Operators

When constructing these formulas, the choice of logical operators is paramount. A common mistake is the confusion between “inclusive” and “exclusive” ranges. If you use the “greater than” (>) and “less than” (<) operators without the "equal to" component, the formula will ignore the boundary numbers themselves. In our basketball example, a score of exactly 20 would be excluded if we only used "greater than" 20. Precision in Boolean logic is what ensures the accuracy of the resulting data analysis.

Furthermore, one must consider the data type of the cells being evaluated. Microsoft Excel is generally robust, but if a number is stored as text, the logical operators may yield unexpected results or errors. It is always advisable to ensure that the source column is formatted as a number before applying range-based formulas. This preventive step in data management saves significant time that would otherwise be spent troubleshooting “N/A” errors or incorrect logical returns.

Another advanced technique involves the use of the `MEDIAN` function as an alternative for “between” logic, though it is less intuitive for most users. However, the IF function combined with AND function remains the industry standard due to its readability and ease of modification. When sharing workbooks with colleagues, using the most common and readable formula structure ensures that others can audit and understand the logic without specialized training.

Optimizing Workflow and Expanding Formula Mastery

Once you have mastered the ability to return values based on a range, you can begin to explore more complex conditional scenarios. For instance, you might need to check multiple ranges simultaneously—such as assigning “Low,” “Medium,” or “High” labels to different numeric tiers. This would involve “nesting” multiple IF functions within one another, or utilizing the newer `IFS` function available in modern versions of Microsoft Excel.

Mastering these formulas significantly improves workflow efficiency. Instead of spending hours manually categorizing data, an automated formula can process tens of thousands of rows in milliseconds. This speed and reliability are essential in the modern era of “Big Data,” where the volume of information can easily overwhelm traditional manual processing methods. By delegating the heavy lifting to the spreadsheet, analysts can focus their time on interpreting the results and developing strategic insights.
