Understanding Conditional Formatting in Power BI

Conditional formatting serves as a critical tool for rapid data interpretation within any reporting environment. Instead of forcing the user to manually scan long lists of text, conditional formatting automatically applies visual cues—such as background colors, font changes, or data bars—when certain conditions are met. While features like color scales work seamlessly with numerical measures (e.g., highlighting sales figures based on their value), applying similar robust, rule-based formatting directly to categorical strings within a text column presents a specific technical hurdle in Power BI.

The limitation stems from how Power BI processes formatting rules. When we want to use a color scale, the system expects a continuous or ordinal numerical measure to anchor the visual changes. Text fields, being categorical, do not inherently possess this numerical order. Consequently, if you attempt to apply conditional formatting directly to a text column, you will find that the options available are often limited to basic formatting based on the field value itself, which is inefficient for scalable, rule-based coloring. Our goal is to bypass this constraint by creating a calculated column that translates each text category into a unique, measurable integer, thereby unlocking the full potential of Power BI’s conditional formatting engine.

Consider a scenario where you want to highlight different sports teams based on their division or status. You want Team A to be green, Team B to be yellow, and Team C to be red. If you look at the raw data, as illustrated below, you can see the need for immediate visual differentiation. Achieving this outcome requires careful preparation of the data model before the formatting rules can be deployed in the visualization layer, ensuring that the visual outcome is both precise and reflective of the underlying textual categories.

Fortunately, this sophisticated visual requirement is achievable through the strategic application of DAX (Data Analysis Expressions) formulas to introduce the necessary numeric mapping. The following detailed steps will walk you through the entire process, starting from data import and moving through the crucial creation of the numeric proxy column, culminating in the final visualization setup.

Step 1: Importing and Preparing the Data Set

The first and most fundamental step in any Power BI project is importing the source data. For this demonstration, we utilize a simple data structure containing information about various basketball players. This example data set includes player statistics and, crucially, a categorical field titled Team, which contains the text values we intend to conditionally format. Ensure that your data is correctly loaded into the Power BI Data View and that all columns are appropriately typed.

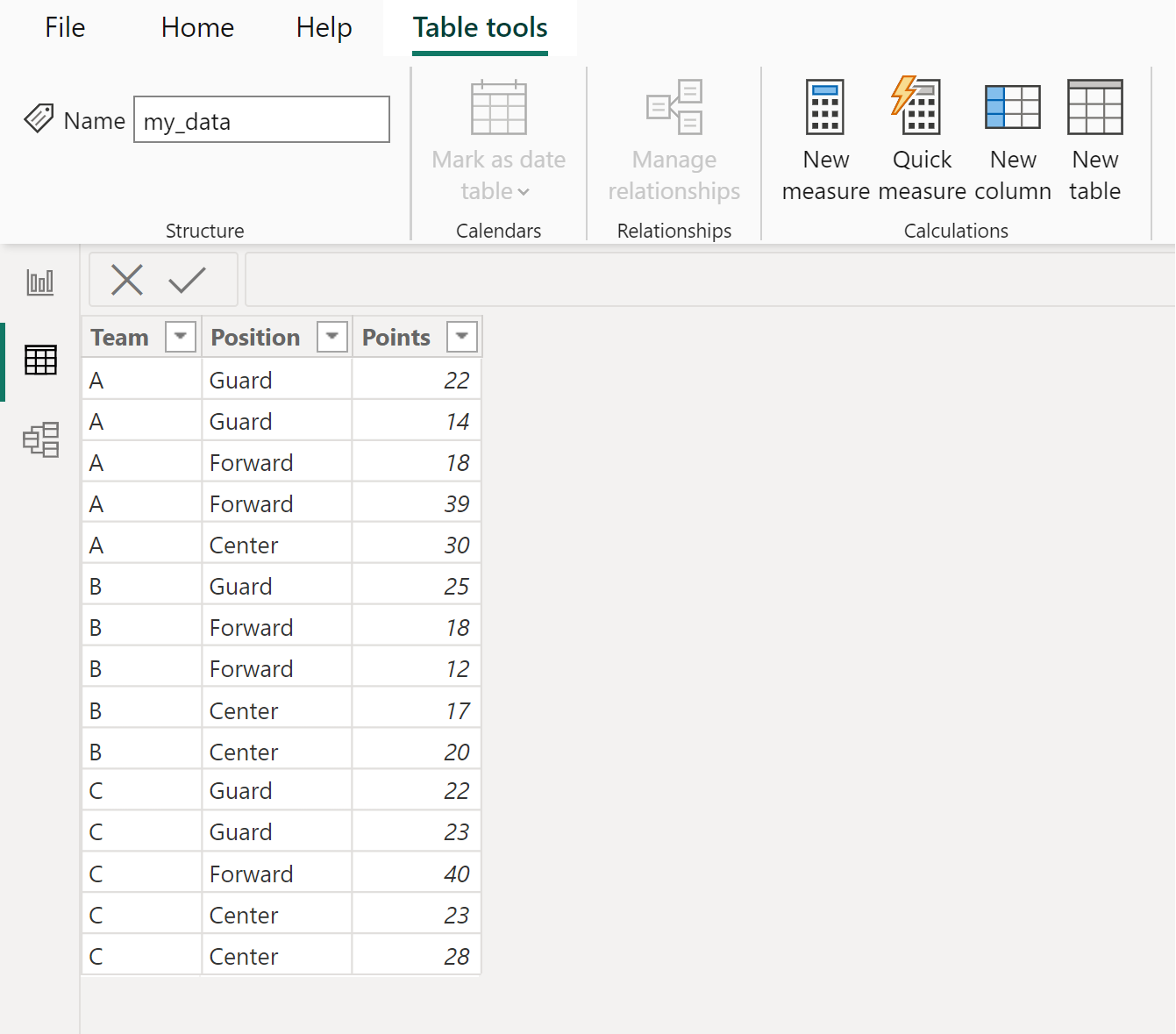

Upon successful import, your data table should be visible in the Power BI desktop environment, typically looking similar to the structure shown in the image below. Verification of the data quality and structure at this stage is essential, as any errors in the source data or during the import process will inevitably cascade into the subsequent steps, particularly when defining complex DAX logic.

Our primary focus is the Team column. Since this column contains the strings ‘A’, ‘B’, and ‘C’, which are purely categorical, we need a mechanism to assign a numerical weight or identifier to each unique category. This numeric identifier will serve as the engine for our conditional formatting rules, allowing us to define precisely what color corresponds to Team ‘A’ (e.g., 1), Team ‘B’ (e.g., 2), and Team ‘C’ (e.g., 3). This preparation sets the foundation for the crucial DAX calculation in the next step.

Step 2: Creating a Numeric Proxy Column using DAX

The inability to apply conditional formatting directly based on specific text values necessitates the creation of an intermediary, numerical column. This new column acts as a proxy, translating the text values of the Team column into a quantitative scale. This is achieved by utilizing the powerful capabilities of the DAX language within Power BI.

To begin this process, navigate to the Table tools ribbon in Power BI Desktop. Locate and click the New column icon. This action opens the formula bar, allowing you to input the DAX expression that will perform the mapping calculation. It is imperative that this new column is created in the table where the original text data resides, as the DAX expression will reference the existing categorical values row by row.

The specific DAX formula we employ here is the SWITCH function. The SWITCH function is highly effective for performing conditional logic by evaluating an expression against a list of values and returning a result corresponding to the first match. In our case, the expression is the value in the Team column, and the results are the numeric identifiers we assign. The subsequent section provides a detailed breakdown of this critical formula.

Deconstructing the SWITCH Formula

The formula used to create the numeric proxy column, which we will name New, is structured as follows. We are essentially telling Power BI: evaluate the value in the 'my_data'[Team] column; if it matches ‘A’, return 1; if it matches ‘B’, return 2; and if it matches ‘C’, return 3. The final, standalone number (4 in this case) acts as the default value if none of the preceding conditions are met, ensuring every row receives a numeric assignment.

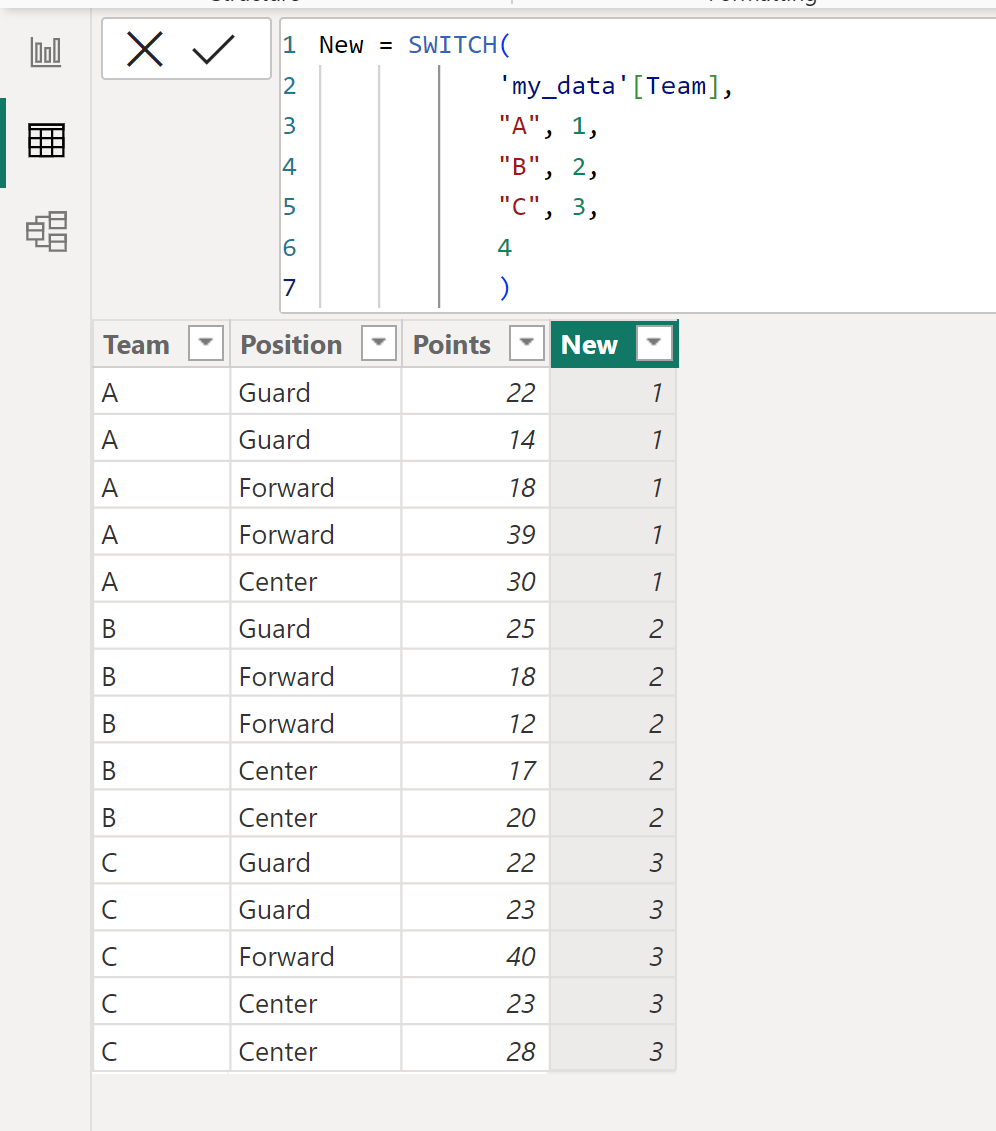

Type the following DAX code meticulously into the formula bar:

New = SWITCH(
            'my_data'[Team],
            "A", 1,
            "B", 2,
            "C", 3,
            4
            )

This formula leverages the logical flexibility of the SWITCH function. The first argument specifies the column whose values are being evaluated ('my_data'[Team]). The subsequent pairs of arguments define the mapping: the text value (e.g., "A") followed by the desired numeric outcome (e.g., 1). This systematic mapping is vital because the numerical result, 1, 2, or 3, is what the conditional formatting engine will use to trigger the corresponding background color rule.

Once the formula is confirmed, Power BI calculates the new column, New, automatically populating it with the integers 1, 2, 3, or 4, directly corresponding to the text in the Team column. This intermediary column successfully bridges the gap between the categorical nature of the text data and the numerical requirements of Power BI’s robust formatting tools. The data model now possesses the necessary components to apply sophisticated conditional formatting rules, as demonstrated by the resulting table below showing the newly calculated column alongside the original text.

Step 3: Inserting the Visualization Table

With the numerical proxy column established, the focus shifts to the visualization layer. Navigate to the Report View in Power BI Desktop. Here, we need to create a visual container—in this case, a standard Table visual—to display the data and apply the formatting. Insert a new Table visual onto the canvas and add the fields you wish to display. Crucially, ensure that both the original Team column (the text field you want to color) and the calculated New column (the numeric field that dictates the color) are present in the visual’s fields list.

While the New column is required for defining the conditional formatting rules, it does not necessarily need to be visible to the end-user. It can be present in the Columns field well of the visualization but hidden from display if preferred, although for demonstration purposes, it is often useful to keep it visible initially. The primary column displayed should be the Team column, as this is the element whose appearance we are targeting for modification.

The resulting table visualization, before any formatting is applied, will simply list the player data, including the teams and their corresponding numeric identifiers. This forms the canvas upon which the powerful visual rules will soon be painted, transitioning the raw data into an insightful, color-coded report element.

Step 4: Applying Conditional Formatting Rules

This is the final and most critical step, where we instruct Power BI to use the values in the New numeric column to drive the color changes in the Team text column. To initiate the formatting process, locate the Table visual on the canvas. In the Fields pane (or the visualization pane), find the original text field, Team, under the Columns label.

Click the dropdown arrow next to the Team field. Hover over the Conditional formatting option in the context menu that appears, and then select Background color. This action opens the dedicated conditional formatting dialogue box, allowing precise control over how colors are applied based on data values.

Within the conditional formatting window, meticulous configuration is necessary. First, change the formatting style from ‘Color scale’ to Rules, as we are defining discrete color assignments rather than a gradient. Second, and most importantly, locate the setting What field should we base this on? and select our newly created numeric column, New, from the dropdown list. Next, set the Summarization type to Minimum, ensuring the rules are evaluated correctly for each row.

Finally, we must define the specific rules that link the numeric identifier to the desired color. Create a rule for each categorical value (1, 2, 3, etc.). For instance, Rule 1 might state: If value is greater than or equal to 1 (number) and less than 2 (number), set color to Green. Rule 2: If value is greater than or equal to 2 (number) and less than 3 (number), set color to Yellow. Ensure the boundaries are set precisely to capture only the integer associated with the desired text value. This systematic rule definition ensures that the color chosen corresponds exactly to the original text category.

Once all rules are defined and you click OK, the conditional formatting is instantly applied. The background of the text strings in the Team column will now dynamically change based on the underlying value of the proxy column, New. This completes the process, successfully applying complex, rule-based formatting to a categorical text field, greatly enhancing data comprehension and visual engagement within the Power BI report.

Conclusion: Enhancing Power BI Visualizations

The strategy of creating a numeric proxy column using DAX is an essential workaround for applying sophisticated conditional formatting to text-based data in Power BI. By mapping categorical strings to measurable integers, report developers gain access to the full suite of formatting tools, enabling them to convey complex information visually and intuitively. This technique is not limited solely to background colors; it can be extended to control font color, icons, and even data bars, providing limitless possibilities for visual storytelling and data analysis within any large data set.

Mastering this method ensures that your reports are not only accurate but also highly accessible and digestible for all audiences. The ability to visually isolate and highlight key performance indicators (KPIs) or category statuses directly within tables or matrices significantly reduces the cognitive load on the user, driving faster decision-making. We have demonstrated that while direct formatting of text values may be restrictive, a structured approach involving DAX manipulation offers a robust and scalable solution for dynamic reporting needs.
