How to Plot a Weibull Distribution in R: A Step-by-Step Guide

Understanding the Fundamental Importance of the Weibull Distribution

The Weibull distribution is a highly versatile probability distribution that has gained immense popularity across various scientific and engineering disciplines. Originally identified by Fréchet and later detailed by Waloddi Weibull, this distribution is particularly effective for modeling life data and the reliability engineering of components. Because its shape can vary significantly based on its parameters, it is capable of mimicking the characteristics of other distributions, such as the normal distribution or the exponential distribution. This flexibility makes it an essential tool for professionals who need to analyze failure rates, wind speeds, or material strengths where data might be skewed or follow non-linear patterns.

In the realm of statistical computing, R stands out as a premier environment for performing complex data analysis and visualization. To effectively model survival data or conduct a risk analysis, researchers often turn to the robust suite of functions provided by the R programming language. By utilizing the built-in stats package, users can access a variety of tools specifically designed to handle the Weibull distribution. These tools allow for the calculation of densities, cumulative probabilities, and quantiles, providing a comprehensive framework for statistical inference and empirical modeling.

Visualizing these distributions is crucial for communicating complex data findings. A probability density function plot allows analysts to observe the “center” and “spread” of the data, identifying the most likely outcomes and the variability within a dataset. When working within R, creating these visualizations is not merely about aesthetics but about ensuring the mathematical integrity of the model. By plotting the theoretical curve, analysts can verify if their observed data aligns with the expected stochastic process, facilitating a deeper understanding of the underlying phenomena being studied.

Leveraging the Stats Package and Dweibull Functionality

To begin the process of plotting, one must first understand the core function used for generating the density values: dweibull. This function is part of the standard stats package in R, meaning no additional installations are typically required to begin your analysis. The dweibull function calculates the density of the Weibull distribution at specific points, requiring three primary inputs: the vector of quantiles, the shape parameter, and the scale parameter. Each of these components plays a vital role in determining the geometry of the resulting curve.

The shape parameter, often denoted as k or alpha in statistical literature, dictates the general form of the distribution. If the shape is less than one, the failure rate decreases over time; if it is equal to one, the distribution behaves like an exponential distribution with a constant failure rate. When the shape is greater than one, the failure rate increases, which is typical of wear-out processes. Understanding how this parameter influences the probability density function is key to selecting the correct model for your specific dataset, whether you are looking at bioinformatics data or industrial machinery lifespans.

The scale parameter, on the other hand, acts as a stretching factor for the distribution. It determines how spread out the curve appears along the x-axis. While the default value in R is set to 1, adjusting this parameter allows the distribution to represent different units of time or distance. By combining these parameters within the dweibull function, users can generate a precise mathematical representation of their theoretical model, which serves as the foundation for any subsequent graphical output or hypothesis testing performed within the environment.

Utilizing the Curve Function for Mathematical Plotting

Once the density function is defined, the next step involves the curve() function, which is a powerful utility in R for plotting functions over a specified interval. Unlike the basic plot function which often requires a pre-defined set of coordinates, the curve() function takes a symbolic expression or a function name and evaluates it across a range of values. This ensures a smooth, continuous line that accurately reflects the mathematical properties of the Weibull distribution without the jaggedness that can occur with discrete data points.

To use the curve() function effectively, the user must specify the from and to arguments. these arguments define the domain of the independent variable displayed on the horizontal axis. For a Weibull distribution, which is defined for non-negative values, the from argument is typically set to zero. The to argument should be chosen based on the scale parameter to ensure that the “tail” of the distribution is sufficiently captured, allowing the viewer to see where the density eventually approaches zero.

The integration of dweibull inside the curve() function creates a streamlined workflow for data visualization. By passing the function directly as the first argument, R dynamically calculates the y-values for every point on the x-axis. This method is highly efficient and is the standard approach for researchers who need to generate high-quality vector graphics for publication in academic journals or technical reports. It provides a level of precision that is essential for rigorous statistical analysis.

Implementing the Primary Weibull Density Plot

To plot the probability density function for a Weibull distribution in R, we can use the following functions:

• dweibull(x, shape, scale = 1) to create the probability density function.
• curve(function, from = NULL, to = NULL) to plot the probability density function.

To plot the probability density function, we need to specify the value for the shape and scale parameter in the dweibull function along with the from and to values in the curve() function.

For example, the following code illustrates how to plot a probability density function for a Weibull distribution with parameters shape = 2 and scale = 1 where the x-axis of the plot ranges from 0 to 4:

curve(dweibull(x, shape=2, scale = 1), from=0, to=4)

Advanced Customization for Enhanced Visual Communication

In professional settings, a raw plot is rarely sufficient for final presentation. Effective communication of data requires clear labeling and aesthetic adjustments that guide the viewer’s eye to the most important information. The R plotting engine allows for extensive customization through additional parameters within the curve() function. For instance, the main argument is used to add a descriptive title, while xlab and ylab provide essential context for the axes, ensuring the reader understands exactly what is being measured.

Color and line weight are also critical components of information design. By using the col parameter, users can change the line color to something more distinctive, such as “steelblue” or “darkred,” which can help the plot stand out in a complex report. The lwd (line width) parameter is equally important; increasing the thickness of the line makes the distribution curve more prominent against the background grid. These small adjustments significantly improve the readability of the graph, making the data more accessible to non-technical stakeholders.

Furthermore, the axis labels can be modified to reflect the specific units of the study, such as “Time to Failure” or “Wind Velocity (m/s).” Providing these details transforms a generic mathematical plot into a meaningful piece of business intelligence. By tailoring the visual output to the specific needs of the audience, analysts can ensure that their findings regarding reliability or probability are interpreted correctly and used to inform strategic decision-making.

curve(dweibull(x, shape=2, scale = 1), from=0, to=4,
    main = 'Weibull Distribution (shape = 2, scale = 1)', #add title
    ylab = 'Density', #change y-axis label
    lwd = 2, #increase line width to 2
    col = 'steelblue') #change line color to steelblue

Comparative Analysis Using Multiple Distribution Overlays

A common requirement in statistical modeling is the comparison of different scenarios or datasets. For the Weibull distribution, this often involves plotting multiple curves on the same set of axes to see how variations in the shape or scale parameters affect the overall density. This technique is invaluable for sensitivity analysis, allowing researchers to visualize how a 10% change in a material’s failure rate might shift the entire probability curve. In R, this is achieved using the add = TRUE parameter within subsequent calls to the curve() function.

When overlaying multiple distributions, it is vital to use distinct colors and line types to maintain clarity. For example, one might use a solid red line for a high-shape parameter (representing rapid wear-out) and a dashed blue line for a lower-shape parameter (representing early-life failures). This visual contrast allows for immediate comparative analysis without the need for complex data tables. It highlights the differences in skewness and kurtosis between the models, providing a intuitive grasp of the comparative risks involved in each scenario.

This approach is widely used in actuarial science and quality control. By seeing the curves side-by-side, decision-makers can easily identify which processes are more stable and which have a higher probability of extreme outcomes. The ability to layer information in this way is one of the strengths of R’s graphics engine, enabling the creation of multifaceted visualizations that tell a complete story of the data’s behavior across different conditions.

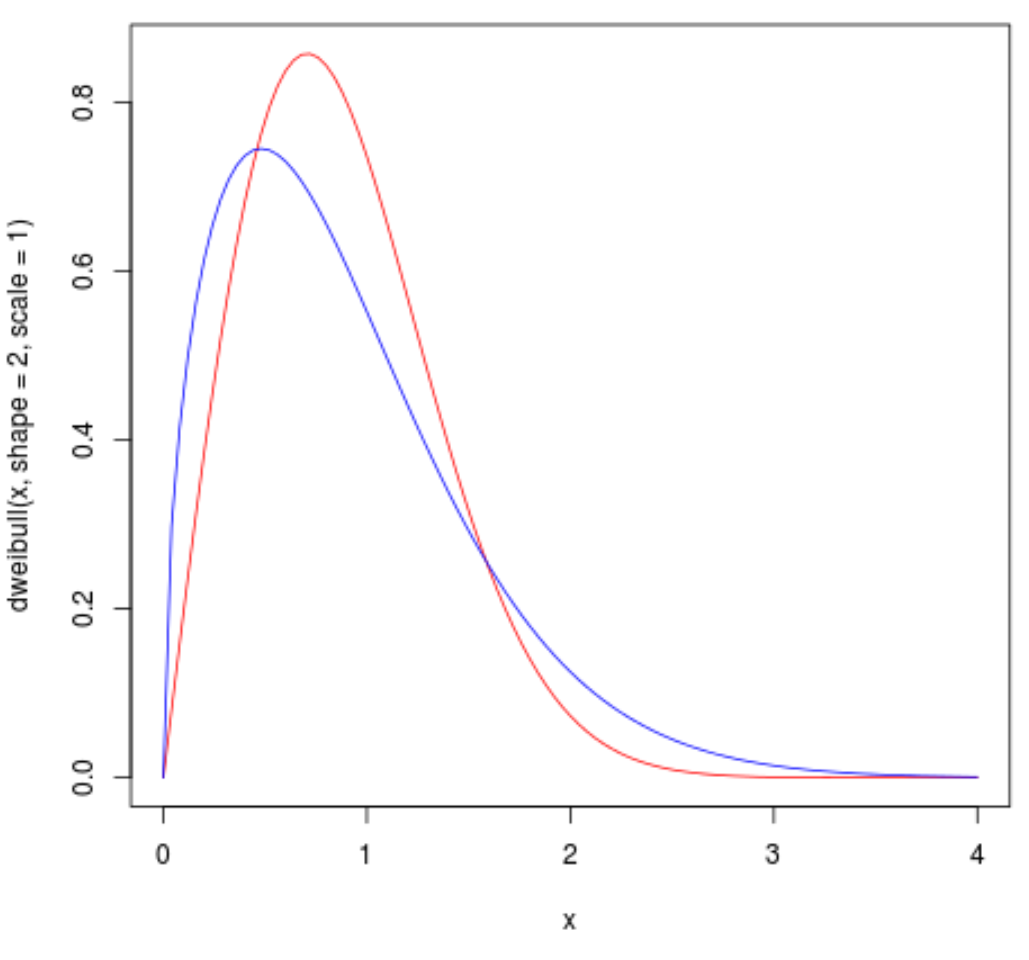

curve(dweibull(x, shape=2, scale = 1), from=0, to=4, col='red')
curve(dweibull(x, shape=1.5, scale = 1), from=0, to=4, col='blue', add=TRUE)

Structuring Professional Legends for Multi-Curve Plots

The addition of a legend is the final step in creating a professional-grade statistical graphic. Without a legend, a plot with multiple lines becomes difficult to interpret, as the viewer cannot determine which curve corresponds to which parameter set. The legend() function in R provides a highly flexible way to add this metadata. It allows for the specification of location (e.g., “topright” or specific x-y coordinates), the text descriptions, and the matching colors or symbols used in the main plot area.

The syntax of the legend() function is comprehensive, covering everything from the background color (bg) to the text size (cex). By matching the lty (line type) and col (color) parameters in the legend to those used in the curve() functions, you ensure internal consistency. This attention to detail is what separates a basic plot from a publication-quality figure. Properly labeled legends are essential for reproducible research, ensuring that any other scientist looking at the graph can correctly identify the models being presented.

Moreover, the legend can be further customized to improve visual hierarchy. For instance, adjusting the bty parameter can remove the box around the legend for a cleaner look, or the inset parameter can be used to nudge the legend away from the plot borders. These fine-tuning options allow the user to optimize the use of white space, ensuring that the legend does not obscure the data points or the primary curves. Mastery of the legend() function is a key skill for anyone looking to produce high-end data science visualizations.

We can add a legend to the plot by using the legend() function, which takes on the following syntax:

legend(x, y=NULL, legend, fill, col, bg, lty, cex)

where:

• x, y: the x and y coordinates used to position the legend
• legend: the text to go in the legend
• fill: fill color inside the legend
• col: the list of colors to be used for the lines inside the legend
• bg: the background color for the legend
• lty: line style
• cex: text size in the legend

#create density plots
curve(dweibull(x, shape=2, scale = 1), from=0, to=4, col='red')
curve(dweibull(x, shape=1.5, scale = 1), from=0, to=4, col='blue', add=TRUE)

#add legend
legend(2, .7, legend=c("shape=2, scale=1", "shape=1.5, scale=1"),
       col=c("red", "blue"), lty=1, cex=1.2)

Synthesizing Theoretical Curves with Empirical Data

While plotting theoretical distributions is important, the ultimate goal of many analysts is to compare these models with actual empirical data. In R, this is often done by first creating a histogram of the observed data points and then overlaying the Weibull curve on top. This visual goodness-of-fit test allows the researcher to quickly assess whether the Weibull model is an appropriate choice for the data at hand. If the curve closely follows the shape of the histogram bars, it provides visual evidence supporting the model’s validity.

To perform this comparison correctly, the histogram must be plotted as a density rather than a frequency. This is achieved by setting the freq = FALSE argument in the hist() function. Once the histogram is rendered, the curve() function with add = TRUE can be used to draw the theoretical Weibull distribution. This dual-layer approach is a standard practice in exploratory data analysis, helping to identify potential outliers or departures from the assumed distribution that might require further investigation or a different modeling approach.

In conclusion, the ability to plot and customize Weibull distributions in R is a fundamental skill for any data professional. By combining the dweibull, curve, and legend functions, one can create sophisticated visualizations that are both mathematically accurate and visually compelling. Whether you are analyzing the reliability of a new product or the potential energy output of a wind farm, these tools provide the necessary framework for rigorous statistical visualization and data-driven decision making.
