Abline() is a function in the R programming language that allows users to add straight lines to their plots. This function takes in two primary arguments, namely intercept and slope, which define the position and angle of the line to be added. Additionally, users can customize the line by specifying parameters such as color, line type, and thickness. Abline() is a useful tool for visually representing relationships or trends in data and can be easily incorporated into various types of plots, such as scatter plots, line graphs, and bar charts. By using abline(), users can enhance the visual presentation of their data and provide additional information to their audience.
Use abline() in R to Add Straight Lines to Plots
The abline() function in R can be used to add one or more straight lines to a plot in R.
This function uses the following syntax:
abline(a=NULL, b=NULL, h=NULL, v=NULL, …)
where:
- a, b: single values that specify the intercept and slope of the line
- h: the y-value for the horizontal line
- v: the x-value for the vertical line
The following examples show how to use this function in practice.
How to Add Horizontal Lines
The basic code to add a horizontal line to a plot in R is: abline(h = some value)
Suppose we have the following scatterplot that displays the values for x and y in a dataset:
#define dataset data <- data.frame(x = c(1, 1, 2, 3, 4, 4, 5, 6, 7, 7, 8, 9, 10, 11, 11), y = c(13, 14, 17, 12, 23, 24, 25, 25, 24, 28, 32, 33, 35, 40, 41)) #plot x and y values in dataset plot(data$x, data$y, pch = 16)

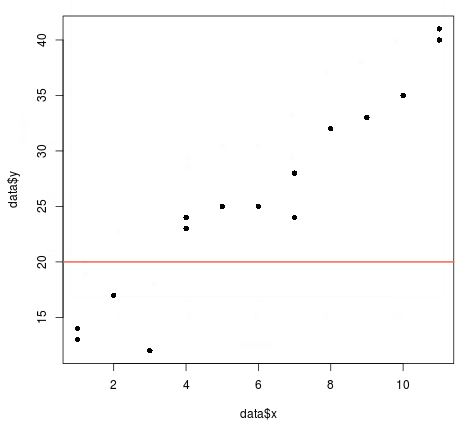

To add a horizontal line at the value y = 20, we can use the following code:
abline(h = 20, col = 'coral2', lwd = 2)

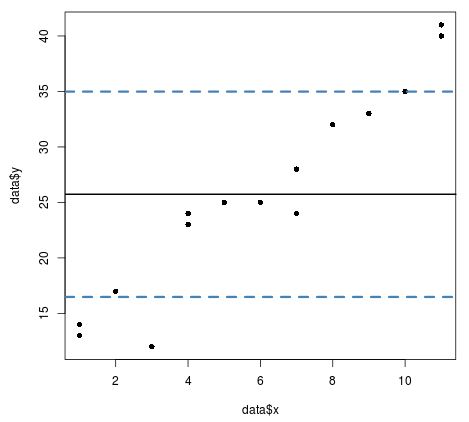

The following code illustrates how to add a horizontal solid line at the mean value of y along with two horizontal dashed lines at one standard deviation above and below the mean value:
#create scatterplot for x and y plot(data$x, data$y, pch = 16) #create horizontal line at mean value of yabline(h = mean(data$y), lwd = 2) #create horizontal lines at one standard deviation above and below the mean value abline(h = mean(data$y) + sd(data$y), col = 'steelblue', lwd = 3, lty = 2) abline(h = mean(data$y) - sd(data$y), col = 'steelblue', lwd = 3, lty = 2)
How to Add Vertical Lines
The basic code to add a vertical line to a plot in R is: abline(v = some value)

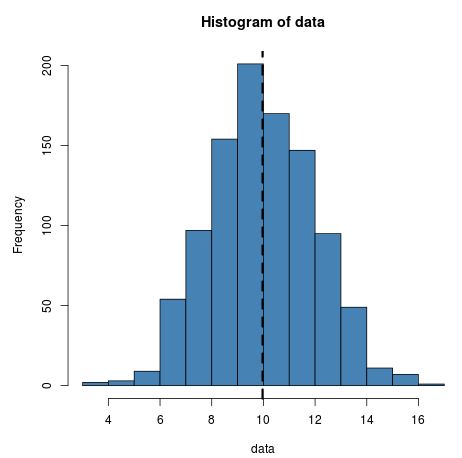

The following code illustrates how to add a vertical line at the mean value on a histogram:
#make this example reproducible set.seed(0) #create dataset with 1000 random values normally distributed with mean = 10, sd = 2 data <- rnorm(1000, mean = 10, sd = 2) #create histogram of data values hist(data, col = 'steelblue') #draw a vertical dashed line at the mean value abline(v = mean(data), lwd = 3, lty = 2)
How to Add Regression Lines
The basic code to add a simple linear regression line to a plot in R is: abline(model)

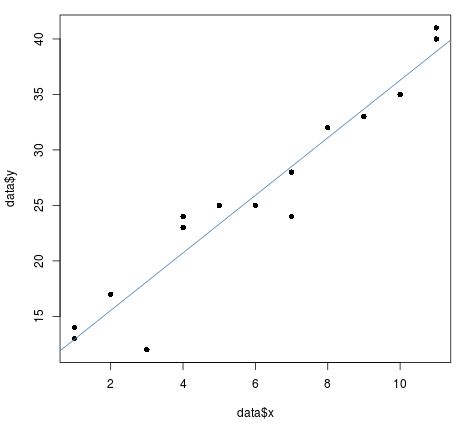

The following code illustrates how to add a fitted linear regression line to a scatterplot:
#define dataset data <- data.frame(x = c(1, 1, 2, 3, 4, 4, 5, 6, 7, 7, 8, 9, 10, 11, 11), y = c(13, 14, 17, 12, 23, 24, 25, 25, 24, 28, 32, 33, 35, 40, 41)) #create scatterplot of x and y values plot(data$x, data$y, pch = 16) #fit a linear regression model to the data reg_model <- lm(y ~ x, data = data) #add the fitted regression line to the scatterplot abline(reg_model, col="steelblue")
Note that we simply need a value for the intercept and the slope to fit a simple linear regression line to the data using the abline() function.
Thus, another way of using abline() to add a regression line is to explicitly specify the intercept and slope coefficients of the regression model:
#define dataset data <- data.frame(x = c(1, 1, 2, 3, 4, 4, 5, 6, 7, 7, 8, 9, 10, 11, 11), y = c(13, 14, 17, 12, 23, 24, 25, 25, 24, 28, 32, 33, 35, 40, 41)) #create scatterplot of x and y values plot(data$x, data$y, pch = 16) #fit a linear regression model to the data reg_model <- lm(y ~ x, data = data) #define intercept and slope values a <- coefficients(reg_model)[1] #intercept b <- coefficients(reg_model)[2] #slope#add the fitted regression line to the scatterplot abline(a=a, b=b, col="steelblue")
Notice that this produces the same line as before.
