The correlation coefficient, often represented by the letter r, serves as a fundamental statistical measure used to quantify the degree of linear association between two distinct variables. In the realm of data analysis, understanding how these variables interact is paramount for predicting outcomes and identifying patterns. A correlation coefficient provides a dimensionless index that ranges specifically from -1 to 1, offering a standardized way to compare relationships across different datasets and units of measurement.

When interpreting this numerical value, the polarity and magnitude are both essential indicators of the underlying data structure. A value of -1 signifies a perfectly negative linear correlation, meaning that as one variable increases, the other decreases in a perfectly predictable manner. Conversely, a value of 1 represents a perfectly positive linear correlation, where both variables move in tandem in the same direction. A value of 0 suggests that no linear relationship exists between the variables, indicating that the movement of one variable does not provide predictable information about the other through a linear lens.

To facilitate these complex mathematical computations, the TI-84 calculator has become a ubiquitous tool in educational and professional environments. It streamlines the process of calculating the Pearson correlation coefficient by utilizing internal algorithms that process paired data points. By following a structured methodology on this device, users can bypass manual calculations involving covariance and standard deviation, ensuring accuracy and efficiency in their statistical findings. The following guide provides a comprehensive breakdown of the necessary steps to achieve this on your device.

Understanding the Mathematical Foundations of Correlation

Before diving into the technical operation of the TI-84 calculator, it is vital to understand what the device is calculating behind the scenes. The correlation coefficient is mathematically derived by dividing the covariance of the two variables by the product of their respective standard deviations. This normalization process ensures that the resulting value remains within the -1 to 1 range, regardless of the scale of the original data. This makes it an invaluable tool for researchers who need to compare the strength of relationships across various fields, from economics to biology.

The linear regression model is the primary framework through which the correlation coefficient is extracted on the calculator. While statistics can involve non-linear relationships, the r value specifically measures how closely the data points cluster around a straight line. If the data forms a curve or a more complex shape, the correlation coefficient might be misleadingly low, even if a strong relationship exists. Therefore, it is always recommended to view a scatter plot of your data to ensure that a linear model is appropriate for your specific analysis.

Advanced users of the TI-84 calculator often look beyond just the r value to the r-squared value, also known as the coefficient of determination. This value represents the proportion of the variance in the dependent variable that is predictable from the independent variable. Understanding the distinction between these two metrics allows for a more nuanced interpretation of the data. While r tells you the direction and strength, r-squared provides a clearer picture of the explanatory power of your linear model, which is essential for rigorous scientific research.

Step 1: Activating the Diagnostic Settings

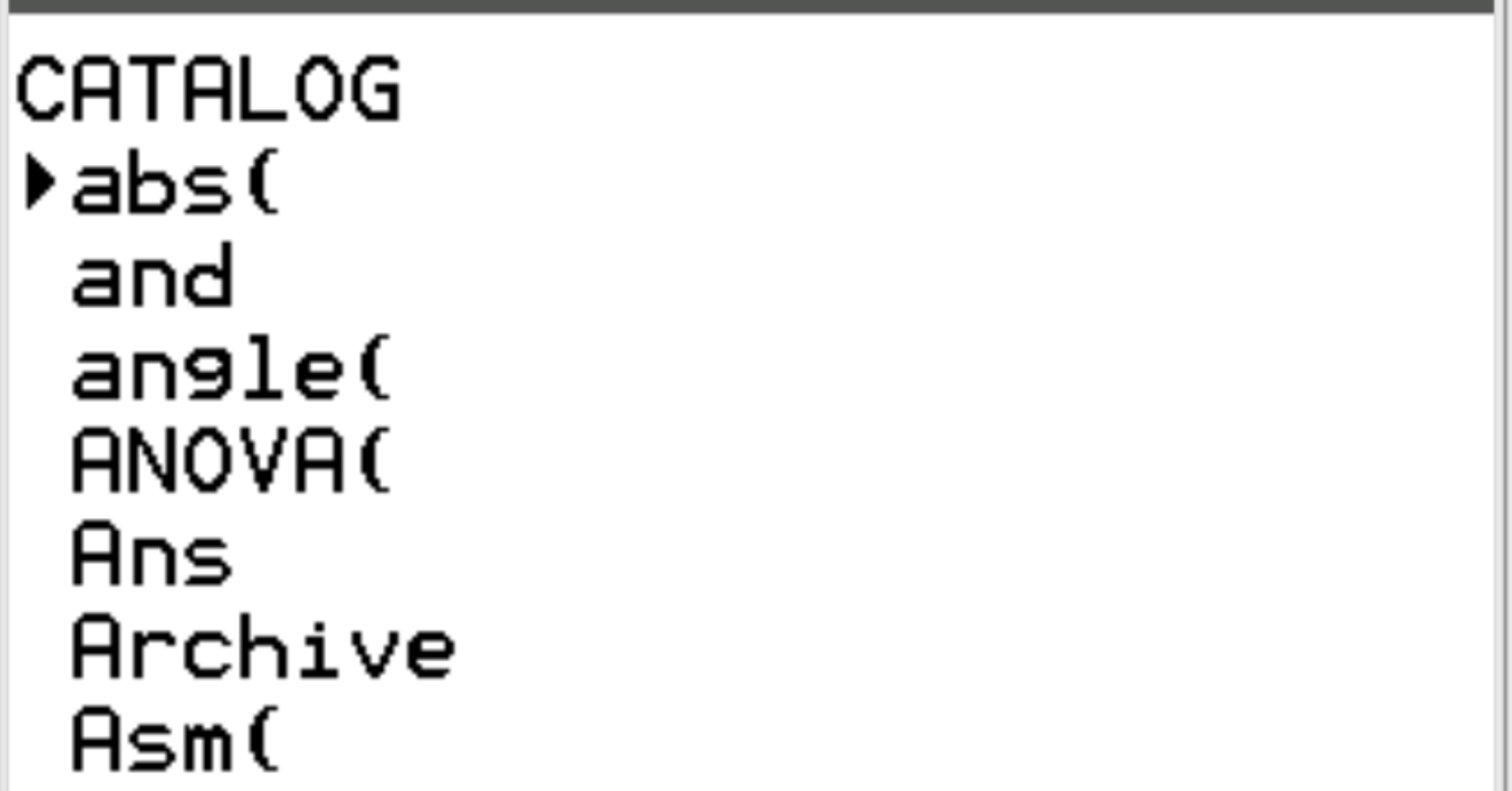

The first critical step in using a TI-84 calculator for correlation analysis is ensuring that the diagnostic display is active. By default, many TI-84 units are configured to show only the basic regression equation without the correlation coefficients. To change this, you must access the CATALOG menu, which contains an exhaustive list of every function available on the device. This is achieved by pressing the 2nd key followed by the number 0.

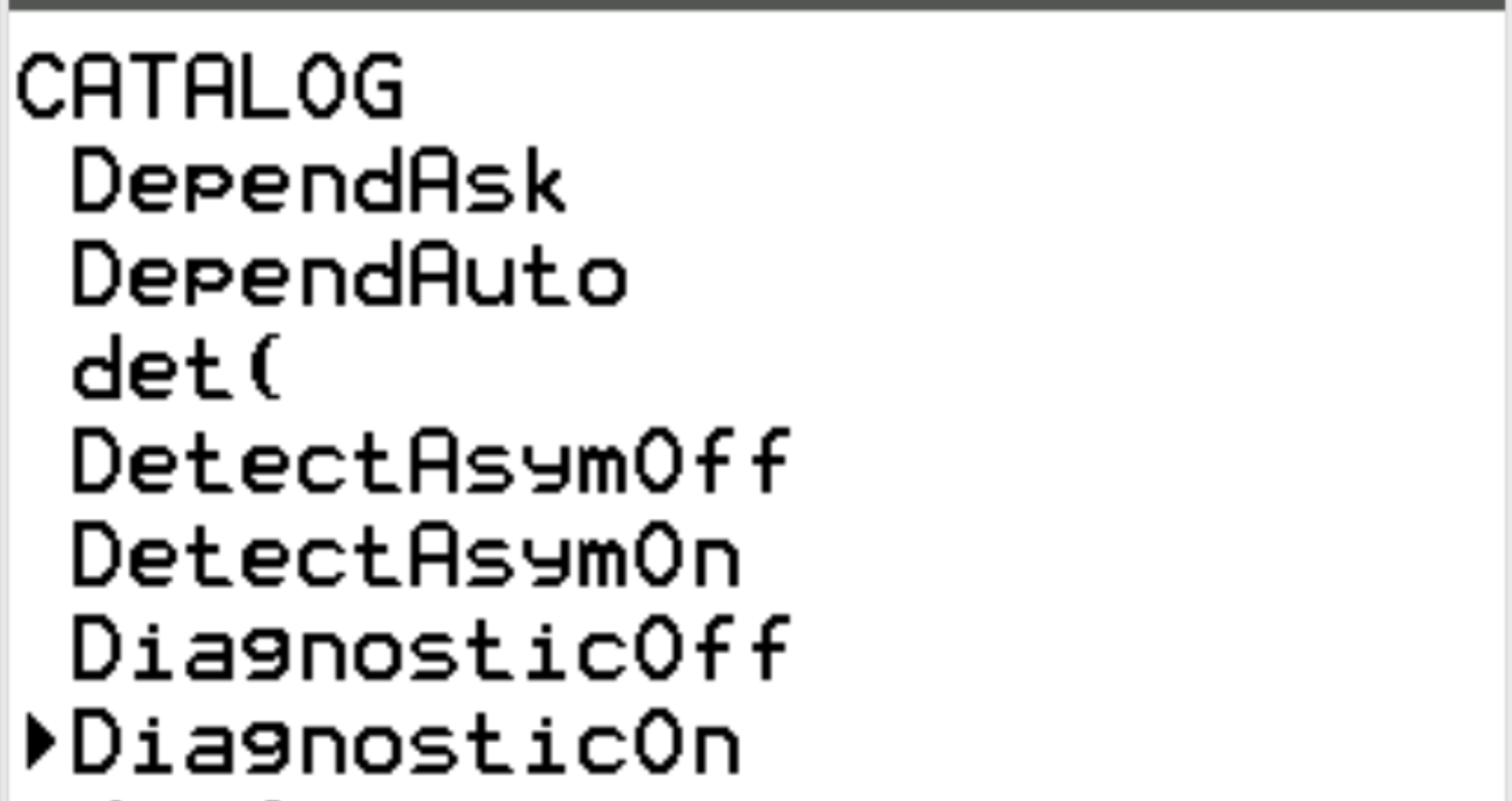

Once you have entered the CATALOG screen, you will need to navigate through the alphabetical list to find the specific command labeled DiagnosticOn. Because the list is extensive, you can quickly jump to the “D” section by pressing the key corresponding to that letter. Scroll carefully until the arrow points directly at DiagnosticOn, as this is the toggle that permits the TI-84 calculator to output the r and r-squared values during regression calculations.

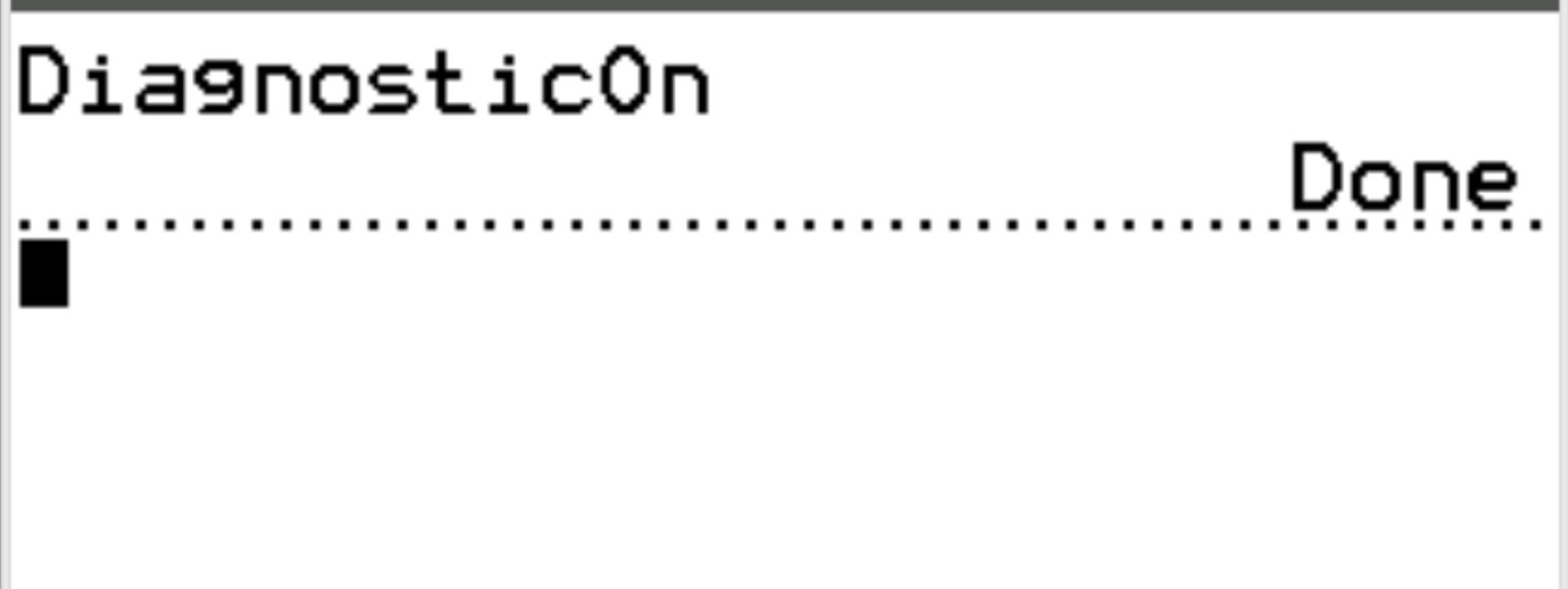

After selecting DiagnosticOn, press the ENTER key once to bring the command to the main home screen, and then press ENTER a second time to execute it. The calculator should display the word “Done” to confirm that the change has been successfully applied. It is important to note that if you reset your RAM or factory reset the device, you will likely need to repeat this process, as the diagnostic settings often revert to their default “Off” state.

Step 2: Systematic Data Entry in the List Editor

With the diagnostic tools active, the next phase involves inputting the raw data that you wish to analyze. The TI-84 calculator utilizes a spreadsheet-like interface known as the List Editor for this purpose. To access this feature, press the STAT button and select the first option, EDIT, which allows you to view and modify the lists stored in the device’s memory. Proper data entry is crucial, as even a single mistyped digit can significantly alter the resulting correlation coefficient.

In the List Editor, you will typically use L1 for your independent variable (the X-values) and L2 for your dependent variable (the Y-values). It is imperative that the two lists are of equal length; every X-value must have a corresponding Y-value to form a complete coordinate pair. If the lists are mismatched in size, the calculator will return a “DIM MISMATCH” error when you attempt to perform the linear regression, halting the analysis until the error is corrected.

To clear any existing data in L1 or L2 before you begin, scroll to the very top of the column so that the list name itself is highlighted, then press CLEAR and ENTER. Avoid using the DEL key in this specific context, as it will remove the entire column from the display rather than just emptying its contents. Once the lists are clean, proceed to type each data point carefully, pressing ENTER after each entry to move to the next row. Double-checking your data against your source material at this stage is a best practice that prevents avoidable errors later.

Step 3: Calculating the Correlation Coefficient via LinReg

Once your data is correctly entered into L1 and L2, you are ready to compute the correlation. Press the STAT button again, but this time use the right arrow key to navigate to the CALC menu at the top of the screen. This menu contains various statistical calculation tools, including mean, median, and several types of regression. For standard correlation, scroll down to find 8: LinReg(a+bx) and press ENTER.

Selecting LinReg(a+bx) will bring up a configuration screen where you must specify which lists contain your data. By default, the TI-84 calculator usually populates the Xlist with L1 and the Ylist with L2. If you have used different lists, you can change these settings by pressing 2nd followed by the number corresponding to the desired list (e.g., 2nd and 1 for L1). Leave the other fields like “FreqList” and “Store RegEQ” blank unless you are performing more advanced statistical modeling.

Scroll down to Calculate and press ENTER. The calculator will process the information and present a screen containing several values. The value labeled r is your Pearson correlation coefficient. In the provided example, the result is 0.9145. This number is the final output of your calculation and represents the strength and direction of the linear relationship between your two sets of variables.

Deep Dive into the Interpretation of r-Values

Calculating the correlation coefficient is only half the battle; the more significant challenge lies in accurately interpreting what that number means for your data analysis. As a general rule of thumb, an r value close to 1 or -1 indicates a very strong relationship, while values closer to 0 suggest that the variables are independent of one another. However, “strength” can be subjective depending on the field of study. In physics, a correlation of 0.9 might be considered low, whereas in psychology or sociology, a correlation of 0.5 is often considered remarkably high.

The sign of the r value—whether it is positive or negative—dictates the direction of the relationship. A positive correlation (e.g., 0.9145) indicates that as your independent variable increases, your dependent variable also tends to increase. A negative correlation (e.g., -0.85) indicates an inverse relationship, where an increase in one variable corresponds to a decrease in the other. This distinction is vital when attempting to establish causality or predictive models, though it is a fundamental tenet of statistics that correlation does not necessarily imply causation.

When presenting your findings, it is standard practice to use a qualitative scale to describe the correlation. While these thresholds are somewhat arbitrary, they provide a consistent framework for discussion. Using the absolute value of r, statisticians often categorize the relationship into four broad groups: no relationship, weak, moderate, or strong. This allows for a quick summary of the data’s behavior without getting bogged down in the specific decimals until necessary for deeper analysis.

The Statistical Significance of Correlation Strengths

To provide a clearer understanding of how to categorize your results, the following table outlines a widely accepted rule of thumb for interpreting the strength of the relationship between two variables based on the absolute value of r:

In the specific example calculated previously, where the correlation coefficient was found to be 0.9145, we can conclude that there is a strong positive relationship between the variables. This suggests that the linear model is an excellent fit for the data and that the movement of the X variable is a highly reliable predictor of the Y variable. Such a high degree of correlation is often the goal in regression analysis, as it validates the usefulness of the mathematical model for future predictions.

It is also worth noting that the coefficient of determination (r-squared) in this scenario would be approximately 0.836. This means that roughly 83.6% of the variance in the dependent variable can be explained by the linear relationship with the independent variable. The remaining 16.4% of the variance is due to other factors or inherent randomness in the data. By reporting both r and r-squared, you provide a comprehensive look at the statistical health of your dataset.

Finally, researchers must be wary of outliers, which are data points that fall far outside the general pattern. Because the calculation of r on a TI-84 calculator involves squaring deviations from the mean, a single extreme outlier can disproportionately influence the final result, making a weak relationship look strong or vice versa. Always supplement your numerical calculations with a visual scatter plot to ensure that your interpretation of the correlation coefficient is truly representative of the underlying data trends.

Practical Applications and Real-World Examples

The ability to calculate a correlation coefficient on a TI-84 calculator is not just an academic exercise; it has profound applications across numerous industries. In finance, for instance, analysts use correlation to understand how different assets move in relation to the market. A high positive correlation between two stocks might suggest they are in the same sector, while a negative correlation might indicate that one asset serves as a hedge against the other, which is essential for portfolio diversification.

In the field of medicine, researchers use these statistical tools to determine the effectiveness of new treatments. For example, a doctor might look for a correlation between the dosage of a medication and the reduction in a patient’s symptoms. A strong negative correlation between dosage and symptom severity would provide compelling evidence that the drug is working as intended. Without the precision of the Pearson correlation coefficient, these life-saving conclusions would be much harder to substantiate.

Environmental scientists also rely heavily on statistics to track climate change and pollution levels. By correlating industrial output with carbon dioxide levels in the atmosphere, they can build models that predict future global temperatures. The TI-84 calculator remains a staple in these fields due to its portability and the ease with which it can handle such critical data, providing researchers with immediate insights in both the lab and the field.
