Understanding the Foundation: Conditional Formatting

To initiate the process of identifying and highlighting duplicate values that exist on a secondary worksheet, we leverage the specialized features available under the Conditional Formatting options. This powerful tool is accessed via the Home tab in the Excel ribbon. Specifically, the method requires the creation of a New Rule, which permits the user to input a custom formula to govern the formatting criteria. This formula-based approach is essential because standard built-in conditional formatting rules (like “Highlight Duplicate Values”) are typically limited to the active worksheet or selected range. By utilizing a custom formula, we instruct Excel to look beyond the current sheet and reference another specified location for comparison. This flexibility makes Conditional Formatting an indispensable tool for complex data management scenarios requiring inter-sheet comparison.

The core philosophy behind this technique is establishing a logical test that returns either TRUE or FALSE for every cell in the target range. If the formula evaluates to TRUE—meaning a match was found on the reference sheet—the specified formatting (such as a fill color or font change) is applied. Conversely, if the formula returns FALSE, the cell remains visually unchanged. This rule-based execution provides precise control over data visualization, ensuring that only the relevant duplicate entries are flagged for review. The subsequent steps will detail the exact syntax and placement of the required functions to achieve this cross-sheet validation successfully.

The Scenario: Identifying Playoff Teams

To illustrate this functionality practically, consider a common scenario involving two separate worksheets that manage related but distinct datasets. For this demonstration, we will use data pertaining to professional sports teams. Suppose we have an Excel workbook containing two sheets: the master sheet, named all, and the comparison sheet, named playoffs. The all sheet contains a comprehensive list of every team within the Western Conference of the NBA, serving as our primary dataset for monitoring.

The second sheet, playoffs, contains a smaller, subset list, featuring only the names of the teams from the Western Conference that successfully qualified for the playoffs. Our objective is clear: we wish to analyze the comprehensive list on the all sheet and instantly highlight any team name that also appears on the playoffs sheet. This visual flagging allows for immediate identification of the subset members within the larger dataset. This type of cross-reference is invaluable for tracking progress, status updates, or membership verification across multiple data lists.

The goal is to visually reconcile these two sheets without merging them or adding helper columns. This method ensures the integrity of the original data structure while achieving effective comparative analysis. The challenge lies in constructing a self-contained, robust formula that can traverse the worksheet boundary and accurately identify the exact matches, thereby highlighting each team name in the all sheet that represents a duplicate value found in the playoffs sheet.

The Formula Breakdown: Utilizing MATCH and ISNUMBER

The key to successful cross-sheet conditional formatting lies in combining two crucial Excel functions: MATCH and ISNUMBER. The formula we implement is =ISNUMBER(MATCH(A2, playoffs!A:A, 0)). Understanding how this nested function works is vital for replicating this process in different contexts.

The inner function, MATCH(A2, playoffs!A:A, 0), attempts to locate the value found in cell A2 of the current sheet (all) within the entire column A of the reference sheet (playoffs). The final argument, 0, specifies an exact match requirement. If the MATCH function successfully finds the value, it returns the numerical position (row number) of that value within the specified lookup range. For instance, if the value in A2 is found in the 5th row of the playoffs sheet, the MATCH function returns the number 5. However, if the value is not found in the reference list, the MATCH function returns the error value #N/A.

The outer function, ISNUMBER(...), acts as the logical gatekeeper for the Conditional Formatting rule. Conditional formatting requires a simple TRUE or FALSE output. The ISNUMBER function tests the result of the embedded MATCH function. If MATCH returned a numerical position (a successful find), ISNUMBER returns TRUE. If MATCH returned #N/A (no match found), ISNUMBER returns FALSE. This binary result dictates whether the cell gets highlighted or not, fulfilling the requirement of the Conditional Formatting engine.

Executing the Conditional Formatting Rule

The implementation phase requires careful attention to the cell range selection and the rule input. Initially, you must select the precise range of cells on the target sheet (all) that you wish to compare and potentially highlight. In our NBA example, the team names are located in cells A2:A16. It is absolutely critical that the range selection is made before opening the Conditional Formatting dialog box, as this defines where the formula will be applied iteratively.

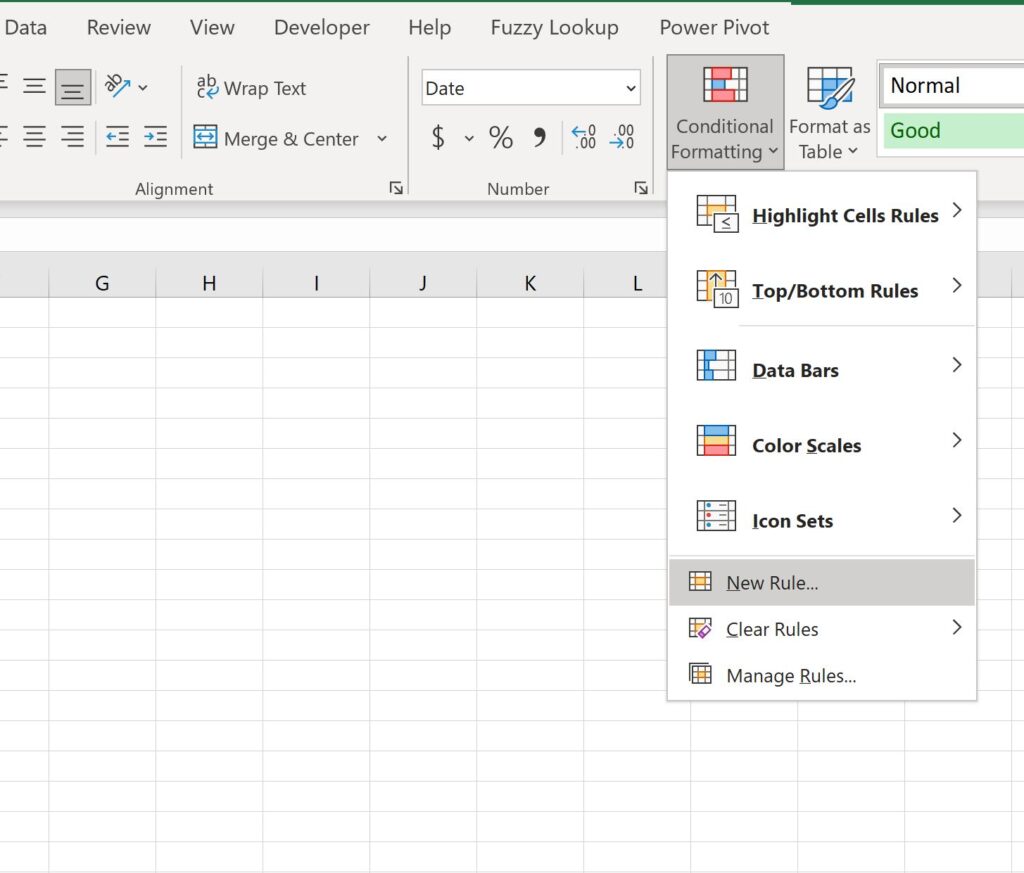

Once the range A2:A16 in the all sheet is highlighted, navigate to the Home tab, click the Conditional Formatting dropdown menu, and select New Rule. This opens the New Formatting Rule dialog box, which presents several options for rule type. We must choose the option labeled Use a formula to determine which cells to format.

In the text box provided for the formula, accurately input the following syntax: =ISNUMBER(MATCH(A2, playoffs!A:A, 0)). Note that the reference cell used in the formula, A2, must correspond to the very first cell in your selected range. Since this formula is being applied to the range A2:A16, Excel automatically adjusts the row reference (A2 becomes A3, A4, and so on) as it evaluates each cell sequentially. This relative referencing is crucial for the formula to check every item in the list correctly.

Setting the Format and Visualizing Duplicates

After inputting the conditional formula, the final step before execution is to define the visual formatting that will be applied when the rule evaluates to TRUE. Click the Format button within the New Formatting Rule window. This opens the Format Cells dialog box, allowing customization of various visual attributes, including number format, font style, border configuration, and, most commonly, the fill color.

For optimal clarity in duplication detection, selecting a distinct fill color, such as a light green or soft yellow, is recommended. The visual style chosen is entirely subjective, but it should stand out sufficiently against the non-highlighted cells to ensure immediate recognition of the duplicates. Once the desired formatting is selected, click OK to close the Format Cells dialog, and then click OK again in the New Formatting Rule window to finalize the rule application.

Upon pressing OK, the transformation occurs instantly. Every team name in the all sheet that successfully yielded a TRUE result from the ISNUMBER(MATCH(...)) formula—indicating its presence in the playoffs sheet—will now be highlighted with the chosen fill color. This immediate visual feedback provides a clear and intuitive mechanism for data management and auditing.

Interpreting the Results

The output of this conditional formatting exercise immediately and precisely identifies the shared elements between the two separate datasets. In our example, since the playoffs sheet contained eight qualifying teams, exactly eight corresponding cells in the all sheet are highlighted. This confirms that the cross-sheet logic functioned correctly, successfully filtering the master list based on the criteria provided by the reference list.

This method offers distinct advantages over manual comparison or temporary filtering. The highlighting is dynamic; if a team name were to be added to or removed from the playoffs sheet, the conditional formatting on the all sheet would automatically update to reflect the change, provided the reference range (column A on playoffs) covers the new data. This dynamic feature is critical for maintaining up-to-date data visualization in live workbooks.

Note: While we selected a light green fill in this specific example for demonstration purposes, the choice of color and style (including font color, borders, and bolding) is entirely customizable to suit your professional preferences or organizational standards for data management visualization. Ensure the chosen format provides sufficient contrast against the standard worksheet background for accessibility and clarity.

Advanced Considerations: COUNTIF Alternative

While the ISNUMBER(MATCH(...)) structure is highly robust and commonly recommended for finding exact text matches, an alternative approach utilizing the COUNTIF function can also achieve the same result, often preferred for its slightly simpler structure. The alternative formula would be: =COUNTIF(playoffs!A:A, A2)>0.

This formula works by counting how many times the value in cell A2 (the team name on the all sheet) appears within the range A:A of the playoffs sheet. If the count is greater than zero (>0), it means the item exists on the reference sheet. Since the result of the comparison (e.g., 5 > 0) is inherently a TRUE or FALSE logical value, there is no need to wrap the expression in an additional function like ISNUMBER or MATCH, simplifying the syntax slightly. Both methods are valid and efficient for text and numerical comparisons across worksheets.

However, it is worth noting that for very large datasets, the MATCH approach can sometimes be slightly faster computationally, particularly if the lookup range is sorted (though we specified 0 for exact match here, negating the sorting advantage). For most standard applications, choosing between COUNTIF and ISNUMBER(MATCH) comes down to personal familiarity and readability preferences. Both offer robust ways to execute cross-sheet Conditional Formatting rules efficiently.

Best Practices for Data Integrity

When implementing complex cross-sheet formulas, adhering to specific best practices ensures high data integrity and ease of maintenance. Always use absolute references for the lookup range on the reference sheet (e.g., playoffs!$A:$A instead of playoffs!A:A, though in this specific context where the formula is not being dragged horizontally, the full column reference works well). Using full column references (A:A) is often safer than specific ranges (A2:A100) because it automatically accounts for future data additions without needing to edit the conditional formatting rule.

Furthermore, document your rules. For workbooks shared with colleagues, include a textual note or comment explaining the purpose of the conditional formatting rule. This prevents future users from inadvertently modifying or deleting rules they do not fully understand. Consistent application of these rules elevates your data analysis from a simple task to a professional data management methodology.
