How to Make a Stem-and-Leaf Plot in Excel

Understanding the Statistical Utility of a Stem-and-Leaf Plot

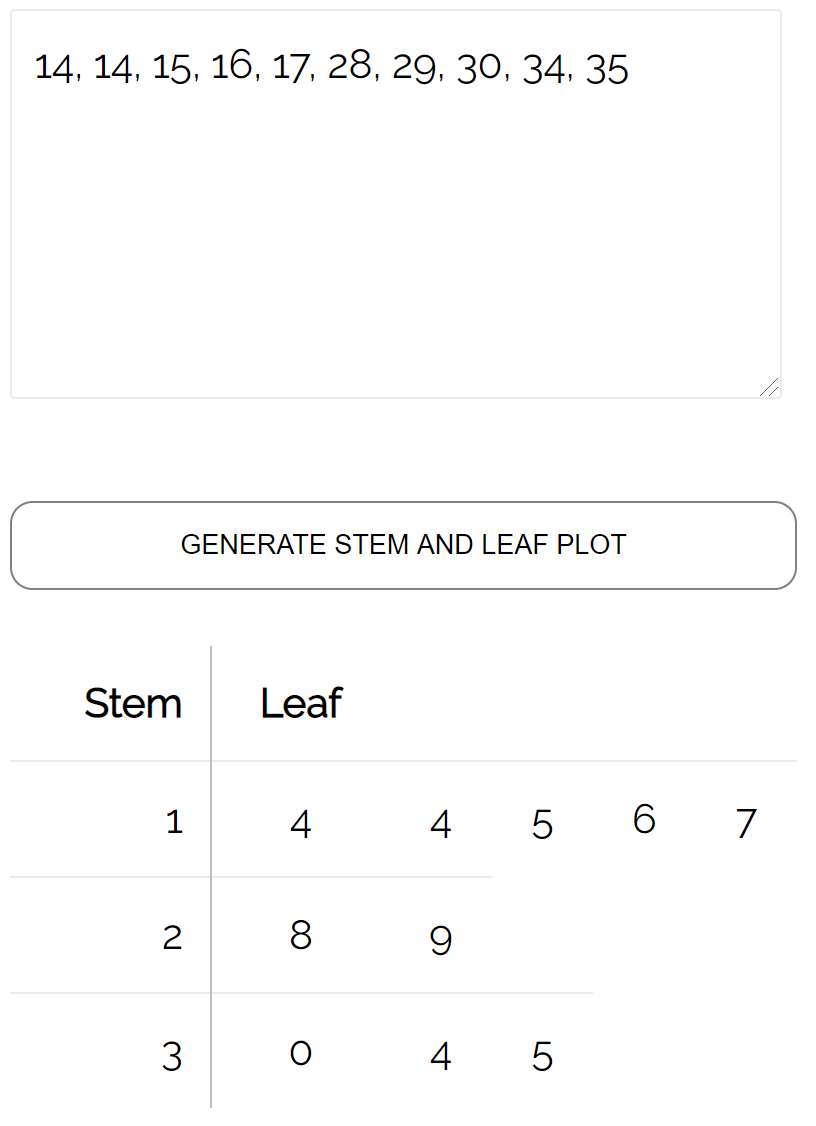

A Stem-and-leaf plot serves as a fundamental hybrid between a table and a graph, offering a unique way to visualize the distribution of a dataset while preserving the individual data points. Unlike a histogram, which aggregates data into bins and obscures the exact values, this specialized chart allows a researcher to see every single observation in the collection. This makes it an invaluable tool in statistics for identifying patterns, central tendencies, and the presence of outliers at a glance. By organizing quantitative data in this manner, users can effectively bridge the gap between raw numbers and visual storytelling.

The core methodology of a stem-and-leaf plot involves bifurcating each numerical value into two distinct components: the “stem” and the “leaf.” Typically, the stem represents the leading digit or digits (such as the tens place), while the leaf represents the final significant digit (the ones place). This hierarchical arrangement provides a clear view of the density of the data across different ranges, similar to how a bar chart functions but with the added benefit of data transparency. It is particularly effective for small to medium-sized datasets where the precision of individual values is as important as the overall shape of the distribution.

In the context of data analysis, utilizing Microsoft Excel to generate these plots is a common practice, though it requires a more nuanced approach than standard charting features. While Microsoft Excel is renowned for its automated graphing capabilities, creating a traditional stem-and-leaf plot often necessitates the use of logical functions and text manipulation to achieve a professional result. The following guide provides a comprehensive, step-by-step walkthrough to help you master this technique, ensuring your data presentations are both accurate and insightful.

Initial Data Preparation and Entry in Excel

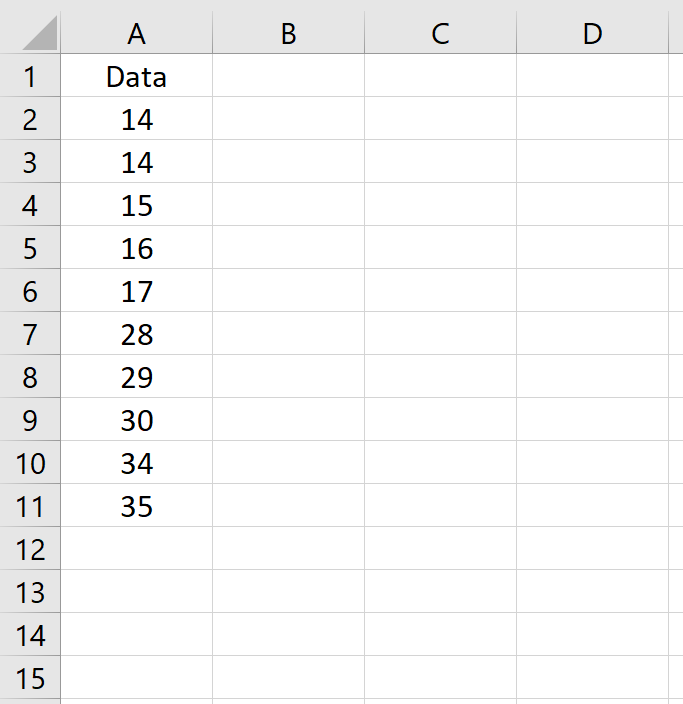

The foundation of any successful data analysis project lies in the integrity and organization of the raw information. To begin the process of creating your plot in Microsoft Excel, you must first input your values into a clean, structured format. It is recommended to use a single column to house all your observations, as this facilitates easier referencing for the formulas we will apply later. Ensure that there are no empty cells or non-numeric characters within your range, as these can trigger errors in the calculation phase and compromise the validity of your statistics.

When entering your data, consider the scale and units of your measurements. For a standard stem-and-leaf plot, the values should ideally be integers or decimals that can be consistently rounded to a specific place value. If your dataset is particularly large, sorting the data in ascending order can be a helpful preliminary step, although the formulas we will use are robust enough to handle unsorted data. This initial organization sets the stage for a seamless transition into the more technical aspects of the visualization process.

Once your values are successfully populated in the spreadsheet, it is a best practice to label your column clearly. This not only helps in maintaining a professional workspace but also ensures that other users who may interact with your Microsoft Excel workbook can easily identify the source material. By treating the data entry phase with high attention to detail, you minimize the risk of cumulative errors that could skew the final visual representation of your quantitative data.

Identifying the Mathematical Range of the Dataset

Before constructing the physical layout of the plot, you must determine the boundaries of your data by identifying the minimum and maximum values. This step is crucial because it informs the range of stems you will need to create. In statistics, understanding the range is the first step toward understanding variability. By knowing the lowest and highest points, you can ensure that your stem-and-leaf plot encompasses every data point without unnecessary gaps or truncated information.

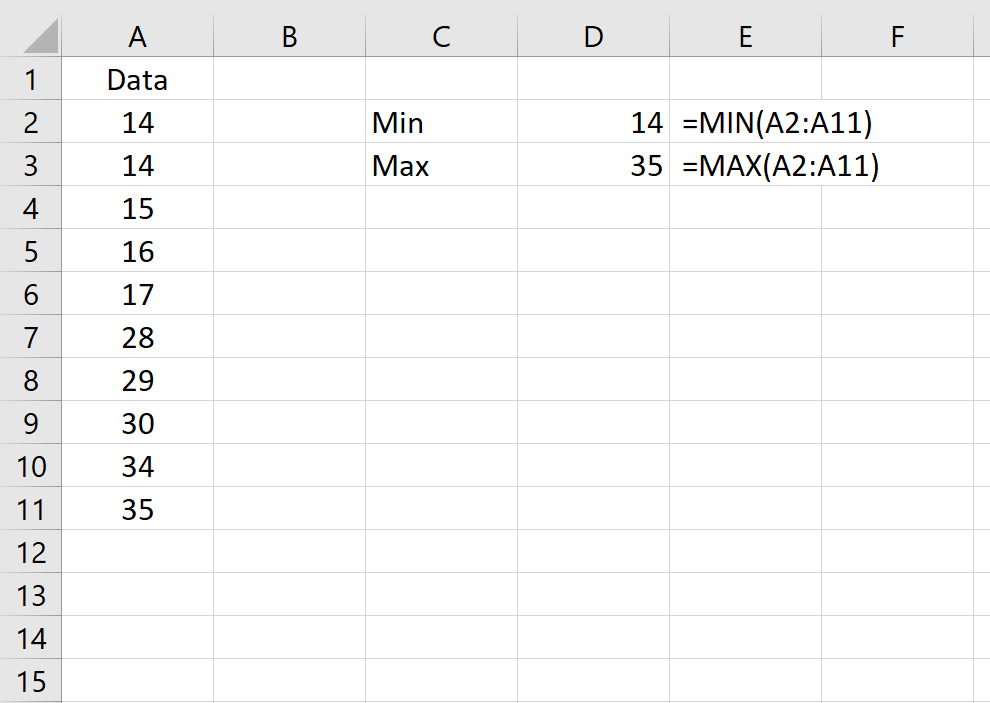

In Microsoft Excel, this can be achieved efficiently using the MIN and MAX functions. For example, if your data resides in cells A2 through A11, you would use the formulas =MIN(A2:A11) and =MAX(A2:A11) to extract these critical values. These functions provide an automated way to scan your dataset, which is especially useful when dealing with hundreds or thousands of observations where manual identification would be prone to human error. Identifying these extremes allows you to define the “bins” or stems that will form the vertical axis of your plot.

After calculating these values, take a moment to analyze the distance between them. If your minimum value is 14 and your maximum is 35, your stems will need to cover the 10s, 20s, and 30s place. This clarity is essential for the next phase of the process, where we will manually define the stems. Establishing a clear mathematical range ensures that the final visualization is a faithful and comprehensive representation of the data analysis you are performing.

Constructing the Vertical Stem Structure

With the range of your data clearly defined, you can now begin the manual construction of the stems. The stems represent the “leading” digits of your values and are arranged vertically to create the backbone of the chart. For instance, if your dataset consists of two-digit numbers ranging from 14 to 35, your stems would be the digits 1, 2, and 3. These digits represent the tens place of your observations. Creating this column is a straightforward task, but it requires precision to ensure that no categories are omitted between the minimum and maximum boundaries.

To set this up in Microsoft Excel, choose a new column adjacent to your data or in a separate area of the worksheet. Type the stems in a vertical sequence. Even if a certain stem has no corresponding leaves in your dataset, it is often statistically relevant to include it to show gaps in the distribution, which could indicate a lack of data in a specific range or highlight the presence of outliers. This vertical alignment is what gives the stem-and-leaf plot its characteristic shape, which closely resembles a histogram turned on its side.

Once the stems are entered, you may want to apply specific formatting to distinguish them from the leaves that will follow. A common convention is to place a vertical border or “pipe” character to the right of the stems to act as a separator. This visual cue helps the reader distinguish between the category (the stem) and the individual data points (the leaves). This structural phase is vital for the readability of your data analysis, turning a simple list of numbers into a sophisticated statistical tool.

Implementing the Leaf Calculation Formula

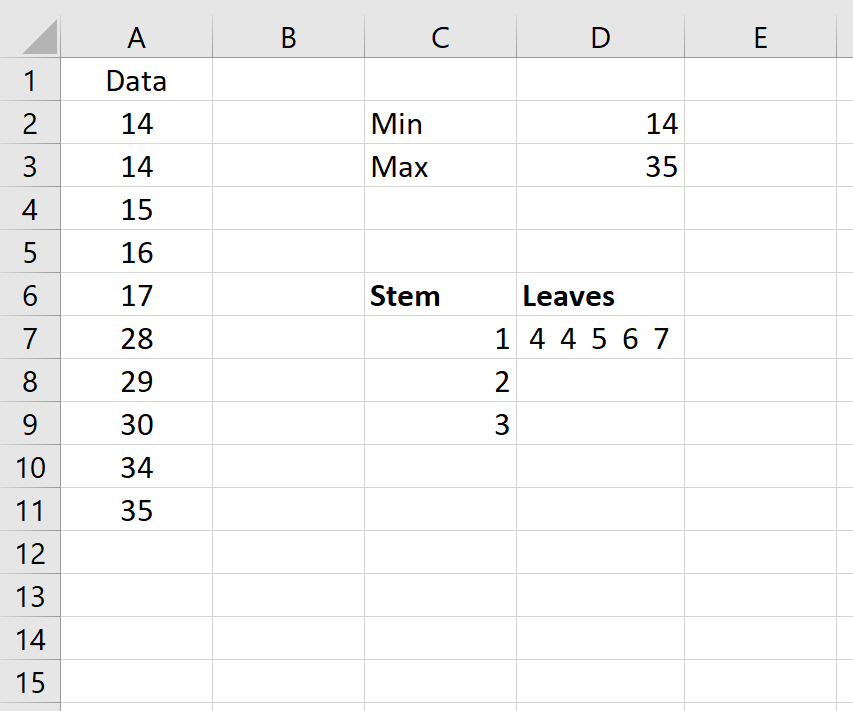

Generating the leaves is the most technically demanding part of the process, as it involves using a logic-based formula to extract and display the trailing digits for each stem. Rather than manually typing each leaf, we can use Microsoft Excel functions to automate the search and display process. The formula typically utilizes the REPT (repeat) function in combination with COUNTIF or COUNTIFS to check how many times a specific value appears in the dataset and then print the corresponding leaf digit that many times.

The logic follows a repetitive pattern: the formula checks for the occurrence of the value (Stem * 10 + 0), then (Stem * 10 + 1), and so on, up to (Stem * 10 + 9). For each match found, it appends the digit to a text string. While the resulting formula may appear long and complex, its underlying structure is remarkably simple. It essentially acts as a localized search engine for each stem row, compiling a list of all “ones” digits that belong to that specific “tens” category. This method ensures that every data point from your quantitative data set is accurately reflected in the plot.

To implement this, you will enter the formula in the cell immediately to the right of your first stem. Because the formula relies on cell references, it is important to use absolute references (using the $ symbol) for the data range so that the range stays fixed when you copy the formula down to subsequent rows. This automation is a powerful feature of Microsoft Excel, allowing for a dynamic stem-and-leaf plot that updates automatically if the source data is modified. Mastery of these functions is a significant asset in advanced data analysis.

Scaling the Plot and Finalizing the Calculation

Once the initial formula is established for the first stem, the next step is to replicate this logic across all remaining stems in your stem-and-leaf plot. This is easily accomplished using the “Fill Handle” feature in Microsoft Excel. By clicking and dragging the bottom-right corner of the cell containing the formula—or simply double-clicking it—the software will automatically apply the leaf-generation logic to all adjacent rows. This ensures consistency across your entire statistics visualization.

As the formulas populate, you will see the leaves appear in real-time, forming the horizontal bars of your plot. Each row now represents a cluster of data points, and the length of each “leaf string” corresponds to the frequency of values within that stem’s range. This visual density allows you to immediately identify the mode of the dataset (the most frequent stem) and observe the overall symmetry or skewness of the distribution. It is a moment where raw quantitative data transforms into actionable information.

Scaling the plot in this way also highlights the efficiency of using Microsoft Excel for custom statistical charts. While manual entry might be feasible for five or ten numbers, the formula-based approach can handle much larger datasets with minimal additional effort. This scalability is a key reason why proficiency in spreadsheet formulas is highly valued in professional data analysis environments.

Verification and Quality Control Measures

To ensure the accuracy of your stem-and-leaf plot, it is essential to perform a final audit of the output. Statistics is a field where precision is paramount, and a single missing digit can lead to incorrect conclusions during data analysis. There are three primary checks you should perform to validate your results and ensure that the formula has captured every observation correctly.

• Observation Count: Count the total number of leaves across all rows. This sum must be exactly equal to the number of data points in your original dataset. If you started with ten observations, you should be able to count ten individual digits in the “leaf” section of your plot.
• Minimum Value Alignment: Examine the very first leaf in the lowest stem. When combined with its stem, it should equal the minimum value identified in Step 2. In our example, a leaf of “4” on a stem of “1” correctly represents the value 14.
• Maximum Value Alignment: Check the final leaf in the highest stem. When paired with its stem, it should match the maximum value of your dataset. For instance, a leaf of “5” on a stem of “3” corresponds to the maximum value of 35.

Once these three criteria are met, you can proceed with full confidence in the reliability of your stem-and-leaf plot. These verification steps are a hallmark of rigorous scientific work, ensuring that your visual summaries are not just aesthetically pleasing, but mathematically sound. You now have a completed, high-quality visualization ready for inclusion in reports, presentations, or further academic study.

Final Formatting and Visual Enhancement

While the mathematical portion of the task is complete, adding professional formatting can significantly improve the readability of your stem-and-leaf plot. You might consider adjusting the font to a monospaced variety (like Courier New) so that each digit occupies the same horizontal space; this makes the “bars” created by the leaves more comparable, similar to the bins in a histogram. Additionally, removing gridlines in Microsoft Excel can make the plot stand out as a clean, independent graphic.

Labels and titles are another critical component of data analysis presentation. Be sure to include a clear title that describes the dataset, along with a “Key” that explains how to read the plot (e.g., “1 | 4 = 14”). This ensures that any viewer, regardless of their familiarity with statistics, can interpret the information correctly. These final touches transform a simple spreadsheet exercise into a professional-grade analytical artifact.

By following this comprehensive guide, you have learned not only how to create a stem-and-leaf plot but also how to leverage the advanced logical functions of Microsoft Excel to automate and validate your work. This skill set is invaluable for anyone looking to perform deep dives into quantitative data and present their findings with clarity and precision.
