You can use the following basic syntax to add a trendline to a plot in Matplotlib:

#create scatterplot
plt.scatter(x, y)

#calculate equation for trendline
z = np.polyfit(x, y, 1)
p = np.poly1d(z)

#add trendline to plot
plt.plot(x, p(x))

The following examples show how to use this syntax in practice.

Example 1: Create Linear Trendline in Matplotlib

The following code shows how to create a basic trendline for a scatterplot in Matplotlib:

import numpy as np
import matplotlib.pyplotas plt

#define data
x = np.array([8, 13, 14, 15, 15, 20, 25, 30, 38, 40])
y = np.array([5, 4, 18, 14, 20, 24, 28, 33, 30, 37])

#create scatterplot
plt.scatter(x, y)

#calculate equation for trendline
z = np.polyfit(x, y, 1)
p = np.poly1d(z)

#add trendline to plot
plt.plot(x, p(x))

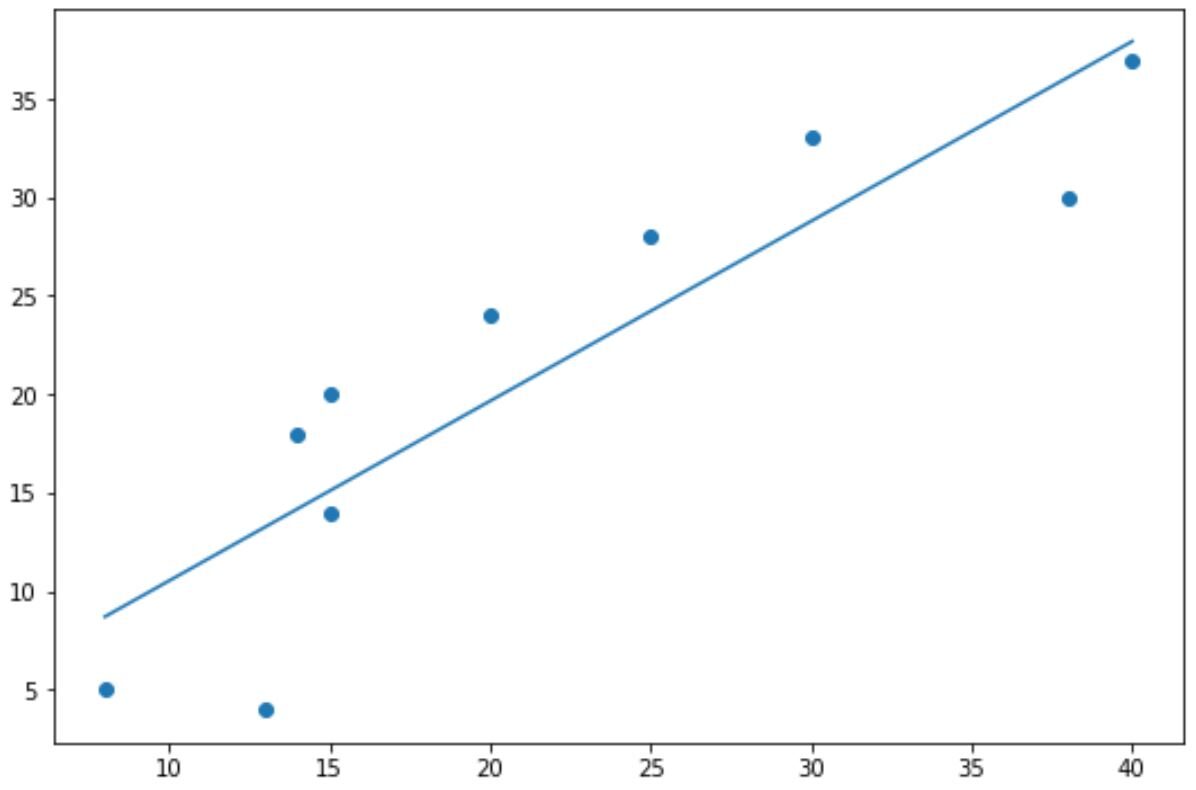

The blue dots represent the data points and the straight blue line represents the linear trendline.

Note that you can also use the color, linewidth, and linestyle arguments to modify the appearance of the trendline:

#add custom trendline to plot
plt.plot(x, p(x), color="purple", linewidth=3, linestyle="--")

Example 2: Create Polynomial Trendline in Matplotlib

To create a polynomial trendline, simply change the value in the np.polyfit() function.

For example, we could use a value of 2 to create a quadratic trendline:

import numpy as np
import matplotlib.pyplotas plt

#define data
x = np.array([8, 13, 14, 15, 15, 20, 25, 30, 38, 40])
y = np.array([5, 4, 18, 14, 20, 24, 28, 33, 30, 37])

#create scatterplot
plt.scatter(x, y)

#calculate equation for quadratic trendline
z = np.polyfit(x, y, 2)
p = np.poly1d(z)

#add trendline to plot
plt.plot(x, p(x))

Notice that the trendline is now curved instead of straight.
