How to Create Gantt Charts in R with ggplot2

Setting the Stage: Understanding the Visualization Goal

The primary goal of creating a Gantt chart in R is to visually represent the temporal relationships between different tasks or entities. For instance, in project management, this means tracking the schedule of various project phases. In our specific example, we will be visualizing the working schedules—the start and end times—for different employees within a store environment, using the inherent flexibility of ggplot2 to handle this scheduling data efficiently.

This tutorial demonstrates how to harness the ggplot2 visualization library within R to transform raw scheduling data into a clear and informative Gantt chart. The structure of the visualization relies heavily on the grammar of graphics, ensuring that every element—from the position of the segments to the color coding—is explicitly mapped to a variable in the input data. This systematic approach guarantees replicable and scalable results across various datasets.

Step 1: Preparing the Data Frame for Visualization

The first and most critical step in generating any visualization in ggplot2 is ensuring that the data is correctly structured in an R data frame. For a Gantt chart, each row must contain at minimum the identifier of the task or entity, and its corresponding start time and end time. We will use a hypothetical dataset detailing the shift schedules for four workers, including a categorical variable for the type of shift (early, mid-day, or late).

This data frame, named data, explicitly defines the temporal boundaries that ggplot2 will use to draw the segments. The name column serves as the categorical identifier for the Y-axis (the worker), while the start and end columns provide the necessary coordinates for the X-axis (the time scale). The inclusion of shift_type allows us to introduce a compelling aesthetic mapping based on work category later in the plotting process.

Below is the R code used to construct and display this foundational scheduling data frame:

#create data frame defining worker names, start/end times, and shift types
data <- data.frame(name = c('Bob', 'Greg', 'Mike', 'Andy'),
start = c(4, 7, 12, 16),
end = c(12, 11, 8, 22),
shift_type = c('early', 'mid_day', 'mid_day', 'late')
)
data

#  name start end shift_type
#1 Bob      4  12      early
#2 Greg     7  11    mid_day
#3 Mike    12   8    mid_day
#4 Andy    16  22       late

Step 2: Initial Visualization using geom_segment()

To create the visual representation of the schedule, we must use the correct geometric object in ggplot2. Since a Gantt chart is essentially a series of horizontal bars (or lines) starting at one point and ending at another, the geom_segment() function is the ideal choice. This geometry draws straight line segments between two specified points, defined by their X and Y coordinates.

In the required aesthetic mapping (aes()), we assign the start time to x, the end time to xend, and the worker name to both y and yend. By setting y and yend to the same categorical variable (name), we ensure the segment is perfectly horizontal, thereby creating the characteristic bar of the Gantt chart. Furthermore, we map the shift_type variable to the color aesthetic, allowing ggplot2 to automatically assign different hues to different shift categories, adding immediate visual distinction.

Executing the following code block initiates the base visualization:

#install (if not already installed) and load ggplot2
if(!require(ggplot2)){install.packages('ggplot2')}

#create gantt chart that visualizes start and end time for each worker
ggplot(data, aes(x=start, xend=end, y=name, yend=name, color=shift_type)) +
  geom_segment()

This initial command successfully generates the core components of the Gantt chart, visualizing the start and end times for each worker. While functionally correct, the default output often lacks the polish required for professional reporting, presenting thin lines and a standard grey background that can obscure the data’s narrative.

This produces the following gantt chart, which serves as our baseline visualization:

Refining the Aesthetic: Customizing Layout and Labels

To elevate the visualization from a functional plot to a professional graphical asset, we must apply various thematic and aesthetic enhancements. ggplot2 provides robust tools for customization, allowing control over background themes, line thickness, and axis labels. These refinements dramatically improve readability and visual impact.

We introduce three key modifications here: theme application, segment sizing, and labeling. By adding theme_bw(), we switch to a cleaner aesthetic featuring a white background and subtle black gridlines, which provides better contrast for the colored segments. Next, we adjust the width of the segments using the size argument within geom_segment(), making the bars thick enough to resemble a traditional Gantt bar rather than a thin line. Finally, labs() is used to assign a descriptive title and clear axis labels, ensuring the audience immediately understands the context of the plot.

Applying these stylistic enhancements results in a chart that is significantly more accessible and polished:

ggplot(data, aes(x=start, xend=end, y=name, yend=name, color=shift_type)) +
  theme_bw()+ #use ggplot theme with black gridlines and white background
  geom_segment(size=8) + #increase line width of segments in the chart for clarity
  labs(title='Worker Schedule', x='Time', y='Worker Name')

This refined code structure yields a visualization that is cleaner and easier to interpret, with clear distinctions between the worker schedules:

Defining Custom Colors for Enhanced Visual Clarity

While ggplot2 automatically assigns colors when mapping a categorical variable (like shift_type) to the color aesthetic, these default palettes may not always align with corporate branding or desired visual impact. For precise control over the colors used for each shift type, we can employ the scale_colour_manual() function. This function allows the user to explicitly define a vector of colors that will be applied sequentially to the levels of the mapped variable.

By utilizing scale_colour_manual(values = c('pink', 'purple', 'blue')), we instruct R to use these specific colors for the three shift types present in our data frame. This level of customization is vital when preparing charts for professional presentations where color consistency and scheme selection are important factors in data communication. It ensures that the early, mid-day, and late shifts are instantly recognizable by their custom-defined colors.

The complete code incorporating these color definitions is shown below:

ggplot(data, aes(x=start, xend=end, y=name, yend=name, color=shift_type)) +
  theme_bw()+ #use ggplot theme with black gridlines and white background
  geom_segment(size=8) + #increase line width of segments in the chart
  labs(title='Worker Schedule', x='Time', y='Worker Name') +
  scale_colour_manual(values = c('pink', 'purple', 'blue'))

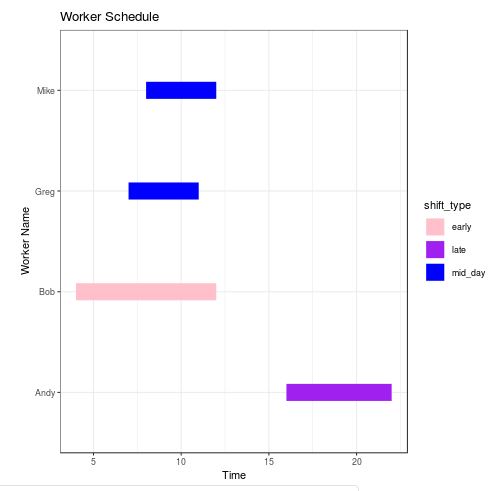

This modification produces a visually distinct chart where the colors pink, purple, and blue are used specifically to represent the different shift types, improving the categorical separation:

Advanced Styling with External Custom Themes

While theme_bw() provides a solid foundation, specialized libraries like ggthemes offer a rich repository of pre-built, complex themes inspired by established journalistic and academic styles. These themes handle numerous aesthetic details simultaneously—such as font selection, grid line density, background color, and legend placement—allowing users to achieve a highly professional look with minimal additional code.

To leverage this functionality, the ggthemes package must first be installed and loaded into the R session. Once available, these themes can be added as a layer to the existing ggplot2 object, overriding the default thematic settings established by functions like theme_bw(). This approach allows for rapid prototyping of different presentation styles.

For instance, we can adopt a look inspired by The Wall Street Journal, known for its clean, classic aesthetic:

#load ggthemes library
library(ggthemes)

#create scatterplot with Wall Street Journal theme
ggplot(data, aes(x=start, xend=end, y=name, yend=name, color=shift_type)) +
  theme_bw()+
  geom_segment(size=8) +
  labs(title='Worker Schedule', x='Time', y='Worker Name') +
  scale_colour_manual(values = c('pink', 'purple', 'blue')) +
  theme_wsj() +
  theme(axis.title = element_text())

The result is a sophisticated Gantt chart that adheres to the recognizable stylistic choices of The Wall Street Journal:

Exploring Alternative Journalistic Themes

The versatility of the ggthemes library allows for seamless switching between different professional aesthetics. By substituting theme_wsj() with other available functions, users can quickly adapt the chart’s appearance to suit different audiences or publication requirements. This is particularly useful for analysts who need to produce visualizations compatible with specific organizational reporting standards.

Consider applying a theme inspired by The Economist, which typically features a distinctive color palette and specific font characteristics, offering a bolder visual statement:

ggplot(data, aes(x=start, xend=end, y=name, yend=name, color=shift_type)) +
  theme_bw()+
  geom_segment(size=8) +
  labs(title='Worker Schedule', x='Time', y='Worker Name') +
  scale_colour_manual(values = c('pink', 'purple', 'blue')) +
  theme_economist() +
  theme(axis.title = element_text())

This generates a Gantt chart styled after The Economist’s famous visualization standards:

Alternatively, for a highly minimalist and modern look, the FiveThirtyEight theme (theme_fivethirtyeight()) is often preferred. This theme emphasizes clarity and data ink ratio, typically removing unnecessary chart junk like borders and focusing heavily on large, readable labels and titles:

ggplot(data, aes(x=start, xend=end, y=name, yend=name, color=shift_type)) +
  theme_bw()+
  geom_segment(size=8) +
  labs(title='Worker Schedule', x='Time', y='Worker Name') +
  scale_colour_manual(values = c('pink', 'purple', 'blue')) +
  theme_fivethirtyeight() +
  theme(axis.title = element_text())

The resulting chart adopts the distinct aesthetic of FiveThirtyEight visualizations:

Conclusion and Resources

Creating robust and aesthetically pleasing Gantt Charts in R using ggplot2 is a straightforward process once the principles of mapping start and end times to the geom_segment() function are understood. The power of this method lies not only in generating the base visualization but also in the extensive customization potential provided by the layered grammar of graphics and external packages like ggthemes.

By following the steps outlined—structuring the data correctly, utilizing geom_segment(), refining aesthetics with themes, and customizing colors—you can transform raw scheduling data into insightful visual timelines suitable for any professional environment. The ability to switch themes rapidly ensures that your visualizations remain flexible and adaptable to varying reporting standards.

For a complete list of all the advanced themes available within the ggthemes library, we highly recommend consulting the official package documentation to explore further customization options.
