Understanding Conditional Logic and the Case Statement Concept

In the realm of data analysis and business intelligence, the ability to apply conditional logic is fundamental for transforming raw data into meaningful insights. A Case Statement, often referred to as a conditional expression in programming languages, serves as a powerful mechanism for evaluating a series of conditions and returning a resulting value when the first condition is met. This structure is essential for data classification, segmentation, and creating custom flags based on complex criteria.

Within the context of Power BI, implementing the equivalent of a traditional Case Statement is crucial for defining specific actions or outcomes based on predefined criteria within your model. While many Structured Query Language (SQL) environments use the explicit CASE WHEN... THEN... END syntax, Power BI leverages the robust capabilities of DAX (Data Analysis Expressions) to achieve this logical flow, primarily through the use of the SWITCH function or nested IF statements.

Effective utilization of these conditional structures drastically enhances the utility of your data model. For instance, you might use conditional logic to categorize sales data based on performance thresholds, assign geographical regions using country codes, or bucket customer metrics into tiers like ‘High Value,’ ‘Medium Value,’ and ‘Low Value.’ Mastering this concept is key to building dynamic and efficient Power BI reports and dashboards that truly reflect business logic.

The Primary Method: Leveraging the DAX SWITCH Function

The most straightforward and often most readable method to implement a Case Statement equivalent in Power BI is by utilizing the SWITCH function within the DAX language. Unlike nested IF statements, which can become cumbersome and difficult to debug when dealing with numerous conditions, the SWITCH function provides a clean, elegant structure specifically designed for evaluating an expression against a list of possible values.

The SWITCH function evaluates an expression (or scalar value) and compares it against a series of specified values, returning a corresponding result for the first match it finds. This behavior perfectly mimics the functionality of a standard SQL Case Statement, providing a concise way to handle multiple categorical assignments within Calculated Columns or Measures.

Using the SWITCH function is highly recommended for situations where you are checking for exact matches against a single input column. Its syntax is inherently optimized for readability and performance when compared to deeply nested IF structures, making maintenance significantly easier as your data model evolves. When implementing complex conditional logic, prioritizing SWITCH ensures that your DAX code remains both functional and accessible to other developers.

Deconstructing the DAX SWITCH Syntax

The core syntax of the SWITCH function requires defining the expression to be evaluated, followed by pairs of values and results. It also includes an optional default result that handles cases where none of the defined conditions are met. This capability for specifying a fallback value is crucial for maintaining data integrity and ensuring comprehensive categorization.

The basic structure requires two main components: the expression and the condition-result pairs. In its most common form (the scalar SWITCH), you define the column or value you are testing, followed by the specific value it should match, and the desired outcome if the match is found. If you omit the first expression argument, the function defaults to TRUE(), allowing for more complex, non-scalar condition checks, though the scalar approach is ideal for direct categorical mapping.

The general syntax template looks like this, which is ideal when creating a new calculated column in Power BI:

new = SWITCH(
            'my_data'[Position],
            "G", "Guard",
            "F", "Forward",
            "C", "Center",
            "None"
            )

In this example, the formula performs a direct comparison against the value in the 'my_data'[Position] column. It iterates through the conditions sequentially until a match is found. If 'my_data'[Position] equals “G”, the result is “Guard.” The final argument, "None", serves as the optional default value, returned only if the position column does not contain “G,” “F,” or “C.”

This particular code snippet yields the following specific mappings for the new calculated column, typically named new:

• If the value in Position is equal to “G”, the function returns “Guard”.
• If the value in Position is equal to “F”, the function returns “Forward”.
• If the value in Position is equal to “C”, the function returns “Center”.
• If the value in the Position column does not contain any of the previous specified values, the function returns the default value: “None”.

Practical Implementation: Categorizing Basketball Player Positions

To demonstrate the effectiveness of the SWITCH function as a Case Statement equivalent, we will utilize a practical dataset within Power BI. Suppose we have a table named my_data that contains fundamental information about various basketball players. Crucially, this table uses single-letter codes to denote player positions, which are not immediately intuitive to the end-user analyzing the report.

The objective is to create a new, derived column that translates these abbreviated position codes (like ‘C’, ‘G’, and ‘F’) into their full, descriptive names (Center, Guard, Forward). This transformation improves data visualization clarity and ensures that non-technical stakeholders can easily interpret the data without needing a lookup key.

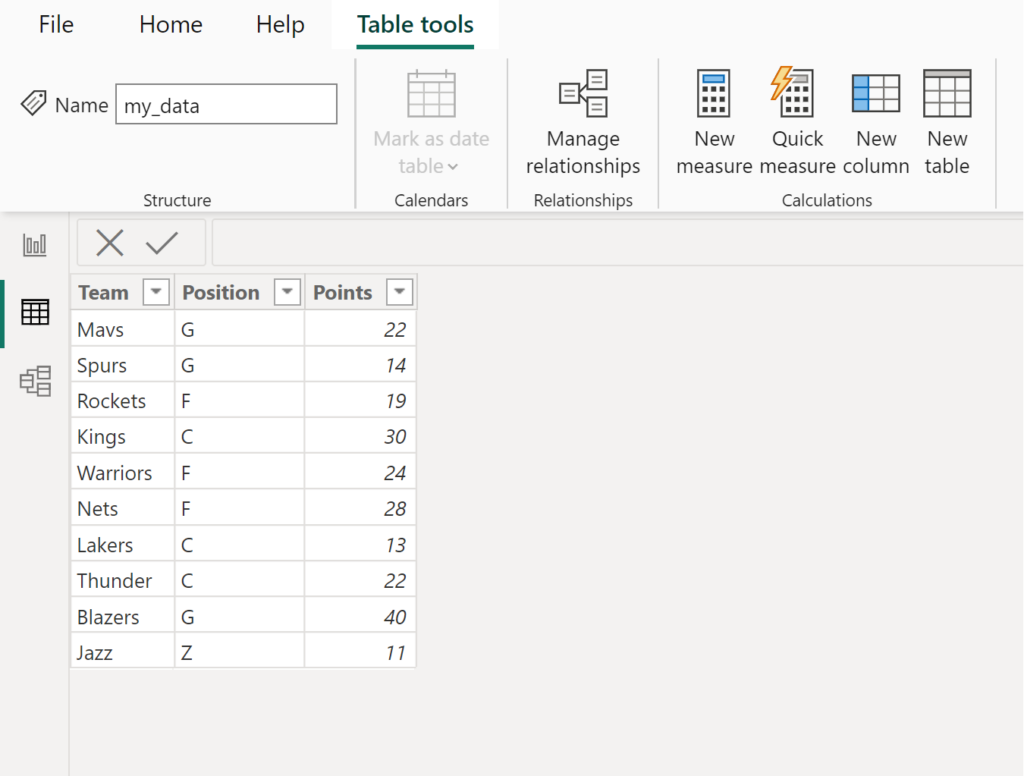

The initial state of our sample data table, my_data, looks like this, showing the abbreviations we need to translate:

As shown above, the Position column contains the source data we will be evaluating. Our goal is to replace ‘G’ with ‘Guard’, ‘F’ with ‘Forward’, and ‘C’ with ‘Center’. This type of conditional mapping is the quintessential use case for the DAX SWITCH function, allowing for high efficiency and minimal effort in data preparation.

Step-by-Step Implementation using the New Column Feature

The implementation of the Case Statement logic requires the creation of a Calculated Column, which is defined within the DAX environment of the Power BI Desktop model view. Calculated Columns add new columns to your data table based on row-by-row computations, making them ideal for assigning categorical values based on existing column data.

Step 1: Accessing the Column Creation Tool. Navigate to the Table tools tab within the Power BI Desktop interface. This ribbon menu provides quick access to model manipulation features. Locate and click the New column icon. This action opens the DAX formula bar, allowing you to define the logic for your calculated column.

Step 2: Defining the SWITCH Formula. Once the formula bar is active, we will input the complete SWITCH expression. This formula dictates that the resulting column, named new, should look at the [Position] column within my_data and map the abbreviated codes to their full names, providing a clear default value for any unexpected entries.

Type the following formula precisely into the formula bar:

new = SWITCH(
            'my_data'[Position],
            "G", "Guard",
            "F", "Forward",
            "C", "Center",
            "None"
            )

Upon confirming the formula (by pressing Enter or clicking the checkmark), Power BI processes the instruction, creating the new column instantaneously based on the conditional logic provided by the SWITCH function. This new column is now part of the data model and ready for visualization and reporting purposes.

Reviewing the Output and Handling Unmatched Conditions

The successful execution of the DAX formula results in the immediate creation of the column named new, which now holds the descriptive position titles as specified in the SWITCH logic. Observing the resulting table confirms that the conditional mappings have been applied correctly across all rows:

This new column, new, reliably returns the correct value based on the position codes. Specifically, we can verify that the conditional assignments function as expected:

• For rows where Position equals “G”, the new column returns “Guard”.
• For rows where Position equals “F”, the new column returns “Forward”.
• For rows where Position equals “C”, the new column returns “Center”.

Crucially, notice the row containing the abbreviation ‘Z’ in the Position column. Since ‘Z’ was not explicitly defined in our formula as one of the conditional matches, the SWITCH function defaults to the final, unpaired argument, which we defined as "None". This demonstrates the critical importance of including a robust default value when writing Case Statements, ensuring that all possibilities, including errors or unexpected data inputs, are handled gracefully without disrupting the calculation.

Handling these unmatched conditions gracefully is a hallmark of good data modeling. If the default value had been omitted, the function would return BLANK() for the unmatched row. While sometimes acceptable, explicitly setting a default like "Other", "Unknown", or "None" provides clearer context to end-users about data that falls outside the defined categories.

Implementing Complex Conditional Logic with SWITCH(TRUE())

While the scalar SWITCH function excels at direct value mapping, more complex business requirements often necessitate evaluating conditions based on ranges, comparisons (greater than, less than), or multiple criteria simultaneously. For these advanced scenarios, the Case Statement equivalent is achieved by using SWITCH(TRUE()).

When TRUE() is passed as the expression argument, the function evaluates each condition-result pair sequentially until the first condition that evaluates to TRUE is encountered. This allows you to construct complex logical tests similar to an elaborate series of IF... ELSE IF... ELSE statements, but in a structure that remains highly organized. For example, you could categorize customers into tiers based on a combination of sales volume and tenure, both of which require comparative operators.

A typical example of this structure might involve defining revenue tiers:

Revenue_Tier = SWITCH(
                TRUE(),
                'Sales'[Revenue] > 100000, "High Tier",
                'Sales'[Revenue] > 50000, "Medium Tier",
                'Sales'[Revenue] > 10000, "Low Tier",
                "Starter Tier"
                )

Note that because the function stops after the first true condition, the order of evaluation is vital. The most restrictive or specific conditions (like > 100000) must be placed first, allowing the subsequent broader conditions to capture the remaining data ranges correctly. This approach ensures accurate categorization when dealing with overlapping ranges, maximizing the effectiveness of your Case Statement implementation.

Alternatives to SWITCH and Best Practices for Conditional DAX

While SWITCH is the preferred method for Case Statements in DAX, analysts should be aware of other viable alternatives. Specifically, nested IF statements and conditional logic applied directly in the Power Query Editor (M language) offer different avenues for achieving similar outcomes, each with its own advantages and disadvantages.

Nested IF statements are suitable for scenarios involving only two or three conditions. Beyond that, they quickly become unmanageable and prone to error. The syntax of nested IF statements is considerably less intuitive than the paired structure of the SWITCH function, making SWITCH the superior choice for handling five or more distinct categories in Power BI.

Another powerful alternative lies in the Power Query Editor, which uses the M language. If the conditional categorization is static and required only for data preparation (not dynamic measure calculations), creating a Conditional Column in Power Query is often the most performant option, as these transformations occur during data loading, reducing the burden on the DAX calculation engine. Analysts must decide whether the conditional logic belongs in the M environment (for static transformations) or the DAX environment (for dynamic measures or calculations based on the final model context).

Summary of Conditional Logic and Further Resources

The implementation of conditional logic, often analogous to a Case Statement, is integral to creating robust and insightful data models in Power BI. By harnessing the flexibility and readability of the SWITCH function in DAX, developers can efficiently classify data, handle exceptions with default values, and translate cryptic codes into user-friendly descriptions.

Whether you are using the scalar SWITCH for direct mapping, as demonstrated in our basketball position example, or the SWITCH(TRUE()) pattern for evaluating complex criteria, understanding this fundamental conditional structure is a prerequisite for advanced data modeling. Always prioritize code clarity, utilize the default argument, and consider performance implications when choosing between DAX Calculated Columns and Power Query transformations.

For continued learning and technical reference regarding the specific syntax and behavior of the function discussed, please consult the official documentation.

Note: You can find the complete documentation for the SWITCH function in DAX here.
