The Role of VLOOKUP in Data Analysis

The concept of searching and retrieving data, famously encapsulated by the VLOOKUP function in Excel, is fundamental to data preparation and integration. This function provides a rapid mechanism to cross-reference entries based on a shared identifier, thereby enriching one dataset with attributes sourced from another. Historically, this capability has been the backbone of thousands of spreadsheets used globally for everything from inventory management to financial reconciliation. However, relying solely on spreadsheet-based lookups introduces inherent limitations concerning scalability, processing power, and the maintenance of data integrity, particularly when dealing with millions of rows.

While the functionality is straightforward in a two-dimensional spreadsheet context, migrating this logic to a sophisticated environment like Power BI requires shifting focus toward relational modeling principles. Power BI’s architecture prioritizes explicit relationships between tables, typically managed either through the robust transformation capabilities of Power Query (M language) or through the highly optimized calculation capabilities of the DAX language. When a user seeks a direct, row-by-row lookup equivalent within a calculated column, the solution resides squarely within DAX, not in a direct port of the VLOOKUP syntax.

It is important to understand that in Power BI, lookups are often handled more efficiently by establishing formal relationships in the Data Model view. However, there are specific scenarios—such as dealing with disconnected tables, applying lookups based on complex, non-standard key combinations, or executing lookups that must occur after data loading—where a dedicated calculation function is necessary. This is precisely where the LOOKUPVALUE function proves indispensable, acting as the procedural equivalent to a VLOOKUP operation within the Power BI ecosystem.

Translating VLOOKUP Functionality to Power BI

Users who are proficient in Excel naturally search for a direct substitute for VLOOKUP when beginning their journey with Power BI. While table merging via Power Query (M language) is generally the performance-optimized approach for integrating large tables, the creation of calculated columns often requires a specific DAX function that can retrieve a single scalar value based on matching criteria. This essential role is filled by the LOOKUPVALUE function, which provides the transactional lookup logic necessary for augmenting existing tables with data from reference tables after the model has been loaded.

The core philosophy behind LOOKUPVALUE is distinct from VLOOKUP. Instead of operating purely based on relative column indices within a static range, LOOKUPVALUE operates across the entire data model, utilizing context transition to evaluate the lookup criteria for every row in the current table. It effectively searches the entire specified lookup column for a specific value provided by the current row’s context and, upon finding a match, returns the corresponding value from the result column. This mechanism ensures high accuracy and is particularly well-suited for one-to-many lookups where the lookup column contains unique or distinct identifiers.

To replicate the exact functionality of a VLOOKUP operation—where you look up a specific value from one table in another table and return a corresponding value—you must utilize the LOOKUPVALUE function within DAX. Unlike its Excel counterpart, LOOKUPVALUE requires explicit declaration of column names for the result, the search key in the reference table, and the value to be searched from the current table. This explicit naming convention enhances formula readability and reduces ambiguity, offering a robust alternative for data integration within the relational modeling environment.

Mastering the LOOKUPVALUE Function: Syntax Breakdown

The syntax for the LOOKUPVALUE function is precise and requires three mandatory arguments, which define the column to return, the search column, and the search value, respectively. Understanding this structure is paramount to successful implementation in DAX. The basic syntax structure is designed to be highly explicit, ensuring that the source and destination columns are clearly defined across tables. The optional fourth argument allows the user to specify a result that should be returned if no match is found, preventing the default return of BLANK().

The syntax used to define the calculation typically follows this precise structure: `New_Column = LOOKUPVALUE(Result_Column, Search_Column1, Search_Value1)`. In this structure, the Result_Column is the fully qualified column name (e.g., ‘TableA'[Metric]) containing the value you wish to retrieve. The Search_Column1 is the fully qualified key column in the lookup table (e.g., ‘TableA'[KeyID]), and the Search_Value1 is the value from the current table’s key column (e.g., ‘TableB'[KeyID]) that you are seeking to match against the lookup table. This iterative process is executed for every row in the calculated table.

For the specific example presented in this tutorial, where we aim to pull “Points” data from a lookup table (`data2`) into our primary table (`data1`) based on matching “Team” names, the formula implementation is clear and concise. This expression creates a new column in `data1` that performs the required lookup operation across the model, retrieving the score associated with the team in the current row. This functionality is the functional equivalent of a standard VLOOKUP operation, translated into the DAX language:

Points = LOOKUPVALUE('data2'[Points], 'data2'[Team], 'data1'[Team])

This particular example creates a new column named Points that looks up the value from the Team column in data1 within the Team column in data2 and returns the corresponding value from the Points column in data2, successfully achieving the desired data augmentation.

Prerequisites for Successful Data Linking

Before executing the LOOKUPVALUE function, careful attention must be paid to the underlying data structure and quality. Both the destination table (where the new column is created) and the source table (the lookup table) must be loaded correctly into the Power BI Data Model. Furthermore, the key columns used for matching (in our example, the Team column in both tables) must be of the same data type and format to ensure accurate comparison. Discrepancies in capitalization, trailing spaces, or data types will result in mismatched lookups and BLANK() returns.

A critical operational constraint of the LOOKUPVALUE function is its strict requirement for uniqueness in the lookup table. Unlike some iterative lookup methods, LOOKUPVALUE is fundamentally designed to retrieve a single scalar value. If the combination of search columns used to locate the result yields more than one matching row in the lookup table, the function will not return an arbitrary value; instead, it will result in an error or a blank value, depending on the LOOKUPVALUE implementation and environment settings. This feature is a necessary safeguard against potentially misleading results in serious data analysis, forcing the user to ensure data integrity before lookup execution.

While establishing formal relationships between tables is often the high-performance standard in Power BI, LOOKUPVALUE offers flexibility when formal relationships are not practical or desired. For instance, if the lookup is only needed for a temporary report column, or if the key field is not truly unique enough to serve as a primary key for a formal relationship, this function provides a targeted, formula-driven solution. It bypasses the established relationship paths, performing an isolated calculation that is highly specific to the context of the calculated column being defined.

Practical Application: A Step-by-Step Example (Data Setup)

To illustrate the practical use of LOOKUPVALUE, consider a scenario where we need to combine basic team roster information with specific performance statistics. We begin with two separate tables, both imported into our Power BI model. The first table, named data1, contains foundational details about basketball players, specifically their Team affiliation and their Position on the court. This table serves as our primary destination, the data structure we intend to enrich through the lookup operation.

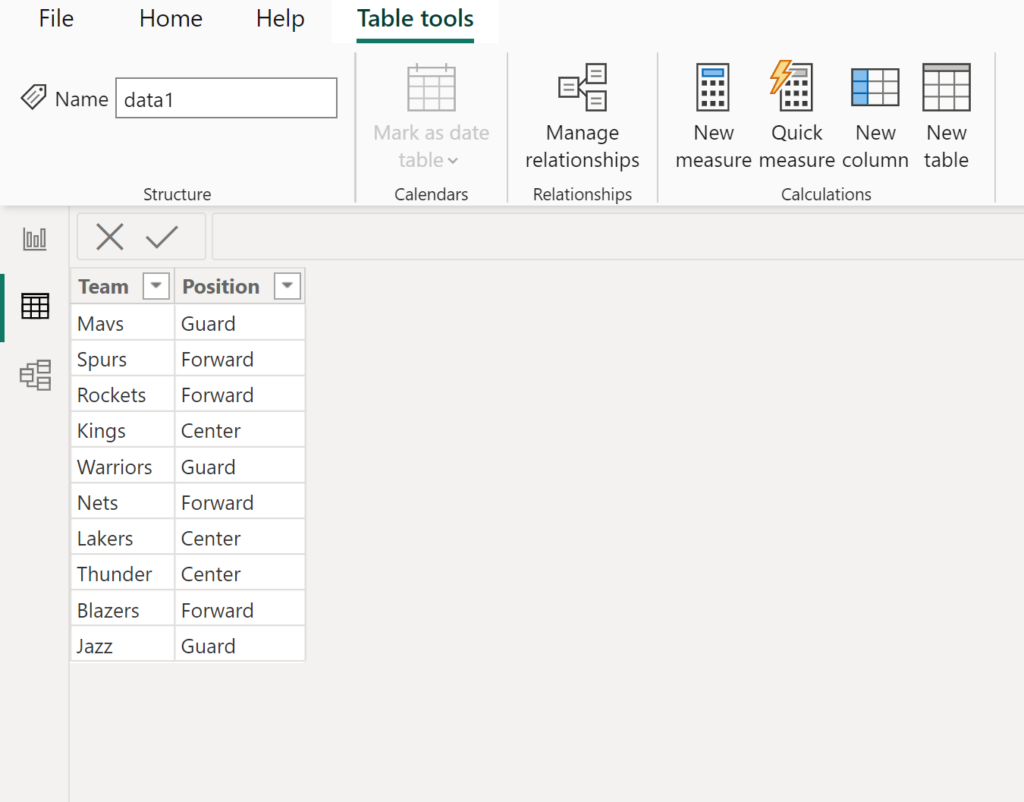

Suppose we have the following table named data1 that contains information about the Team and Position for various basketball players:

The second table, named data2, holds the performance metrics—specifically, the Points scored—but lacks the positional data found in data1. The link between these two datasets is the common field, Team. Our objective is to efficiently pull the Points data from data2 and map it accurately onto the corresponding rows in data1 using the shared team identifier.

And suppose we have another table named data2 that contains information about the Team and Points for the same basketball players:

Suppose that we would like to look up the values from the Team column in data1 within the Team column in data2 and returns the corresponding value from the Points column in data2. This process requires a precise implementation of the DAX LOOKUPVALUE function to ensure that the scoring data is correctly aligned with the roster information in the destination table.

Implementing LOOKUPVALUE in Power BI Desktop

The implementation of the lookup function begins directly within the Power BI Desktop environment, specifically in the Data View. It is essential to first ensure that the target table—in this case, data1—is the active table, as the calculated column will be generated and stored within this structure. This step establishes the row context necessary for the DAX engine to iterate through the base table and execute the lookup for each entry.

To initiate the column creation process, users must navigate to the primary navigation ribbon at the top of the interface. Locate the Table tools tab, which contains essential modeling functionalities. Within this tab, select the New column icon. Clicking this button opens the DAX formula bar, allowing the user to define the precise expression that will calculate the values for the new column. This action signals to Power BI that a row-context calculation is about to be defined.

Then, the specific LOOKUPVALUE formula is typed into the formula bar. This powerful expression directs the DAX engine to retrieve the values from the `data2` Points column, searching the `data2` Team column for a match against the corresponding `data1` Team value in the current row. This method ensures that the points metric is accurately mapped to the respective team across the data model, fulfilling the objective of the lookup operation:

Points = LOOKUPVALUE('data2'[Points], 'data2'[Team], 'data1'[Team])

This will successfully create a new column named Points that contains the points values sourced from the data2 table, ensuring they correspond accurately to each team listed in the data1 table, thus completing the data enrichment process.

Interpreting the Results and Data Validation

Upon successful execution of the DAX formula, the new calculated column, Points, will appear instantly within the data1 table in the Data View. This column now holds the quantitative scoring metric derived from the lookup table, effectively merging the two datasets based on the common team identifier. The result column can now be used immediately in visualizations, reports, and further calculations, integrating seamlessly with the rest of the data model as if it were an original source column.

However, successful execution does not automatically guarantee perfect data integrity. The immediate next step in any robust data analysis workflow must be validation. Users should specifically examine the new Points column for any blank entries (which appear as BLANK() in the DAX context). A blank value indicates that the corresponding team name in the data1 table did not have an exact match in the lookup column of the data2 table. This often points to data quality issues such as spelling mistakes, inconsistent abbreviations, or missing records in the source data.

The final output demonstrates the successful merging of the data, where the new column accurately reflects the points scored by each team. This newly integrated column significantly enhances the analytical capabilities of the data1 table, allowing for richer reporting that combines positional data with performance metrics. This calculated column is now available for use in any measure or visualization within the Power BI report canvas.

Common Pitfalls and Alternatives to LOOKUPVALUE

While the LOOKUPVALUE function is powerful, its strict requirements can lead to common pitfalls. As previously noted, the primary source of failure is encountering duplicate keys in the lookup table (`data2`). Since the function must return a single scalar value, if multiple rows match the search criteria, the function cannot determine which value to return and will often throw an error or return BLANK(). To mitigate this, users should preprocess the lookup table using Power Query to ensure the key column is truly unique, perhaps by aggregating or filtering the data to retain only one record per key before loading it into the data model.

For scenarios involving very large datasets or complex transformations, the performance of the LOOKUPVALUE function, which is a row-by-row calculation, can be suboptimal compared to Power Query merges. A preferred alternative for integrating tables early in the data preparation phase is executing a Left Outer Join using the Merge Queries feature in Power Query (M Language). Merging queries shifts the processing burden to the data ingestion stage, leveraging Power Query’s engine for efficient, bulk data integration before any DAX calculations are performed, leading to faster data refresh times and better report performance.

Furthermore, if a standard one-to-many relationship already exists between the two tables (where `data2` is the ‘one’ side), the RELATED function is significantly more performant and syntactically simpler than LOOKUPVALUE. The RELATED function automatically navigates the existing relationship path, requiring only the name of the result column as an argument. Understanding when to use RELATED (when relationships exist) versus LOOKUPVALUE (when relationships do not exist or when dealing with complex or virtual relationships) is key to writing high-performing DAX code.

Note: You can find the complete documentation for the LOOKUPVALUE function in DAX.

Conclusion and Further Resources

In summary, while the familiar VLOOKUP function is not directly available in Power BI, its core functionality—the ability to search for a value and retrieve corresponding data—is fully realized through the LOOKUPVALUE function in DAX. Mastering this function is critical for users transitioning from traditional spreadsheets, enabling them to create powerful calculated columns that enrich their data models post-load.

Choosing the correct method for data integration—whether it is leveraging the speed of Power Query merging, the simplicity of the RELATED function for defined relationships, or the precision of the LOOKUPVALUE function for calculated columns—depends entirely on the complexity of the data model and performance requirements. By adhering to best practices and respecting the scalar constraints of LOOKUPVALUE, analysts can ensure their data linkages are both accurate and efficient.
