Can I add horizontal error bars in Excel?

Mastering Data Visualization with Error Bars in Excel

Excel is a powerful tool for data analysis and visualization, but conveying the uncertainty or variability within your data often requires more than just a simple bar chart.
One of the most effective ways to illustrate data dispersion is through the use of error bars.
While vertical error bars are commonly seen in column charts, there are many scenarios, especially when dealing with rankings or progress over time, where horizontal error bars are far more appropriate and informative for displaying measures like standard deviation.

This comprehensive guide is designed for expert users who need to enhance their data presentations by integrating horizontal error bars into bar charts.
We will walk through a precise, step-by-step process using a practical example—tracking a basketball player’s ratings over five years—to demonstrate how to accurately visualize both the central tendency (the average rating) and the spread of the data (the standard deviation).

Upon completion of this tutorial, you will be able to generate professional charts similar to the one shown below, clearly illustrating data averages alongside their associated variability measures, thereby providing a much richer context for your audience.
This technique is vital for scientific reporting, financial analysis, and detailed business intelligence reports where uncertainty must be quantified.

Setting the Foundation: Preparing Your Dataset

The initial step in any robust data visualization project is ensuring that your source data is structured correctly within the spreadsheet.
For our demonstration, we are using a scenario where multiple sports analysts have provided rankings for a specific basketball player across their first five years in the league.
It is essential that the data is organized neatly, with categories (Years) in one dimension and measurements (Analyst Ratings) in the other.

We will set up our sheet with columns representing the years (Year 1 through Year 5) and rows representing the individual ratings provided by different analysts.
This structure facilitates easy calculation of summary statistics for each period.
In real-world applications, this methodology is universally applicable, whether you are analyzing test scores, market survey responses, or manufacturing defect rates across different batches.

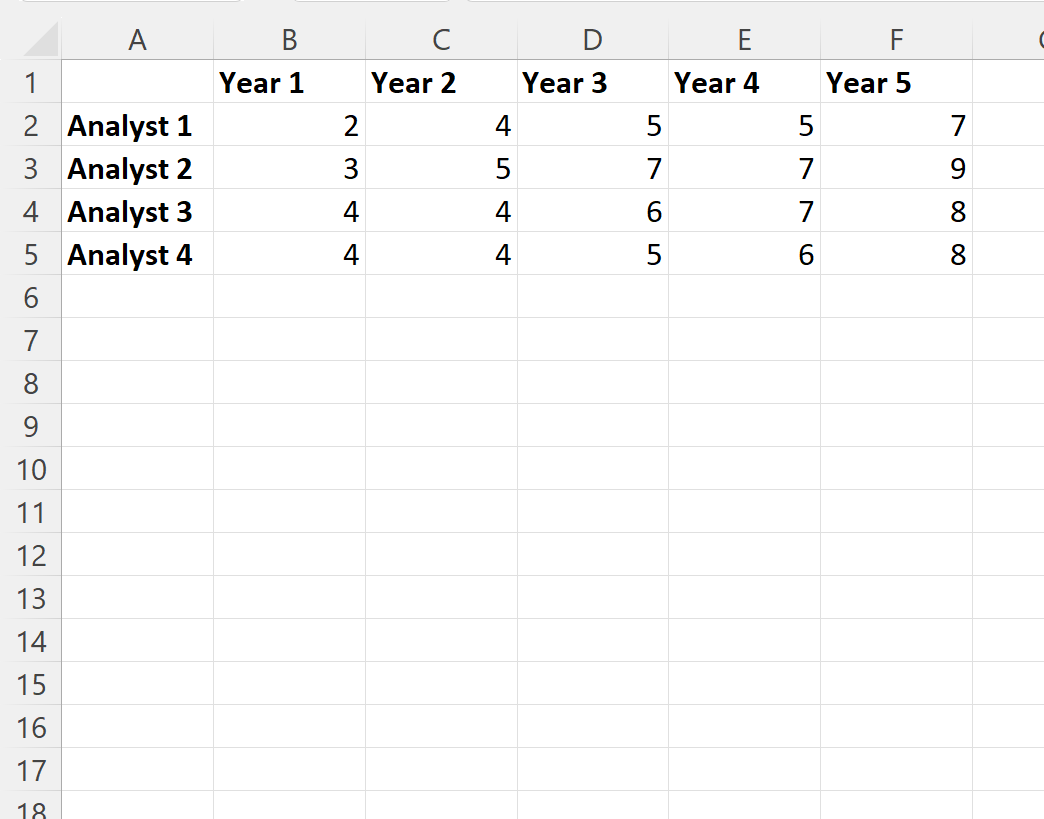

Please enter the following data precisely into your Excel worksheet, starting in cell A1. This dataset forms the foundation upon which all subsequent calculations and the final chart will be built, representing the raw observations from four different analysts (A, B, C, D) over five distinct years.

Essential Statistical Calculations: Average and Standard Deviation

Before we can generate the visualization, we must derive the two crucial statistical measures needed for the chart: the central tendency (the mean or average rating) and the measure of data dispersion (the standard deviation).
The average will determine the length of the horizontal bars, while the standard deviation will dictate the span of the error bars, representing the typical variability around the mean.

To perform these calculations efficiently across all five years, utilize Excel’s built-in statistical functions.
We will calculate these values directly beneath our primary data table.
Type the following formulas into cells B6 (for the average) and B7 (for the standard deviation), referencing the data for Year 1 (cells B2 through B5):

• B6 (Average): =AVERAGE(B2:B5)
• B7 (Standard Deviation): =STDEV(B2:B5)

Once the formulas are entered for Year 1, leverage Excel’s fill handle functionality.
Click and drag the formulas in cells B6 and B7 horizontally to the right, extending them through column F.
This action automatically adjusts the cell references for each subsequent year (Year 2, Year 3, etc.), providing the complete set of averages and standard deviations needed for the visualization.

Visualizing Central Tendency: Creating the Initial Bar Chart

The next logical step is to create the base chart, which will visualize the average ratings calculated in the previous step.
Crucially, since we intend to add horizontal error bars, we must use a Bar Chart (which plots categories vertically and values horizontally), not a Column Chart.

Begin by selecting the range that contains only the average ratings: B6:F6.
These values represent the core data points we want to display.
After selecting the data, navigate to the Insert tab located on the top ribbon of Excel.

Within the Charts group, look for the chart icon representing 2-D Bar charts and click it to insert a basic horizontal bar chart.
Excel will generate a chart where the length of each bar corresponds to the average ranking for that specific year.
This chart currently provides a clear view of the mean performance across the five years but lacks any indication of the data’s reliability or spread.

The resulting chart should visually represent the average player ranking for each year. Note that, by default, Excel may use sequential numbers (1, 2, 3…) for the category axis. This is a minor aesthetic issue we can address later during the customization phase, but the core data visualization is now in place.

Implementing Variability Metrics: Integrating Horizontal Error Bars

To transform this basic chart into a sophisticated statistical visualization, we must introduce the error bars. These elements are critical for conveying the uncertainty associated with the average rating; they visually quantify the precision of the estimate.
Fortunately, Excel makes the initial step of adding error bars straightforward.

Click anywhere on the newly created chart to select it. This action makes the Chart Elements menu available.
Look for the tiny green plus sign (+), often located in the top-right corner of the chart area, and click it.
A menu listing various chart elements will appear.

Then check the box next to Error Bars. Excel will immediately add both vertical and horizontal error bars to your chart.
Since we are using a horizontal bar chart, the vertical error bars are extraneous and should be removed.
Click specifically on the vertical error bars (which will be positioned at the end of each bar) and press the Delete key. This leaves only the necessary horizontal error bars, although they are currently set to Excel’s default value (usually a standard error or fixed percentage).

Customizing Error Bar Values: Linking to Standard Deviation Data

The default error bars must be replaced with our calculated standard deviation values to ensure the chart is statistically meaningful. This is the most critical part of the process, requiring precise cell referencing.

Click on any of the horizontal error bars to select them. This action automatically opens the Format Error Bars task pane on the right side of your screen.
In this pane, under the Error Amount section, select the Custom option, typically located at the bottom of the list.
After selecting Custom, click the button labeled Specify Value.

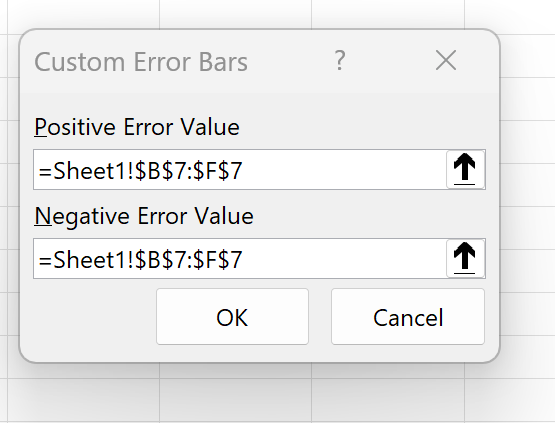

A new dialogue box, “Custom Error Bars,” will prompt you to define the Positive Error Value and the Negative Error Value.
Since the standard deviation measure is symmetrical (it extends equally in both directions from the mean), we will use the exact same range of cells for both fields—the range containing our pre-calculated standard deviations (Row 7).

Carefully input the cell range =Sheet1!$B$7:$F$7 into both the Positive Error Value and Negative Error Value boxes. The use of absolute references (the dollar signs) is a best practice, ensuring the reference remains fixed even if the spreadsheet layout changes.
This step instructs Excel to use the calculated standard deviation for each respective bar.

Once you click OK, the horizontal error bars will instantly adjust, now accurately representing the standard deviation of the ratings for each year.
The visual difference will likely be substantial compared to Excel’s arbitrary default settings, providing a statistically valid representation of the data variability.

Interpreting the Results: Understanding Variability Through Error Bar Width

With the horizontal error bars correctly implemented, the chart now tells a much more comprehensive story.
The length of the bar shows the average ranking, and the length of the error bar indicates the spread or consistency of the analysts’ ratings for that year.

A key principle of interpreting these visualizations is: the wider the error bars, the greater the variation or inconsistency in the underlying data.
In our context, wide error bars suggest that the analysts disagreed significantly on the player’s rating for that specific year, resulting in a less precise average rating.

Let’s look closely at the quantitative data to support the visualization.
For instance, the calculated standard deviation for ratings in Year 1 was approximately 0.9574, indicating high variability among the analysts.
In contrast, the standard deviation for Year 2 was only 0.5, signifying much tighter agreement among the raters.
This numerical difference—where the standard deviation in Year 1 is nearly twice that of Year 2—is immediately and powerfully conveyed by the visual width of the respective horizontal error bars on the chart.

This type of visualization is crucial for decision-making. If you were analyzing experimental data, a large error bar would prompt further investigation into potential confounding variables or measurement inconsistencies. In this ranking scenario, it indicates that the player’s performance was perceived much more consistently by analysts in Year 2 than in Year 1.

Enhancing Clarity: Optional Chart Customization

While the chart is now statistically accurate, optimization through aesthetic customization will significantly improve readability and professional presentation.
This optional final step ensures your data is communicated clearly and effectively.

Recommended customization steps include:

1. Adding a Descriptive Title: A title such as “Average Player Ranking with Standard Deviation” immediately sets the context and purpose of the chart.
2. Adjusting Axis Labels: Ensure the category axis correctly displays “Year 1,” “Year 2,” etc., instead of generic numerical labels (this is often achieved by right-clicking the axis, selecting “Select Data,” and editing the Horizontal Category Axis Labels).
3. Removing Clutter: Delete gridlines if they interfere with the error bars or overall clarity.
4. Customizing Colors: Use consistent, professional colors for the bars and error bar lines.
5. Fine-Tuning Error Bar Appearance: Adjust the thickness or style of the error bars within the Format Error Bars pane for enhanced visibility, ensuring they don’t overpower the mean bars.

Applying these refinements transforms the raw output into a publication-ready figure.
The goal is to minimize distraction while maximizing the impact of the data, especially the comparison between the mean values and the spans of the horizontal error bars.

The resulting, polished plot should look similar to this final product:

Conclusion: Leveraging Horizontal Error Bars for Better Data Insight

The ability to accurately represent data variability alongside central tendency is foundational to effective data visualization.
By mastering the process of inserting and customizing horizontal error bars in Excel, you move beyond simple averages to provide a deeper, more nuanced understanding of your dataset.

This technique is particularly useful in fields requiring comparative analysis across categories, where the reliability of the measurement is as important as the measurement itself.
Remember that while Excel provides the tools, the user must supply the correct statistical context, such as linking the error bars to appropriate measures like standard deviation or standard error.

Always prioritize statistical accuracy and visual clarity. By diligently following these steps, you ensure that your charts are not only aesthetically pleasing but also scientifically sound, empowering your audience to draw accurate conclusions from your data presentation.
