Canonical correlation analysis is used to
identify and measure the associations among two sets of variables.
Canonical correlation is appropriate in the same situations where multiple
regression would be, but where are there are multiple intercorrelated outcome
variables. Canonical correlation analysis determines a set of canonical variates,
orthogonal linear combinations of the variables within each set that best
explain the variability both within and between sets.

This page uses the following packages. Make sure that you can load
them before trying to run the examples on this page. If you do not have
a package installed, run: install.packages("packagename"), or
if you see the version is out of date, run: update.packages().

require(ggplot2)
require(GGally)
require(CCA)
require(CCP)

Version info: Code for this page was tested in R Under development (unstable) (2012-11-16 r61126)
On: 2012-12-15
With: CCP 1.1; CCA 1.2; fields 6.7; spam 0.29-2; fda 2.3.2; RCurl 1.95-3; bitops 1.0-5; Matrix 1.0-10; lattice 0.20-10; zoo 1.7-9; GGally 0.4.2; reshape 0.8.4; plyr 1.8; ggplot2 0.9.3; knitr 0.9


Please Note: The purpose of this page is to show how to use various data analysis commands.
It does not cover all aspects of the research process which researchers are expected to do. In
particular, it does not cover data cleaning and checking, verification of assumptions, model
diagnostics and potential follow-up analyses.

Examples of canonical correlation analysis

Example 1. A researcher has collected data on three psychological variables, four academic variables
(standardized test scores) and gender for 600 college freshman. She is interested in
how the set of psychological variables relates to the academic variables and gender. In
particular, the researcher is interested in how many dimensions (canonical
variables) are necessary to understand
the association between the two sets of variables.

Example 2. A researcher is interested in exploring associations among factors from two multidimensional
personality tests, the MMPI and the NEO. She is interested in what dimensions
are common between the tests and how much
variance is shared between them. She is specifically interested in finding
whether the neuroticism dimension from the NEO can account for a substantial amount of shared variance
between the two tests.

Description of the data

For our analysis example, we are going to expand example 1 about investigating
the associations between psychological measures and academic achievement
measures.

We have a data file, mmreg.dta, with 600 observations on eight variables.
The psychological variables are locus_of_control, self_concept and
motivation. The academic variables are standardized tests in
reading (read), writing (write),
math (math) and science (science). Additionally,
the variable female is a zero-one indicator variable
with the one indicating a female student.

mm <- read.csv("https://stats.idre.ucla.edu/stat/data/mmreg.csv")
colnames(mm) <- c("Control", "Concept", "Motivation", "Read", "Write", "Math",
    "Science", "Sex")
summary(mm)

##     Control           Concept          Motivation         Read
##  Min.   :-2.2300   Min.   :-2.6200   Min.   :0.000   Min.   :28.3
##  1st Qu.:-0.3725   1st Qu.:-0.3000   1st Qu.:0.330   1st Qu.:44.2
##  Median : 0.2100   Median : 0.0300   Median :0.670   Median :52.1
##  Mean   : 0.0965   Mean   : 0.0049   Mean   :0.661   Mean   :51.9
##  3rd Qu.: 0.5100   3rd Qu.: 0.4400   3rd Qu.:1.000   3rd Qu.:60.1
##  Max.   : 1.3600   Max.   : 1.1900   Max.   :1.000   Max.   :76.0
##      Write           Math         Science          Sex
##  Min.   :25.5   Min.   :31.8   Min.   :26.0   Min.   :0.000
##  1st Qu.:44.3   1st Qu.:44.5   1st Qu.:44.4   1st Qu.:0.000
##  Median :54.1   Median :51.3   Median :52.6   Median :1.000
##  Mean   :52.4   Mean   :51.9   Mean   :51.8   Mean   :0.545
##  3rd Qu.:59.9   3rd Qu.:58.4   3rd Qu.:58.6   3rd Qu.:1.000
##  Max.   :67.1   Max.   :75.5   Max.   :74.2   Max.   :1.000

Analysis methods you might consider

Below is a list of some analysis methods you may have encountered.
Some of the methods listed are quite reasonable while others have either
fallen out of favor or have limitations.

Canonical correlation analysis

Below we use the canon command to conduct a canonical correlation
analysis. It requires two sets of variables enclosed with a pair of
parentheses. We specify our psychological variables as the first set of
variables and our academic variables plus gender as the second set. For
convenience, the variables in the first set are called “u” variables and the
variables in the second set are called “v” variables.

Let’s look at the data.

xtabs(~Sex, data = mm)

## Sex
##   0   1
## 273 327

psych <- mm[, 1:3]
acad <- mm[, 4:8]

ggpairs(psych)

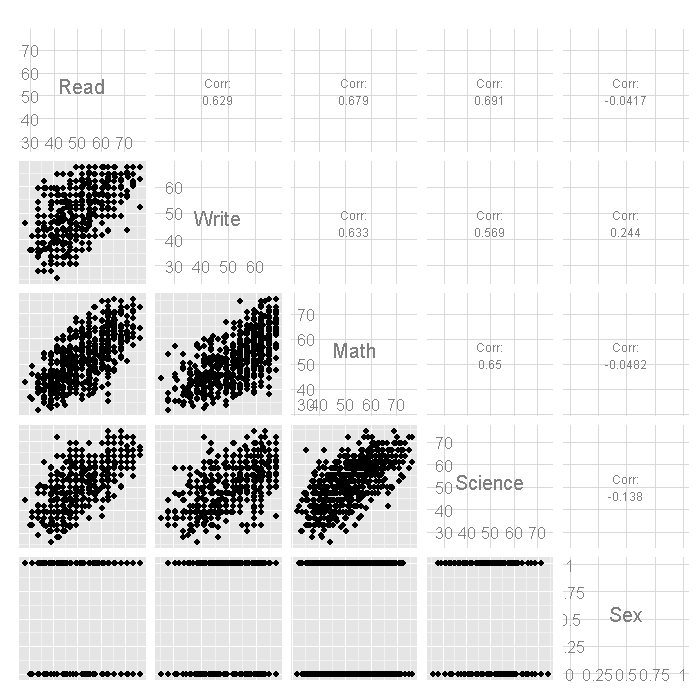

ggpairs(acad)

For more information about GGally including packages such as ggduo() you can look here. Next, we’ll look at the correlations within and between the two sets of variables using the matcor function from the CCA package.

# correlationsmatcor(psych, acad)

## $Xcor
##            Control Concept Motivation
## Control     1.0000  0.1712     0.2451
## Concept     0.1712  1.0000     0.2886
## Motivation  0.2451  0.2886     1.0000
##
## $Ycor
##             Read  Write     Math Science      Sex
## Read     1.00000 0.6286  0.67928  0.6907 -0.04174
## Write    0.62859 1.0000  0.63267  0.5691  0.24433
## Math     0.67928 0.6327  1.00000  0.6495 -0.04822
## Science  0.69069 0.5691  0.64953  1.0000 -0.13819
## Sex     -0.04174 0.2443 -0.04822 -0.1382  1.00000
##
## $XYcor
##            Control  Concept Motivation     Read   Write     Math  Science
## Control     1.0000  0.17119     0.2451  0.37357 0.35888  0.33727  0.32463
## Concept     0.1712  1.00000     0.2886  0.06066 0.01945  0.05360  0.06983
## Motivation  0.2451  0.28857     1.0000  0.21061 0.25425  0.19501  0.11567
## Read        0.3736  0.06066     0.2106  1.00000 0.62859  0.67928  0.69069
## Write       0.3589  0.01945     0.2542  0.62859 1.00000  0.63267  0.56915
## Math        0.3373  0.05360     0.1950  0.67928 0.63267  1.00000  0.64953
## Science     0.3246  0.06983     0.1157  0.69069 0.56915  0.64953  1.00000
## Sex         0.1134 -0.12595     0.0981 -0.04174 0.24433 -0.04822 -0.13819
##                 Sex
## Control     0.11341
## Concept    -0.12595
## Motivation  0.09810
## Read       -0.04174
## Write       0.24433
## Math       -0.04822
## Science    -0.13819
## Sex         1.00000

Some Strategies You Might Be Tempted To Try

Before we show how you can analyze this with a canonical correlation analysis, let’s
consider some other methods that you might use.

R Canonical Correlation Analysis

Due to the length of the output, we will be making comments in several places along
the way.

cc1 <- cc(psych, acad)

# display the canonical correlations
cc1$cor

## [1] 0.4641 0.1675 0.1040

# raw canonical coefficients
cc1[3:4]

## $xcoef
##               [,1]    [,2]    [,3]
## Control    -1.2538 -0.6215 -0.6617
## Concept     0.3513 -1.1877  0.8267
## Motivation -1.2624  2.0273  2.0002
##
## $ycoef
##              [,1]      [,2]      [,3]
## Read    -0.044621 -0.004910  0.021381
## Write   -0.035877  0.042071  0.091307
## Math    -0.023417  0.004229  0.009398
## Science -0.005025 -0.085162 -0.109835
## Sex     -0.632119  1.084642 -1.794647

The raw canonical coefficients are interpreted in a manner analogous to interpreting
regression coefficients i.e., for the variable read, a one unit increase in reading leads to a
.0446 decrease in the first canonical variate of set 2 when all of
the other variables are held constant. Here is another example: being female leads to
a .6321 decrease in the dimension 1 for the academic set with the other predictors held constant.

Next, we’ll use comput to compute the loadings of the
variables on the canonical dimensions (variates). These loadings are correlations between
variables and the canonical variates.

# compute canonical loadings
cc2 <- comput(psych, acad, cc1)

# display canonical loadings
cc2[3:6]

## $corr.X.xscores
##                [,1]    [,2]    [,3]
## Control    -0.90405 -0.3897 -0.1756
## Concept    -0.02084 -0.7087  0.7052
## Motivation -0.56715  0.3509  0.7451
##
## $corr.Y.xscores
##            [,1]     [,2]     [,3]
## Read    -0.3900 -0.06011  0.01408
## Write   -0.4068  0.01086  0.02647
## Math    -0.3545 -0.04991  0.01537
## Science -0.3056 -0.11337 -0.02395
## Sex     -0.1690  0.12646 -0.05651
##
## $corr.X.yscores
##                 [,1]     [,2]     [,3]
## Control    -0.419555 -0.06528 -0.01826
## Concept    -0.009673 -0.11872  0.07333
## Motivation -0.263207  0.05878  0.07749
##
## $corr.Y.yscores
##            [,1]     [,2]    [,3]
## Read    -0.8404 -0.35883  0.1354
## Write   -0.8765  0.06484  0.2546
## Math    -0.7639 -0.29795  0.1478
## Science -0.6584 -0.67680 -0.2304
## Sex     -0.3641  0.75493 -0.5434

The above correlations are between observed variables and canonical variables
which are known as the canonical loadings. These canonical variates are actually
a type of latent variable.

In general, the number of canonical dimensions is
equal to the number of variables in the smaller set; however, the number of significant
dimensions may be even smaller. Canonical dimensions, also known as
canonical variates, are latent variables that are analogous to factors obtained in factor analysis.
For this particular model there are three canonical dimensions of which only the first
two are statistically significant. For statistical test we use R package "CCP".

# tests of canonical dimensionsrho<-cc1$cor## Define number of observations, number of variables in first set, and number of variables in the second set.n<-dim(psych)[1]p<-length(psych)q<-length(acad)## Calculate p-values using the F-approximations of different test statistics:p.asym(rho, n, p, q,tstat="Wilks")

## Wilks' Lambda, using F-approximation (Rao's F):
##           stat approx df1  df2 p.value
## 1 to 3:  0.754  11.72  15 1635 0.00000
## 2 to 3:  0.961   2.94   8 1186 0.00291
## 3 to 3:  0.989   2.16   3  594 0.09109

p.asym(rho, n, p, q,tstat="Hotelling")

##  Hotelling-Lawley Trace, using F-approximation:
##            stat approx df1  df2 p.value
## 1 to 3:  0.3143  12.38  15 1772 0.00000
## 2 to 3:  0.0398   2.95   8 1778 0.00281
## 3 to 3:  0.0109   2.17   3 1784 0.09001

p.asym(rho, n, p, q,tstat="Pillai")

##  Pillai-Bartlett Trace, using F-approximation:
##            stat approx df1  df2 p.value
## 1 to 3:  0.2542  11.00  15 1782 0.00000
## 2 to 3:  0.0389   2.93   8 1788 0.00293
## 3 to 3:  0.0108   2.16   3 1794 0.09044

p.asym(rho, n, p, q,tstat="Roy")

##  Roy's Largest Root, using F-approximation:
##           stat approx df1 df2 p.value
## 1 to 1:  0.215   32.6   5 594       0
##
##  F statistic for Roy's Greatest Root is an upper bound.

As shown in the table above, the first test of the canonical dimensions tests whether
all three dimensions are significant (they are, F = 11.72), the next test tests whether
dimensions 2 and 3 combined are significant (they are, F = 2.94). Finally, the last test tests whether dimension
3, by itself, is significant (it is not). Therefore dimensions 1 and 2 must each be
significant while dimension three is not.

When the variables in the model have very different standard deviations,
the standardized coefficients allow for easier comparisons among the variables. Next, we’ll
compute the standardized canonical coefficients.

# standardized psych canonical coefficients diagonal matrix of psych sd's
s1 <- diag(sqrt(diag(cov(psych))))
s1 %*% cc1$xcoef

##         [,1]    [,2]    [,3]
## [1,] -0.8404 -0.4166 -0.4435
## [2,]  0.2479 -0.8379  0.5833
## [3,] -0.4327  0.6948  0.6855

# standardized acad canonical coefficients diagonal matrix of acad sd's
s2 <- diag(sqrt(diag(cov(acad))))
s2 %*% cc1$ycoef

##          [,1]     [,2]     [,3]
## [1,] -0.45080 -0.04961  0.21601
## [2,] -0.34896  0.40921  0.88810
## [3,] -0.22047  0.03982  0.08848
## [4,] -0.04878 -0.82660 -1.06608
## [5,] -0.31504  0.54057 -0.89443

The standardized canonical coefficients are interpreted in a manner analogous to
interpreting standardized regression coefficients. For example, consider the
variable read, a one
standard deviation increase in reading leads to a 0.45 standard deviation
decrease in the
score on the first canonical variate for set 2 when the other variables in the model are
held constant.

Sample Write-Up of the Analysis

There is a lot of variation in the write-ups of canonical correlation analyses. The
write-up below is fairly minimal, including only the tests of dimensionality and the
standardized coefficients.

Table 1: Tests of Canonical Dimensions
            Canonical  Mult.
Dimension     Corr.      F    df1    df2      p
    1         0.46     11.72   15   1634.7  0.0000
    2         0.17      2.94    8   1186    0.0029
    3         0.10      2.16    3    594    0.0911

Table 2: Standardized Canonical Coefficients
                            Dimension
                           1         2
Psychological Variables
    locus of control    -0.84     -0.42
    self-concept         0.25     -0.84
    motivation          -0.43      0.69
Academic Variables plus Gender
    reading             -0.45     -0.05
    writing             -0.35      0.41
    math                -0.22      0.04
    science             -0.05     -0.83
    gender (female=1)   -0.32      0.54

Tests of dimensionality for the canonical correlation analysis, as shown in Table 1, indicate
that two of the three canonical dimensions are statistically significant at the .05 level.
Dimension 1 had a canonical correlation of 0.46 between the sets of variables, while for
dimension 2 the canonical correlation was much lower at 0.17.

Table 2 presents
the standardized canonical coefficients for the first two dimensions across both sets of
variables. For the psychological variables, the first canonical dimension is most
strongly influenced by locus of control (-.84) and for the second dimension self-concept
(-.84) and motivation (.69). For the academic variables plus gender, the first dimension
was comprised of reading (-.45), writing (-.35) and gender (-.32). For the second dimension
writing (.41), science (-.83) and gender (.54) were the dominating variables.

Cautions, Flies in the Ointment

See Also

R Documentation

References
