What is the Complete Guide for Interpreting Q-Q Plots?

The Fundamentals of Quantile-Quantile Plots

A Q-Q plot, standing for “quantile-quantile” plot, is primarily utilized to determine if a specific set of sample data likely originated from a population that follows a hypothesized theoretical distribution. This visualization achieves this by plotting the quantiles of the sample data against the corresponding theoretical quantiles of the comparison distribution. If the two distributions are similar, the plotted points will approximate a straight line.

In practical statistical applications, the Q-Q plot is most frequently employed to assess the critically important assumption of normal distribution. Many parametric statistical models, such as t-tests, ANOVA, and linear regression, require that the residuals (or sometimes the data itself) are normally distributed. Failure to meet this assumption can invalidate the inferential conclusions drawn from the analysis, making the visual check provided by the Q-Q plot an essential preliminary step.

The core principle of interpretation hinges on the proximity of the points to the reference line: the more tightly clustered the points in a Q-Q plot lie on a straight diagonal line, the stronger the evidence that the data adheres to the assumed normal distribution. This diagonal line represents perfect agreement between the sample quantiles and the theoretical quantiles.

Understanding Quantiles and Plot Construction

To fully grasp the Q-Q plot, one must first understand the concept of a quantile. A quantile divides the probability distribution into continuous intervals with equal probabilities. For example, the median is the 0.5 quantile (or 50th percentile). In constructing a Q-Q plot, we calculate the ordered values (sample quantiles) from the actual dataset and then determine the theoretical quantiles that the comparison distribution (e.g., the standard normal distribution) should possess at those same percentile ranks.

The plot is then generated by placing the theoretical quantiles on the x-axis and the corresponding observed sample quantiles on the y-axis. If the sample data perfectly matches the theoretical distribution, the x and y coordinates will be identical for every point, resulting in a perfect 45-degree diagonal line. Any deviation from this line signals a difference in distribution shape, location, or scale between the sample data and the theoretical model.

It is paramount to recognize that while incredibly useful, a Q-Q plot is a visual, subjective tool, not a formal statistical hypothesis test like the Shapiro-Wilk or Kolmogorov-Smirnov tests. Its strength lies in diagnosing the specific nature of the non-normality—such as skewness or heavy tails—which formal tests often fail to identify. The following sections illustrate how specific patterns of deviation translate into concrete characteristics of the underlying data distribution.

Interpreting Deviations: General Rules of Thumb

Conversely to the ideal case, the greater the degree to which the points deviate from the straight diagonal line, the less normally distributed the data is considered to be. These deviations are particularly informative when they occur at the tails (the extremities) of the plot, as these areas correspond to the lowest and highest values in the dataset, often revealing issues like outliers or heavy-tailed distributions (kurtosis).

If the data points form an S-shape, it typically indicates that the sample distribution has lighter tails than the normal distribution (platykurtic), or conversely, if the points curve away sharply at both ends, it suggests heavier tails (leptokurtic). Skewness presents its own unique signature, generally resulting in asymmetric curvature, as detailed in the examples below. It is crucial to examine the center of the plot (where most data lies) versus the edges (the tails) to determine the exact nature of the distributional mismatch.

While minor wiggles around the line, especially near the median, are common due to natural sampling variation and do not typically indicate problematic non-normality, persistent or severe bending, stepping, or clustering necessitates considering data transformation or employing non-parametric statistical methods. The consistency and magnitude of the departure from linearity dictate the severity of non-normality.

Example 1: Q-Q Plot for Normally Distributed Data

This first example demonstrates the ideal scenario: generating a dataset that inherently follows a normal distribution and visualizing it using a Q-Q plot in the R programming environment. We generate 500 random observations from a standard normal distribution to ensure a clear visual representation of normality.

The following code snippet illustrates the process in R, ensuring reproducibility and generating the data and the resulting Q-Q plot for analysis. The `rnorm()` function is used to create the normally distributed sample, and `qqnorm()` generates the visualization, confirming the expected linear pattern.

#make this example reproducible
set.seed(1)

#generate dataset that follows a normal distribution
normal_data <- rnorm(500)

#create Q-Q plot to visualize distribution of dataset
qqnorm(normal_data, main='Q-Q Plot of Normally Distributed Data')

Upon visual inspection of the generated plot, we can confirm that the vast majority of the plotted points hug the straight diagonal reference line almost perfectly. There are only very minor deviations apparent, primarily along the far extremities or “tails” of the distribution. These slight fluctuations are perfectly acceptable and are typical signs of normal sampling variability, especially with only 500 observations. Based on this highly linear alignment, a statistician could confidently proceed with the assumption that this dataset is sufficiently normally distributed for most parametric tests.

Example 2: Q-Q Plot for Left-Skewed Data

When data exhibits negative skewness (or left-skewness), it means the bulk of the observations are concentrated on the right side of the distribution, and the tail extends toward the left. This pattern results in a distinctive visual signature on the Q-Q plot. To illustrate this, we generate a dataset of 500 observations using a Beta distribution parameterized to produce a clear left-skew.

In a left-skewed distribution, the smallest values (the left tail) are much further away from the mean than they would be in a normal distribution. On the Q-Q plot, this translates to the points at the bottom left falling significantly below the straight line. Conversely, the points on the top right tend to flatten out or rise less steeply, showing that the upper values are closer together than expected under normality.

#make this example reproducible
set.seed(1)

#generate left-skewed dataset
left_skewed <- rbeta(500,7,2)

#create Q-Q plot to visualize distribution of dataset
qqnorm(left_skewed, main='Q-Q Plot of Left-Skewed Distribution')

Observing the resulting visualization, the S-like curve, or the clear deflection downwards at the beginning of the plot and then upwards at the end, is characteristic of left skewness. Specifically, the data points deviate significantly from the reference line at the lower theoretical quantiles, indicating that the observed data points in the left tail are much smaller (more negative) than anticipated if the data were truly normal. This clear curvature immediately signals a violation of the normality assumption.

Example 3: Q-Q Plot for Right-Skewed Data

Right-skewed data, also known as positive skewness, is the opposite of the previous example. Here, the tail extends towards the right, meaning the distribution has many lower values clustered on the left, and a few extremely high values pulling the mean higher. Common examples of right-skewed data include income distributions or reaction times. For this illustration, we again use the Beta distribution in R, adjusting the parameters to generate a sample of 500 highly right-skewed observations.

On a Q-Q plot, right skewness is typically identified by a pattern where the points begin close to the line but curve upwards and away at the top right. This upward sweep occurs because the largest observed values (sample quantiles) are disproportionately large compared to the expected theoretical quantiles for a normal distribution. In essence, the sample distribution possesses a heavier right tail than the Gaussian model.

#make this example reproducible
set.seed(1)

#generate right-skewed dataset
right_skewed <- rbeta(500,2,7)

#create Q-Q plot to visualize distribution of dataset
qqnorm(right_skewed, main='Q-Q Plot of Right-Skewed Distribution')

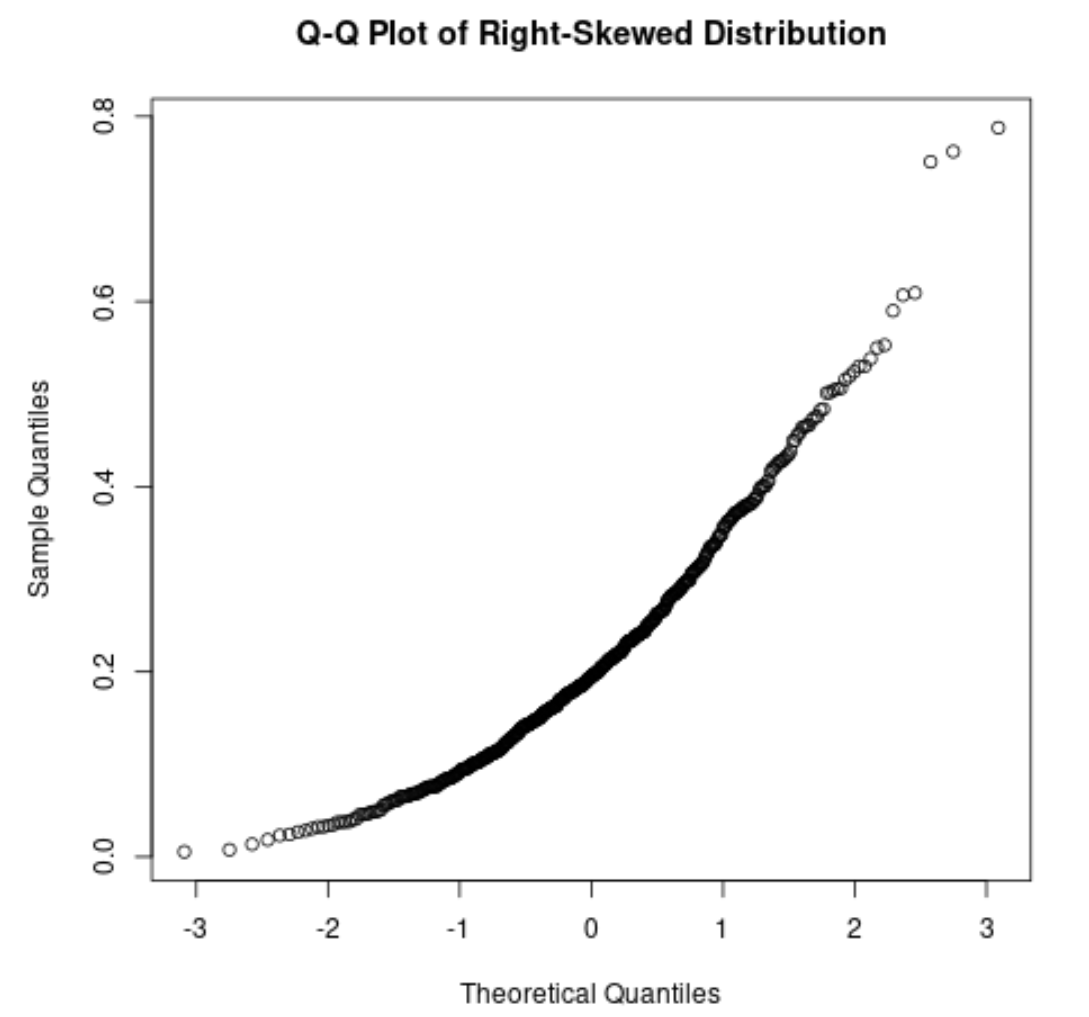

Examining the plot, we clearly observe the “dip” or upward curvature on the top right side. This pronounced deviation indicates that the highest values in our sample are significantly larger than the highest values expected if the data were normally distributed. This characteristic pattern is a definitive marker of a right-skewed distribution, necessitating careful consideration before applying normality-dependent statistical tests.

Example 4: Q-Q Plot for Non-Normal Data (Exponential)

Beyond simple skewness, a Q-Q plot is also invaluable for detecting data that belongs to an entirely different family of distributions. In this final example, we generate 200 observations from an exponential distribution, which is inherently non-symmetric and strictly positive, making it fundamentally non-normal. This test clearly demonstrates how a Q-Q plot visually separates entirely different distributional shapes from the targeted normal model.

The exponential distribution often models time until an event occurs and is severely right-skewed. When comparing this highly skewed distribution against the theoretical quantiles of the normal distribution, the resulting Q-Q plot will show a radical departure from the straight line, typically forming a steep, upward concave curve. The points will curve sharply because the exponential data’s quantiles increase much faster than the normal distribution’s quantiles, especially in the tails.

#make this example reproducible
set.seed(1)

#generate dataset that follows an exponential distribution
exponential_data <- rexp(200, rate=5)

#create Q-Q plot to visualize distribution of dataset
qqnorm(exponential_data, main='Q-Q Plot of Exponential Distribution'))

We observe that the points deviate significantly and consistently from the straight diagonal line, forming a clear, upward-bending curve. This profound pattern is a strong and unmistakable indication that the dataset is absolutely not normally distributed. This outcome logically validates our initial expectation, considering the data was generated specifically from an exponential model. For such data, transformation techniques (like logarithmic) or the use of models specifically designed for skewed or count data would be necessary.

Summary and Further Resources

The Q-Q plot remains one of the most powerful visual tools in a statistician’s toolkit for assessing distributional assumptions. By understanding the signature patterns—linearity for normality, downward curves for left skew, upward curves for right skew, and S-shapes for kurtosis—analysts can quickly diagnose potential issues with their data before applying inferential models. This detailed visual inspection offers insights that purely numerical tests often obscure.

While this guide focuses on interpreting plots against the normal distribution, the principles apply universally when comparing any two distributions, allowing researchers to evaluate if one sample distribution matches another, or if a sample follows a theoretical Gamma, Weibull, or other chosen model. The choice of the theoretical distribution dictates the interpretation of the reference line.
