Understanding the Standard Normal Distribution

The Standard Normal Distribution is perhaps the most widely recognized and utilized distribution in all of statistical inference. It is a special case of the Normal Distribution—a symmetrical, bell-shaped curve—where the central tendency, or the mean ($mu$), is precisely zero (0) and the dispersion, or the standard deviation ($sigma$), is exactly one (1). This standardization is immensely powerful because it allows statisticians to compare results from different normal distributions, regardless of their original units of measurement or scale. Any normally distributed random variable can be transformed into a standard normal variable (a Z-score) using a simple formula, effectively placing all data onto a common platform for analysis and probability calculation.

The significance of the Standard Normal Distribution lies in the fact that the area under its curve represents the total probability, which sums to one (1). Since the curve is perfectly symmetrical around the mean of zero, exactly 50% of the data lies to the left of the mean, and 50% lies to the right. This consistency means that specific percentages of data fall within set standard deviation boundaries: approximately 68% of the data falls within one standard deviation (Z = -1 to Z = +1), 95% within two standard deviations, and 99.7% within three standard deviations. This empirical rule provides immediate, intuitive benchmarks for data interpretation before even consulting the detailed Z-table.

Consequently, when we seek the area under this standardized curve to the left of a specific value—the Z-score—we are essentially determining the cumulative probability of observing a value less than or equal to that Z-score. This ability to instantly translate raw data into standardized probabilities is why the Z-distribution forms the bedrock of hypothesis testing, confidence interval estimation, and advanced statistical modeling across disciplines from finance to psychological research.

The Role of the Z-Score in Statistical Analysis

The concept of the Z-score (also known as the standard score or Z-value) is central to utilizing the Standard Normal Distribution. A Z-score quantifies the relationship between a specific raw score and the mean of its distribution, measured in units of the standard deviation. Mathematically, the Z-score transforms a raw data point (X) into a value that indicates how far and in what direction that data point deviates from the mean ($mu$). If the Z-score is positive, the data point lies above the mean; if it is negative, the data point lies below the mean. A Z-score of zero indicates the data point is exactly equal to the mean.

The formula for calculating the Z-score (Z) for a population is straightforward: $Z = (X – mu) / sigma$, where X is the raw score, $mu$ is the population mean, and $sigma$ is the population standard deviation. This transformation is necessary because the raw scores from different datasets (e.g., test scores from two different exams) are often not directly comparable due to varying means and variances. By converting them into Z-scores, we standardize the scale, enabling a fair comparison, such as determining which student performed relatively better compared to their respective peer groups.

Furthermore, the Z-score acts as the critical bridge linking the raw data to the cumulative probability found within the Z-table. Once a raw score is converted to a Z-score, one can look up that specific value in the table to find the area under the curve corresponding to it. This area represents the percentage of observations that fall below that specific data point. This powerful interpretive ability makes the Z-score an indispensable metric in fields requiring rigorous comparative analysis and the assessment of rare or extreme events.

Interpreting the Standard Normal Curve

The visual representation of the Standard Normal Distribution is the bell curve, centered at zero. The curve’s shape is determined entirely by the fact that the vast majority of observations cluster tightly around the mean, with frequencies gradually tapering off as we move toward the extreme positive or negative ends (the tails). Since the distribution is standardized, we can assign fixed probability values to ranges defined by the standard deviation units. For example, a Z-score of +2.0 is considered relatively high, meaning the data point is two standard deviations above the average, thus falling in the top approximately 2.5% of the distribution.

When we discuss the area under the curve to the left of Z, we are defining the cumulative percentile rank of that Z-score. If the area to the left of Z = 1.0 is 0.8413, this means that 84.13% of all observations in the distribution fall below a score that is one standard deviation above the mean. This cumulative probability is the key output sought when calculating Z-scores, as it directly translates statistical location into meaningful contextual information.

The symmetry of the curve is vital for interpretation. If we know the area to the left of a positive Z-score, we can immediately infer the area to the right (1 minus the left area). Moreover, we can use the negative Z-score equivalent due to symmetry; the area to the left of Z = -1.0 is equal to the area to the right of Z = +1.0. Understanding this inherent symmetry simplifies many probability calculations and allows analysts to quickly determine probabilities for intervals, such as the probability that a value falls between Z = -1.5 and Z = +1.5.

Introduction to the Z-Table (Standard Normal Table)

The Z-table, or the Standard Normal Table, is the primary reference tool used in conjunction with the Standard Normal Distribution. It systematically tabulates the cumulative area under the standard normal curve corresponding to specific Z-scores. Historically, before widespread computing power, these tables were absolutely necessary for statistical analysis. Even today, they remain crucial for teaching and for quickly visualizing the relationship between Z-values and probabilities. The table is structured to show the area (which is the cumulative probability) from the far left tail of the curve up to the given Z-score.

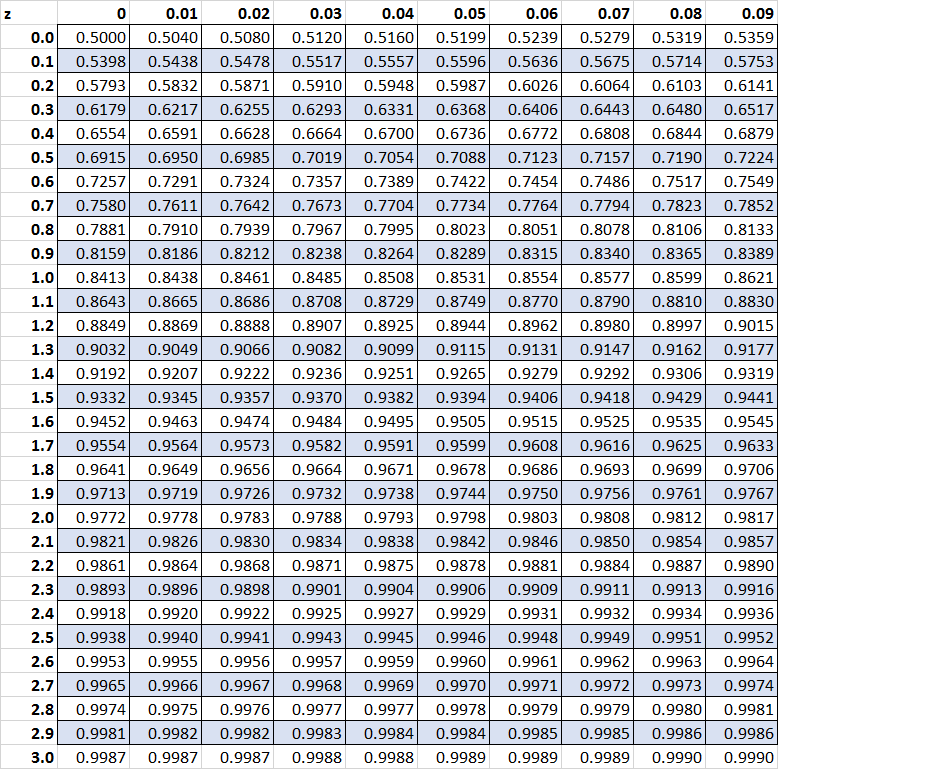

The table below shows the area under the standard normal curve to the left of z.

Z-tables typically come in two main formats: one showing the cumulative probability for positive Z-scores and another for negative Z-scores, although sometimes they are combined. The table structure allows for highly detailed resolution. The left column usually lists the Z-score up to the first decimal place, while the top row provides the hundredths place. By intersecting the appropriate row and column, one can find the precise four-decimal cumulative probability associated with that exact Z-score. This careful organization ensures that analysts can accurately determine the percentile rank for virtually any observation within a normally distributed dataset.

It is paramount to understand what the numerical output in the Z-table represents. Every entry within the table body is a proportion or a probability value, always ranging between 0.0000 and 1.0000. These values signify the proportion of the population that falls below the corresponding Z-score. For instance, if you look up Z = 1.96, the table provides a value of 0.9750. This means that 97.5% of the population scores or falls below a score that is 1.96 standard deviations above the mean. This ability to instantly grasp the relative rarity or commonality of a score is the fundamental utility of the Z-table.

How to Read the Z-Table Effectively

Reading the Z-table requires precision and attention to detail. The process begins with calculating the Z-score from the raw data using the standardization formula. Once the Z-score (e.g., Z = 1.23) is obtained, the next steps involve locating the correct row and column within the table. The row is identified by the whole number and the first decimal (1.2 in our example), which is typically found along the vertical axis of the table. The column is identified by the second decimal place (0.03 in our example), found along the horizontal axis.

The intersection of the row for 1.2 and the column for 0.03 yields the cumulative probability. For most standard Z-tables, the value at this intersection for Z = 1.23 is 0.8907. This means P(Z < 1.23) = 0.8907, or 89.07% of the data falls below this point. If we are dealing with a negative Z-score (e.g., Z = -0.55), we must use the negative Z-table section, following the exact same intersection methodology. Since the distribution is symmetrical, the probabilities for negative scores are mirrored, resulting in smaller cumulative probabilities closer to 0.0000.

Understanding how to handle probabilities for areas to the right of Z is also essential. Since the total area under the curve is 1, the probability P(Z > z) is simply 1 minus the cumulative probability P(Z < z) found in the table. Furthermore, calculating the probability between two Z-scores (e.g., P($z_1$ < Z < $z_2$)) involves finding the cumulative probability for the larger Z-score ($z_2$) and subtracting the cumulative probability for the smaller Z-score ($z_1$). These transformations allow the single-entry Z-table to solve virtually any probability problem associated with the Standard Normal Distribution.

Below is the continuation of the Z-table, often utilized for higher positive Z-scores or as a separate reference for comprehensive analysis:

Practical Applications of Z-Scores

The utility of the Z-score extends far beyond academic exercises, serving as a core component in numerous real-world statistical applications. One of the most common applications is in quality control and manufacturing, where Z-scores help determine if a product dimension or performance metric falls within acceptable limits defined by the standard deviation. Any score that deviates significantly (often defined as Z > 2 or Z < -2) might signal a defect or deviation that requires immediate attention, ensuring consistency and adherence to strict standards.

In educational and psychological testing, Z-scores are indispensable for grading on a curve and interpreting individual performance relative to a large normative sample. For example, a student’s raw score on a standardized exam is converted to a Z-score to determine their percentile rank, which provides a much more meaningful metric than the raw score alone. A Z-score of 1.5 immediately tells an educator that the student scored better than approximately 93.32% of test-takers, assuming the scores follow a normal distribution.

Furthermore, in financial analysis and risk management, Z-scores are used to assess the volatility and potential risk associated with investments. For instance, the Altman Z-score is a classic model used to predict the probability of corporate bankruptcy. In this context, the Z-score converts multiple financial ratios into a single metric, allowing analysts to gauge a company’s financial health relative to industry mean and standard deviation, providing an early warning system for potential failure.

Key Limitations and Considerations

While the Standard Normal Distribution and the Z-table are exceptionally powerful tools, their application is contingent upon a crucial underlying assumption: that the data being analyzed is reasonably approximated by a normal distribution. If the original population data is highly skewed or exhibits significant non-normality (e.g., a bimodal distribution), calculating and interpreting Z-scores using the standard normal framework can lead to highly inaccurate conclusions regarding probabilities and percentiles. It is therefore vital to perform initial data visualization and normality tests before relying solely on Z-score analysis.

Another important consideration relates to population parameters. The standardization formula $Z = (X – mu) / sigma$ assumes that the population mean ($mu$) and population standard deviation ($sigma$) are known. In many real-world scenarios, these parameters are unknown and must be estimated from sample data. When sample statistics are used instead, we transition from the Z-distribution to the Student’s t-distribution, especially when the sample size is small. Recognizing this transition is critical for maintaining statistical rigor, as the t-distribution accounts for the increased uncertainty introduced by estimating population parameters.

In conclusion, the Z-score and the associated Z-table provide a robust mechanism for standardizing, comparing, and interpreting data across diverse datasets. They are foundational elements in statistical literacy, offering a clear, standardized measure of location relative to the mean. Mastery of these concepts ensures that analysts can accurately determine cumulative probabilities and make informed decisions based on the relative position of any given data point within a statistically normal population.
