Introduction

Preparation

Make sure that you can load the following packages before trying to run the examples on this page. If you do not have
a package installed, run: install.packages("packagename"), or if you see the version is out of date, run: update.packages().

require(foreign)require(ggplot2)require(MASS)require(Hmisc)require(reshape2)

Version info: Code for this page was tested in R version 3.1.1 (2014-07-10)
On: 2014-08-21
With: reshape2 1.4; Hmisc 3.14-4; Formula 1.1-2; survival 2.37-7; lattice 0.20-29; MASS 7.3-33; ggplot2 1.0.0; foreign 0.8-61; knitr 1.6


Please note: The purpose of this page is to show how to use various data
analysis commands. It does not cover all aspects of the research process which
researchers are expected to do. In particular, it does not cover data
cleaning and checking, verification of assumptions, model diagnostics or
potential follow-up analyses.

Examples of ordinal logistic regression

Example 1: A marketing research firm wants to investigate what factors influence the size of soda (small, medium, large or
extra large) that people order at a fast-food chain. These factors may include what type of sandwich is ordered (burger or chicken), whether or not fries are also ordered, and age of the consumer. While the outcome variable, size of soda, is obviously ordered, the difference between the various sizes is not consistent. The difference between small and medium is 10 ounces, between medium and large 8, and between large and extra large 12.

Example 2: A researcher is interested in what factors influence medaling in Olympic swimming. Relevant predictors include at training hours, diet, age, and popularity of swimming in the athlete’s home country. The researcher believes that the distance between gold and silver is larger than the distance between silver and bronze.

Example 3: A study looks at factors that influence the decision of whether to apply to graduate school. College juniors are asked if they are
unlikely, somewhat likely, or very likely to apply to graduate school.
Hence, our outcome variable has three categories. Data on parental educational status, whether the undergraduate institution is
public or private, and current GPA is also collected. The researchers have reason to believe that the “distances” between these three
points are not equal. For example, the “distance” between “unlikely” and “somewhat likely” may be shorter than the distance between “somewhat likely” and “very likely”.

Description of the Data

For our data analysis below, we are going to expand on Example 3 about applying to graduate school. We have simulated some data for this
example and it can be obtained from our website:

dat<-read.dta("https://stats.idre.ucla.edu/stat/data/ologit.dta")head(dat)

##             apply pared public  gpa
## 1     very likely     0      0 3.26
## 2 somewhat likely     1      0 3.21
## 3        unlikely     1      1 3.94
## 4 somewhat likely     0      0 2.81
## 5 somewhat likely     0      0 2.53
## 6        unlikely     0      1 2.59

This hypothetical data set has a three level variable called
apply, with levels “unlikely”, “somewhat likely”, and “very likely”, coded 1, 2, and 3, respectively, that we will use as our outcome variable.
We also have three variables that we will use as predictors: pared,
which is a 0/1 variable indicating whether at least one parent has a graduate degree;
public, which is a 0/1 variable where 1 indicates that the
undergraduate institution is public and 0 private, and
gpa, which is the student’s grade point average.
Let’s start with the descriptive statistics of these variables.

## one at a time, table apply, pared, and publiclapply(dat[,c("apply","pared","public")], table)

## $apply
##
##        unlikely somewhat likely     very likely
##             220             140              40
##
## $pared
##
##   0   1
## 337  63
##
## $public
##
##   0   1
## 343  57

## three way cross tabs (xtabs) and flatten the tableftable(xtabs(~public+apply+pared,data= dat))

##                        pared   0   1
## public apply
## 0      unlikely              175  14
##        somewhat likely        98  26
##        very likely            20  10
## 1      unlikely               25   6
##        somewhat likely        12   4
##        very likely             7   3

summary(dat$gpa)

##    Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
##    1.90    2.72    2.99    3.00    3.27    4.00

sd(dat$gpa)

## [1] 0.3979

We can also examine the distribution of gpa at every level of applyand broken down by public and pared. This creates a 2 x 2 grid
with a boxplot of gpa for every level of apply, for particular values of paredand public. To better see the data, we also add the raw data points on top of the box plots, with a small amount of noise (often called “jitter”) and 50% transparency so they do not overwhelm the boxplots. Finally, in addition to the cells, we plot all of the marginal relationships. The margins make the final plot a 3 x 3 grid. In the
lower right hand corner, is the overall relationship between apply and gpa which appears slightly positive. To do this, we use the ggplot2 package.

ggplot(dat,aes(x= apply,y= gpa))+geom_boxplot(size=.75)+geom_jitter(alpha=.5)+facet_grid(pared~public,margins=TRUE)+theme(axis.text.x=element_text(angle=45,hjust=1,vjust=1))

Analysis methods you might consider

Below is a list of some analysis methods you may have encountered. Some of the methods listed are quite reasonable while others have either
fallen out of favor or have limitations.

Ordered logistic regression

Below we use the polr command from the MASS package to estimate an ordered logistic regression model. The command name comes from proportional odds logistic regression, highlighting the proportional odds assumption in our model. polr uses the standard formula interface in R for specifying a regression model with outcome followed by predictors. We also specify Hess=TRUE to have the model return the observed information matrix from optimization (called the Hessian) which is used to get standard errors.

Definitions

To understand how to interpret the coefficients, first let’s establish some notation and review the concepts involved in ordinal logistic regression. Let $Y$ be an ordinal outcome with $J$ categories. Then $P(Y le j)$ is the cumulative probability of $Y$ less than or equal to a specific category $j = 1, cdots, J-1$. The odds of being less than or equal a particular category can be defined as

$$frac{P(Y le j)}{P(Y>j)}$$

for $j=1,cdots, J-1$ since $P(Y > J) = 0$ and dividing by zero is undefined. The log odds  is also known as the logit, so that

$$log frac{P(Y le j)}{P(Y>j)} = logit (P(Y le j)).$$

In R’s polr the ordinal logistic regression model is parameterized as

$$logit (P(Y le j)) = beta_{j0} – eta_{1}x_1 – cdots – eta_{p} x_p.$$

Then we can fit the following ordinal logistic regression model:

## fit ordered logit model and store results 'm'm<-polr(apply~pared+public+gpa,data= dat,Hess=TRUE)## view a summary of the modelsummary(m)

## Call:
## polr(formula = apply ~ pared + public + gpa, data = dat, Hess = TRUE)
##
## Coefficients:
##          Value Std. Error t value
## pared   1.0477      0.266   3.942
## public -0.0588      0.298  -0.197
## gpa     0.6159      0.261   2.363
##
## Intercepts:
##                             Value  Std. Error t value
## unlikely|somewhat likely     2.204  0.780      2.827
## somewhat likely|very likely  4.299  0.804      5.345
##
## Residual Deviance: 717.02
## AIC: 727.02

The estimated model can be written as:

$$
begin{eqnarray}
logit (hat{P}(Y le 1)) & = & 2.20 – 1.05*PARED – (-0.06)*PUBLIC – 0.616*GPA \
logit (hat{P}(Y le 2)) & = & 4.30 – 1.05*PARED – (-0.06)*PUBLIC – 0.616*GPA
end{eqnarray}
$$

In the output above, we see

Some people are not satisfied without a p value. One way to calculate a p-value in this case is by comparing the t-value against the standard normal distribution, like a z test. Of course this is only true with infinite degrees of freedom, but is reasonably approximated by large samples, becoming increasingly biased as sample size decreases. This approach is used in other software packages such as Stata and is trivial to do. First we store the coefficient table, then calculate the p-values and combine back with the table.

## store table(ctable<-coef(summary(m)))

##                                Value Std. Error t value
## pared                        1.04769     0.2658  3.9418
## public                      -0.05879     0.2979 -0.1974
## gpa                          0.61594     0.2606  2.3632
## unlikely|somewhat likely     2.20391     0.7795  2.8272
## somewhat likely|very likely  4.29936     0.8043  5.3453

## calculate and store p valuesp<-pnorm(abs(ctable[,"t value"]),lower.tail=FALSE)*2## combined table(ctable<-cbind(ctable,"p value"= p))

##                                Value Std. Error t value   p value
## pared                        1.04769     0.2658  3.9418 8.087e-05
## public                      -0.05879     0.2979 -0.1974 8.435e-01
## gpa                          0.61594     0.2606  2.3632 1.812e-02
## unlikely|somewhat likely     2.20391     0.7795  2.8272 4.696e-03
## somewhat likely|very likely  4.29936     0.8043  5.3453 9.027e-08

We can also get confidence intervals for the parameter estimates. These can be obtained either by profiling the likelihood function or by using the standard errors and assuming a normal distribution. Note that profiled CIs are not symmetric (although they are usually close to symmetric). If the 95% CI does not cross 0, the parameter estimate is statistically significant.

(ci<-confint(m))# default method gives profiled CIs

## Waiting for profiling to be done...

##          2.5 % 97.5 %
## pared   0.5282 1.5722
## public -0.6522 0.5191
## gpa     0.1076 1.1309

confint.default(m)# CIs assuming normality

##          2.5 % 97.5 %
## pared   0.5268  1.569
## public -0.6426  0.525
## gpa     0.1051  1.127

The CIs for both pared and gpa do not include 0; public does. The estimates in the output are given in units of ordered logits, or
ordered log odds. So for pared, we would say that for a one unit increase in pared (i.e., going from 0 to 1), we expect a 1.05 increase in
the expected value of apply on the log odds scale, given all of the other variables in the model are held constant. For gpa, we would say that for a one unit increase in gpa, we would expect a 0.62 increase in the expected value of apply in the log odds scale, given that all of the other variables in the model are held constant.

The coefficients from the model can be somewhat difficult to interpret because they are scaled in terms of logs. Another way to interpret logistic regression models is to convert the coefficients into odds ratios. To get the OR and confidence intervals, we just exponentiate the estimates and confidence intervals.

## odds ratiosexp(coef(m))

##  pared public    gpa
## 2.8511 0.9429 1.8514

## OR and CIexp(cbind(OR=coef(m), ci))

##            OR  2.5 % 97.5 %
## pared  2.8511 1.6958  4.817
## public 0.9429 0.5209  1.681
## gpa    1.8514 1.1136  3.098

These coefficients are called proportional odds ratios and we would interpret these pretty much as we would odds ratios from a binary
logistic regression.

Interpreting the odds ratio

There are many equivalent interpretations of the odds ratio based on how the probability is defined and the direction of the odds. For a detailed justification, refer to How do I interpret the coefficients in an ordinal logistic regression in R? The (*) symbol below denotes the easiest interpretation among the choices.

Parental Education

School Type

GPA

Proportional odds assumption

One of the assumptions underlying ordinal logistic (and ordinal probit) regression is that the relationship between each pair of outcome groups is the same. In other words, ordinal logistic regression assumes that the coefficients that describe the relationship between, say, the lowest versus all higher categories of the response variable are the same as those that describe the relationship between the next lowest category and all higher categories, etc. This is called the proportional odds assumption or the parallel regression assumption. Because the relationship between all pairs of groups is the same, there is only one set of coefficients.

If this was not the case, we would need different sets of coefficients in the model to describe the relationship between each pair of outcome groups. Thus, in order to asses the appropriateness of our model, we need to evaluate whether the proportional odds assumption is tenable. Statistical tests to do this are available in some software packages. However, these tests have been criticized for having a tendency to reject the null hypothesis (that the sets of coefficients are the same), and hence, indicate that there the parallel slopes assumption does not hold, in cases where the assumption does hold (see Harrell 2001 p. 335). We were unable to locate a facility in R to perform any of the tests commonly used to test the parallel slopes assumption. However, Harrell does recommend a graphical method for assessing the parallel
slopes assumption. The values displayed in this graph are essentially (linear) predictions from a logit model, used to model the probability that y is greater than or equal to a given value (for each level of y), using one predictor (x) variable at a time. In order create this graph, you will need the Hmisc library.

The code below contains two commands (the first command falls on multiple lines) and is used to create this graph to test the proportional odds assumption. Basically, we will graph predicted logits from individual logistic regressions with a single predictor where the outcome groups are defined by either apply >= 2 and apply >= 3. If the difference between predicted logits for varying levels of a predictor, say pared, are the same whether the outcome is defined by apply >= 2 or apply >=3, then we can be confident that the proportional odds assumption holds. In other words, if the difference between logits for pared = 0 and pared = 1 is the same when the outcome is apply >= 2 as the difference when the outcome is apply >= 3, then the proportional odds assumption likely holds.

The first command creates the function that estimates the values that will be graphed. The first line of this command tells R that sf is a function, and that this function takes one argument, which we label y. The sf function will calculate the log odds of being greater than or equal to each value of the target variable. For our purposes, we would like the log odds of apply being greater than or equal to 2, and then greater than or equal to 3. Depending on the number of categories in your dependent variable, and the coding of your variables, you
may have to edit this function. Below the function is configured for a y variable with three levels, 1, 2, 3. If your dependent variable has 4 levels, labeled 1, 2, 3, 4 you would need to add 'Y>=4'=qlogis(mean(y >= 4)) (minus the quotation marks) inside the first set of parentheses. If your dependent variable were coded 0, 1, 2 instead of 1, 2, 3, you would need to edit the code, replacing each instance of 1 with 0, 2 with 1, and so on. Inside the sf function we find the qlogis function, which transforms a probability to a logit. So, we will basically feed probabilities of apply being greater than 2 or 3 to qlogis, and it will return the logit transformations of these probabilites. Inside the qlogis function we see that we want the log odds of the mean of y >= 2. When we supply a y argument, such as apply, to function sf, y >= 2 will evaluate to a 0/1 (FALSE/TRUE) vector, and taking the mean of that vector will give you the proportion of or probability that apply >= 2.

The second command below calls the function sf on several subsets of the data defined by the predictors. In this statement we see the summary function with a formula supplied as the first argument. When R sees a call to summary with a formula argument, it will calculate descriptive statistics for the variable on the left side of the formula by groups on the right side of the formula and will return the results in a nice table. By default, summary will calculate the mean of the left side variable. So, if we had used the code summary(as.numeric(apply) ~ pared + public + gpa) without the fun argument, we would get means on apply by pared, then by public, and finally by gpa broken up into 4 equal groups. However, we can override calculation of the mean by supplying our own function, namely sf to the fun= argument. The final command
asks R to return the contents to the object s, which is a table.

sf<-function(y) {c('Y>=1'=qlogis(mean(y>=1)),'Y>=2'=qlogis(mean(y>=2)),'Y>=3'=qlogis(mean(y>=3)))}(s<-with(dat,summary(as.numeric(apply)~pared+public+gpa,fun=sf)))

## as.numeric(apply)    N=400
##
## +-------+-----------+---+----+--------+------+
## |       |           |N  |Y>=1|Y>=2    |Y>=3  |
## +-------+-----------+---+----+--------+------+
## |pared  |No         |337|Inf |-0.37834|-2.441|
## |       |Yes        | 63|Inf | 0.76547|-1.347|
## +-------+-----------+---+----+--------+------+
## |public |No         |343|Inf |-0.20479|-2.345|
## |       |Yes        | 57|Inf |-0.17589|-1.548|
## +-------+-----------+---+----+--------+------+
## |gpa    |[1.90,2.73)|102|Inf |-0.39730|-2.773|
## |       |[2.73,3.00)| 99|Inf |-0.26415|-2.303|
## |       |[3.00,3.28)|100|Inf |-0.20067|-2.091|
## |       |[3.28,4.00]| 99|Inf | 0.06062|-1.804|
## +-------+-----------+---+----+--------+------+
## |Overall|           |400|Inf |-0.20067|-2.197|
## +-------+-----------+---+----+--------+------+

The table above displays the (linear) predicted values we would get if we regressed our
dependent variable on our predictor variables one at a time, without the
parallel slopes assumption. We can evaluate the parallel slopes assumption by running
a series of binary logistic regressions with varying cutpoints on the dependent variable and checking the equality of coefficients across cutpoints. We thus relax the parallel slopes assumption to checks its tenability. To accomplish this, we transform the original, ordinal, dependent variable into a new, binary, dependent variable which is equal to zero if the original, ordinal dependent variable (here apply) is less than some value a, and 1 if the
ordinal variable is greater than or equal to a (note, this is what the ordinal
regression model coefficients represent as well). This is done for k-1 levels of
the ordinal variable and is executed by the as.numeric(apply) >= a coding below. The first line of code estimates the effect of pared on choosing “unlikely” applying versus “somewhat likely” or “very likely”. The second line of code estimates the effect of pared on choosing “unlikely” or “somewhat likely” applying versus “very likely” applying.
Looking at the intercept for this model (-0.3783), we see that it matches the
predicted value in the cell for pared equal to “no” in the column for Y>=1, the value below it, for
pared equals “yes” is equal to the intercept plus the coefficient for
pared (i.e. -0.3783 + 1.1438 = 0.765).

glm(I(as.numeric(apply)>=2)~pared,family="binomial",data= dat)

##
## Call:  glm(formula = I(as.numeric(apply) >= 2) ~ pared, family = "binomial",
##     data = dat)
##
## Coefficients:
## (Intercept)        pared
##      -0.378        1.144
##
## Degrees of Freedom: 399 Total (i.e. Null);  398 Residual
## Null Deviance:	    551
## Residual Deviance: 534 	AIC: 538

glm(I(as.numeric(apply)>=3)~pared,family="binomial",data= dat)

##
## Call:  glm(formula = I(as.numeric(apply) >= 3) ~ pared, family = "binomial",
##     data = dat)
##
## Coefficients:
## (Intercept)        pared
##       -2.44         1.09
##
## Degrees of Freedom: 399 Total (i.e. Null);  398 Residual
## Null Deviance:	    260
## Residual Deviance: 252 	AIC: 256

We can use the values in this table to help us assess whether
the proportional odds assumption is reasonable for our model. (Note,
the table is reproduced below, as well as above.) For example, when pared is
equal to “no” the difference between the predicted value for apply greater than or equal to
two and apply greater than or equal to three is roughly 2 (-0.378 – -2.440 = 2.062).
For pared equal to “yes” the difference in predicted values for apply greater
than or equal to two and apply greater than or equal to three is also roughly 2 (0.765 – -1.347 = 2.112).
This suggests that the parallel slopes assumption is reasonable (these differences are what graph below are plotting). Turning our attention to the predictions with public
as a predictor variable, we see that when public is set to “no” the difference in
predictions for apply greater than or equal to two, versus apply greater than or equal to
three is about 2.14 (-0.204 – -2.345 = 2.141). When public is set to “yes”
the difference between the coefficients is about 1.37 (-0.175 – -1.547 = 1.372). The
differences in the distance between the two sets of coefficients (2.14 vs. 1.37) may suggest
that the parallel slopes assumption does not hold for the predictor public. That
would indicate that the effect of attending a public versus private school is different for
the transition from “unlikely” to “somewhat likely” and “somewhat likely” to “very likely.”

The plot command below tells R that the object we wish to plot is s. The command
which=1:3 is a list of values indicating levels of y should be included in
the plot. If your dependent variable had more than three levels you would need
to change the 3 to the number of categories (e.g., 4 for a four category
variable, even if it is numbered 0, 1, 2, 3). The command pch=1:3 selects
the markers to use, and is optional, as are xlab='logit' which labels the
x-axis, and main=' ' which sets the main label for the graph to blank.
If the proportional odds assumption holds, for each predictor variable,
distance between the symbols for each set of categories of the dependent
variable, should remain similar. To help demonstrate this, we normalized all the first
set of coefficients to be zero so there is a common reference point. Looking
at the coefficients for the variable pared we see that the distance between the
two sets of coefficients is similar. In contrast, the distances
between the estimates for public are different (i.e., the markers are much
further apart on the second line than on the first), suggesting that the proportional
odds assumption may not hold.

s[,4]<-s[,4]-s[,3]s[,3]<-s[,3]-s[,3]s# print

## as.numeric(apply)    N=400
##
## +-------+-----------+---+----+----+------+
## |       |           |N  |Y>=1|Y>=2|Y>=3  |
## +-------+-----------+---+----+----+------+
## |pared  |No         |337|Inf |0   |-2.062|
## |       |Yes        | 63|Inf |0   |-2.113|
## +-------+-----------+---+----+----+------+
## |public |No         |343|Inf |0   |-2.140|
## |       |Yes        | 57|Inf |0   |-1.372|
## +-------+-----------+---+----+----+------+
## |gpa    |[1.90,2.73)|102|Inf |0   |-2.375|
## |       |[2.73,3.00)| 99|Inf |0   |-2.038|
## |       |[3.00,3.28)|100|Inf |0   |-1.890|
## |       |[3.28,4.00]| 99|Inf |0   |-1.864|
## +-------+-----------+---+----+----+------+
## |Overall|           |400|Inf |0   |-1.997|
## +-------+-----------+---+----+----+------+

plot(s,which=1:3,pch=1:3,xlab='logit',main=' ',xlim=range(s[,3:4]))

Once we are done assessing whether the assumptions of our model hold,
we can obtain predicted probabilities, which are usually easier to
understand than either the coefficients or the odds ratios. For example, we can vary
gpa for each level of pared and public and calculate
the probability of being in each category of apply. We do this by creating a new
dataset of all the values to use for prediction.

newdat<-data.frame(pared=rep(0:1,200),public=rep(0:1,each=200),gpa=rep(seq(from=1.9,to=4,length.out=100),4))newdat<-cbind(newdat,predict(m, newdat,type="probs"))##show first few rowshead(newdat)

##   pared public   gpa unlikely somewhat likely very likely
## 1     0      0 1.900   0.7376          0.2205     0.04192
## 2     1      0 1.921   0.4932          0.3946     0.11221
## 3     0      0 1.942   0.7325          0.2245     0.04299
## 4     1      0 1.964   0.4867          0.3985     0.11484
## 5     0      0 1.985   0.7274          0.2285     0.04407
## 6     1      0 2.006   0.4802          0.4023     0.11753

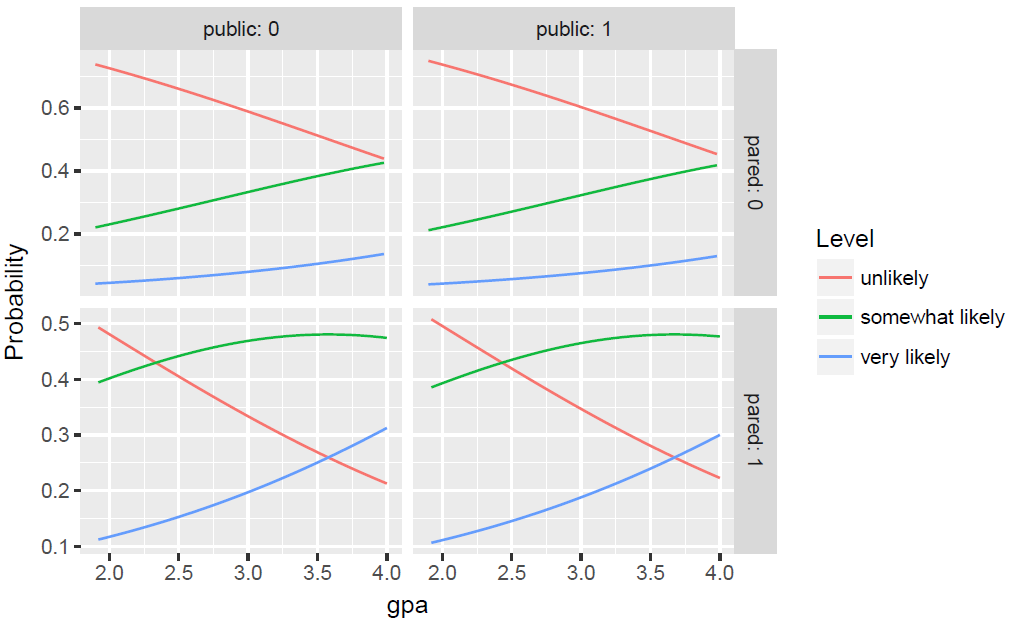

Now we can reshape the data long with the reshape2 package and plot
all of the predicted probabilities for the different conditions. We plot the
predicted probilities, connected with a line, colored by level of the outcome,
apply, and facetted by level of pared and public. We also
use a custom label function, to add clearer labels showing what each column and row
of the plot represent.

lnewdat<-melt(newdat,id.vars=c("pared","public","gpa"),variable.name="Level",value.name="Probability")## view first few rowshead(lnewdat)

##   pared public   gpa    Level Probability
## 1     0      0 1.900 unlikely      0.7376
## 2     1      0 1.921 unlikely      0.4932
## 3     0      0 1.942 unlikely      0.7325
## 4     1      0 1.964 unlikely      0.4867
## 5     0      0 1.985 unlikely      0.7274
## 6     1      0 2.006 unlikely      0.4802

ggplot(lnewdat,aes(x= gpa,y= Probability,colour= Level))+geom_line()+facet_grid(pared~public,labeller="label_both")

Things to consider

References
