How to Split Strings with Multiple Delimiters in VBA

2. Understanding the Two-Step Splitting Mechanism

To achieve a multi-delimiter split in VBA, we must first standardize the input string. Since the Split function accepts only one delimiter argument, the goal of the initial step is to convert all disparate delimiters (e.g., dashes, commas, pipes) into a single, standardized character—typically a space or another character known not to appear naturally in the substrings you wish to extract. This preparatory action simplifies the input string dramatically, transforming a complicated parsing problem into a straightforward single-delimiter split.

The core tool for this standardization is the Replace() function. This function allows you to search a string for a specific substring (the old delimiter) and replace all instances of it with a new substring (the standardized delimiter). If you have three different delimiters, you simply chain three separate Replace() function calls, or nest them, to sequentially convert all variations into your target standard delimiter. This method ensures that regardless of the original separator used, the string ultimately contains only the standardized delimiter separating the required data elements.

Once the string has been normalized using the Replace() function, the final step involves applying the Split function. The Split function then parses the standardized string using the single, consistent delimiter, returning an array of substrings. This array is the desired output, containing all the individual components of the original string, free from any remaining delimiters. This combined strategy is highly effective and avoids the overhead associated with more complex methods, offering a clean, native VBA solution for multi-delimiter string processing.

3. Implementing the Replace and Split Combination

The implementation of the two-step mechanism is straightforward within a VBA Sub procedure. The key is defining variables appropriately and looping through your data range if you are processing multiple cells. You will need a variable to hold the string being processed, another variable to hold the intermediate, standardized string, and a dynamic array to capture the results of the Split() function. This structured approach allows for easy debugging and maintenance of the code.

Here is the foundational structure for implementing this powerful combination. We first define the input string, then apply the Replace function to convert problematic delimiters (like a dash "-") into the preferred single delimiter (like a space " "). Finally, we call Split() on the modified string. This method is highly versatile; you can expand it by nesting multiple Replace() calls if you need to handle more than two initial delimiters (e.g., replacing "|", then ",", then "-" all with a space " ").

You can use the following basic syntax to split a string based on multiple delimiters in VBA, focusing on iterating through a range and applying the conversion logic to each cell sequentially:

Sub SplitString()

    Dim SingleValue() As String
    Dim i As Integer
    Dim j As Integer

    For i = 2 To 7
    newString = Replace(Range("A" & i), "-", " ")
    SingleValue = Split(newString , " ")

       For j = 1 To 3
           Cells(i, j + 1).Value = SingleValue(j - 1)
       Next j

    Next i

End Sub

4. Analyzing the Core Code Logic

This particular example demonstrates a highly practical application often required in data processing environments. The macro is designed to iterate through the cells in the range A2:A7. For each cell, it performs two distinct operations to handle varied delimiters. First, the line newString = Replace(Range("A" & i), "-", " ") is crucial. It searches the content of the current cell for any dashes ("-") and systematically replaces them with spaces (" "). If the original string also contained spaces, the result is a string where all original delimiters (dashes and existing spaces) are now uniformly spaces.

Following the standardization, the line SingleValue = Split(newString , " ") executes the final parsing step. It takes the newly standardized string (newString) and splits it wherever a space is found, storing the resulting substrings into the dynamic array SingleValue(). This array then holds the extracted data elements. The final internal loop (For j = 1 To 3) takes these elements and systematically assigns them to the adjacent cells in columns B, C, and D, effectively splitting the complex input into structured spreadsheet columns.

It is important to emphasize the sequence of operations here: the pre-processing step using the Replace function is absolutely necessary because the Split() function cannot natively handle both a dash and a space simultaneously as delimiters. By ensuring all delimiters are converted to a single standard character (the space), we allow the Split() function to perform its job flawlessly, achieving the desired multi-delimiter split outcome without the need for advanced techniques.

5. Practical Example: Splitting Names with Mixed Formatting

To illustrate the power and simplicity of this methodology, let us consider a common scenario involving name data that lacks standardized formatting. Suppose you have inherited an Excel sheet containing a list of names and identifiers, where some entries use a hyphen (dash) to separate elements, while others use a standard space. The goal is to separate the first name, last name, and perhaps an ID into three distinct columns for easier database migration or sorting.

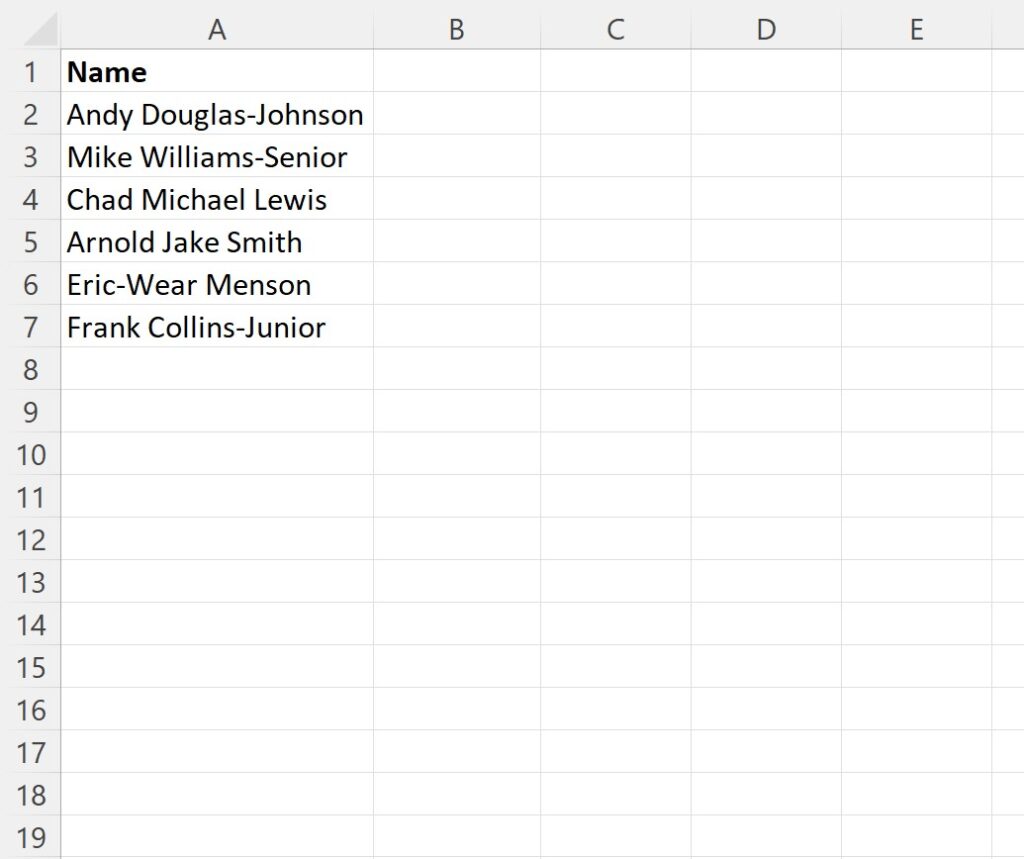

Suppose we have the following list of names in Excel, spanning the target range of A2:A7, which mixes spaces and dashes as delimiters:

Our objective is to create a macro that recognizes both the space and the dash as valid separation points, thereby assigning the resulting elements of each string into adjacent cells in columns B, C, and D. This ensures data consistency across the entire range, regardless of the original separator used by the input source.

We can use the exact code detailed previously to accomplish this normalization and splitting task. This robust macro ensures that all entries, whether formatted as “John-Doe” or “Jane Smith,” are parsed correctly into their constituent parts.

Sub SplitString()

    Dim SingleValue() As String
    Dim i As Integer
    Dim j As Integer

    For i = 2 To 7
    newString = Replace(Range("A" & i), "-", " ")
    SingleValue = Split(newString , " ")

       For j = 1 To 3
           Cells(i, j + 1).Value = SingleValue(j - 1)
       Next j

    Next i

End Sub

6. Reviewing the Successful Output

When we execute the SplitString macro on the sample data provided, the immediate result demonstrates the effectiveness of the two-step normalization process. The macro successfully identifies both dashes and spaces as separators, converting all input strings into a consistent format before splitting them into an array.

Upon running this macro, we receive the following output in our Excel worksheet:

Notice clearly that this macro successfully splits each string originally found in column A. It recognized both spaces and dashes as valid delimiters, and consequently, it output the individual text elements of each string into the corresponding columns B, C, and D. For instance, “Michael-Phelps” was correctly separated into “Michael” (B), “Phelps” (C), and its ID (D), just as “Adam Smith” was separated. This confirms that the combination of the Replace function followed by the Split function is the ideal native VBA method for handling multiple delimiters sequentially.

This method offers considerable flexibility. While this example focused on dashes and spaces, you can easily adapt the code to handle any delimiters required by your dataset. If you need to handle commas and slashes, simply adjust the arguments within the Replace() function calls to target those specific characters. The power lies in homogenizing the delimiters before the final splitting operation.

7. Advanced Considerations: When to Use Regular Expressions

While the sequential Replace() and Split() method is highly efficient for handling a fixed, small set of delimiters, advanced scenarios might necessitate a more powerful parsing tool. This is where Regular Expressions (RegEx) enter the picture. RegEx allows you to define a pattern that matches any character from a specified set of delimiters simultaneously, potentially simplifying the code when dealing with complex or very numerous separators.

The primary benefit of using Regular Expressions in VBA, typically via the VBScript.RegExp object, is its ability to treat multiple delimiters as a single logical separator without the need for multiple nested calls to the Replace function. For example, a RegEx pattern could be written to split a string based on any occurrence of a dash, comma, or pipe character in one operation. Furthermore, RegEx can handle edge cases like strings that contain multiple consecutive delimiters, ensuring that the resulting array does not contain unwanted empty strings, a potential side effect of the standard Split() function if not carefully managed.

However, using RegEx introduces complexity, requiring initialization of external objects and a steeper learning curve compared to native Split function and Replace. For most common data cleaning tasks involving two or three delimiters, the native two-step solution presented here remains the superior choice due to its simplicity, speed, and reliability. Developers should only opt for RegEx when dealing with highly variable formats, requiring complex pattern matching, or needing to process delimiters that might include special characters or variable white space.

8. Essential Notes and Documentation

When implementing this solution, always keep the following operational notes in mind to ensure your macro runs reliably and efficiently across various datasets:

• Delimiter Choice: We split strings based on dashes and spaces in this example, but you can split strings based on any delimiters you’d like by specifying them correctly in the Replace and Split functions. Always ensure that the character chosen as the standardized delimiter (e.g., the space " ") does not naturally occur within the substrings you intend to keep.
• Array Indexing: Remember that VBA arrays returned by the Split() function are zero-based by default. If you are looping through the array to assign values to Excel cells (which are one-based), you must account for this offset, as shown in the example code (SingleValue(j - 1)).
• Error Handling: If the input string is empty or contains fewer elements than anticipated (e.g., if you loop j = 1 To 3 but the split only yields two elements), the code will error out. Robust production code should always include error checking (such as On Error Resume Next or checking the array size via UBound()) to prevent runtime crashes.

For developers looking to delve deeper into the core functionality utilized in this solution, the official documentation provides comprehensive details regarding syntax and behavior. You can find the complete documentation for the VBA Split function and the VBA Replace function through the Microsoft Developer Network (MSDN) resources. Mastering these fundamental functions is key to efficient data manipulation in VBA.
