How to Easily Plot a Beta Distribution in R

Understanding the Theoretical Background

The Beta distribution is a continuous probability distribution defined on the interval [0, 1]. It is frequently used in Bayesian statistics as the conjugate prior for the Bernoulli, binomial, or geometric distributions, making it essential for modeling rates, proportions, or probabilities that inherently fall within this unit interval. Unlike the Normal distribution, which is symmetric, the Beta distribution is exceptionally flexible and can take on a wide variety of shapes—ranging from uniform, U-shaped, J-shaped, or symmetric unimodal shapes—depending entirely on the choice of its two positive shape parameters, alpha (α) and beta (β).

These two shape parameters fundamentally dictate the concentration and location of the distribution’s mass. Alpha (α), often associated with the number of successes, influences the distribution toward 1, while beta (β), associated with the number of failures, pulls the distribution toward 0. When α and β are equal, the distribution is symmetric around 0.5. If α > 1 and β > 1, the distribution is unimodal (bell-shaped). Conversely, if α < 1 and β < 1, the distribution is U-shaped, concentrating mass at the extremes of 0 and 1. A deep understanding of how these parameters interact is crucial before proceeding with visualization in R.

The mathematical foundation of the distribution involves the Beta function, which serves as a normalization constant to ensure the total area under the density curve integrates to one. While R handles the complex calculations automatically, statisticians must recognize that plotting the density curve using R’s dbeta() function essentially visualizes the result of the probability density function (PDF) equation for every point across the [0, 1] range. Therefore, the visualization provides a direct graphical interpretation of the likelihood of observing a specific proportion, given the defined parameters α and β.

Essential R Functions for Beta Distribution

R provides a powerful suite of functions dedicated to handling standard probability distributions, including the Beta distribution. These functions adhere to a consistent naming convention that begins with a letter indicating the type of function desired: ‘d’ for density, ‘p’ for probability (cumulative distribution function), ‘q’ for quantile, and ‘r’ for random number generation. When plotting the shape of the distribution, we are primarily interested in the probability density, making the dbeta() function the central tool for generating the y-axis values.

The primary function used for plotting the Beta PDF is dbeta(x, shape1, shape2). Here, x represents the vector of quantiles (the range of values from 0 to 1), shape1 is the alpha parameter, and shape2 is the beta parameter. This function returns the density value (y-coordinate) for each corresponding x-value, which is essential for creating the curve. Without using the dbeta() function, manually calculating the density values would be prohibitively complex and time-consuming.

In addition to dbeta(), the standard R plotting command, plot(), is necessary to render the visualization. We feed the x-axis values (the sequence from 0 to 1) and the y-axis values (the density output from dbeta()) directly into the plot() function. Crucially, we utilize the type='l' argument within plot() to instruct R to connect the calculated points with a line, thereby generating a smooth, continuous curve that accurately represents the distribution’s density. Understanding this combination of density calculation and graphical rendering is key to mastering distribution visualization in R.

Basic Syntax for Plotting a Beta Distribution

The standard procedure for plotting any continuous distribution in R involves two sequential steps: first, defining a sequence of x-values across the relevant range, and second, calculating the corresponding density values for those x-values using the specific density function. For the Beta distribution, since its domain is confined to [0, 1], the generation of the x-axis vector is straightforward using the seq() function, which specifies the starting point, the ending point, and the number of points (length) needed for a smooth plot.

The general syntax employs the seq() function to establish the domain and the plot() function in conjunction with the dbeta() function to create the graphical output. Increasing the length argument in seq() will result in a more detailed and smoother curve, typically 100 or 200 points being sufficient for publication-quality graphics. The initial, uncustomized plot is created efficiently using the density function output as the y-variable and the sequence vector as the x-variable, instructing the plot type to be a line graph.

You can use the following syntax to plot a Beta distribution in R:

# Define the range of values (x-axis)
p = seq(0, 1, length=100)

# Create the plot of the Beta distribution PDF
# Shape parameters are set to alpha=2 and beta=10
plot(p, dbeta(p, 2, 10), type='l')

In this code block, p is the vector of quantiles. The dbeta(p, 2, 10) function calculates the density values for a Beta distribution parameterized by α=2 and β=10 across all points in p. Finally, type='l' ensures that the plot displays a continuous line rather than discrete points. The following examples show how to use this syntax in practice and build upon this foundation for enhanced visualizations.

Example 1: Plotting a Single Beta Distribution (Detailed Walkthrough)

A single Beta distribution plot provides an immediate, clear visual of how the probability density is distributed for a specific set of shape parameters. This example focuses on visualizing the distribution Beta(2, 10), which represents a scenario where ‘failures’ (beta=10) significantly outweigh ‘successes’ (alpha=2), causing the curve to be heavily skewed toward the left side of the unit interval (closer to 0). This asymmetry is a defining characteristic of the Beta distribution when the parameters are unequal.

The following code snippet executes the basic plotting procedure. We first define the x-axis range p. The subsequent plot() command takes p for the x-coordinates and the density values calculated by dbeta(p, 2, 10) for the y-coordinates. By default, R will assign basic labels and colors, providing a quick, functional plot suitable for initial data exploration. The output clearly illustrates the peak density occurring at a low proportion, reflecting the stronger influence of the beta parameter.

The following code shows how to plot a single Beta distribution:

# Define the range from 0 to 1 with 100 points
p = seq(0,1, length=100)

# Create plot of Beta distribution with shape parameters 2 and 10
plot(p, dbeta(p, 2, 10), type='l')

The resulting graphical output confirms that the distribution is concentrated near 0.15, illustrating the high density in the lower range of proportions. This foundational plot is the starting point for creating more sophisticated and publication-ready visualizations, as demonstrated in the next section where we introduce graphical customization elements.

Customizing the Plot Appearance

While the default R plot is useful, professional statistical graphics require customization to enhance clarity, readability, and aesthetic appeal. R’s plot() function accepts numerous graphical parameters that allow for precise control over colors, line types, axis labels, and overall title placement. Key parameters include main (for the plot title), xlab and ylab (for axis labels), col (for line color), and lwd (for line width). Effective use of these parameters transforms a raw data visualization into an informative narrative tool.

Customizing the plot is especially important when presenting results to non-technical audiences, as clearly labeled axes and a descriptive title immediately contextualize the distribution. For instance, replacing the default axis labels (often simply ‘p’ and ‘dbeta(p, 2, 10)’) with meaningful text like ‘Proportion (x)’ and ‘Probability Density (y)’ dramatically improves the graph’s interpretability. Furthermore, selecting distinct colors, such as purple in the example below, can help differentiate the curve, especially when multiple distributions are plotted simultaneously.

The following code demonstrates how to incorporate several customization parameters into the plotting command. We specify a descriptive Y-axis label (ylab), set the line type to ‘l’ (line), choose ‘purple’ for the line color (col), and assign a clear title to the overall graph (main). This iterative process of refinement ensures the final graphic is both statistically accurate and visually engaging, suitable for reporting or publication in academic contexts.

# Define the range (x-axis)
p = seq(0,1, length=100)

# Create custom plot of Beta distribution with labels, color, and title
plot(p, dbeta(p, 2, 10), ylab='Probability Density',
     type ='l', col='purple', main='Beta Distribution Beta(2, 10)')

Example 2: Comparing Multiple Beta Distributions

One of the most powerful applications of plotting distributions is the ability to visually compare how different shape parameters affect the distribution’s shape, skewness, and concentration. In Bayesian inference, plotting multiple Beta distributions might represent the prior distribution, the likelihood function, and the resulting posterior distribution. This comparative visualization requires combining the primary plot() function (used for the first distribution) with the lines() function (used for subsequent distributions) and, critically, adding a legend for identification.

The lines() function is similar to plot() but adds a new line to an existing graphical device without overwriting the previous plot or resetting the axes. When plotting multiple curves, it is essential that the subsequent calls to lines() use the same x-axis sequence (p in our example) to ensure all curves align correctly. Furthermore, each added line must be assigned a unique color or line type to facilitate easy visual differentiation. The example below compares Beta(2, 10), Beta(2, 2), and Beta(5, 2), showcasing a highly left-skewed, a symmetric, and a highly right-skewed distribution, respectively.

Finally, an R plot containing multiple elements is incomplete without a comprehensive legend. The legend() function requires four main arguments: the coordinates where the legend should be placed (e.g., .7, 4), a vector of labels corresponding to each line, a vector of line types (lty), and a vector of colors (col). Careful placement of the legend ensures it does not obscure critical parts of the plotted density curves, thereby maximizing the clarity of the comparative analysis.

The following code shows how to plot multiple Beta distributions with different shape parameters:

# Define range
p = seq(0,1, length=100)

# 1. Plot the first Beta distribution (sets up the canvas)
plot(p, dbeta(p, 2, 10), ylab='Density', type ='l', col='purple')
lines(p, dbeta(p, 2, 2), col='red')
lines(p, dbeta(p, 5, 2), col='blue')

# Add legend to identify the distributions
legend(.7, 4, c('Beta(2, 10)','Beta(2, 2)','Beta(5, 2)'),
       lty=c(1,1,1),col=c('purple', 'red', 'blue'))

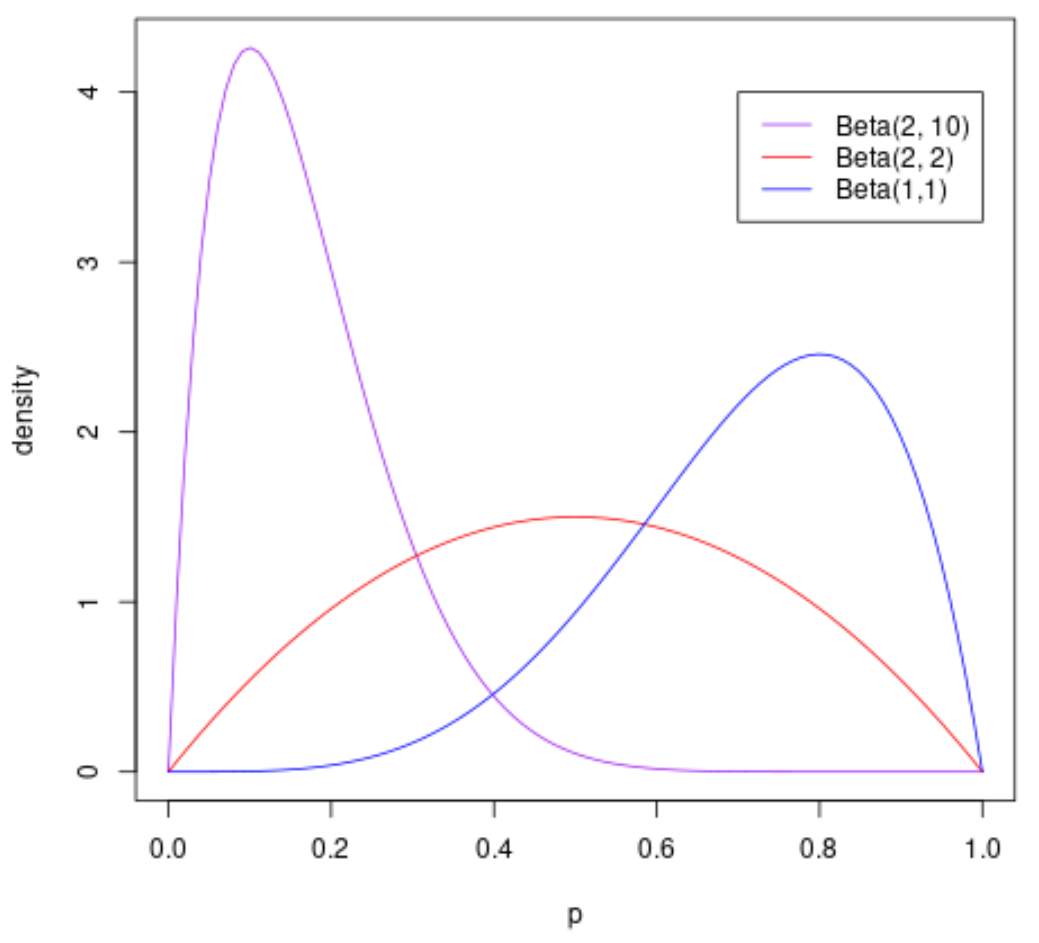

Note that the legend coordinates (.7, 4) refer to the x and y coordinates on the plot, respectively, placing the legend near the upper right corner. This final output clearly distinguishes the three distinct shapes generated by varying the alpha and beta parameters.

Interpreting the Plot Results

The visual representation of the Beta distribution is fundamentally a map of the probability density function (PDF). The height of the curve at any given point x represents the relative likelihood that the proportion or probability will fall near that value. It is critical to remember that, as a continuous distribution, the height itself is not a probability, but the area under the curve between two points represents the probability mass falling within that range.

When interpreting the plots generated in the previous examples, several key features stand out. For the highly skewed distribution Beta(2, 10) (purple line), the peak is sharp and concentrated close to zero, suggesting that low proportions are overwhelmingly the most likely outcomes. In contrast, the symmetric distribution Beta(2, 2) (red line) is centered precisely at 0.5, reflecting equal ‘success’ and ‘failure’ parameters, making all proportions near the center equally likely.

Finally, the right-skewed distribution Beta(5, 2) (blue line) peaks significantly higher than 0.5, indicating that high proportions are more probable. Visual comparison of these three curves instantly reveals the profound influence of the α and β values on the distribution’s central tendency, variance, and overall shape. Such visual analysis is often more intuitive and informative than simply reviewing numerical summaries, providing powerful insight into the uncertainty and spread of the modeled proportions.

Advanced Customization and Alternatives

While the base R graphics system (used with plot() and lines()) is highly effective for quick visualizations, users often require more sophisticated graphical control for academic publications or dynamic web applications. For advanced visualization needs, the R ecosystem offers powerful packages such as ggplot2, which implements the grammar of graphics and provides a more structured and aesthetic approach to plotting distributions. Although the underlying data generation still relies on functions like dbeta() function, ggplot2 handles layering, styling, and annotation with greater elegance.

For instance, using ggplot2, a user could easily integrate the Beta distribution plot into a larger dashboard, map densities to fill colors, or automatically generate a legend based on data frames rather than manual coordinate entry. Furthermore, R offers other density functions useful for plotting related statistical concepts, such as pbeta() for visualizing the Cumulative Distribution Function (CDF), which shows the probability that a variable is less than or equal to a certain value, or qbeta() for finding the quantile associated with a specific cumulative probability.

In summary, while this guide focused on the fundamental and highly flexible base R plotting functions, the principles remain consistent regardless of the graphical package employed. The critical step is always the accurate calculation of density values using the parameters of the Beta distribution, which subsequent plotting commands then translate into a meaningful statistical visualization.
