DFBETAS in R are partial derivatives of the dependent variable with respect to the independent variables. It allows us to measure the sensitivity of the dependent variable with respect to the independent variables. To calculate DFBETAS in R, we need to use the linear regression function lm(), and then use the summary() function to view the DFBETAS for each independent variable. Additionally, the broom package can be used to extract the DFBETAS from the model output.
In statistics, we often want to know how influential different are in regression models.
One way to calculate the influence of observations is by using a metric known as DFBETAS, which tells us the standardized effect on each coefficient of deleting each individual observation.
This metric gives us an idea of how influential each observation is on each coefficient estimate in a given regression model.
This tutorial shows a step-by-step example of how to calculate and visualize DFBETAS for each observation in a model in R.
Step 1: Build a Regression Model
First, we’ll build a using the built-in mtcars dataset in R:
#fit a regression model model <- lm(mpg~disp+hp, data=mtcars) #view model summary summary(model) Coefficients: Estimate Std. Error t value Pr(>|t|) (Intercept) 30.735904 1.331566 23.083 < 2e-16 *** disp -0.030346 0.007405 -4.098 0.000306 *** hp -0.024840 0.013385 -1.856 0.073679 . --- Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1 Residual standard error: 3.127 on 29 degrees of freedom Multiple R-squared: 0.7482, Adjusted R-squared: 0.7309 F-statistic: 43.09 on 2 and 29 DF, p-value: 2.062e-09
Step 2: Calculate DFBETAS for each Observation
Next, we’ll use the built-in dfbetas() function to calculate the DFBETAS values for each observation in the model:
#calculate DFBETAS for each observation in the model dfbetas <- as.data.frame(dfbetas(model)) #display DFBETAS for each observation dfbetas (Intercept) disp hp Mazda RX4 -0.1174171253 0.030760632 1.748143e-02 Mazda RX4 Wag -0.1174171253 0.030760632 1.748143e-02 Datsun 710 -0.1694989349 0.086630144 -3.332781e-05 Hornet 4 Drive 0.0577309674 0.078971334 -8.705488e-02 Hornet Sportabout -0.0204333878 0.237526523 -1.366155e-01 Valiant -0.1711908285 -0.139135639 1.829038e-01 Duster 360 -0.0312338677 -0.005356209 3.581378e-02 Merc 240D -0.0312259577 -0.010409922 2.433256e-02 Merc 230 -0.0865872595 0.016428917 2.287867e-02 Merc 280 -0.1560683502 0.078667906 -1.911180e-02 Merc 280C -0.2254489597 0.113639937 -2.760800e-02 Merc 450SE 0.0022844093 0.002966155 -2.855985e-02 Merc 450SL 0.0009062022 0.001176644 -1.132941e-02 Merc 450SLC 0.0041566755 0.005397169 -5.196706e-02 Cadillac Fleetwood 0.0388832216 -0.134511133 7.277283e-02 Lincoln Continental 0.0483781688 -0.121146607 5.326220e-02 Chrysler Imperial -0.1645266331 0.236634429 -3.917771e-02 Fiat 128 0.5720358325 -0.181104179 -1.265475e-01 Honda Civic 0.3490872162 -0.053660545 -1.326422e-01 Toyota Corolla 0.7367058819 -0.268512348 -1.342384e-01 Toyota Corona -0.2181110386 0.101336902 5.945352e-03 Dodge Challenger -0.0270169005 -0.123610713 9.441241e-02 AMC Javelin -0.0406785103 -0.141711468 1.074514e-01 Camaro Z28 0.0390139262 0.012846225 -5.031588e-02 Pontiac Firebird -0.0549059340 0.574544346 -3.689584e-01 Fiat X1-9 0.0565157245 -0.017751582 -1.262221e-02 Porsche 914-2 0.0839169111 -0.028670987 -1.240452e-02 Lotus Europa 0.3444562478 -0.402678927 2.135224e-01 Ford Pantera L -0.1598854695 -0.094184733 2.320845e-01 Ferrari Dino -0.0343997122 0.248642444 -2.344154e-01 Maserati Bora -0.3436265545 -0.511285637 7.319066e-01 Volvo 142E -0.1784974091 0.132692956 -4.433915e-02
For each observation, we can see the difference in the coefficient estimate for the intercept, the variable disp, and the variable hp that occurs when we delete that particular observation.
Typically we consider an observation to be highly influential on the estimate of a given coefficient if it has a DBETAS value greater than a threshold of 2/√n where n is the number of observations.
In this example, the threshold would be 0.3535534:
#find number of observations n <- nrow(mtcars) #calculate DFBETAS threshold value thresh <- 2/sqrt(n) thresh [1] 0.3535534
Step 3: Visualize the DFBETAS

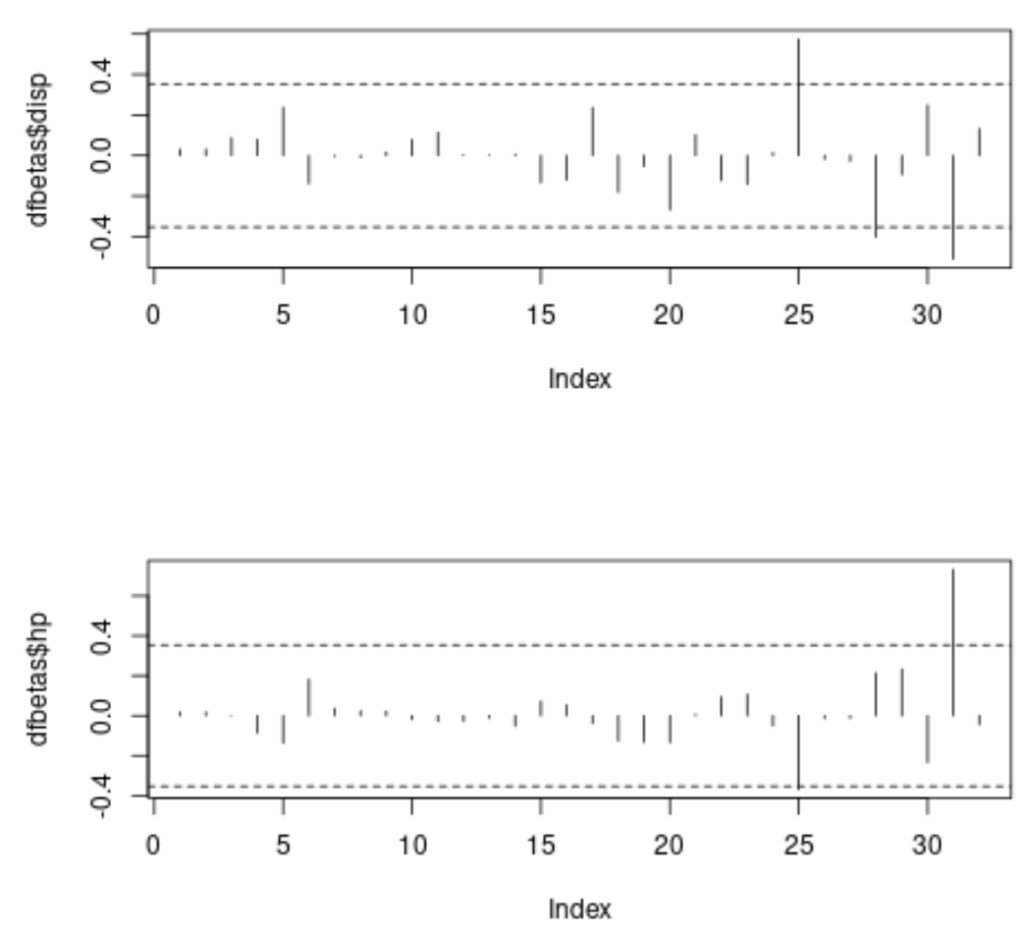

Lastly, we can create plots to visualize the DFBETAS value for each observation and for each predictor in the model:
#specify 2 rows and 1 column in plotting region par(mfrow=c(2,1)) #plot DFBETAS for disp with threshold lines plot(dfbetas$disp, type='h') abline(h = thresh, lty = 2) abline(h = -thresh, lty = 2) #plot DFBETAS for hp with threshold lines plot(dfbetas$hp, type='h') abline(h = thresh, lty = 2) abline(h = -thresh, lty = 2)
In each plot, the x-axis displays the index of each observation in the dataset and the y-value displays the corresponding DFBETAS for each observation and each predictor.
From the first plot we can see that three observations exceed the absolute value of the threshold of 0.3535534 and in the second plot we can see that two observations exceed the absolute value of the threshold.
We may choose to investigate these observations more closely to determine if they’re overly influential in estimating the coefficients in the model.
