How to Perform a Chi-Square Goodness of Fit Test on Your TI-84 Calculator

Understanding the Chi-Square Goodness of Fit Test

The Chi-Square Goodness of Fit Test is a fundamental statistical procedure used to determine how well an observed set of data matches a theoretical or expected probability distribution. In the realm of statistics, researchers often encounter categorical variables where data is grouped into distinct classes. The primary objective of this test is to ascertain whether the frequencies observed in these categories deviate significantly from the frequencies we would expect under a specific null hypothesis.

When performing this analysis, the researcher compares the observed frequencies—the actual counts collected from a sample—against the expected frequencies, which are calculated based on the hypothesized distribution. If the discrepancy between these two sets of values is large enough, it suggests that the proposed model does not accurately represent the real-world data. Conversely, if the differences are minor and can be attributed to random sampling error, the model is considered a “good fit.”

Utilizing a TI-84 Plus graphing calculator streamlines this complex calculation significantly. Instead of manually computing the squared differences and dividing by expected values for each category, the calculator’s built-in statistical functions handle the arithmetic, allowing the user to focus on interpreting the p-value and the implications for their research. This tutorial provides a comprehensive walkthrough on how to leverage this technology for accurate results.

Theoretical Foundations and Requirements

Before proceeding with the technical steps on your calculator, it is essential to understand the underlying assumptions of the Chi-Square Goodness of Fit Test. First, the data must be obtained through a simple random sample to ensure that the observations are representative of the population. Furthermore, the variable under study must be categorical, and the sample size must be sufficiently large. A common rule of thumb is that every expected frequency should be at least 5 to ensure the chi-square distribution provides a valid approximation.

The test relies on a specific mathematical formula where the test statistic is the sum of the squared differences between observed and expected values, divided by the expected values. This calculation results in a chi-square statistic. The higher this value, the less likely it is that the observed data fits the expected distribution. To reach a conclusion, we compare this statistic against a critical value or analyze the resulting p-value relative to a predetermined significance level, usually denoted as alpha (α).

In the context of the TI-84 Plus, the calculator automates the comparison between the test statistic and the distribution. It also calculates the degrees of freedom, which is defined as the number of categories minus one. Understanding these components is vital for anyone engaged in statistical hypothesis testing, as it ensures the results are not just numbers, but meaningful insights into the data’s behavior.

Step 1: Organizing and Inputting Data into Lists

To begin the process on your TI-84 Plus, you must first clear any existing data from your lists to avoid errors. Press the STAT button and select EDIT. This will open the list editor, where you will see columns labeled L1, L2, and so on. We will use L1 for our observed frequencies and L2 for our expected frequencies. This organizational structure is critical for the calculator to perform the correct pairings during the test execution.

Consider the following example: A shop owner claims that customer traffic is distributed equally across all five weekdays. To verify this, a researcher collects data and finds the following observed frequencies:

• Monday: 50 customers
• Tuesday: 60 customers
• Wednesday: 40 customers
• Thursday: 47 customers
• Friday: 53 customers

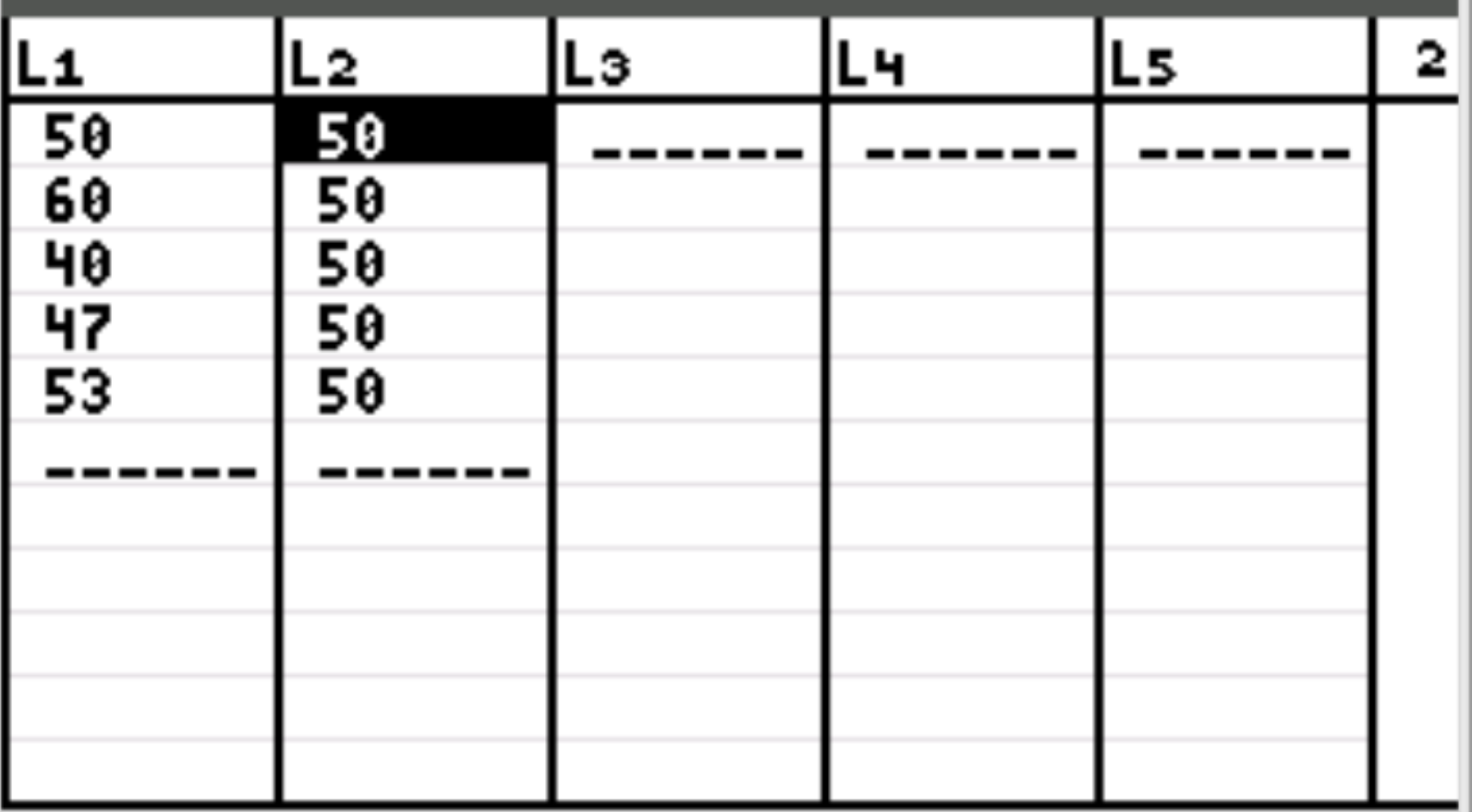

In this scenario, the total number of customers is 250. Under the null hypothesis that customers are evenly distributed, the expected frequency for each of the five days would be 250 divided by 5, which equals 50. You will now enter the observed values (50, 60, 40, 47, 53) into column L1 and the expected values (50, 50, 50, 50, 50) into column L2.

Accuracy during this data entry phase is paramount. Double-check that the number of entries in L1 matches the number of entries in L2. If there is a mismatch, the TI-84 Plus will return a “Dimension Mismatch” error when you attempt to run the test. Once your lists are correctly populated, you are ready to move to the calculation phase.

Step 2: Navigating to the Chi-Square Test Menu

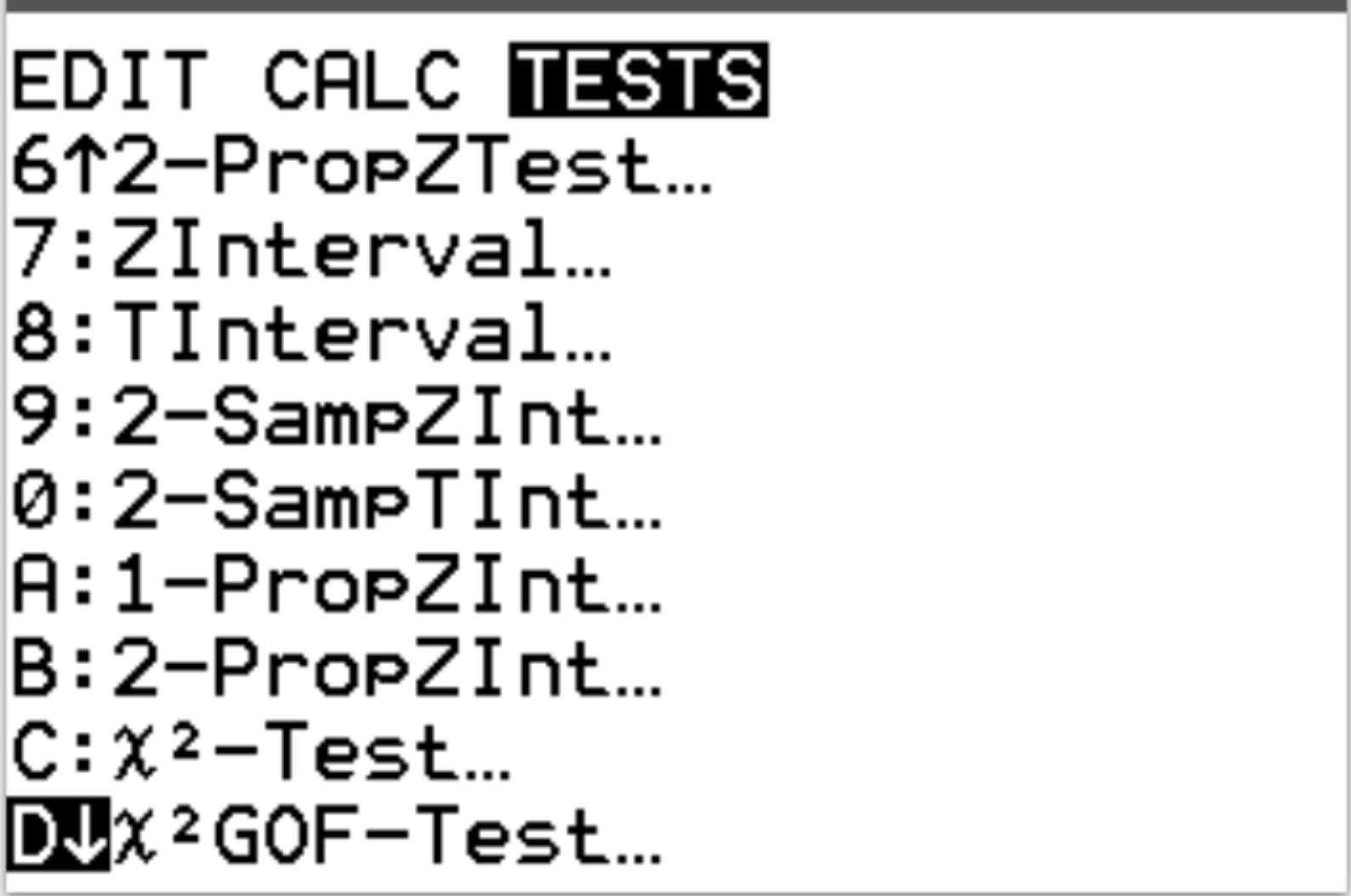

With your data securely entered into the lists, the next phase involves navigating the calculator’s internal algorithm for the Chi-Square Goodness of Fit Test. Press the STAT key again, but this time use the right arrow key to scroll over to the TESTS menu. This menu contains all the inferential statistics tools available on the device, ranging from z-tests to various ANOVA options.

Scroll down through the list until you find D: χ2GOF-Test. It is important not to confuse this with the χ2-Test (Option C), which is used for tests of independence or homogeneity in contingency tables. The “GOF” in the name specifically stands for “Goodness of Fit,” which is the procedure we require for comparing a single categorical variable against a known distribution.

Once you have highlighted χ2GOF-Test, press the ENTER key. This action will take you to a configuration screen where you will define the parameters for your specific dataset. Proper selection here ensures that the calculator pulls the correct observed frequencies and expected frequencies from the lists you previously populated.

Step 3: Configuring Test Parameters and Degrees of Freedom

On the χ2GOF-Test screen, you will be prompted to specify several inputs. First, ensure that Observed is set to L1 and Expected is set to L2. If these are not already selected, you can change them by pressing 2nd followed by the number 1 (for L1) or the number 2 (for L2). This directs the TI-84 Plus to the specific columns containing your experimental data and theoretical values.

The next field is df, which stands for degrees of freedom. This value is central to the chi-square distribution and is calculated as the number of categories minus one (k – 1). In our shop owner example, there are five categories (Monday through Friday), so the calculation is 5 – 1 = 4. Enter the number 4 into the df field to ensure the calculator uses the correct probability density function for your specific test.

After entering the degrees of freedom, you have the option to choose Calculate or Draw. Selecting Calculate will provide you with the immediate numerical output, including the test statistic and p-value. Selecting Draw will generate a visual representation of the chi-square curve and shade the area representing the p-value. For most formal analyses, Calculate is the preferred method as it provides precise figures for reporting.

Step 4: Interpreting the Statistical Output

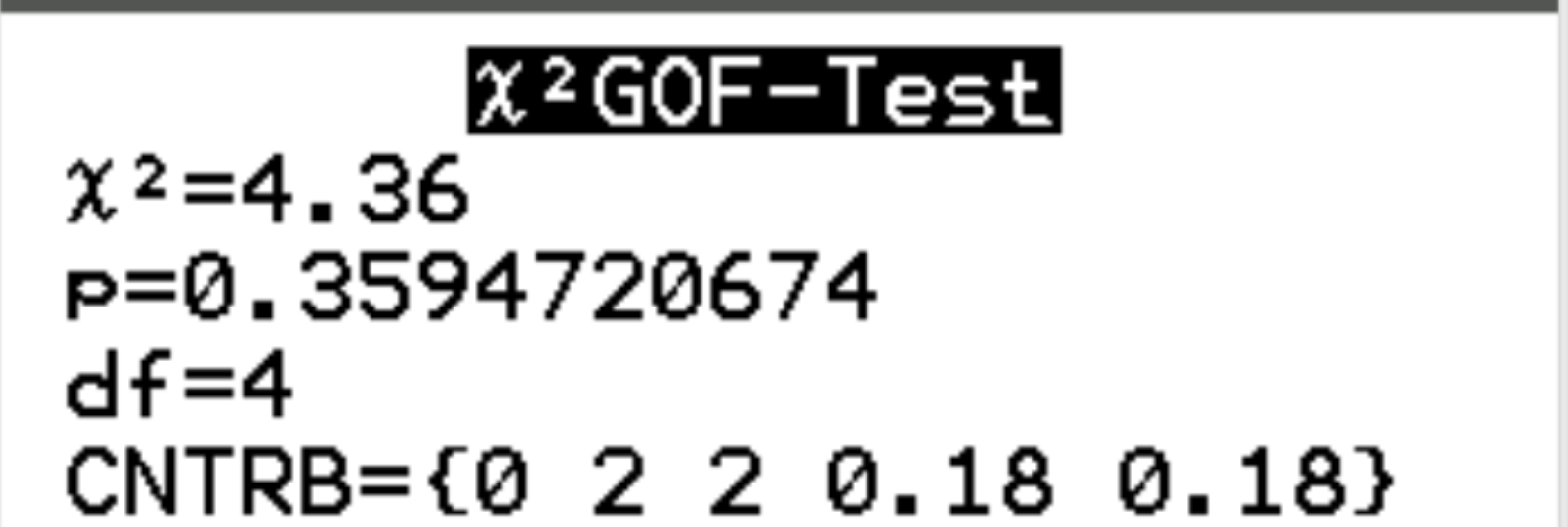

Once you press ENTER on Calculate, the TI-84 Plus will display the results of your Chi-Square Goodness of Fit Test. The screen will show the chi-square test statistic (denoted as χ2), the p-value (denoted as P), and the degrees of freedom. It may also show a list of “CNTRB” values, which represent the individual contribution of each category to the total chi-square statistic.

In our current example, the calculator provides a chi-square statistic of 4.36 and a p-value of approximately 0.3595. To interpret these results, we must compare the p-value to our significance level (α), which is commonly set at 0.05. If the p-value is less than or equal to α, the result is considered statistically significant, and we reject the null hypothesis. If the p-value is greater than α, we fail to reject the null hypothesis.

With a p-value of 0.3595, we observe that it is significantly higher than 0.05. This indicates that the differences between the shop owner’s expected customer distribution and the researcher’s observed data are not large enough to be considered statistically meaningful. Consequently, we fail to reject the null hypothesis. There is no sufficient evidence to suggest that the shop owner’s claim of equal customer traffic throughout the week is incorrect.

Conclusion and Practical Implications

Mastering the Chi-Square Goodness of Fit Test on a TI-84 Plus empowers researchers and students to validate theoretical models against empirical data with high efficiency. This statistical inference tool is indispensable in various fields, including biology, market research, and social sciences, where understanding the distribution of categorical data is essential for decision-making.

The ability to quickly input observed frequencies and expected frequencies allows for a iterative approach to data analysis. If a researcher finds that a model does not fit, they can refine their null hypothesis and re-test the data using the same calculator functions. This streamlined workflow reduces the risk of manual calculation errors and ensures that the focus remains on the interpretation of statistical significance.

In summary, the TI-84 Plus serves as a powerful bridge between complex statistical theory and practical application. By following the structured steps of data entry, test configuration, and p-value interpretation, you can confidently perform a Chi-Square Goodness of Fit Test to uncover the patterns hidden within your data. Whether you are verifying a shop owner’s claims or conducting academic research, this method provides a reliable foundation for your statistical conclusions.
