How to Easily Change the Size of a Pandas Histogram

The Role of Figures and Axes in Data Visualization

To effectively modify the size of a histogram, it is vital to understand the foundational components of the visualization environment provided by Matplotlib, which powers Pandas plotting functionalities. Every plot created is contained within a Figure object. Think of the Figure as the overall canvas or window where all plotting elements reside. Within this Figure, one or more Axes objects are created. The Axes object is where the data is actually plotted—it contains the x and y axes, the plot elements (like histogram bars), and titles.

When you call the Pandas .hist() method on a Series, it generally handles the creation of the Figure and Axes automatically, applying default dimensions. These defaults are typically set by Matplotlib (often 6.4 inches wide by 4.8 inches high). However, when we need explicit control, we must bypass the automatic sizing and manually instantiate the Figure and Axes objects, passing them to the Pandas plotting function.

By taking manual control, we can specify the exact dimensions of the canvas using the plt.figure() function before calling the histogram generation method. This approach allows for a precise definition of the plotting space. The figsize argument is an essential attribute of the plt.figure() call, accepting the (width, height) tuple that scales the entire visualization output. This separation of concerns—defining the container size (Figure) before plotting the content (Axes)—provides maximum flexibility to the data analyst.

Implementing the figsize Parameter for Custom Histograms

The figsize parameter is defined as an argument within the plt.figure() function call. It expects two numerical values enclosed in a tuple, representing the desired width and height of the figure, measured in inches. For example, specifying figsize=(10, 5) will create a figure 10 inches wide and 5 inches high. This standardization ensures that plots maintain consistent proportions regardless of the screen resolution or rendering environment.

To successfully integrate custom sizing with the Pandas .hist() function, a workflow involving three specific steps is required: first, importing the necessary libraries (Pandas and Matplotlib); second, explicitly creating the figure and axis objects using plt.figure() while passing the figsize parameter; and third, instructing the Pandas plotting method to draw the histogram onto the newly created axis using the ax argument. This critical linkage ensures that the histogram inherits the dimensions specified by the preceding figure creation step.

The following demonstration illustrates the fundamental code structure necessary to apply the figsize parameter when generating a histogram from a Pandas Series or DataFrame column. Note how the created ax object is passed directly into the Pandas .hist() method, linking the visualization to the custom-sized figure container.

Applying Figure Size Control via Matplotlib

You can use the figsize argument to change the figure size of a histogram created in pandas:

import matplotlib.pyplot as plt

#specify figure size (width, height)
fig = plt.figure(figsize=(8,3))
ax = fig.gca()

#create histogram using specified figure size
df['my_column'].hist(ax=ax)

This code block sets up an 8-inch wide by 3-inch high figure. The fig.gca() method retrieves the current Axes object associated with the newly created figure. This specific Axes object (ax) is then used by the Pandas .hist() function, guaranteeing that the resulting histogram conforms precisely to the custom dimensions we established. This technique is standard practice when integrating Pandas plotting with fine-grained Matplotlib controls.

Data Preparation: Initializing the Pandas DataFrame

To demonstrate the practical application of figsize, we first need a robust dataset to work with. We will create a sample DataFrame using Pandas, simulating scores or measurements for various entities. This dataset will contain two columns: ‘player’ (categorical identifier) and ‘points’ (the numerical variable we wish to visualize using a histogram).

This setup allows us to move from abstract code concepts to tangible results. The ‘points’ column, which contains the distribution of interest, will be the focus of our visualization efforts. Before visualization, it is good practice to inspect the first few rows of the DataFrame to ensure the data structure is correct and ready for plotting. The initialization script below handles the creation and initial inspection of our sample data structure.

The following example shows how to initialize the Pandas DataFrame containing data points related to player scores. We are particularly interested in the distribution of the points column, as this will be the variable used to construct our histograms throughout the remainder of this tutorial.

import pandas as pd

#create DataFrame
df = pd.DataFrame({'player': ['A', 'B', 'C', 'D', 'E', 'F', 'G', 'H',
                              'I', 'J', 'K', 'L', 'M', 'N', 'O', 'P'],
                   'points': [10, 12, 14, 15, 15, 15, 16, 17,
                              19, 19, 24, 24, 28, 30, 34, 34]})

#view first five rows of DataFrame
print(df.head())

  player  points
0      A      10
1      B      12
2      C      14
3      D      15
4      E      15

Visualizing with Default Figure Dimensions

Before introducing custom sizing, it is essential to establish a baseline using the default dimensions provided by the plotting backend. When we call the .hist() method on the points column without explicitly defining a figure size, the Matplotlib default settings are automatically applied. As noted previously, these defaults usually result in a figure width of 6.4 units and a height of 4.8 units. Understanding this baseline is crucial, as it highlights why customization becomes necessary when dealing with specific visualization requirements, such as fitting multiple plots side-by-side or emphasizing certain aspects of the distribution.

The default output provides a standard view, but depending on the variance and range of the data, the bars might appear too thin, too wide, or the overall plot might be disproportionate relative to the surrounding document or presentation slide. This basic example uses minimal parameters, demonstrating the simplest call possible while ensuring clear bar separation (using edgecolor='black') and disabling the grid for a cleaner look.

Observe the resulting image below. This visual representation serves as the control group against which our subsequent customized plots will be compared. Notice the standard rectangular dimensions determined by the default 6.4 x 4.8 inch setting. This is often the starting point for users seeking to optimize their visual output for specific contexts.

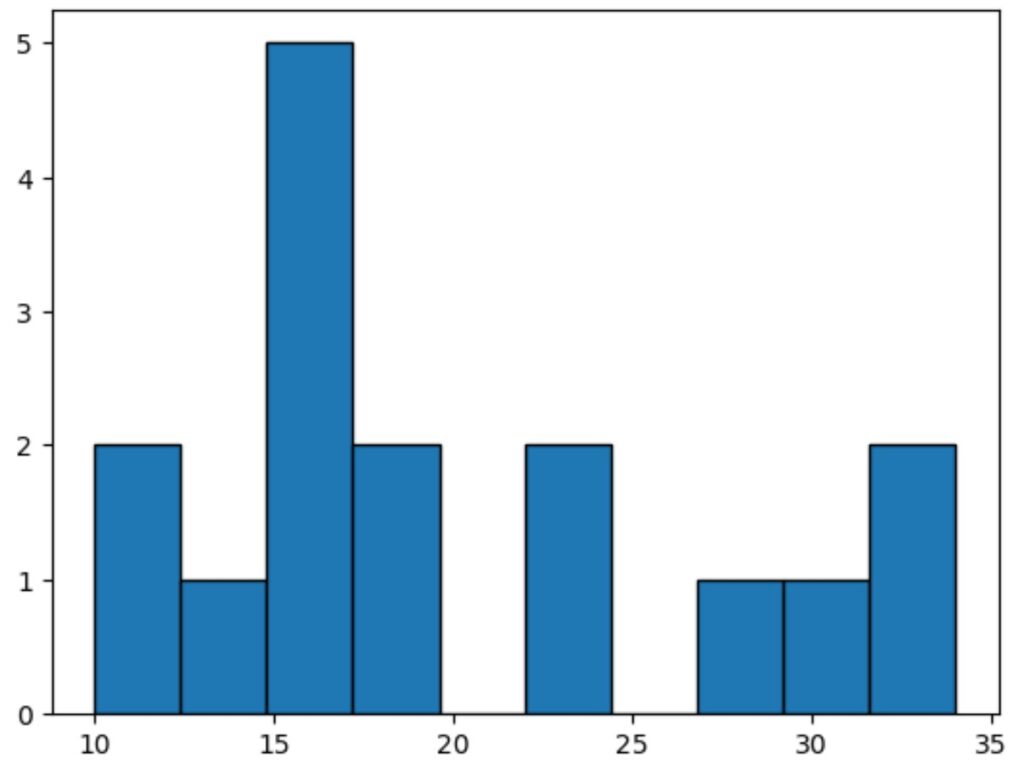

If we create a histogram for the points variable, Pandas will automatically use 6.4 as the width of the figure and 4.8 as the height:

import matplotlib.pyplot as plt

#create histogram for points variable
df['points'].hist(grid=False, edgecolor='black')

Customizing for a Wide, Landscape Layout (8 x 3)

Often, data distributions benefit from a wider aspect ratio, especially when the x-axis represents a large range or numerous bins, or when the goal is to present the visualization in a landscape format alongside text. A wider format compresses the vertical space, making the distribution profile flatter and potentially easier to scan horizontally. This customization is easily achieved by setting a width significantly larger than the height in the figsize tuple.

In this example, we will change the dimensions to 8 inches wide and 3 inches high (figsize=(8, 3)). This drastic change from the default aspect ratio (6.4:4.8, or 1.33:1) to a wider ratio (8:3, or 2.67:1) demonstrates the power of the figsize parameter in reshaping the visual output. By explicitly creating the figure and axes objects first, we ensure the histogram is rendered within these precise custom boundaries.

Notice how the exact same data visualization code, when directed to the custom Axes object, produces a dramatically different visual result. The elongated, wide format is ideal for fitting into narrow columns in reports or when optimizing for display on modern widescreen monitors. The following code block implements this landscape layout, followed by the resulting output image for comparison.

However, we can use the figsize argument to change the width and height of the figure:

import matplotlib.pyplot as plt

#specify figure size (width, height)
fig = plt.figure(figsize=(8,3))
ax = fig.gca()

#create histogram using specified figure size
df['points'].hist(grid=False, edgecolor='black', ax=ax)

This particular histogram has a width of 8 inches and a height of 3 inches, resulting in a significantly flatter visual profile compared to the default output.

Customizing for a Tall, Portrait Layout (4 x 7)

Conversely, there are situations where a taller, portrait orientation is more beneficial. A tall figure emphasizes the frequency density and vertical variations within the data distribution. This layout is particularly useful when the data is heavily concentrated in certain bins, or when the visualization needs to be inserted into a document layout optimized for vertical space, such as a traditional academic paper or a narrow mobile view.

To achieve this portrait layout, we must specify a height that is substantially greater than the width. In this demonstration, we use figsize=(4, 7), setting the width to 4 inches and the height to 7 inches. This provides an aspect ratio (4:7, or approximately 0.57:1) that is starkly different from both the default and the wide examples, highlighting the peaks and troughs of the distribution along the frequency axis.

The manual creation of the Figure and Axes remains the consistent methodology. By controlling the figsize argument during the plt.figure() call, we ensure the histogram’s drawing space is defined before the plotting function executes. This method guarantees full control over the resulting aesthetic and structural properties of the visualization, regardless of the underlying data complexity.

We can also use the figsize argument to create a figure that has a greater height than width:

import matplotlib.pyplot as plt

#specify figure size (width, height)
fig = plt.figure(figsize=(4,7))
ax = fig.gca()

#create histogram using specified figure size
df['points'].hist(grid=False, edgecolor='black', ax=ax)

This particular histogram has a width of 4 inches and a height of 7 inches. The visual emphasis is placed heavily on the vertical frequency axis, making it easier to compare the heights of the individual bins.

Best Practices for Choosing Figure Dimensions

Selecting the optimal figure size is not arbitrary; it depends heavily on the context, the data density, and the final destination of the plot. A poorly sized figure can either lead to wasted space or, worse, illegible labels and overlapping elements. When deciding on the (width, height) tuple, consider the following key factors to maximize visual effectiveness and clarity.

Firstly, the number of bins is a critical determinant of required width. If your histogram uses many narrow bins, a wider figure ensures that the individual bars are distinct and readable along the x-axis, preventing clutter. Secondly, consider the text elements, such as axis labels, titles, and legends. If the figure size is too small relative to the font size, text elements may overlap or spill outside the figure boundaries, severely compromising the presentation quality. Matplotlib automatically scales fonts relative to the figure size, but extreme aspect ratios can still cause issues.

Finally, always aim for consistency, especially when producing a series of visualizations for a single report or presentation. Using consistent dimensions and aspect ratios across all related plots improves professionalism and aids the reader in comparative analysis. While figsize is measured in inches, remember that when displayed digitally, these dimensions are translated into pixels based on the rendering environment (like a Jupyter notebook or specific screen resolution). Therefore, a brief visual inspection after rendering is always necessary to confirm the desired outcome.
