GGplot2 is a graphical data visualization package in R that allows users to create high-quality and customizable plots. One of the key features of ggplot2 is the ability to use a transparent background, which can enhance the overall appearance of a plot by removing unnecessary distractions. To use a transparent background in ggplot2, users can specify the “alpha” parameter within the “theme” function to adjust the level of transparency. This allows for a clean and professional-looking plot without sacrificing any important data or information. Additionally, users can also use the “fill” or “color” parameters within specific layers of the plot to create a transparent background for only certain elements. Overall, utilizing a transparent background in ggplot2 can improve the overall aesthetic and clarity of a plot, making it a valuable tool for data visualization.
Use a Transparent Background in ggplot2
You can use the following syntax to create a transparent background in a plot in ggplot2:
p +
theme(
panel.background = element_rect(fill='transparent'), #transparent panel bg
plot.background = element_rect(fill='transparent', color=NA), #transparent plot bg
panel.grid.major = element_blank(), #remove major gridlines
panel.grid.minor = element_blank(), #remove minor gridlines
legend.background = element_rect(fill='transparent'), #transparent legend bg
legend.box.background = element_rect(fill='transparent') #transparent legend panel
)
If you decide to export the plot using ggsave(), be sure to specify that the background should be transparent:
ggsave('myplot.png', p, bg='transparent')
The following example shows how to use this syntax in practice.
Example: Use a Transparent Background in ggplot2
The following code shows how to create a simple grouped boxplot in ggplot2:
library(ggplot2) #make this example reproducible set.seed(1) #create dataset data <- data.frame(team=rep(c('A', 'B', 'C'), each=50), program=rep(c('low', 'high'), each=25), values=seq(1:150)+sample(1:100, 150, replace=TRUE)) #create boxplot ggplot(data, aes(x=team, y=values, fill=program)) + geom_boxplot()

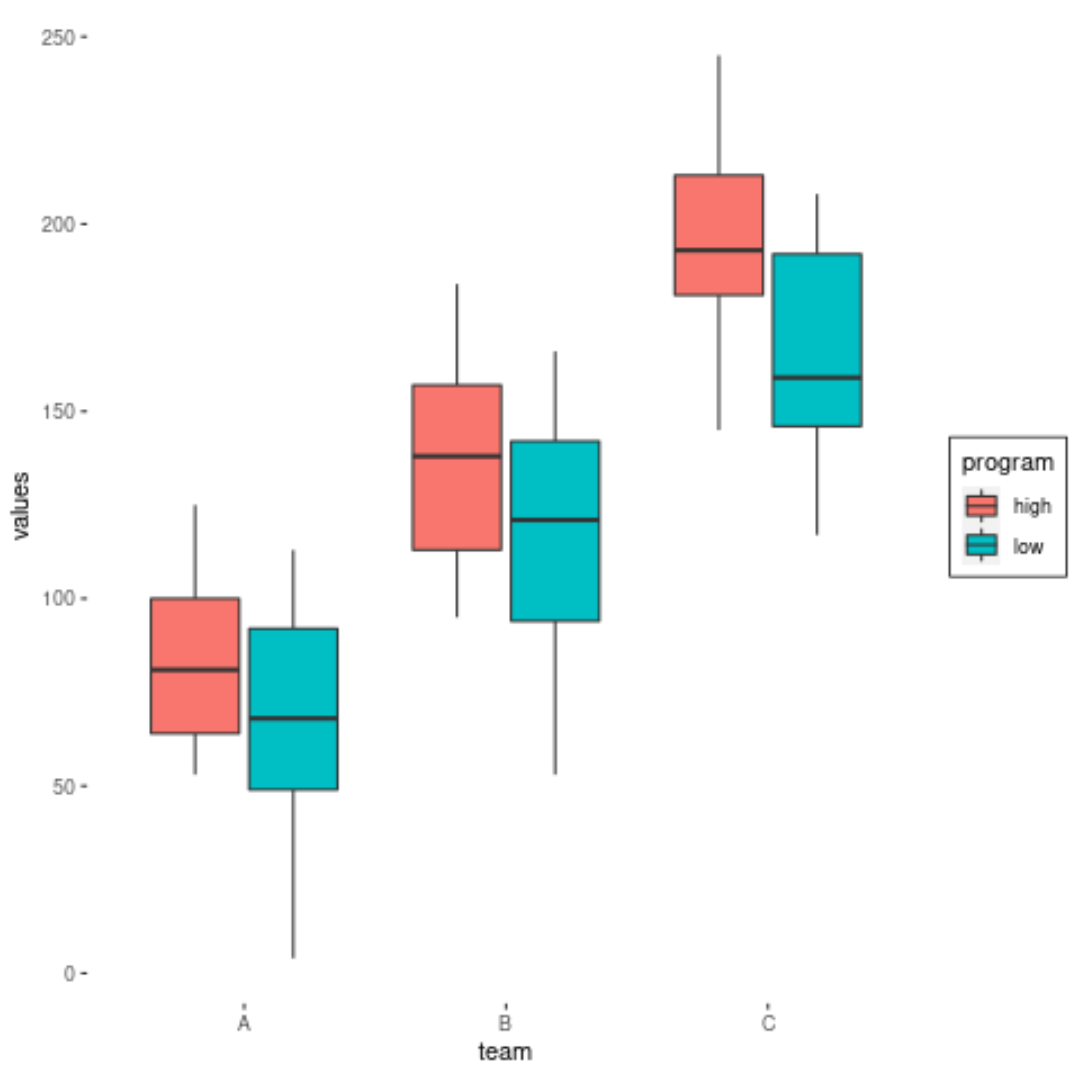

We can use the following code to create a transparent background for the plot:
library(ggplot2) #make this example reproducible set.seed(1) #create dataset data <- data.frame(team=rep(c('A', 'B', 'C'), each=50), program=rep(c('low', 'high'), each=25), values=seq(1:150)+sample(1:100, 150, replace=TRUE)) #create boxplot p <- ggplot(data, aes(x=team, y=values, fill=program)) + geom_boxplot() + theme( panel.background = element_rect(fill='transparent'), plot.background = element_rect(fill='transparent', color=NA), panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.background = element_rect(fill='transparent'), legend.box.background = element_rect(fill='transparent') ) #display boxplot p
We can then export this plot to a PNG file, specifying that the background should be transparent in the exported image:

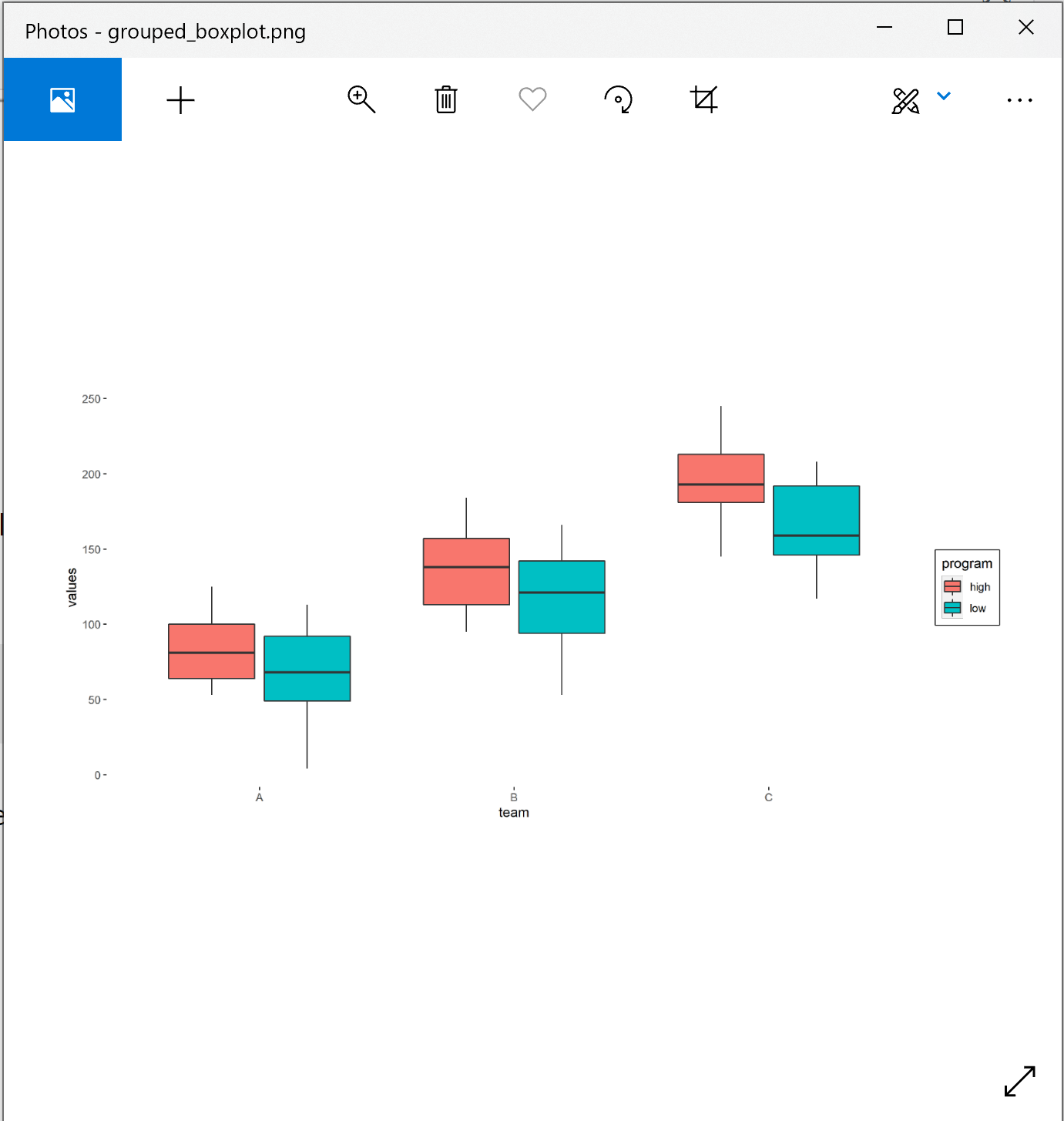

ggsave('grouped_boxplot.png', p, bg='transparent')If I open this exported file on my computer, I can see that the background is indeed transparent:
