How to Draw Horizontal Lines in Matplotlib: A Simple Guide

Primary Method: Utilizing the Matplotlib Axes.axhline() Function

The most robust and straightforward way to draw a static horizontal reference line in Matplotlib is by employing the Axes.axhline() function. This function belongs to the axes module and is specifically designed to create lines parallel to the x-axis that span the entire width of the plot. Unlike the generic plot function which requires a series of x and y coordinates, axhline() only requires one fundamental parameter: the y-coordinate value where the line must be anchored. Furthermore, it automatically adjusts to the axis limits, ensuring the line stretches across the entire viewing area unless otherwise constrained.

The core syntax is deceptively simple, but the function offers extensive customization options via optional parameters. These parameters govern the visual aesthetics of the line, including its color, weight, and style. For instance, you can specify color to change the hue, linewidth to adjust the thickness, and linestyle to define whether the line should be solid, dashed, or dotted. Mastering these options allows for the creation of visually distinct reference points that significantly enhance the interpretability of the overall data visualization, ensuring that important benchmarks are immediately recognizable against the backdrop of the primary data.

To draw a basic horizontal line at a specific y-value, you must first import the necessary modules, typically matplotlib.pyplot. This interface provides a procedural way of interacting with Matplotlib’s powerful object-oriented structure. The following snippet illustrates the minimum required syntax to execute this function, drawing a horizontal line across the plot at the coordinate y=10, assuming a plot context has already been established:

import matplotlib.pyplot as plt

# draw horizontal line at y=10
plt.axhline(y=10)

Alternative Approach: Drawing Lines with the plot() Function

While axhline() is the recommended tool for drawing complete horizontal lines, it is also technically possible to achieve the same result using Matplotlib’s generic plot() function. This method requires a deeper understanding of coordinate systems, as you must explicitly define two lists: one for the x-coordinates and one for the y-coordinates. For the line to be perfectly horizontal, every single value within the y-coordinate list must be identical to the desired y-level, and the x-coordinates must define the start and end points of the segment.

For example, to draw a horizontal line at y=5 spanning from x=0 to x=10, the user would need to define x_coords = [0, 10] and y_coords = [5, 5]. The primary drawback of using the plot() function for this purpose is that the user must manually determine the appropriate x-limits of the plot, whereas axhline() handles this automatically. This manual approach is often considered less intuitive and more verbose, especially for simple reference lines that are intended to span the full plot extent.

However, using plot() does offer granular control over the start and end points of the line segment, making it the superior choice in niche situations. If the reference line should only cover a specific segment of the x-axis—perhaps highlighting a relevant time window or range—and not the entire plot area, defining the exact start and end x-coordinates via plot() provides the necessary precision that axhline() lacks in its simplest form.

Setting Up the Environment and Sample Data

To demonstrate the practical application of axhline(), we will utilize a sample dataset structured as a Pandas DataFrame. Pandas is the indispensable library for data manipulation and analysis in Python, and it integrates seamlessly with Matplotlib for visualization purposes. Before running the visualization examples, ensure both libraries are imported, allowing us to generate the data structure and then plot it effectively.

We will create a simple DataFrame containing two columns: ‘x’ (representing an index or sequential measurement) and ‘y’ (representing observed values that fluctuate). This structure mimics a common scenario in data analysis, such as monitoring a process over time, where we plot observed data points and want to overlay significant thresholds or benchmarks that define success or failure zones. The definition of this sample data is foundational to all subsequent examples, providing the essential context against which the horizontal lines will be plotted and interpreted.

The following code initializes the Pandas library and creates the sample DataFrame. This DataFrame contains eight data points, providing enough variation in the ‘y’ values to visually demonstrate how reference lines interact with the main data series:

import pandas as pd

# create DataFrame
df = pd.DataFrame({'x': [1, 2, 3, 4, 5, 6, 7, 8],
                   'y': [5, 7, 8, 15, 26, 39, 45, 40]})

# view DataFrame
df

	x	y
0	1	5
1	2	7
2	3	8
3	4	15
4	5	26
5	6	39
6	7	45
7	8	40

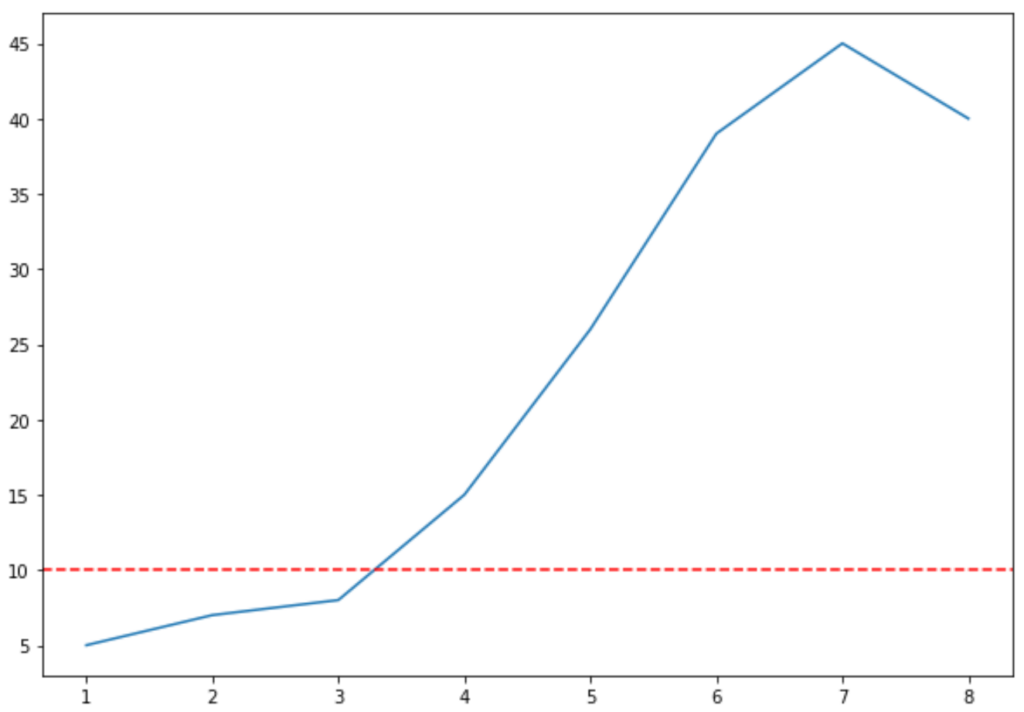

Example 1: Drawing a Single Reference Line

In many analytical contexts, a single threshold, such as a historical average or a critical minimum value, needs to be highlighted on the primary plot. This initial example clearly demonstrates the fundamental workflow: first plotting the data contained within our DataFrame using plt.plot(), and then overlaying a single horizontal line using the axhline() function, ensuring it is visually customized to stand out effectively against the primary data series.

We define the reference line at y=10, which serves as a critical low threshold for the ‘y’ values in our dataset. To ensure this reference line is immediately distinguishable from the main data line, we utilize two key optional parameters of the Axes.axhline() function: color, which is set explicitly to ‘red’, and linestyle, which is set to ‘–‘ (indicating a dashed line). Using dashed or dotted lines is a highly recommended practice for reference or hypothetical lines, as this visually contrasts them with the typically solid lines used for empirical data trends.

This implementation profoundly enhances the narrative of the plot, immediately drawing the viewer’s attention to the boundary defined by y=10. This allows for quick visual assessment of which data points fall above or below this critical value, providing instant insights into performance or compliance relative to the benchmark. The sequence of plotting the original data and subsequently adding the reference line creates a layered, complete, and highly informative graphical representation.

import matplotlib.pyplot as plt

# create line plot
plt.plot(df.x, df.y)

# add horizontal line at y=10
plt.axhline(y=10, color='red', linestyle='--')

Example 2: Visualizing Multiple Thresholds

Advanced data analysis frequently requires visualizing multiple constraints, such as upper and lower control limits, quartile boundaries, or tiered performance targets, simultaneously on a single chart. Matplotlib facilitates this capability by allowing for the seamless inclusion of numerous horizontal lines on a single plot. This is achieved simply by calling the axhline() function multiple times, ensuring one invocation for each unique threshold value required. This flexibility is absolutely essential when monitoring performance against both minimum acceptable standards and aggressive aspirational targets.

In this second example, we build upon the previous plot by introducing a second, higher reference line positioned at y=30. A key technical requirement when displaying multiple reference lines is ensuring that each line remains visually distinct to prevent confusion and ambiguity in interpretation. The first line at y=10 retains its red, dashed appearance, signifying a lower boundary. In contrast, the newly introduced line at y=30 is deliberately styled using a solid black line (color='black' and linestyle='-'). The contrasting styles immediately and clearly differentiate the low threshold from the high threshold.

When implementing multiple reference lines, careful consideration must always be given to the choice of colors and line styles. Overusing similar visual elements can lead to significant interpretative error. By employing diverse styles (dashed vs. solid) and high-contrast colors (red vs. black), we clearly delineate the operational zones defined by y=10 and y=30. This technique is invaluable in specialized fields such as statistical quality control (creating tolerance bands) or financial charting (marking resistance and support levels).

import matplotlib.pyplot as plt

# create line plot
plt.plot(df.x, df.y)

# add horizontal line at y=10
plt.axhline(y=10, color='red', linestyle='--')

# add horizontal line at y=30
plt.axhline(y=30, color='black', linestyle='-')

Example 3: Enhancing Clarity with Legends and Annotations

While assigning distinct colors and styles is a necessary step to differentiate multiple lines, a plot cannot be considered fully professional or complete without a clear legend that explicitly explains what each line represents. Integrating a legend into a Matplotlib plot requires assigning a descriptive label to every element intended for the key—this includes the primary data series as well as all horizontal reference lines—and then calling the plt.legend() function to render the key.

To ensure that an Axes.axhline() object is successfully included in the legend, the label parameter must be passed directly during the function call. This label is a concise string that explicitly describes the semantic meaning of the reference line (e.g., ‘Minimum Threshold’ or ‘Target Value’). Matplotlib intelligently aggregates all elements that have been assigned a label and generates the legend box automatically, ensuring that the resulting visualization is fully self-explanatory and requires no external descriptive text.

This final, advanced example demonstrates the best practice workflow for generating professional-grade visualizations. By explicitly labeling both the y=10 and y=30 lines and subsequently invoking plt.legend(), we successfully transform the visualization from a mere graphical display into a powerful, accessible communication tool. The legend serves as a crucial key, linking the abstract graphical elements (the lines) to their concrete, real-world semantic meaning (the operational thresholds). This final step is paramount for any visualization intended for formal documentation, scientific publications, or executive presentations where clarity and unambiguous interpretation are absolutely critical.

import matplotlib.pyplot as plt

# create line plot
plt.plot(df.x, df.y)

# add horizontal line at y=10
plt.axhline(y=10, color='red', linestyle='--', label='First Line')

# add horizontal line at y=30
plt.axhline(y=30, color='black', linestyle='-', label='Second Line')

# add legend
plt.legend()

Customizing Line Appearance: Colors, Styles, and Widths

The visual impact and effectiveness of a horizontal line in communicating information heavily depend on its aesthetic properties. Matplotlib provides an extensive array of options for customizing the line’s appearance through various parameters within the Axes.axhline() function, including color, linewidth, linestyle, and alpha. Leveraging these customization features is crucial, as it allows developers to adhere to specific corporate branding guidelines, meet accessibility requirements, or simply improve the visual hierarchy of the plot by controlling contrast and prominence.

The color parameter offers maximum flexibility, accepting a wide range of standard inputs, including recognized color names (e.g., ‘blue’, ‘green’, ‘magenta’), precise RGB tuples, or industry-standard hexadecimal color codes (e.g., ‘#4C72B0’). This extensive selection capability ensures precise color matching regardless of the source requirements. The linewidth parameter controls the physical thickness of the line and accepts positive floating-point numbers; increasing this value makes the reference line bolder and more visually prominent, useful for highlighting extremely critical boundaries.

The linestyle parameter is arguably the most critical for differentiation, especially in situations where color cannot be relied upon (e.g., when printing in black and white or for users with color vision deficiency). Matplotlib supports several common styles which are represented by short string codes:

• '-' or 'solid': A continuous, unbroken line, typically used for primary data.
• '--' or 'dashed': A line composed of short, distinct dashes, excellent for warning limits.
• '-.' or 'dashdot': A line alternating between a dash and a single dot, useful for secondary reference lines.
• ':' or 'dotted': A sequence of small dots, suitable for subtle background context or guides.

Additionally, the alpha parameter, which controls transparency, is highly valuable, ranging from 0.0 (fully transparent) to 1.0 (fully opaque). Setting a lower alpha value is particularly useful when reference lines might otherwise clutter densely populated plots, allowing the underlying data points to remain visible through the line.

Summary of Best Practices for Effective Horizontal Lines

When incorporating horizontal lines into your data visualization projects, adherence to a few key best practices will significantly improve the quality and professionalism of your output. Always prioritize the use of the Axes.axhline() function due to its inherent simplicity and automatic axis spanning capabilities, which saves time compared to manually defining coordinates using the plot() function.

Furthermore, never use reference lines without customizing their appearance. Reference lines, by their very definition, must contrast clearly with the primary data series to avoid confusion. A strong recommendation is to use subtle, desaturated colors, coupled with dashed or dotted line styles, and appropriate transparency (a low alpha value) if the line risks obscuring underlying data points. This technique ensures the reference line provides context without dominating the visual field.

Most importantly, if two or more horizontal lines are present on the chart, they must be differentiated both visually and semantically. This requires using unique combinations of color and line style for each line, and crucially, ensuring a clear, descriptive legend is included. The legend should be generated using the label argument within the axhline() call, followed by the essential plt.legend() command. By consistently applying these methods, you ensure that your Matplotlib visualizations are not only aesthetically pleasing but also technically accurate, accessible, and easily interpretable by any audience.

Note: Refer to the official Matplotlib documentation for a complete list of colors and linestyles you can apply to horizontal lines, along with advanced formatting options.

Conclusion

Drawing horizontal reference lines in Matplotlib is an essential skill for professional data visualization. The Axes.axhline() function provides a powerful, concise, and highly customizable solution for adding these critical benchmarks to any plot with minimal effort. By intelligently leveraging optional parameters for color, linestyle, and descriptive labels, analysts can effectively communicate important thresholds, averages, or targets, dramatically improving the interpretability and analytical depth of their visual data stories.

Whether the requirement is to mark a single statistical mean, delineate multiple control limits across a time series, or simply highlight a target goal, Matplotlib offers all the necessary tools to achieve precise and professional results. Mastery of the axhline() method ensures that your analytical graphics are clear, compelling, and fully compliant with modern data visualization best practices, transforming raw data into actionable insights.
