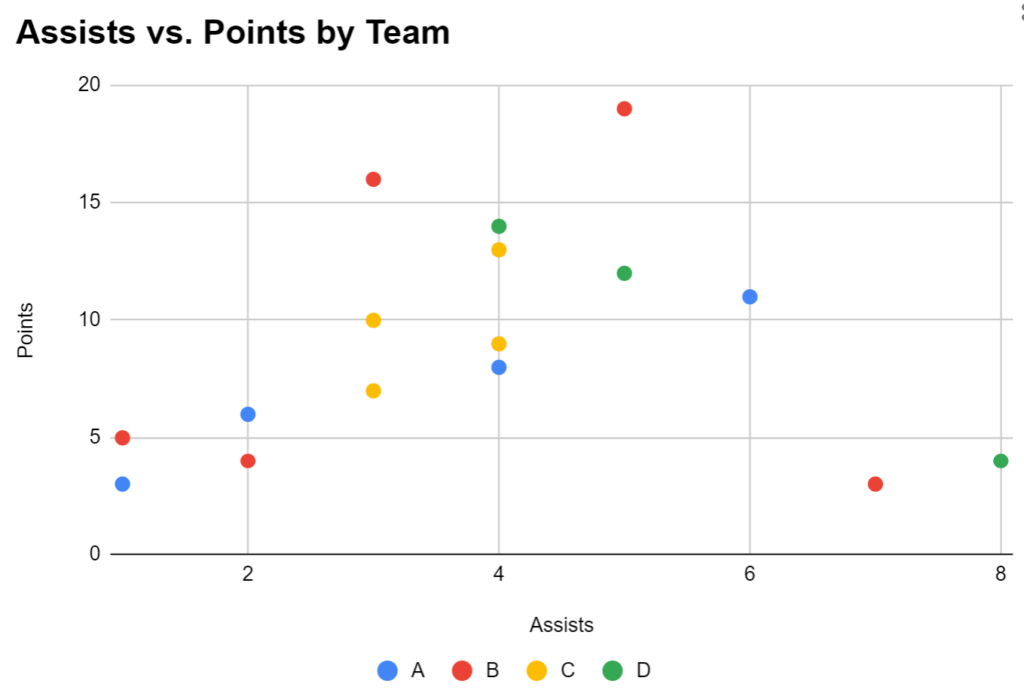

While the standard steps suffice for simple data arrangements, real-world data is often structured in a way that necessitates preparatory transformation. Our goal is to generate a visual representation where distinct data series are easily identifiable, similar to the plot demonstrated below:

Fortunately, achieving this sophisticated visualization is entirely feasible within Google Sheets by leveraging conditional formulas. This step-by-step example will guide you through the precise process required to structure your raw data for multi-series charting.

Step 1: Entering and Reviewing the Raw Dataset

The first critical step involves establishing the initial dataset. For this demonstration, we will use a dataset containing performance metrics—Assists and Points—for various basketball players, categorized by the teams they represent. This structure is typical of data exported from databases or collected systems where categorical labels are listed alongside numerical values.

The dataset should be entered into your sheet starting from cell A1, ensuring clear headers for each column: Player, Team, Assists, and Points. Note that the key challenge here is the ‘Team’ column, which dictates the grouping for our desired series. Google Sheets needs this categorical data to be spread horizontally into separate columns before it can render distinct series markers.

In this example, the independent variable (X-axis) will be Assists, and the dependent variable (Y-axis) will be Points. We aim to create a distinct scatterplot series for each unique Team (A, B, C, D), allowing for an immediate visual comparison of scoring efficiency across the different organizations.

Step 2: Formatting the Data for Multi-Series Recognition

Before any scatterplot can be generated that recognizes multiple groups, the dataset must undergo a transformation. We need to convert the vertically grouped data into a wide format where each series occupies its own dedicated column. This transformation relies heavily on the conditional logic provided by the IF function combined with the NA() function for purposeful error handling.

Start by extracting the unique values from the ‘Team’ column (Column A) and placing them as new headers along the top row, starting from an empty column, such as E1. These headers (Team A, Team B, Team C, Team D) will serve as the labels for our new data series columns.

The essence of this transformation is to ensure that a numerical value (Points) only appears in a team’s dedicated column if the row classification matches that team. If the classification does not match, we must force an error value, preventing the point from being plotted as part of that series.

Step 3: Implementing the Array Formula for Series Segmentation

To segment the ‘Points’ data based on the ‘Team’ classification, we will utilize a specific conditional formula in the new output area. In cell E2, enter the following formula. This formula checks the category in Column A against the header in Row 1 (Team A) and returns the corresponding value from the ‘Points’ column (Column C) only if the condition is met. Otherwise, it returns the error value NA().

=IF($A2=E$1, $C2, NA())

Understanding the structure of the formula is vital for correct implementation. The use of absolute ($) and mixed references (e.g., $A2, E$1) is deliberate. $A2 ensures that as you drag the formula right or down, the comparison always refers back to the team name in Column A for that specific row. Conversely, E$1 ensures that when dragging down, the column still refers to the Team header in Row 1, but when dragging right, it correctly shifts to the next team header (F$1, G$1, etc.).

The NA() function is extremely important in this context. When creating a scatterplot in Google Sheets, a cell containing NA() is interpreted as ‘Not Applicable’ and is completely ignored by the charting engine. If we had used an empty string ("") or a zero (0) instead, the chart would incorrectly plot these values, distorting the visual patterns. Using NA() ensures that only relevant data points are plotted for each series.

Step 4: Applying the Transformation Across the Dataset

Once the formula is correctly entered in cell E2, it must be applied across the entire transformation area. First, drag this formula horizontally across the header rows until you reach the column corresponding to your last unique team (cell H2 in our four-team example).

Next, with the entire row of newly calculated values selected (E2 to H2), drag the selection downwards until you reach the last row of your original data (cell H17). This action populates the new columns E through H, resulting in a matrix where points data is distributed across the appropriate team columns. Only one cell per row in columns E through H will contain a numerical value; the rest will display the #N/A error, which is the desired outcome for successful plotting.

This restructured format is now perfectly aligned for Google Sheets’ charting mechanism. Each new column (E, F, G, H) now represents a distinct data series, ready to be plotted against the common X-axis variable, which in this case, is Assists.

Step 5: Preparing the X-Axis Variable for Charting

Although the Points data (Y-axis) is now correctly segmented by team, we still need to pair these segmented Y-values with the appropriate X-axis variable (Assists). When selecting data for a scatterplot with multiple series, Google Sheets typically expects the X-axis column to be immediately adjacent to the series columns.

Therefore, copy all values from Column B (Assists) and paste them into Column D. Column D will now serve as the master X-variable column against which all subsequent Y-series columns (E through H) will be plotted. This alignment ensures the chart editor correctly interprets the data structure.

The final range we will select for charting consists of Column D (Assists, X-axis) and Columns E through H (Points segmented by Team, Y-series). This contiguous block of data is the input required to generate the multi-series scatterplot successfully.

Step 6: Executing the Chart Creation Process

With the data meticulously formatted, the actual chart creation is straightforward. Select the entire range including the X-axis (Column D) and all the newly formatted Y-series columns (E through H). Ensure you include the header row (D1:H1) in your selection, as Google Sheets uses these to automatically label the series.

Go to Insert > Chart. The Chart Editor panel will reappear. If it doesn’t automatically detect the correct type, navigate to the Setup tab and explicitly choose Scatter chart as the desired visualization type.

Upon selection, Google Sheets automatically processes the contiguous data, recognizing Column D as the X-axis and assigning each of the subsequent columns (E, F, G, H) as distinct data series, differentiated by color. The resulting chart will visually map the relationship between Assists and Points for every player, with the color of each point indicating the specific team.

Step 7: Customizing and Interpreting the Visual Output

The generated scatterplot provides an immediate visual summary of the data distribution:

Each individual point on this visualization represents a unique basketball player. Crucially, the colors of these points correspond directly to the teams defined in our segmented columns. This clear separation allows for rapid identification of performance patterns. For instance, you can easily observe if one team clusters in a high-point, high-assist quadrant, suggesting greater overall efficiency, while another team might show a wider or lower distribution of metrics.

To maximize the clarity and professional quality of the visualization, it is highly recommended to use the Customize tab in the Chart Editor to add a descriptive title and precise axis labels. Clear labeling is fundamental for effective data visualization and ensures that any audience can accurately interpret the findings.

The final, polished chart offers a powerful analytical perspective, successfully merging four categorical groups into a single, cohesive scatterplot.

Conclusion: Enhancing Data Insights through Visualization

Creating a scatterplot with multiple series in Google Sheets, particularly when dealing with pre-grouped data, requires strategic use of conditional logic and data restructuring. By employing the IF function combined with the NA() error handler, we successfully transformed long-format data into a wide-format matrix that the charting tool recognizes as distinct series.

This methodology is transferable to any dataset where you need to visualize the relationship between two numerical variables segmented by a categorical variable. Mastering this technique is a significant step toward advanced proficiency in data analysis and presentation using spreadsheet software.
