How to Create a Population Pyramid in Excel: A Step-by-Step Guide

Understanding the Significance of a Population Pyramid

A population pyramid, also frequently referred to as an age-gender pyramid, serves as a powerful graphical illustration that represents the distribution of various age groups within a specific population. This visualization typically takes the shape of a pyramid when the population is growing, but it can assume various other forms depending on the demographic trends of the region being studied. By utilizing two back-to-back horizontal bar charts, researchers and analysts can easily compare the male and female segments of a society, providing immediate insights into birth rates, mortality rates, and overall life expectancy.

In the context of data analysis, these charts are indispensable for government planners, sociologists, and economists who need to predict future social needs, such as healthcare infrastructure, school systems, and retirement funding. For instance, a pyramid with a wide base indicates a high birth rate, suggesting a young and growing population that will eventually require more jobs and housing. Conversely, a top-heavy pyramid indicates an aging population, which may signal a need for increased medical services and a potential shrink in the labor force.

Leveraging Microsoft Excel to generate these visualizations is a common practice due to the software’s robust charting engine and wide accessibility. While Excel does not feature a dedicated “Population Pyramid” chart type, users can achieve the desired effect by manipulating standard bar charts through specific formatting techniques. This tutorial will guide you through the intricate process of transforming raw demographic data into a professional-grade, symmetrical population pyramid, ensuring your data visualization is both accurate and visually compelling.

By the end of this guide, you will understand how to structure your data, apply necessary mathematical transformations, and utilize the user interface of Excel to customize every aspect of your graph. Whether you are a student, a researcher, or a business professional, mastering this technique will enhance your ability to communicate complex demographic information effectively.

This tutorial explains how to create the following population pyramid in Excel:

Organizing Raw Demographic Data for Precision

The foundational step in creating any successful chart is the meticulous organization of your source data within the spreadsheet. To begin, you must establish a clear table that categorizes your population by age cohorts, such as “0-9”, “10-19”, and so on. It is standard practice to list these age groups in a vertical column, which will ultimately serve as the vertical axis of your pyramid. Accuracy at this stage is paramount, as any errors in data entry will be magnified once the chart is rendered, potentially leading to incorrect demographic interpretations.

Once your age brackets are defined, you must input the corresponding population counts for both males and females into separate adjacent columns. It is essential to ensure that the data points align perfectly with their respective age groups. In professional statistics, these counts are often derived from census data or large-scale surveys. Maintaining a consistent unit of measurement—whether you are using raw numbers or thousands—is vital for the clarity of the final graphic.

Consider the layout shown in the initial tutorial image, where columns are clearly labeled for transparency. This structured approach allows Excel’s algorithms to interpret the relationship between the categorical age data and the numerical population values. By setting up your data correctly from the start, you simplify the subsequent steps and ensure that the Ribbon options within Excel react as expected during the chart generation phase.

Step 1: Input the data.

First, input the population counts (by age bracket) for males and females in separate columns:

Executing Calculations for Symmetrical Visualization

To achieve the distinct “mirrored” effect of a population pyramid, where males and females are displayed on opposite sides of a central axis, you must perform specific calculations. The most effective method involves converting raw numbers into percentages of the total population. This normalization allows for easier comparison between different datasets or regions with varying total populations. More importantly, one set of data—typically the male population—must be converted into negative values to force the bars to extend to the left of the center line.

Within your spreadsheet, you should create new columns for the calculated male and female percentages. Use a formula that divides the individual group count by the sum of the entire population, then multiply by 100 for readability. For the male column, ensure the formula includes a negative sign. This technical adjustment is a “trick” that leverages the Cartesian coordinate system within Excel to create the visual split required for the pyramid structure.

Applying these formulas across all age groups ensures that the scale remains consistent across both sides of the chart. It is also helpful to use absolute references (using the $ sign in Excel) for the total population cell in your formulas to prevent errors when dragging the formula down the column. Once these calculations are complete, you will have the necessary data points to construct a balanced and informative visual representation of the demographic landscape.

Step 2: Calculate the percentages.

Next, use the following formulas to calculate the percentages for both males and females:

Inserting and Configuring the Stacked Bar Chart

With your calculated percentages ready, the next phase involves the actual insertion of the graphical element. Highlight the range of cells containing the age brackets and the calculated male and female percentages. Navigate to the Insert tab on the Ribbon and locate the Charts group. Here, you will select the 2-D Stacked Bar Chart option. This specific chart type is chosen because it allows multiple data series to be placed along the same horizontal line, which is the secret to creating the mirrored look.

Upon selecting the chart type, Microsoft Excel will generate a preliminary graphic that might look slightly disorganized. At this stage, the male bars will likely extend to the left (due to the negative values) and the female bars will extend to the right. While it may not look like a perfect pyramid yet, the core structural components are now in place. This initial render acts as the “canvas” upon which we will apply more detailed formatting to achieve the professional aesthetic found in academic publications.

It is important to verify that the legend correctly identifies which color represents which gender. If the chart appears inverted or the axes are swapped, you can use the “Switch Row/Column” feature found in the “Select Data” context menu. Ensuring the data is mapped correctly to the X and Y axes is a fundamental step in infographic design, as it prevents misleading interpretations of the demographic statistics.

Step 3: Insert a 2-D Stacked Bar Chart.

Next, highlight cells D2:E:11. In the Charts group within the Insert tab, click on the option that says 2-D stacked bar chart:

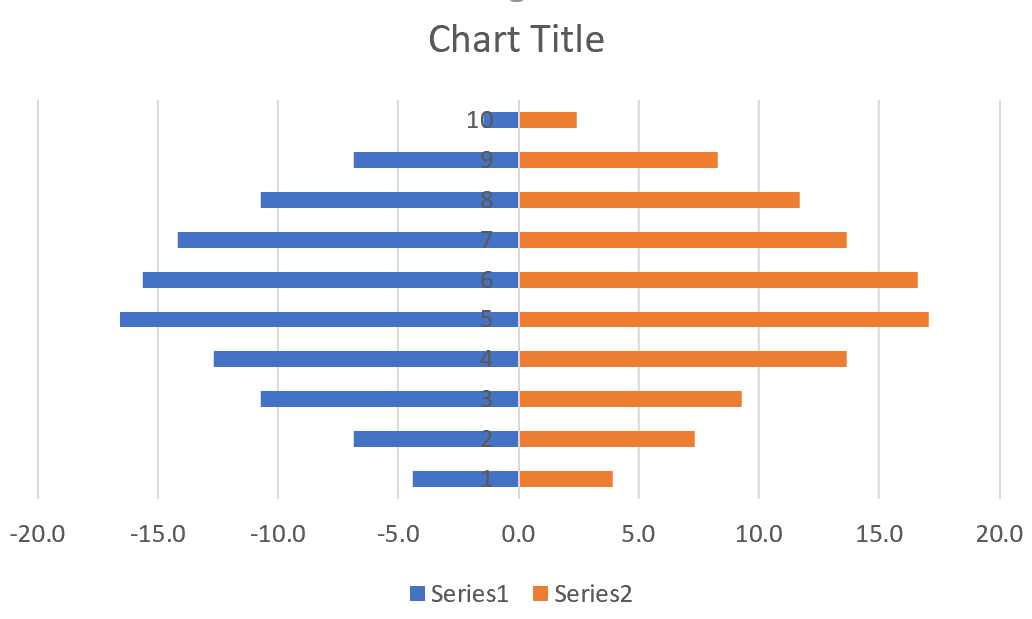

The following chart will automatically appear:

Refining the Visual Structure and Gap Width

To transform the standard bar chart into a recognizable population pyramid, you must adjust the spacing between the bars. By default, Excel leaves a significant gap between categories, which can make the pyramid look fragmented. To rectify this, right-click on any of the bars within the chart and select Format Data Series. In the formatting pane that appears on the right side of the screen, locate the Gap Width slider and reduce it to 0%. This action ensures that the bars for each age group are touching, creating a solid, cohesive shape that is much easier to analyze visually.

In addition to removing the gaps, adding a distinct border to each bar can significantly enhance the readability of the chart, especially when dealing with many age cohorts. Navigate to the “Fill & Line” (paint bucket) icon in the formatting pane, select “Border,” and choose a “Solid line.” Setting the color to black and adjusting the width to a thin setting provides a sharp contrast that helps the viewer distinguish between the different segments of the population.

These small aesthetic adjustments are rooted in the principles of Gestalt psychology, which suggests that humans perceive objects that are close together or enclosed by lines as part of a single group. By creating a continuous shape, you allow the viewer to focus on the overall “silhouette” of the population, which is the primary goal of this specific type of data visualization. A seamless transition between bars makes trends in the data much more apparent to the naked eye.

Step 4: Modify the appearance of the population pyramid.

Remove the gap width.

• Right click any bar on the chart. Then click Format Data Series…

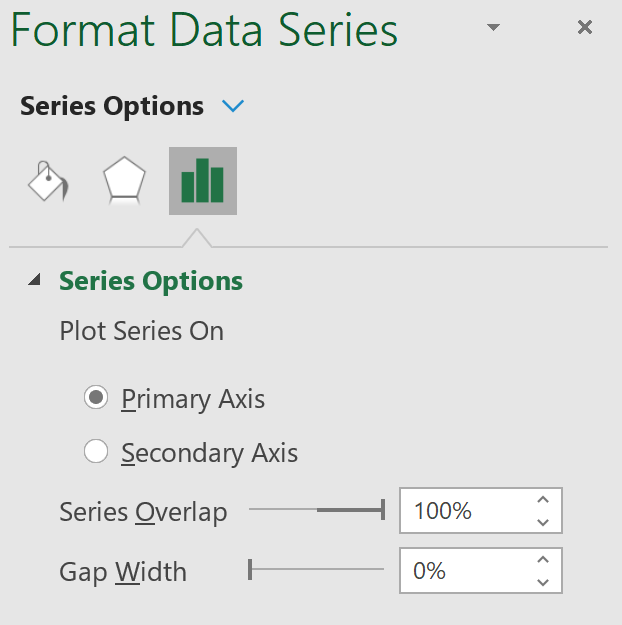

• Change Gap Width to 0%.

Add a black border to each bar.

• Click the paint bucket icon.

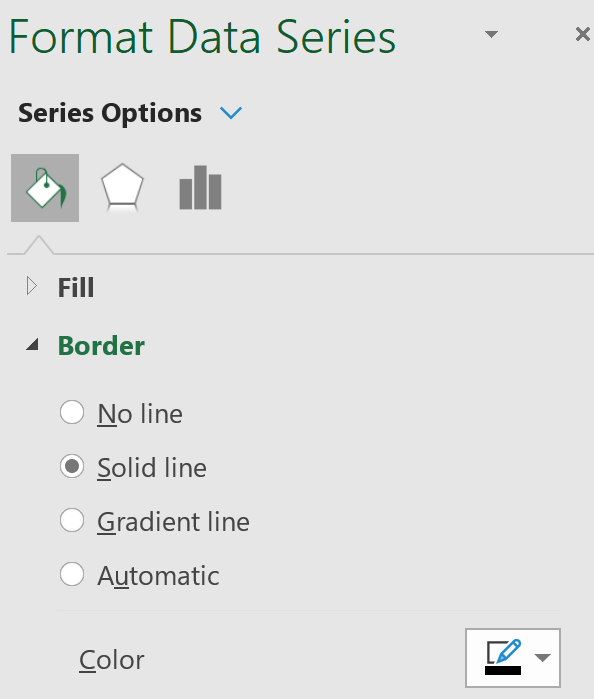

• Click Border. Then click Solid line.
• Change the Color to black.

Customizing Axis Labels and Number Formatting

One of the most common challenges when creating a population pyramid in Excel is dealing with the negative numbers on the horizontal axis. Because we used negative values to force the male bars to the left, the axis labels will naturally display a minus sign. To present a professional and accurate report, these should be displayed as absolute (positive) numbers. Right-click on the horizontal axis and select Format Axis. In the “Number” section of the pane, you can apply a custom format code, such as 0.0;[Black]0.0, which instructs Excel to display both positive and negative values without a sign.

Furthermore, the vertical axis (containing the age groups) often appears in the middle of the chart, overlapping the bars. To move it to a less intrusive position, go to the Format Axis pane for the vertical axis, select Labels, and change the Label Position to “Low.” This will shift the age categories to the far left of the chart area, leaving the center clear for the pyramid itself. This layout conforms to standard cartographic and demographic display conventions.

Precise axis formatting is a hallmark of high-quality technical communication. By ensuring that your labels are legible and your numbers are formatted logically, you eliminate potential confusion for the end-user. Whether you are presenting this data in a corporate boardroom or a university classroom, these refinements demonstrate a high level of attention to detail and a commitment to data analysis integrity.

Display the x-axis labels as positive numbers.

• Right click on the x-axis. Then click Format Axis…
• Click Number.
• Under Format Code, type 0.0;[Black]0.0 and click Add.

Move the vertical axis to the left-hand side of the chart.

• Right click on the y-axis. Then click Format Axis…

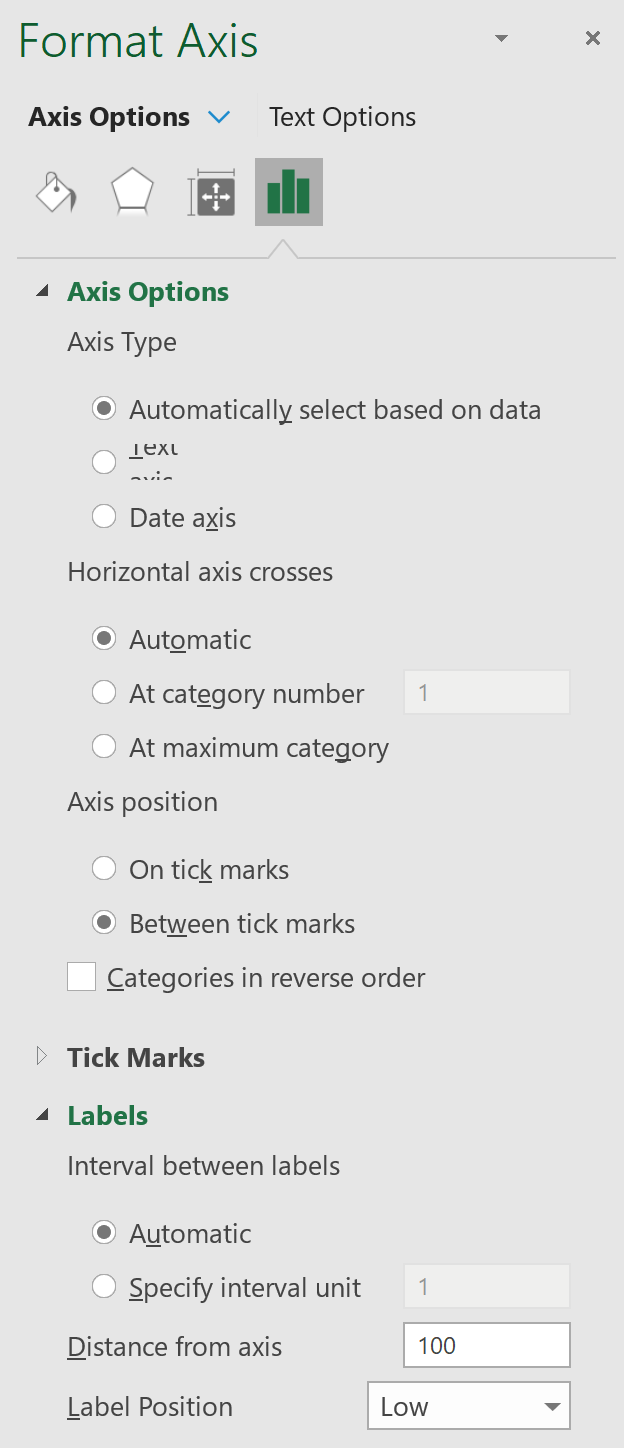

• Click Labels. Set Label Position to Low.

Finalizing the Aesthetic and Interpretative Elements

The final stage of the process involves polishing the chart’s overall appearance to ensure it is “presentation-ready.” This includes updating the chart title to something descriptive, such as “Population Distribution by Age and Gender,” and removing unnecessary gridlines that might clutter the visual space. You can also customize the colors of the bars to traditional or brand-specific palettes. For instance, using distinct shades of blue and pink, or more neutral professional tones like teal and gray, can help differentiate the data series at a glance.

Once the visual elements are finalized, it is helpful to add metadata or text boxes that explain the source of the data or highlight specific trends observed in the pyramid. If the pyramid has a particularly narrow base, you might add a note about declining birth rates. These additions transform a simple chart into a comprehensive information design piece that tells a story about the population it represents, rather than just displaying raw numbers.

Creating a population pyramid in Microsoft Excel is a vital skill for anyone working with demographic or social data. By following these structured steps—from data entry and mathematical manipulation to advanced axis formatting—you can produce a high-quality visualization that provides deep insights into human populations. The resulting chart is not just a collection of bars, but a snapshot of a society’s past, present, and future potential.

Change the title of the graph and the colors as needed. Also click on any of the vertical grid lines and click delete.

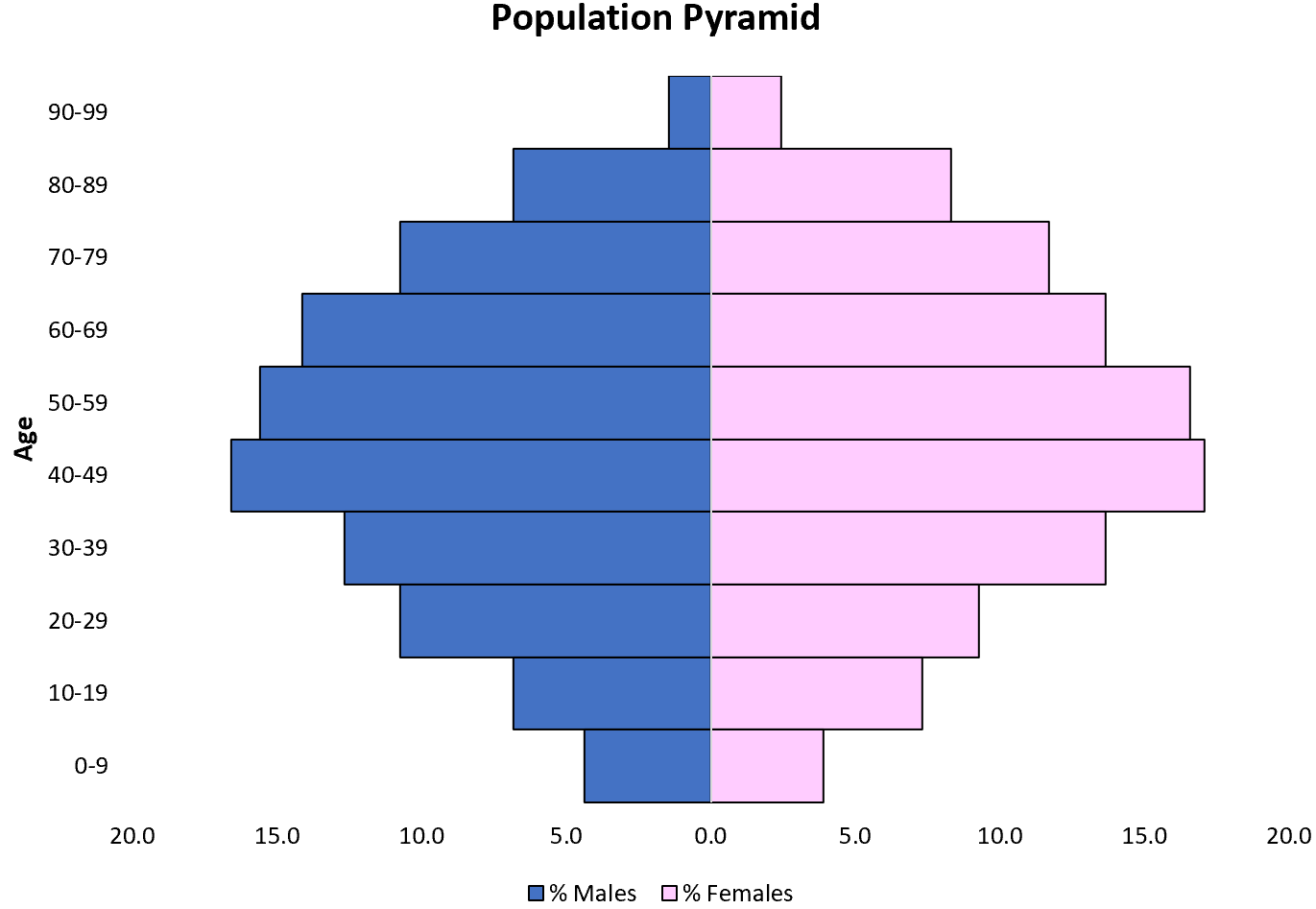

The final result should look like this:
