How to Calculate a Covariance Matrix in Excel

Covariance is a fundamental statistical metric that describes the joint variability of two random variables. If the greater values of one variable mainly correspond with the greater values of the other, and the same holds for the lesser values, the covariance is positive. In essence, it provides a quantitative measure of the degree to which two variables are linearly associated, which is a critical precursor to understanding more complex concepts like correlation.

The mathematical procedure to determine the covariance between two distinct variables, traditionally labeled as X and Y, involves calculating the product of their deviations from their respective means. By summing these products and dividing by the total number of data points, we arrive at a value that reflects their mutual behavior over a specific interval or dataset.

The formal formula to calculate the covariance between two variables, X and Y is:

COV(X, Y) = Σ(x-x̄)(y-ȳ) / n

A covariance matrix is a square matrix that organizes these calculations for a dataset containing multiple variables. Each element in the matrix represents the covariance between a pair of variables, providing a structured and efficient way to evaluate the interactions across an entire system of data. This matrix format is particularly useful when dealing with high-dimensional datasets where manual calculation would be impractical.

The following example provides a comprehensive walkthrough on how to create a covariance matrix in Excel using a practical, easy-to-follow dataset.

Fundamentals of Statistical Data Preparation

Before proceeding with any statistical analysis, it is imperative to organize your data into a clean, tabular format. In the context of Excel, this typically means placing each variable in its own column and each observation in its own row. This structure ensures that the software can correctly identify the boundaries of each dataset and apply the necessary mathematical functions without error.

Suppose we have the following dataset that shows the test scores of 10 different students across three distinct academic subjects: math, science, and history. Each row represents an individual student, while each column captures their performance in a specific discipline. This multivariate approach allows us to see how performance in one subject might relate to performance in others.

In this scenario, the primary objective is to determine if there is a relationship between, for example, a student’s aptitude in mathematics and their proficiency in science. By quantifying these relationships through a covariance matrix, educators or researchers can identify trends that might suggest overlapping skill sets or diverging learning paths.

Accessing the Data Analysis Toolpak

To generate a covariance matrix efficiently, we must utilize the Data Analysis Toolpak. This is an Excel add-in program that provides data analysis tools for complex financial, statistical, and engineering data analysis. To begin the process, navigate to the Data tab located in the top ribbon and look for the Data Analysis option in the Analysis group.

Note: If the Data Analysis command is not available in your version of Excel, you will need to load the Analysis Toolpak add-in program first. This can be done by navigating to File > Options > Add-ins, selecting “Excel Add-ins” from the Manage box, and checking the box for “Analysis Toolpak.”

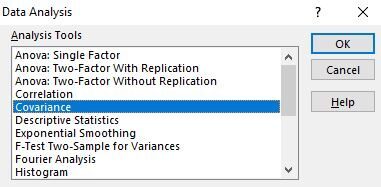

Once you have confirmed that the Data Analysis Toolpak is active, click on the button to launch a new window containing a list of available analytical functions. From this list, select Covariance and click OK to proceed to the configuration settings.

Configuring the Covariance Input Parameters

After selecting the Covariance tool, a configuration dialog box will appear requiring specific inputs to perform the calculation. In the Input Range box, you should specify the range of cells containing your data, including the headers. In our current example, you would enter “$A$1:$C$11”, as this encompasses all student scores for math, science, and history.

It is vital to ensure that the Labels in first row checkbox is selected. By doing so, you inform Excel that the first row contains the names of the variables rather than actual data points. This ensures the resulting covariance matrix is correctly labeled, making it much easier to read and interpret.

Finally, you must designate where the results should be displayed. In the Output Range box, type the cell reference where you want the top-left corner of the matrix to appear. For this demonstration, cell $E$2 was chosen to allow for easy comparison with the original dataset. Once all parameters are correctly set, click OK to execute the command.

Analyzing the Resulting Covariance Matrix

Upon clicking OK, Excel will automatically generate the covariance matrix in the specified location. The matrix is organized such that each subject is listed in both the rows and the columns, creating an intersection for every possible subject pair. This structured output is the standard format for presenting joint variability in statistics.

To derive meaningful insights from this matrix, one must understand how to read the values at the intersections of the rows and columns. The matrix provides two primary types of information: the variance of individual variables and the covariance between different variables. Mastering the interpretation of these numbers is essential for accurate data storytelling.

Because a covariance matrix is symmetrical, Excel often simplifies the display by only filling in the lower triangle or the specific intersections. This prevents redundancy and allows the analyst to focus on the unique relationships between different subjects.

Interpreting the Diagonal: Understanding Variance

The values located along the diagonal of the covariance matrix are of significant importance. These values represent the variance of each individual subject. In statistical terms, variance measures how far each number in the set is from the mean and thus from every other number in the set. Essentially, the covariance of a variable with itself is simply its variance.

Based on our generated matrix, we can observe the following variance values for our test subjects:

• The variance of the math scores is 64.96
• The variance of the science scores is 56.4
• The variance of the history scores is 75.56

A higher variance indicates that the scores are more spread out from the average, while a lower variance suggests that the scores are clustered more closely around the mean. In this case, history scores show the highest degree of dispersion, suggesting a wider range of performance among the students in that specific subject compared to science.

Interpreting Off-Diagonal Values: Understanding Relationships

The values located outside of the diagonal represent the covariance between different subjects. These numbers are the key to understanding how students’ performances in different areas are linked. By looking at these intersections, we can determine the direction of the relationship between any two variables in the dataset.

For our academic dataset, the covariances are as follows:

• The covariance between the math and science scores is 33.2
• The covariance between the math and history scores is -24.44
• The covariance between the science and history scores is -24.1

These values provide a snapshot of the academic dynamics within the group. A positive or negative sign on these numbers tells a story about how achievement in one area influences or coincides with achievement in another. These insights can be used to tailor educational strategies or understand the underlying skills required for different disciplines.

The Significance of Positive and Negative Covariance

A positive number for covariance signifies a direct relationship, meaning the two variables tend to increase or decrease simultaneously. In our example, math and science have a positive covariance of 33.2. This suggests that students who achieve high scores in math are likely to achieve high scores in science as well. Conversely, students who struggle with math typically see lower scores in science, indicating a potential overlap in the logic or quantitative skills required for both.

On the other hand, a negative number for covariance indicates an inverse relationship. As one variable increases, the other tends to decrease. For example, math and history exhibit a negative covariance of -24.44. This implies that students who excel in math might tend to score lower in history, and vice versa. This could point to a difference in learning styles or interests, where students gravitate toward either quantitative or qualitative subjects.

In summary, the covariance matrix is a powerful tool for diagnosing these patterns. While covariance alone does not tell us the strength of the relationship (for that, we would look at correlation), it is the essential first step in understanding the directional movement of your data points within a Microsoft Excel environment.
