NOTE:  This page was developed using G*Power version 3.1.9.2.  You
can download the current version of G*Power from
https://www.psychologie.hhu.de/arbeitsgruppen/allgemeine-psychologie-und-arbeitspsychologie/gpower.html. You can also find help files, the manual and the user guide on this website.

Introduction

Power analysis is the name given to the process for determining the sample
size for a research study.  The technical definition of power is that it is the
probability of detecting a “true” effect when it exists.  Many students think
that there is a simple formula for determining sample size for every research
situation.  However, the reality is that there are many research situations that
are so complex that they almost defy rational power analysis.  In most cases,
power analysis involves a number of simplifying assumptions, in order to make
the problem tractable, and running the analyses numerous times with different
variations to cover all of the contingencies.

In this unit we will try to illustrate how to do a power analysis for
multiple regression model that has two control variables, one continuous
research variable and one categorical research variable (three levels).

Description of the experiment

A school district is designing a multiple regression study looking at the
effect of gender, family income, mother’s education and language spoken in the
home on the English language proficiency scores of Latino high school students.
The variables gender and family income are control variables and not of primary
research interest.  Mother’s education is a continuous variable that
measures the number of years that the mother attended school.  The range of this
variable is expected to be from 4 to 20.  The variable language spoken (homelang) in the
home is a categorical research variable with three levels: 1) Spanish only, 2)
both Spanish and English, and 3) English only.  Since there are three levels, it
will take two dummy variables to code language spoken in the home.

The full regression model will look something like this:

engprof = b₀ + b₁(gender) + b₂(income) + b₃(momeduc) + b₄(homelang1) + b₅(homelang2)

Thus, the primary research hypotheses are the test of b₃ and the
joint test of b₄ and b₅.  These tests are equivalent the
testing the change in R² when momeduc (or homelang1 and
homelang2) are added last to the regression equation.

The power analysis

Let’s set up the analysis. Under Test family select F tests, and under Statistical test select ‘Linear multiple regression: Fixed model, R² increase’. Under Type of power analysis, choose ‘A priori…’, which will be used to identify
the sample size required given the alpha level, power, number of predictors and effect size.

The latter can be determined via the ‘Determine =>’ button, which calls up a
menu requesting the variance explained by the special effect and the residual variance.

We believe, from previous research, that the R² for the full-model
with five predictor variables (2 controls, 1 continuous research, and 2 dummy
variables for the categorical variable) will be will be about 0.48.

Let’s start with the continuous predictor (momeduc, the special effect in
this case). We think that it will add about 0.03 to the R² when it is
added last to the model. This is what we put under ‘Variance explained by special effect’.

The residual variance is defined as 1 – (R² of the full-model), and in this case is 1 – 0.48 = 0.52.  The total
number of variables (predictors) is 5 and the number being tested (df) is one. Let’s assume that the power is 0.70.

We will run three calculations with power equal to 0.7, 0.8 and 0.9. Making use of the ‘X-Y plot for a range of values’ button and denoting power
as the independent variable y ranging from 0.7 to 0.9 in steps of 0.1:

This gives us a range of sample sizes ranging from 109 to 184 depending on
power.

Let’s see how this compares with the categorical predictor (homelang1
and homelang2) which uses two dummy variables in the model.  We believe that the
change in R² (variance explained by the special effect) attributed to the two dummy variables will be about
0.025.  Note that the residual variance is still defined as 1 – 0.48 = 0.52 so this does not change. The total number of predictorsstays at 5 while thenumerator df (number of tested predictors) is now 2.

This series of power analyses yielded sample sizes ranging from 163 to 266.  These sample sizes are larger than those for the continuous research variable.

If it is the case that both of these research variables are important, we
might want to take into that we are testing two separate hypotheses (one for the
continuous and one for the categorical) by adjusting the alpha level.  The
simplest but most draconian method would be to use a Bonferroni adjustment by
dividing the nominal alpha level, 0.05, by the number of hypotheses, 2, yielding

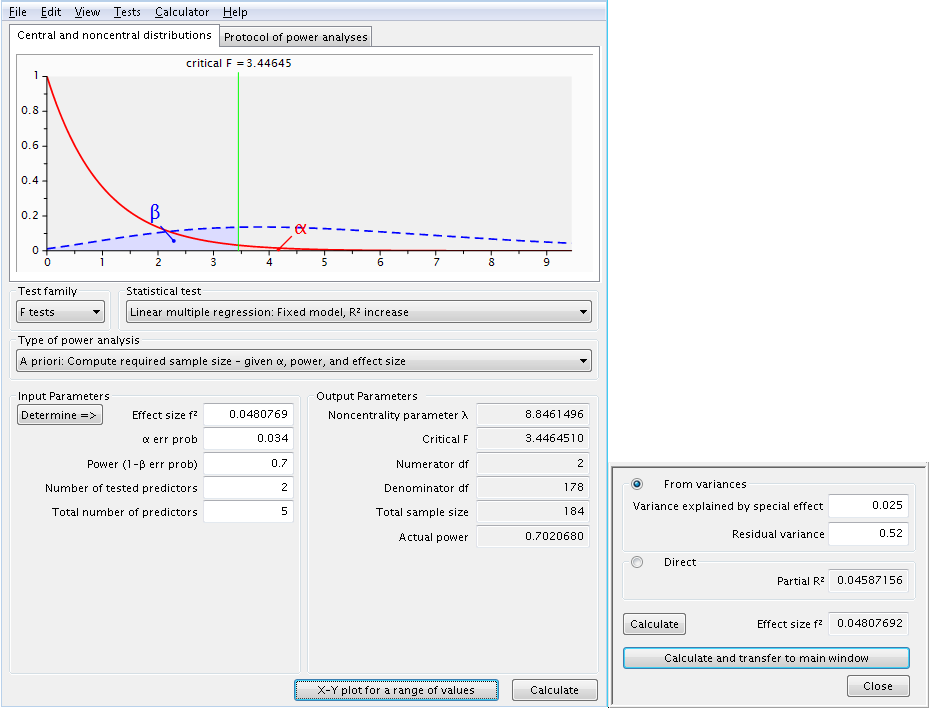

an alpha of 0.025.  We will rerun the categorical variable power analysis using
the new adjusted alpha level.

The Bonferroni adjustment assumes that the tests of the two hypotheses are
independent which is, in fact, not the case.  The squared correlation between the
two sets of predictors is about .2 which is equivalent to a correlation of
approximately .45.  Using an internet applet to compute a Bonferroni adjusted
alpha taking into account the correlation gives us an adjusted alpha value of
0.034 to use in the power analysis.

Based on the series of power analyses the school district has decided to
collect data on a sample of about 225 students.  This sample size should yield a
power of around 0.8 in testing hypotheses concerning both the continuous
research (momeduc) variable and the categorical research variable,
language spoken in the home (homelang1 and homelang2).  The nominal
alpha level is 0.05 but has been adjusted to .034 to take into account the
number of hypotheses tested and the correlation between the predictors.
