How can values be shown on a Seaborn barplot?

A Seaborn barplot is a type of data visualization tool that displays values on a graph as rectangular bars. These values can be shown by specifying the data to be plotted, along with the desired x and y axis variables. The barplot will then automatically calculate and display the values on the y-axis, with each bar representing a specific value. Additionally, values can be further differentiated by using different colors or patterns for each data category, making it easier to compare and interpret the data. Overall, the Seaborn barplot is an effective way to visually represent values and their relationships in a concise and easy-to-understand manner.

Show Values on Seaborn Barplot (With Examples)


You can use the following function to display the values on a barplot:

defshow_values(axs, orient="v", space=.01):
    def _single(ax):
        if orient == "v":
            for p in ax.patches:
                _x = p.get_x() + p.get_width() / 2
                _y = p.get_y() + p.get_height() + (p.get_height()*0.01)
                value = '{:.1f}'.format(p.get_height())
                ax.text(_x, _y, value, ha="center")
        elif orient == "h":
            for p in ax.patches:
                _x = p.get_x() + p.get_width() + float(space)
                _y = p.get_y() + p.get_height() - (p.get_height()*0.5)
                value = '{:.1f}'.format(p.get_width())
                ax.text(_x, _y, value, ha="left")

    if isinstance(axs, np.ndarray):
        for idx, ax in np.ndenumerate(axs):
            _single(ax)
    else:
        _single(axs)

This function works for both horizontal and vertical barplots.

The following examples show how to use this function in practice with the built-in seaborn “tips” dataset:

import seaborn as snsimport pandas as pdimport numpy as np#load tips datasetdata = sns.load_dataset("tips")#view first five rowsdata.head()

	total_bill	tip	sex	smoker	day	time	size
0	16.99	        1.01	Female	No	Sun	Dinner	2
1	10.34	        1.66	Male	No	Sun	Dinner	3
2	21.01	        3.50	Male	No	Sun	Dinner	3
3	23.68	        3.31	Male	No	Sun	Dinner	2
4	24.59	        3.61	Female	No	Sun	Dinner	4

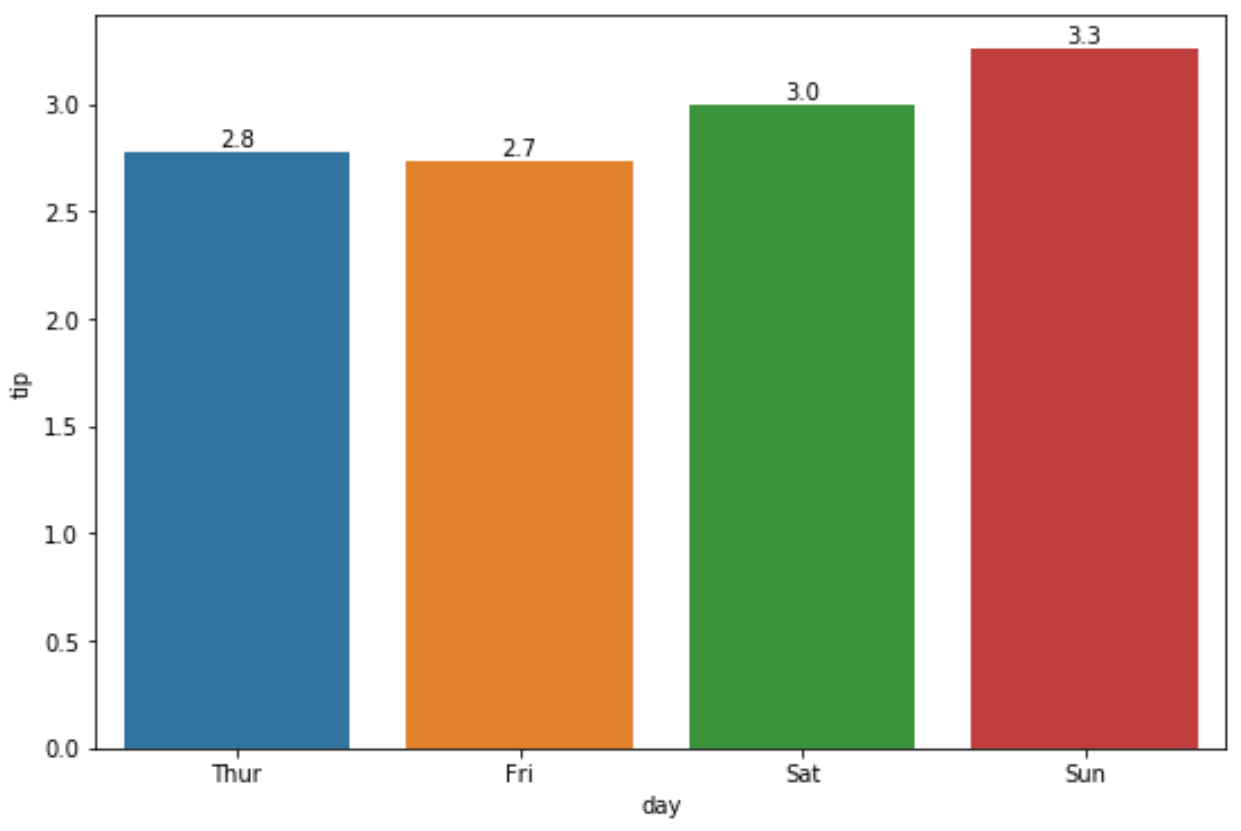

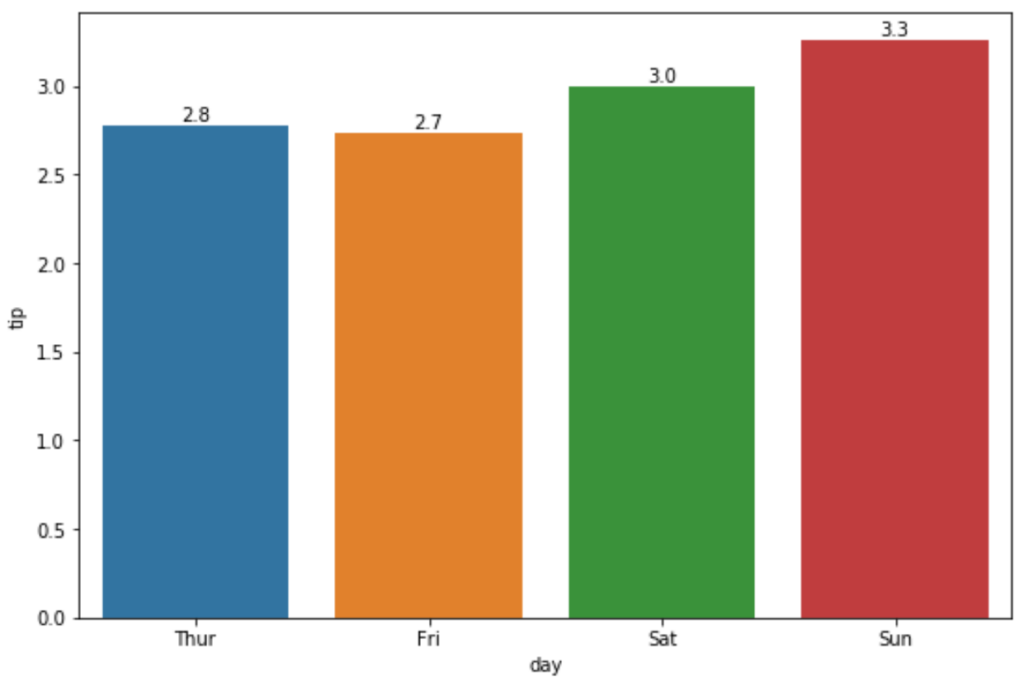

Example 1: Show Values on Vertical Barplot

The following code shows how to display the values on a vertical barplot:

#create vertical barplot
p = sns.barplot(x="day", y="tip", data=data, ci=None)

#show values on barplot
show_values(p)

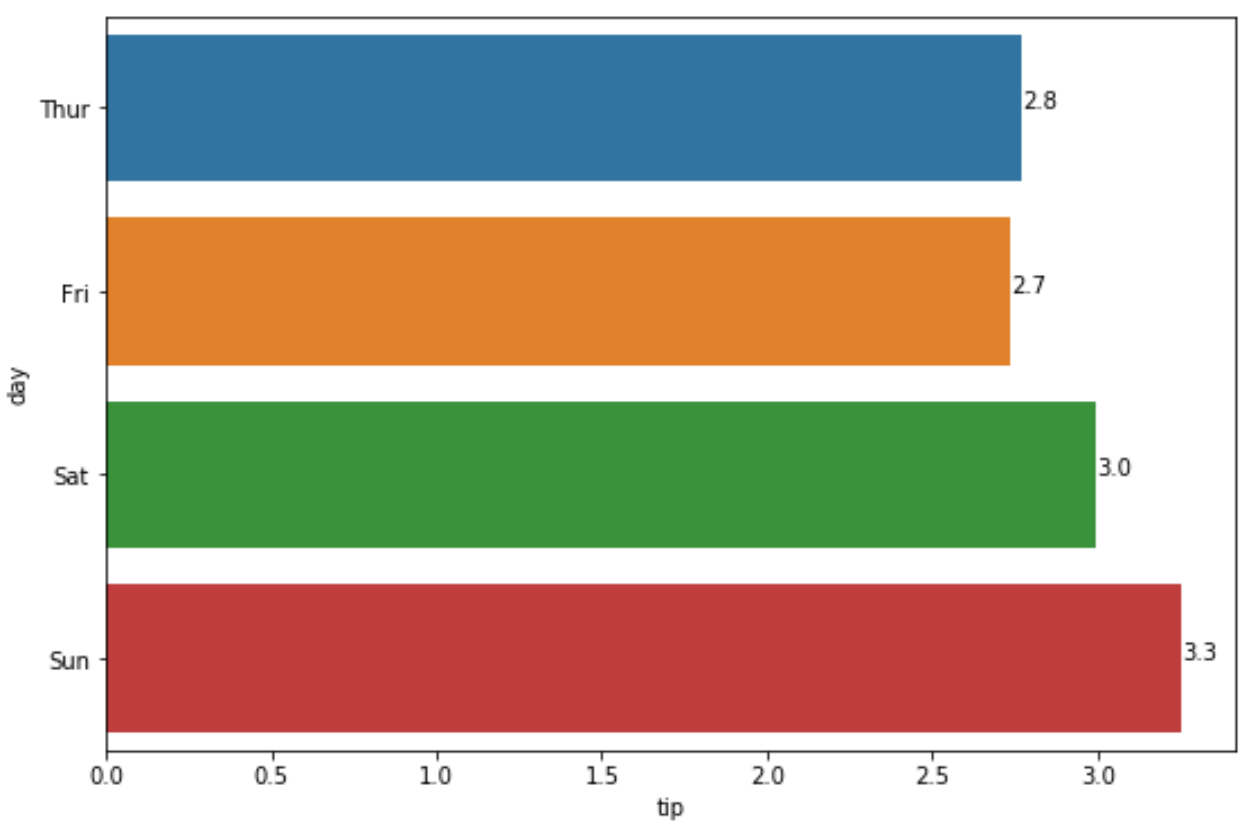

Example 2: Show Values on Horizontal Barplot

The following code shows how to display the values on a horizontal barplot:

#create horizontal barplot
p = sns.barplot(x="tip", y="day", data=data, ci=None)

#show values on barplot
show_values(p, "h", space=0)

Note that the larger the value you use for space, the further away the labels will be from the bars.

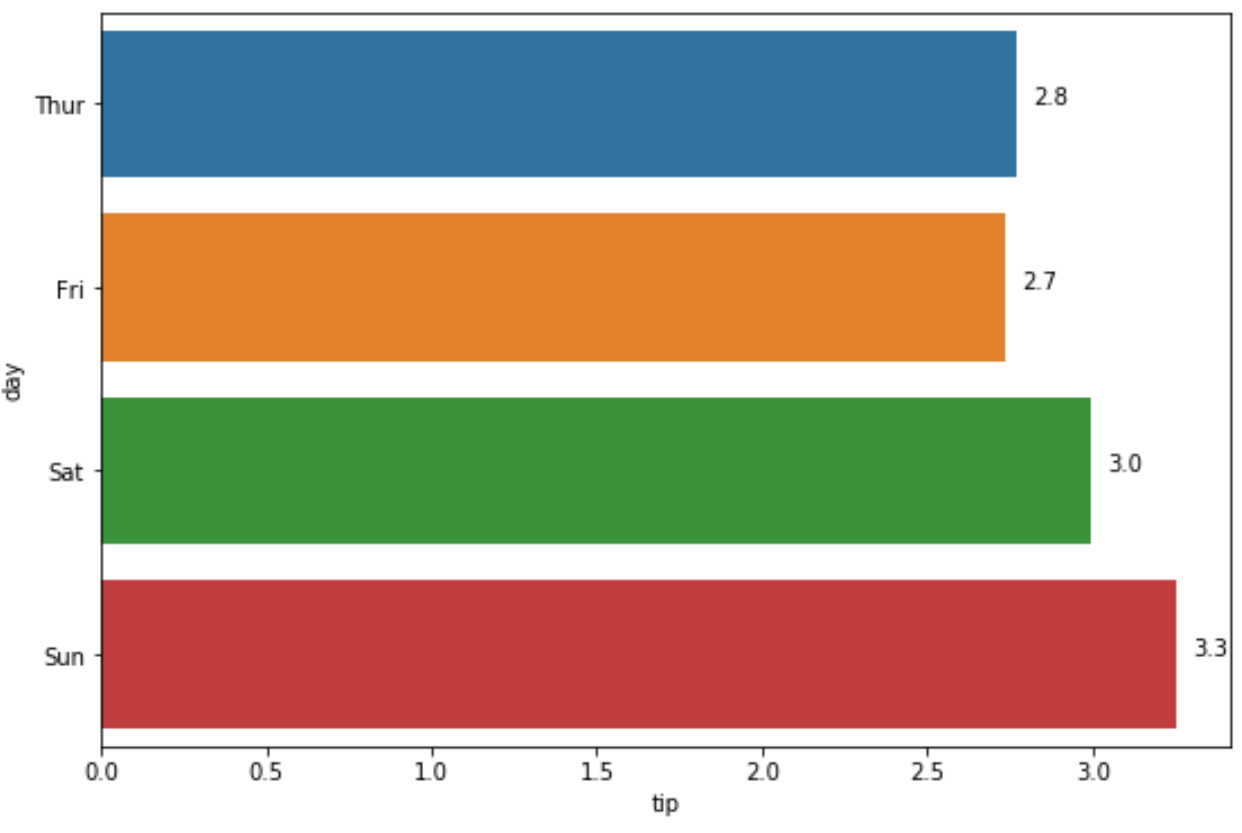

For example, let’s change the space from 0 to .05:

#create horizontal barplot
p = sns.barplot(x="tip", y="day", data=data, ci=None)

#show values on barplot
show_values(p, "h", space=0.05)

value = '{:.1f}'.format(p.get_height())

For example, change it from .1f to .2f to show two decimal places instead of one.
