Theoretical Foundations of Mahalanobis Distance

In the realm of multivariate analysis, the Mahalanobis distance stands as a cornerstone for identifying observations that lie far from the centroid of a multivariate distribution. This statistical technique differs fundamentally from traditional distance measures because it incorporates the covariance matrix of the data, essentially weighting the variables based on their shared variance. By doing so, it provides a more accurate representation of “distance” in a space where variables may be measured in different units or exhibit strong internal correlations. For researchers, this means that an outlier is identified not just by its magnitude, but by how it contradicts the established pattern of the entire dataset.

The application of this distance is particularly vital when performing linear regression or cluster analysis, where the presence of even a single multivariate outlier can significantly bias the results. In SPSS, the Mahalanobis measure effectively standardizes the data space, allowing for a uniform comparison across disparate dimensions. It transforms the coordinate system so that the distribution of data appears more spherical, which simplifies the process of determining which points are truly anomalous. Consequently, it is often the first line of defense in data cleaning, ensuring that the assumptions of multivariate normality are reasonably met before proceeding with more complex inferential tests.

Understanding the mathematical intuition behind the Mahalanobis distance requires recognizing that it measures the number of standard deviations a point is away from the mean of the distribution. This is conceptually similar to a Z-score but expanded into multiple dimensions. By accounting for the shape of the data cloud, the Mahalanobis calculation ensures that variables with high variance do not dominate the distance measure unfairly. This makes it an indispensable tool for anomaly detection in fields ranging from finance to biological taxonomy, providing a robust framework for objective data validation.

Practical Example: Assessing Academic Performance Data

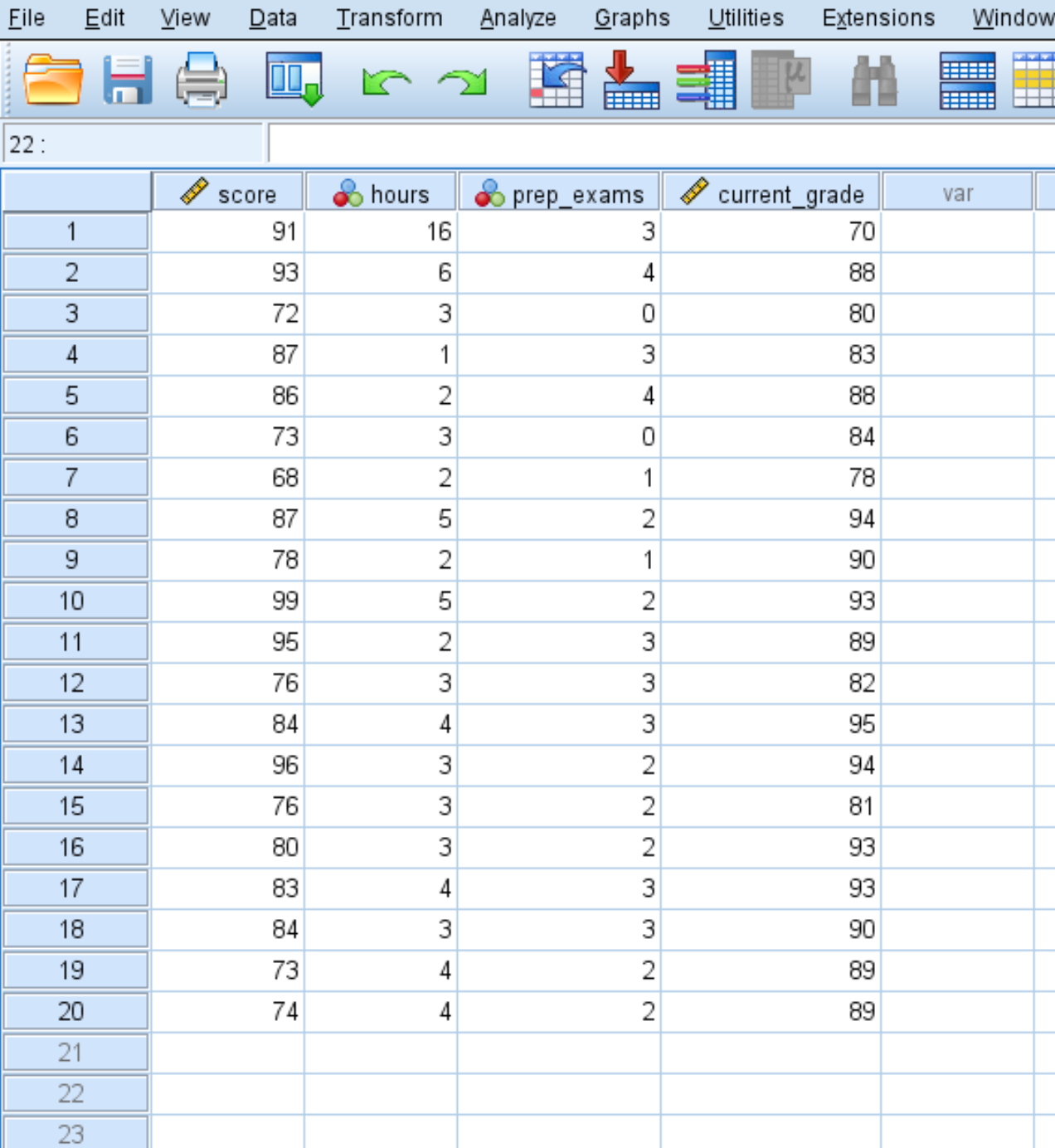

To illustrate the practical application of this method, consider a research scenario involving student performance metrics. Suppose we have collected a comprehensive dataset consisting of 20 students, tracking several key academic indicators. These indicators include the final exam score, the total number of hours dedicated to studying, the frequency of preparatory exams taken, and the current overall grade the student maintains in the course. The objective is to determine if any specific student represents a multivariate outlier—someone whose combination of study habits and scores is significantly different from the rest of the cohort.

The dataset serves as a perfect candidate for multivariate analysis because the variables are likely interrelated; for instance, study hours are expected to correlate with exam scores. A student who spends very little time studying but achieves a perfect score, or vice versa, might be flagged as a multivariate outlier even if their individual scores are within the normal range for those specific variables. By calculating the Mahalanobis distance, we can quantify these complex relationships into a single value for each student, providing a clear path for statistical scrutiny.

As shown in the initial data structure above, the variables are organized to allow SPSS to process them through a regression-based workflow. The goal of using this specific example is to provide a clear, step-by-step walkthrough of the software interface. By following the systematic approach detailed in the subsequent sections, users can replicate this analysis on their own datasets, regardless of the specific field of study. This ensures that the process of identifying outliers is grounded in empirical evidence rather than subjective observation.

Step 1: Navigating the Linear Regression Interface

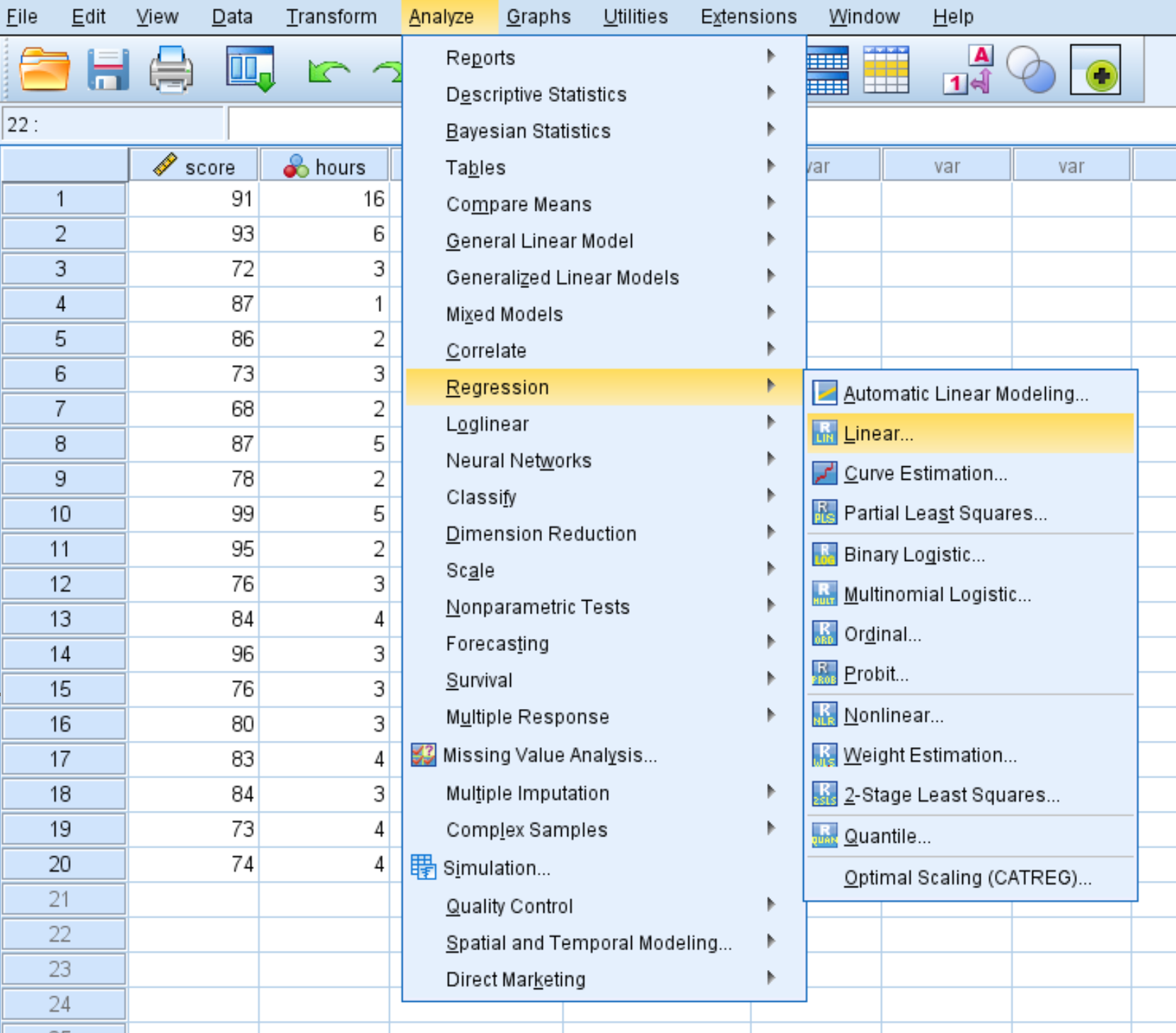

The most common and efficient way to calculate the Mahalanobis distance within SPSS is through the linear regression module. While the primary purpose of this module is to model relationships between variables, its diagnostic capabilities include the generation of distance metrics for each case in the dataset. To begin this process, users must navigate to the top toolbar, click on the Analyze tab, descend to the Regression submenu, and finally select the Linear option. This action opens the primary configuration window for regression modeling.

It is important to note that the Mahalanobis distance calculation in this context does not require the regression model itself to be the final goal of your research. Instead, the regression procedure is utilized as a vehicle to calculate how far each observation is from the multivariate mean of the independent variables. This makes the tool highly versatile, as it can be applied to any set of continuous variables where multivariate normality is a concern. The interface is designed to be intuitive, guiding the user through the selection of variables that will define the multidimensional space.

Once the Linear Regression dialog box is visible, the researcher is presented with several fields to populate. The choice of variables here is critical, as the distance will be calculated based on the coordinates provided by these inputs. Ensuring that the data is correctly formatted—specifically that there are no missing values in the key variables—is a prerequisite for obtaining accurate Mahalanobis distance results. If the dataset contains missing entries, SPSS may exclude those cases entirely, which could impact the resulting centroid and covariance calculations.

Step 2: Configuring Variable Selection and Save Options

In the Linear Regression window, the user must assign the variables to their respective roles. For the purpose of distance calculation, the “Dependent” variable can be any of the continuous variables, as its primary role in this specific procedure is just to fulfill the requirements of the linear regression command. In our example, we drag the exam score into the Dependent box. The remaining predictors—hours studied, prep exams taken, and current grade—should be moved into the Independent(s) box. These independent variables are the ones that will define the multivariate space used to calculate the Mahalanobis distance.

After the variables are properly assigned, the next critical step is to access the Save button located on the right side of the dialog box. This sub-menu allows SPSS to create new variables in the active dataset based on the analysis performed. Within the “Distances” section of the Save dialog, the user must check the box labeled Mahalanobis. This instruction tells the software to compute the distance for every single row in the data file and store it for further inspection. Clicking Continue and then OK will execute the command and return the user to the Data View window.

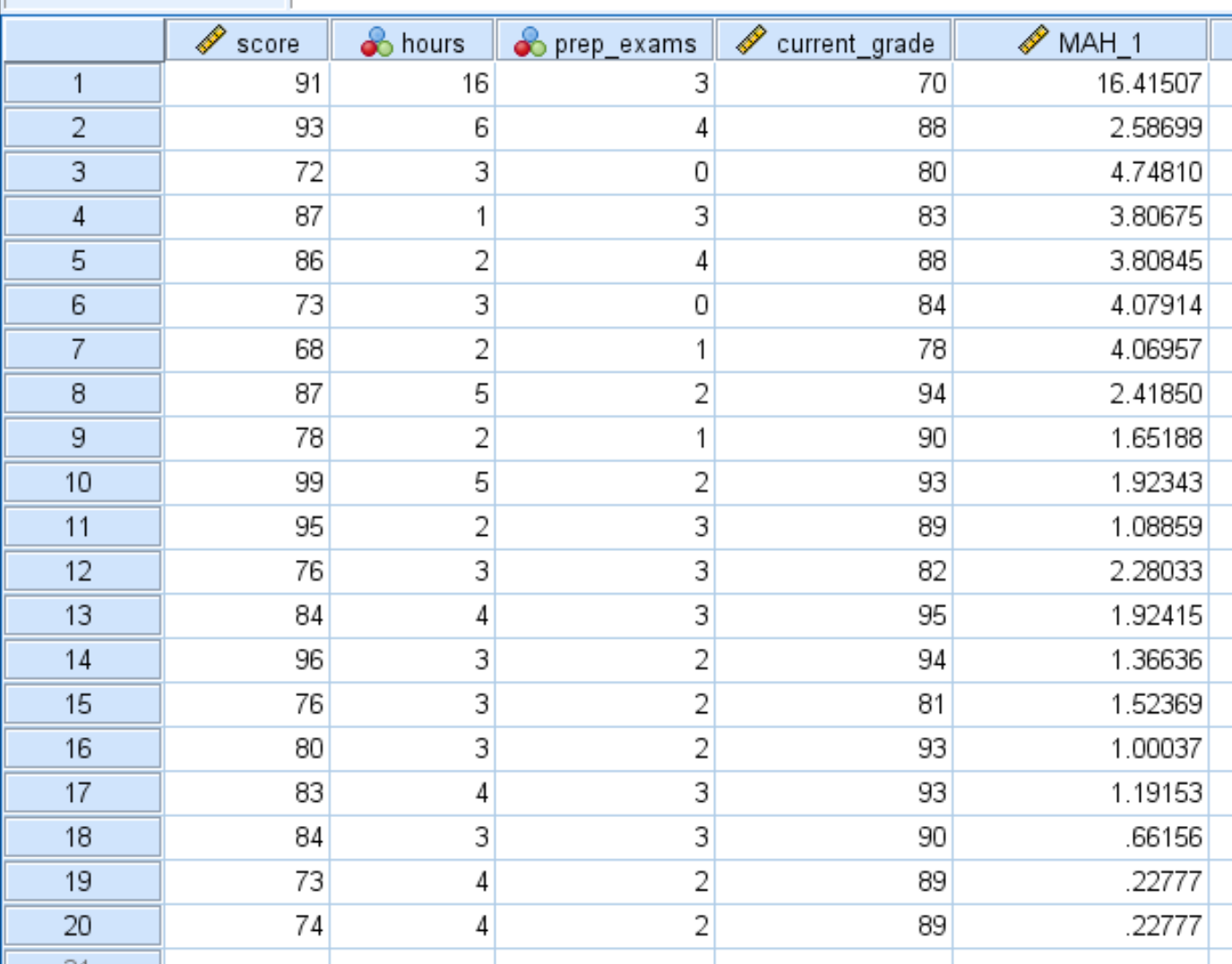

Upon completion of the analysis, a new column automatically appears in the SPSS Data View, typically named MAH_1. This column contains the raw Mahalanobis distance values. While these numbers provide an immediate look at which cases are far from the average, they are not immediately interpretable without a statistical frame of reference. Because the values are influenced by the number of variables included in the calculation, a distance of “10” might be an outlier in one study but perfectly normal in another. This necessitates the calculation of p-values to determine significance.

Step 3: Deriving P-Values for Statistical Significance

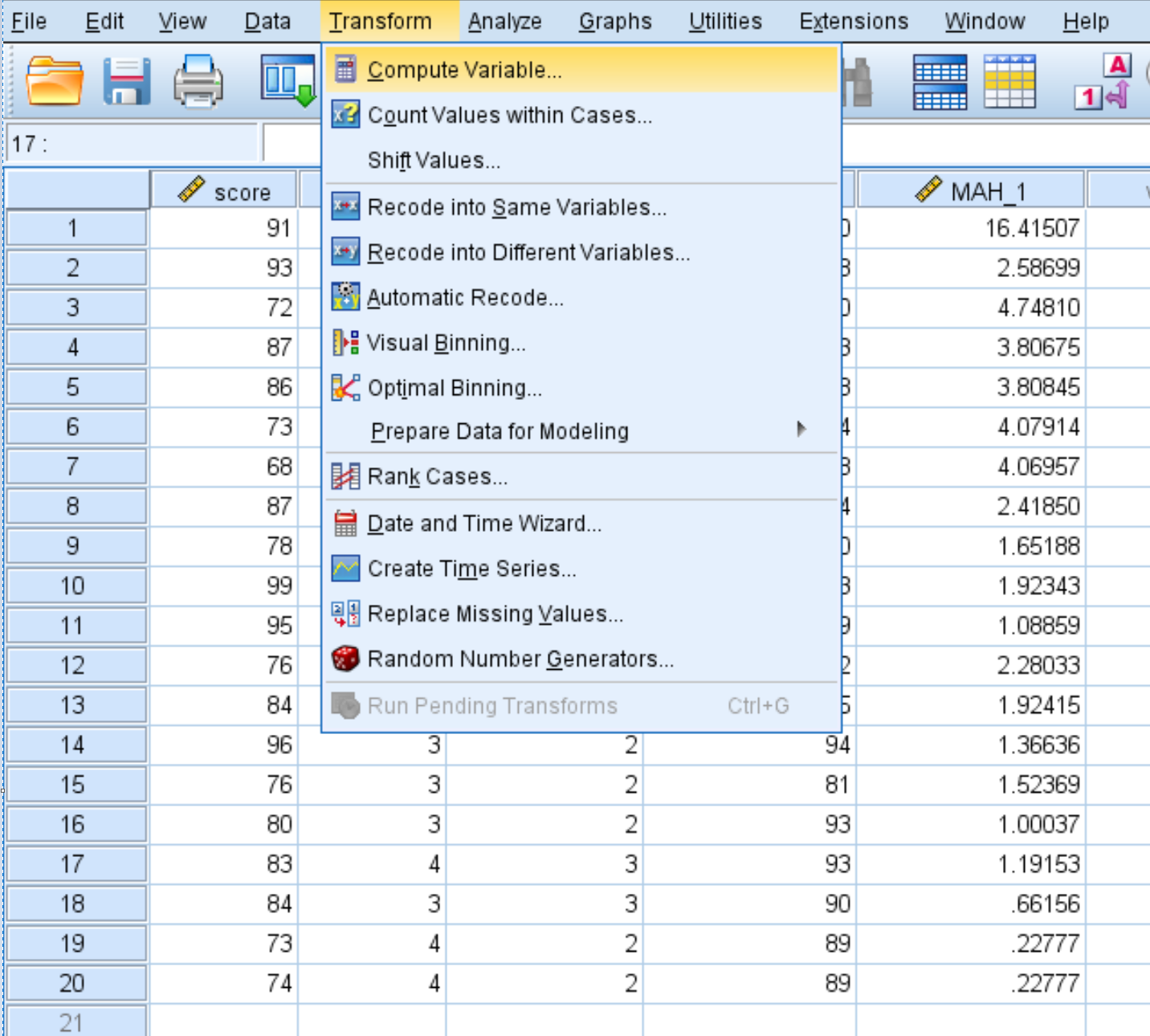

To transform the raw distances into a meaningful probability, we rely on the fact that Mahalanobis distance values follow a Chi-square distribution. This transformation allows us to determine the likelihood of observing a specific distance by chance, given the number of variables involved. In SPSS, this is achieved by using the Compute Variable tool. Navigate to the Transform menu and select Compute Variable to open the formula editor, which will be used to generate the p-values.

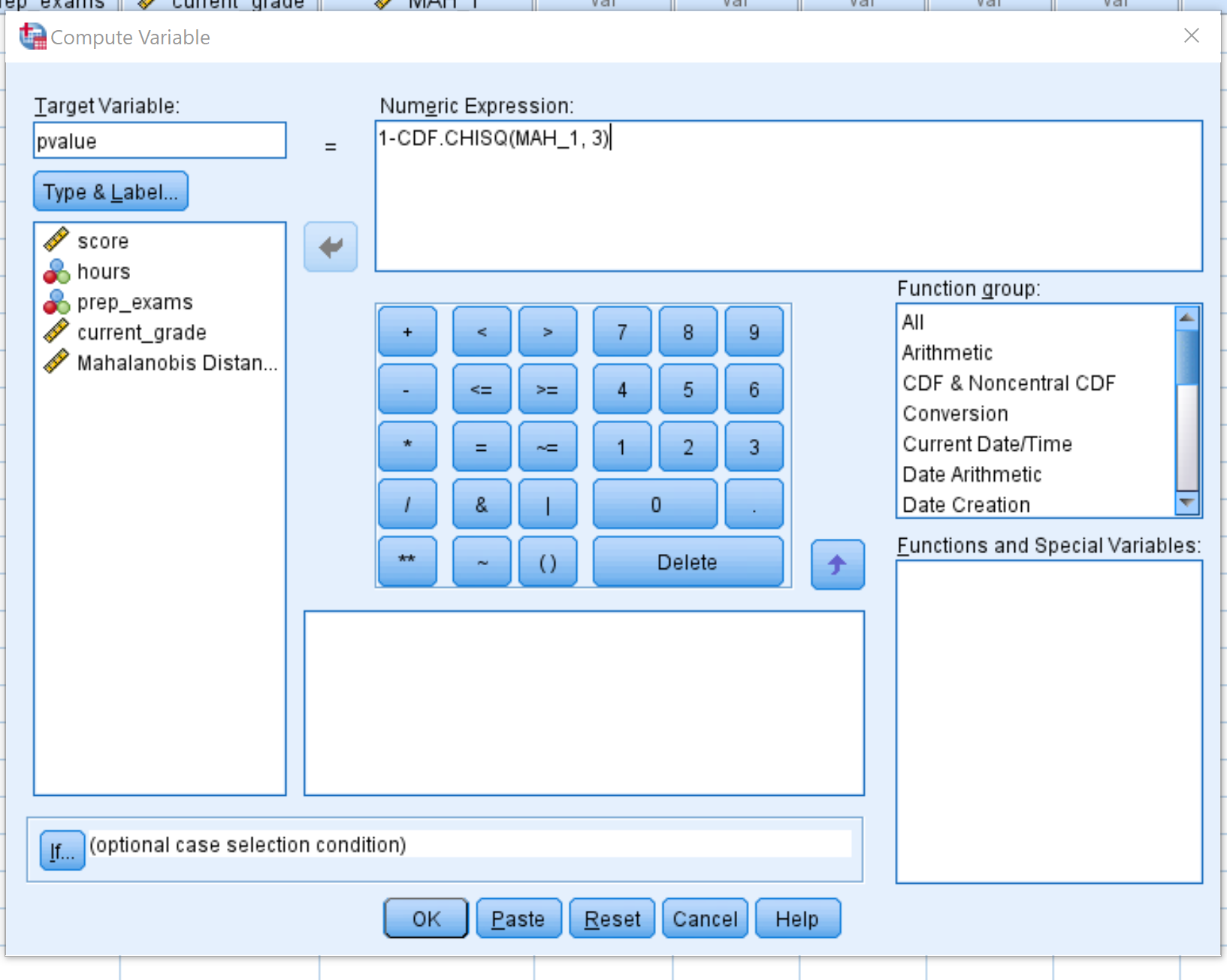

In the Target Variable box, you should enter a descriptive name such as “p_value” or “sig_mahal.” In the Numeric Expression box, you will need to enter a specific formula that utilizes the Cumulative Distribution Function (CDF). The formula is 1 – CDF.CHISQ(MAH_1, df), where “df” represents the degrees of freedom. The degrees of freedom are equal to the number of independent variables used in the original regression. In our current example, since we used three predictors (study hours, prep exams, and current grade), the formula would be 1 – CDF.CHISQ(MAH_1, 3).

Once the expression is entered correctly, clicking OK will execute the calculation. This step is vital because it standardizes the interpretation of outliers across different studies. By using the Chi-square distribution as a reference, researchers can apply a consistent threshold for what constitutes an “extreme” value. This moves the analysis from a subjective visual check of the MAH_1 column to a rigorous, statistically significant determination of multivariate abnormality.

Step 4: Interpreting Results and Identifying Outliers

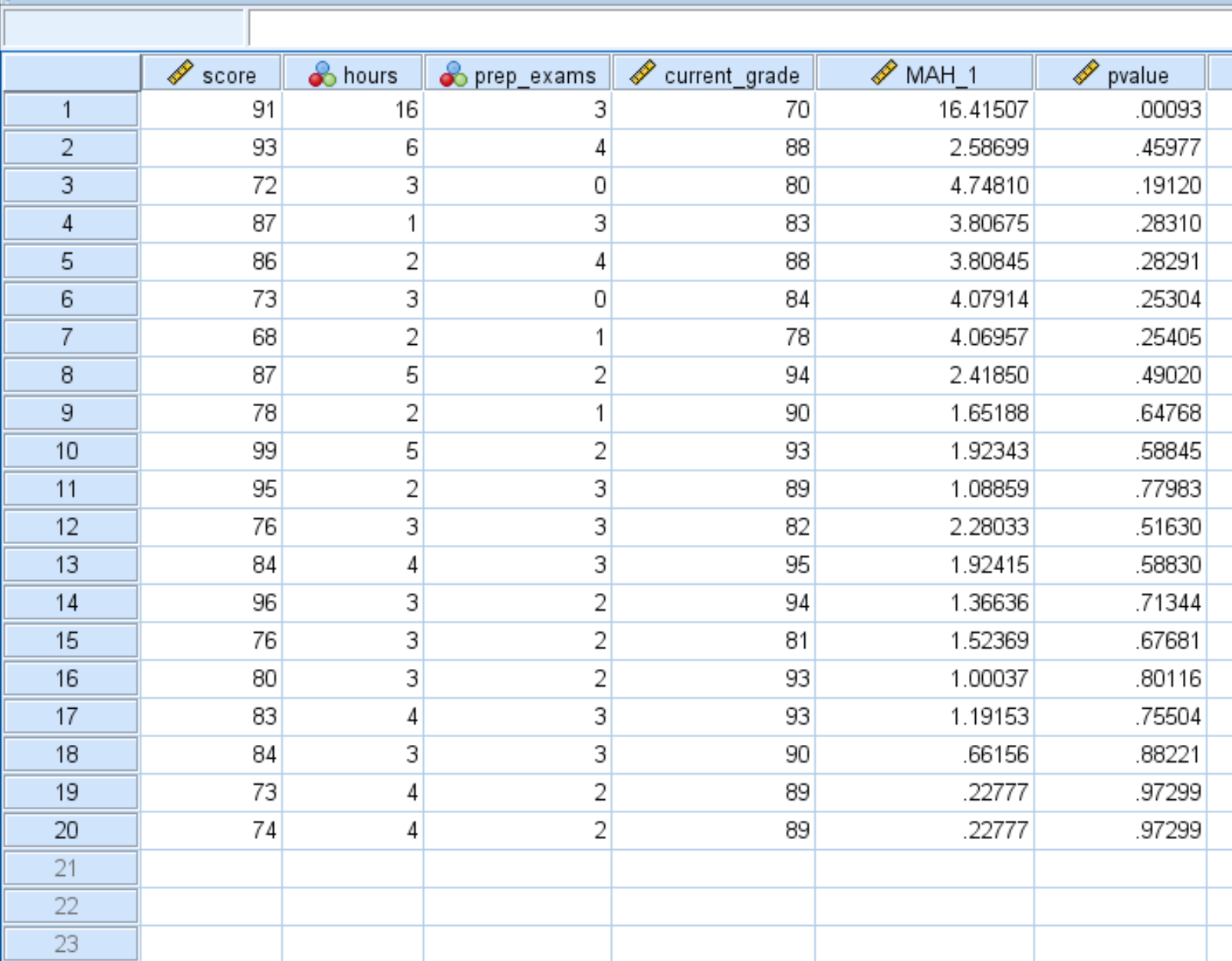

With the p-values now calculated and displayed in a new column, the final task is to identify which cases fall below the established threshold for outliers. In the context of Mahalanobis distance, a common and conservative alpha level used is .001. Any observation with a p-value less than .001 is typically flagged as a significant multivariate outlier. This strict threshold is used to ensure that only the most extreme and potentially influential data points are singled out for removal or correction, thereby preserving the overall power of the statistical analysis.

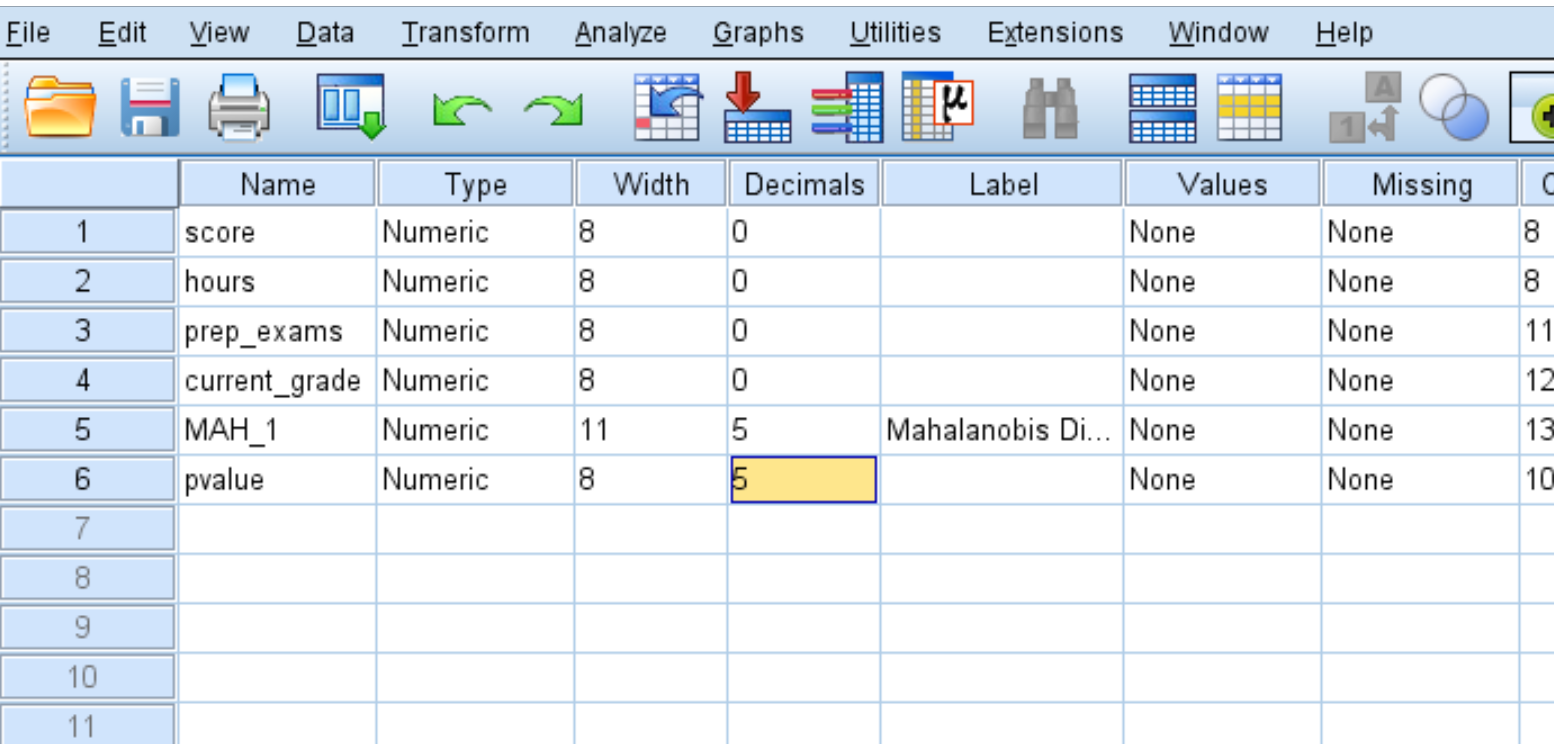

In many instances, the default display settings in SPSS may round these p-values to two or three decimal places, which can make it difficult to distinguish very small values from zero. To rectify this, you should navigate to the Variable View tab at the bottom of the screen and increase the number of Decimals for your p-value variable to five or more. This adjustment provides the precision necessary to accurately identify values that are truly below the .001 mark. Returning to the Data View will then reveal the high-precision probabilities for every case in the study.

As illustrated in the final steps of our academic example, the first student in the dataset exhibits a p-value significantly lower than the .001 threshold. This indicates that their combination of exam scores and study habits is statistically unique compared to the rest of the group. By isolating these cases, the researcher can now make an informed decision on how to handle them. Identifying an outlier is not the end of the analysis, but rather the beginning of a deeper investigation into the data quality and the nature of the sample.

Strategies for Managing Multivariate Outliers

Once a Mahalanobis distance analysis has successfully flagged one or more outliers, the researcher must decide on the most appropriate course of action. The first priority should always be to investigate potential data entry errors. It is surprisingly common for extreme values to be the result of a simple typo—such as entering “100” instead of “10” for a score. By cross-referencing the flagged case with the original physical or digital records, you can often correct the error and retain the data point, which is always the preferred outcome to maintain sample size and representativeness.

If the data is verified as accurate but remains a significant outlier, the next option is to consider the removal of the observation. This is a common practice when the outlier represents a case that does not truly belong to the population being studied, or when it exerts an undue influence on the regression coefficients. However, removing data should never be done lightly. If you choose to exclude an outlier, it is a matter of research ethics to document this decision clearly in your final report. You should explain the criteria used for identification—specifically citing the Mahalanobis distance and the chosen p-value threshold—and discuss how the removal affected the final results.

An alternative to removal is the use of robust statistical methods that are less sensitive to outliers. Some researchers choose to perform their analysis both with and without the outlier to see if the overall conclusions change significantly. If the results are consistent regardless of the outlier’s presence, the findings are considered robust. Regardless of the chosen path, the systematic use of SPSS to calculate and interpret the Mahalanobis distance provides a defensible, objective foundation for all subsequent data management decisions, ensuring the highest standards of quantitative research.

In summary, the process of handling multivariate outliers involves a structured approach:

• Verify Data Accuracy: Audit the source material to rule out technical or human errors during the data entry phase.
• Analyze Impact: Determine how much the outlier shifts the mean or affects the correlation between variables.
• Decision Making: Choose between correcting the error, deleting the case, or using non-parametric alternatives.
• Transparent Reporting: Clearly state the methodology for outlier detection and the rationale for their treatment in the final publication.
