How to Easily Set the Print Area in Excel Using VBA

The Fundamentals of Visual Basic for Applications in Excel

In the modern corporate environment, efficiency is often dictated by the ability to automate repetitive tasks within high-level software suites. Visual Basic for Applications (VBA) stands as a cornerstone for this automation, specifically within the ubiquitous Microsoft Excel ecosystem. By leveraging this event-driven programming language, users can transcend the limitations of standard spreadsheet functions, creating sophisticated tools that manage data with surgical precision. One of the most frequently utilized features in professional reporting is the automated management of the print area, which ensures that only relevant information is transmitted to the physical or digital page.

Setting a print area manually may suffice for static worksheets, but as datasets grow in complexity and size, the manual approach becomes prone to human error and significant time loss. Through the PageSetup.PrintArea property, a developer can programmatically define which cells or ranges should be included in the final output. This capability is particularly vital when dealing with large-scale business intelligence reports or dynamic invoices where the number of rows fluctuates based on real-time data entry or database queries. By mastering this aspect of VBA, you empower yourself to deliver consistent, professional-grade documentation every time a print command is executed.

The integration of VBA into your workflow begins with an understanding of the Object-Oriented Programming structure of Excel. Every worksheet is an object, and every object contains properties that can be manipulated. The print area is a property of the PageSetup object, which in turn is a child of the Worksheet object. Navigating this hierarchy is essential for writing clean, bug-free code that performs reliably across different versions of the software. This structured approach not only clarifies the intent of the code but also makes the debugging process much more manageable when issues arise during complex deployments.

Navigating the Visual Basic Editor and Basic Implementation

To begin your journey into automating the print area, you must first access the development environment known as the Visual Basic Editor (VBE). This interface is hidden by default to prevent accidental modifications by casual users, but it can be easily summoned by pressing Alt+F11 on your keyboard. Once the editor is open, you will find a project explorer and a properties window that allow you to manage the various macros and modules associated with your workbook. This environment is where the logic of your automation is defined, tested, and refined before being unleashed on your data.

The core syntax for defining a print area involves the ActiveSheet object or a specific sheet reference. For instance, if you wish to target the currently active sheet, the command Activesheet.PageSetup.PrintArea is used. To set a static range, such as cells A1 through D10, the developer assigns a string value to this property. A typical line of code would look like this: Activesheet.PageSetup.PrintArea = “A1:D10”. This direct assignment tells Excel exactly which coordinates to isolate during the printing process, ignoring all other data present on the sheet. It is a fundamental technique that serves as the building block for more advanced dynamic logic.

Beyond the simple assignment of ranges, it is crucial to understand the different methods available for this task. While the PageSetup.PrintArea property is the most common, some developers prefer using the SetPrintArea method depending on the specific API requirements of their project. Regardless of the chosen method, the objective remains the same: to create a repeatable process that eliminates the need for manual selection. By encapsulating these commands within a Sub procedure, you create a reusable tool that can be triggered by a button click, a keyboard shortcut, or an automated event within the workbook.

Advanced Automation Using Selection and Address Properties

While static ranges are useful for simple tasks, the true power of Visual Basic for Applications (VBA) is realized when the code adapts to user behavior. One highly effective technique is to set the print area based on the user’s current selection. This is achieved by accessing the Address property of the Selection object. By doing so, the macro becomes a versatile tool that can handle any subset of data the user deems important at a given moment. This flexibility is essential for dashboards and analytical tools where the focus of the report might change frequently.

Consider the following syntax which demonstrates how to implement a dynamic print area selection macro. This code is designed to be placed within a standard module in the Visual Basic Editor:

Sub SetPrintArea()

    With Sheets("Sheet1")
     .PageSetup.PrintArea = Selection.Address
     .PrintPreview
    End WithEnd Sub

This specific macro utilizes the With statement to efficiently reference “Sheet1”. By setting the .PageSetup.PrintArea to the Selection.Address, the code dynamically captures whatever range the user has highlighted. The subsequent call to .PrintPreview provides an immediate visual confirmation, allowing the user to verify the selection before any physical printing occurs. This reduces paper waste and ensures that the final document meets the required specifications.

It is important to note that the Selection object can be unpredictable if the user has not selected a range of cells (for example, if a chart or a shape is selected). Therefore, robust error handling or data type checks are often added to professional macros. However, for most standard data entry tasks, this direct approach is both fast and effective. If your goal is to print the selected range immediately without a preview, you can simply replace .PrintPreview with the .PrintOut method, which streamlines the process even further for high-volume environments.

Practical Examples and Visual Demonstrations

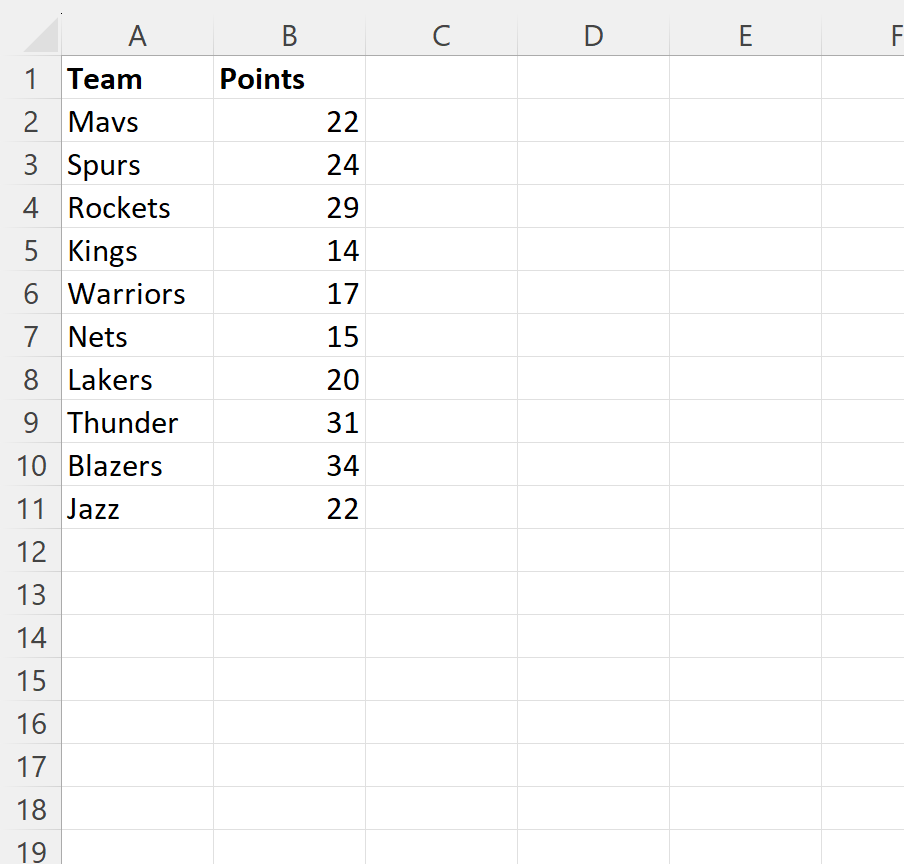

To better understand how this technology functions in a real-world scenario, let us examine a practical example involving a dataset of basketball players. Imagine a Microsoft Excel worksheet populated with player names, statistics, and team affiliations. If a coach or analyst only needs to print the stats for a specific group of athletes, a macro-driven print area becomes an invaluable asset. The following image illustrates a typical dataset where various player metrics are recorded:

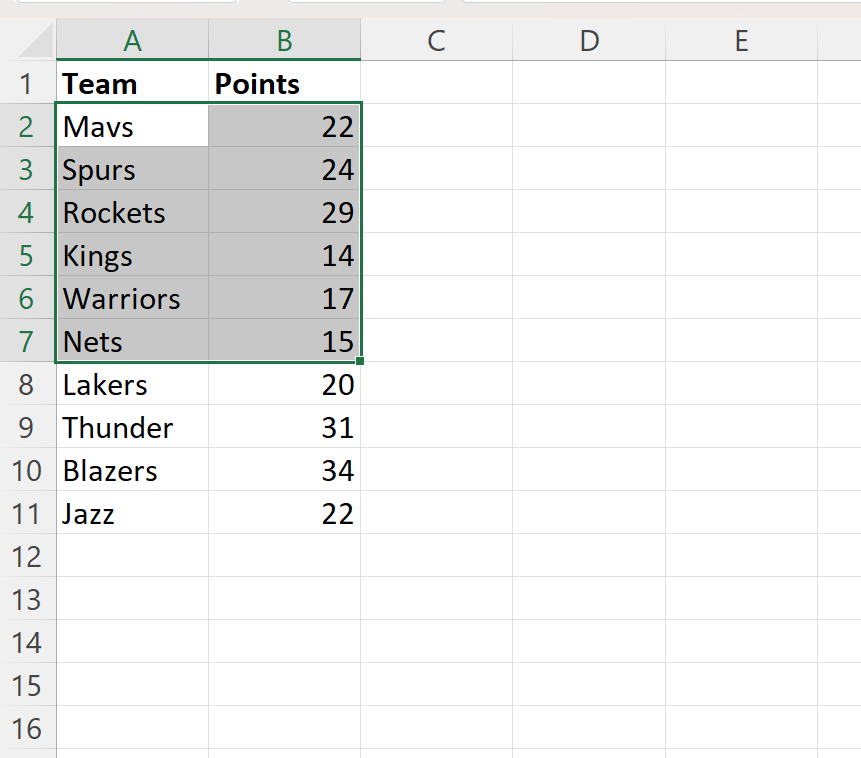

When the user needs to isolate a specific segment of this data, such as the first five players and their corresponding positions, they would highlight the range A2:B7. By invoking the SetPrintArea macro we discussed earlier, the VBA engine captures the coordinates of this selection. This process is seamless and occurs in the background, providing the user with a focused output that excludes extraneous headers or unrelated data points. The image below shows the range selection in action:

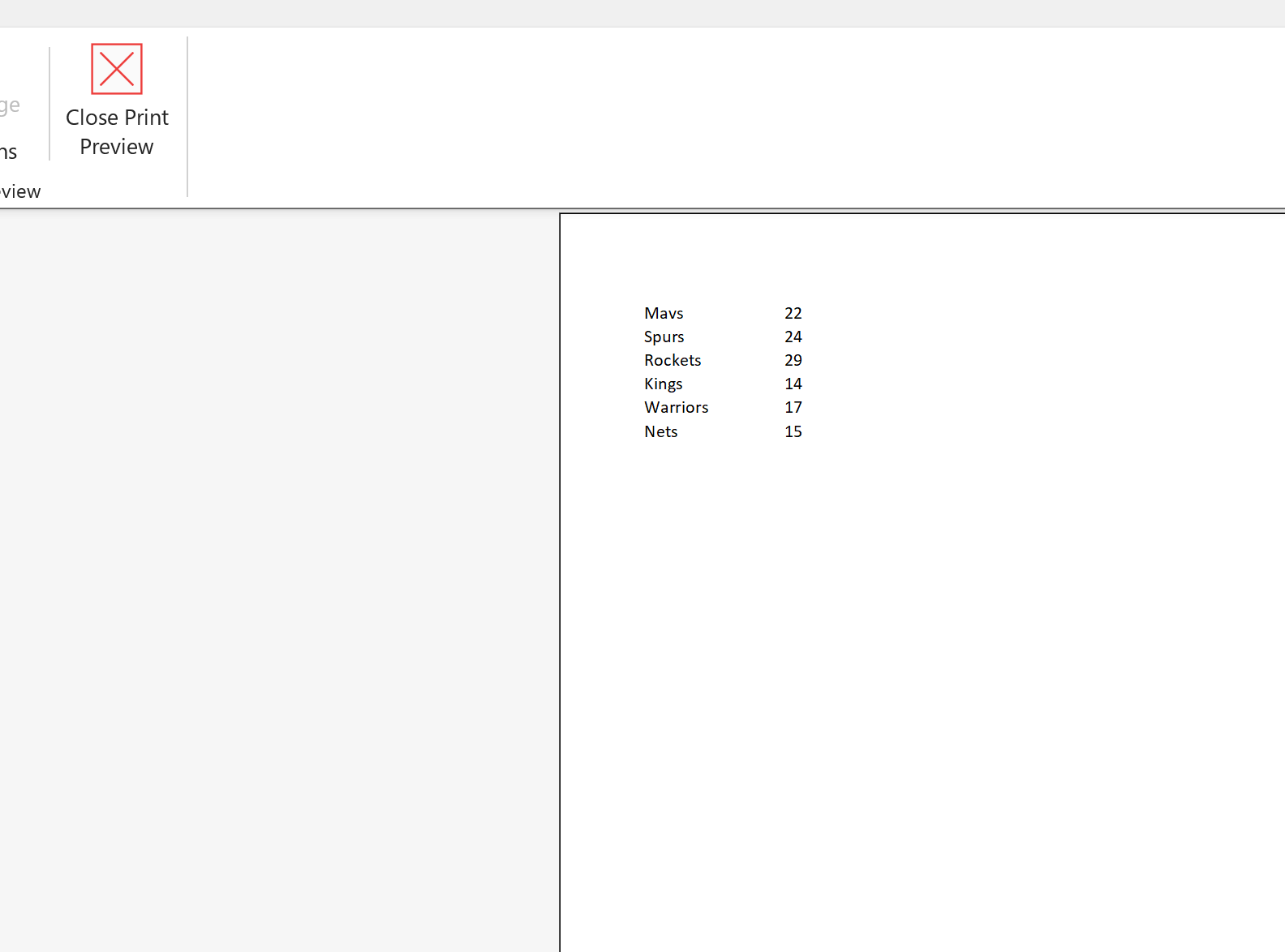

Once the macro is executed, the .PrintPreview command triggers the Excel print interface. This interface acts as a sandbox where the user can inspect the layout, margins, and scaling. Because the PageSetup.PrintArea was set programmatically, the preview window will strictly display only the range A2:B7. This ensures that the generated document is concise and professional. Here is how the print preview appears for the specified selection:

Handling Dynamic Range Changes and Scaling

A significant advantage of using VBA for print management is the ability to adapt to changes in the dataset almost instantaneously. In a dynamic spreadsheet environment, the range of data you need to print is rarely static. If the user decides they need a larger overview—for example, including all players in the list from A1 to B11—the macro handles this change without requiring any modifications to the underlying code. The user simply adjusts their selection on the worksheet, and the macro updates the print area accordingly. This is illustrated in the following image where a larger range is highlighted:

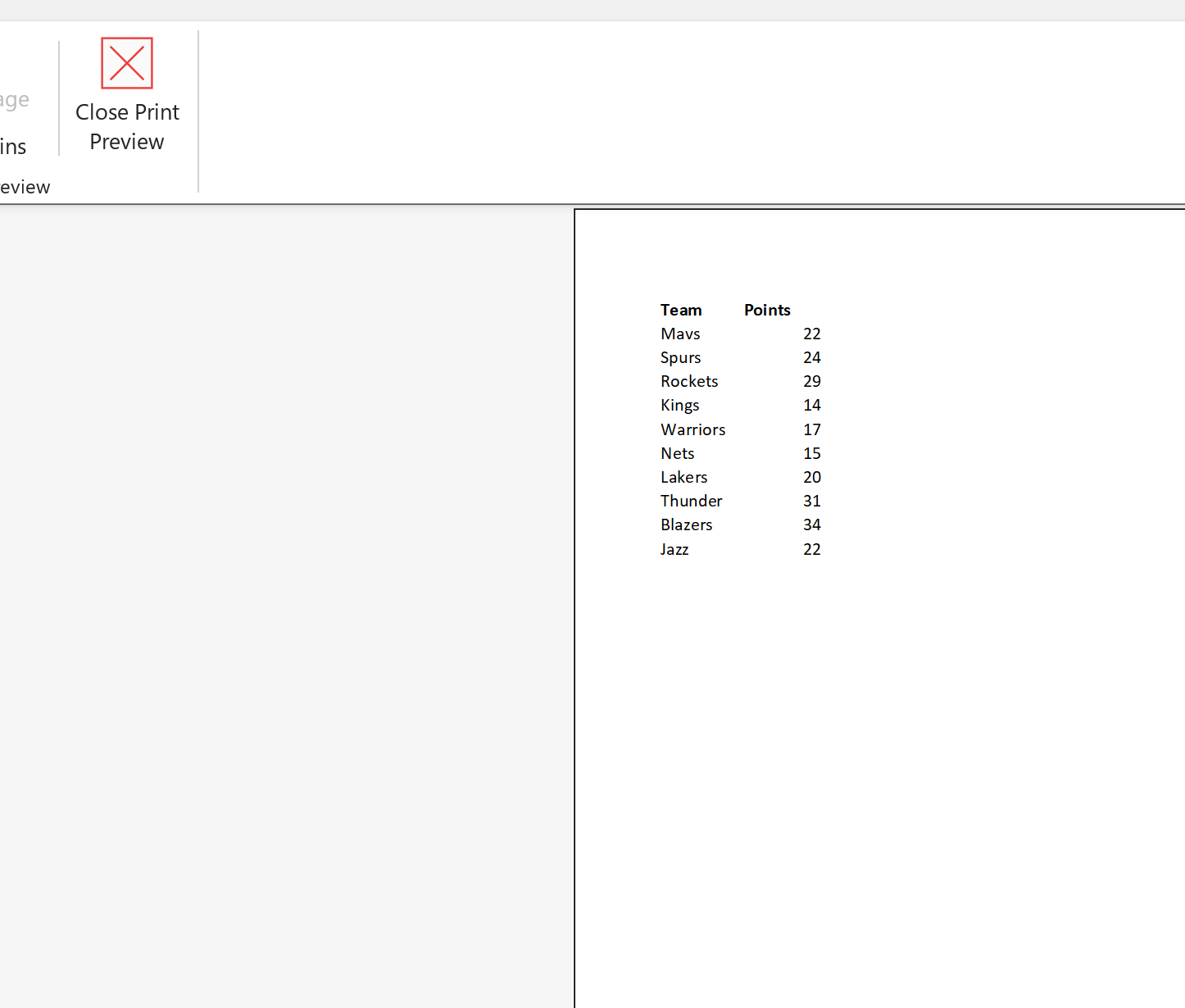

Upon re-running the macro, the updated selection is processed by the VBA script. The Selection.Address property now returns “$A$1:$B$11”, which is then passed to the PageSetup object. The resulting print preview reflects this change immediately, showing a more comprehensive list of players. This level of responsiveness is what makes macros so vital for modern data analysis. You can see the updated preview window in the image below, confirming that the entire selected range is now set for printing:

Furthermore, automating the print area allows for the integration of other PageSetup properties such as orientation, scaling, and margins. For example, you could write a script that not only sets the print area but also forces the content to fit on a single page or switches the layout to landscape mode if the selection is wider than it is tall. This holistic approach to print management ensures that the output is always optimized for the medium, whether it is being printed on paper or saved as a PDF document for digital distribution.

Strategic Use Cases in Corporate Reporting

In a professional setting, the ability to automate the print area via Visual Basic for Applications (VBA) serves several critical functions. One of the most common use cases is the generation of automated invoices. In an invoice template, the number of line items can vary significantly from one client to another. By using a macro to detect the last used row in a specific column, the developer can set a print area that perfectly fits the invoice data every time, avoiding the printing of blank pages or incomplete sections. This adds a layer of professionalism to the company’s external communications.

Another common application is found in the realm of complex Microsoft Excel workbooks that contain multiple tables, charts, and data summaries on a single sheet. Often, a user may only need to print a specific dashboard component or a summary table rather than the entire worksheet. By assigning different macros to different buttons—such as “Print Sales Summary” or “Print Inventory Chart”—the developer can create a custom user interface that simplifies the reporting process for non-technical users. This effectively turns a standard spreadsheet into a specialized software tool.

Finally, the automation of print areas is essential for large-scale data audits and compliance reporting. In these scenarios, auditors may need to print specific subsets of records based on certain criteria, such as transactions over a certain dollar amount or entries within a specific date range. By combining VBA filtering techniques with print area automation, a developer can create a system that automatically identifies, filters, and prints the necessary records. This not only speeds up the auditing process but also ensures that the documentation provided is accurate and relevant to the audit’s scope.

Best Practices and Troubleshooting for VBA Printing

When implementing VBA solutions for printing, it is important to follow industry best practices to ensure longevity and reliability of your code. Always use explicit worksheet references instead of relying solely on the ActiveSheet object, especially in workbooks with many tabs. This prevents the macro from accidentally modifying the wrong sheet if the user clicks away while the script is running. Using Sheets(“YourSheetName”) is a much safer approach that provides clarity to anyone who may need to maintain the code in the future.

Another key consideration is the handling of printer settings and drivers. Different printers may have different default margins or printable areas, which can affect how your print area is rendered. It is often helpful to include code that resets the PageSetup properties to a known state before setting the print area. This includes clearing any existing print areas using .PrintArea = “” and ensuring that scaling options are set to their desired defaults. This proactive approach minimizes debugging time and ensures a consistent experience for all users of the workbook.

Lastly, for comprehensive guidance on all available properties and methods, developers should consult the official documentation provided by Microsoft. The PrintArea property is part of a larger suite of tools within the API that can control everything from headers and footers to gridline visibility. By continuously expanding your knowledge of these tools, you can build increasingly sophisticated automation scripts that save time and reduce errors. For those interested in further extending these capabilities, exploring how to export these areas as PDF files is a logical next step in professional Excel development.
