How to Use FormulaR1C1 Notation in VBA for Dynamic Excel Cell Referencing

Understanding the Strategic Value of FormulaR1C1 in VBA

The FormulaR1C1 property represents a fundamental shift in how developers interact with cell addresses within Microsoft Excel. Unlike the standard A1 notation that most users are familiar with, FormulaR1C1 utilizes a coordinate-based system to define cell locations. This method is particularly effective when working with the Visual Basic for Applications (VBA) programming language, as it provides a consistent framework for referencing cells regardless of their physical position on the grid. By mastering this notation, users can write more robust scripts that adapt to changing data structures without requiring constant manual updates to cell references.

The primary advantage of using FormulaR1C1 is its ability to handle both absolute reference and relative reference logic with ease. In a typical spreadsheet environment, formulas are often copied across multiple rows or columns. While A1 notation requires Excel to translate references behind the scenes (e.g., changing A1 to A2 when dragging a formula down), R1C1 notation describes the relationship between cells directly. This makes the logic behind macro development much clearer, especially when performing complex data analysis or automating repetitive calculation tasks.

Implementing FormulaR1C1 allows for a more dynamic approach to automation. When you use this property in VBA, you are essentially telling Excel to look at the grid through a mathematical lens where “R” stands for Row and “C” stands for Column. This precision is invaluable when looping through large datasets where the specific cell address may change, but the mathematical relationship between the source data and the result remains constant. By integrating this notation into your workflow, you enhance the scalability and maintainability of your Excel workbooks.

The Core Mechanics of R1C1 Notation and Syntax

To effectively utilize the FormulaR1C1 property, one must first understand the syntax differences between absolute and relative addressing. In an absolute reference, the row and column numbers are stated explicitly following the letters R and C. For instance, “R1C1” refers specifically to the cell at the intersection of the first row and the first column, which is cell A1. This is equivalent to using “$A$1” in standard Excel notation. This static approach is ideal when you need to reference a specific constant, such as a tax rate or a fixed configuration value located in a designated spreadsheet cell.

Relative referencing in FormulaR1C1 notation is where the true power of VBA is revealed. Relative references are indicated by placing numbers inside square brackets, such as “R[1]C[1]”. These numbers represent an offset from the active cell or the cell where the formula is being placed. A positive number indicates a move down or to the right, while a negative number indicates a move up or to the left. If no brackets are used, the reference is absolute; if no number is provided at all, such as “RC”, it refers to the current row or column of the target cell. This flexibility allows for the creation of algorithms that can traverse datasets of any size.

Transitioning from A1 to R1C1 can initially seem daunting, but it aligns perfectly with the way a computer processes arrays. When you write a macro to apply a formula to a range, using R1C1 allows you to apply the exact same string to every cell in that range. Excel automatically interprets the relative offsets for each specific cell, which is significantly more efficient than constructing unique A1-style strings for every individual row in a loop. This efficiency is critical for optimizing performance in high-volume data processing environments.

You can use the FormulaR1C1 property in VBA to make an absolute reference or a relative reference to a particular cell in a sheet.

There are two common ways to use this property:

Method 1: Use FormulaR1C1 to Make Absolute Reference

Sub MultipyCell()

Range("C5").FormulaR1C1 = "=R1C1*20"

End Sub

When you run this particular macro, cell C5 will display the result of the cell in row 1 and column 1 multiplied by 20.

Method 2: Use FormulaR1C1 to Make Relative Reference

Sub MultipyCell()

Range("C5").FormulaR1C1 = "=R[-4]C[-2]*20"

End Sub

When you run this particular macro, cell C5 will display the result of the cell that is 4 rows above it and 2 columns to the left of it multiplied by 20.

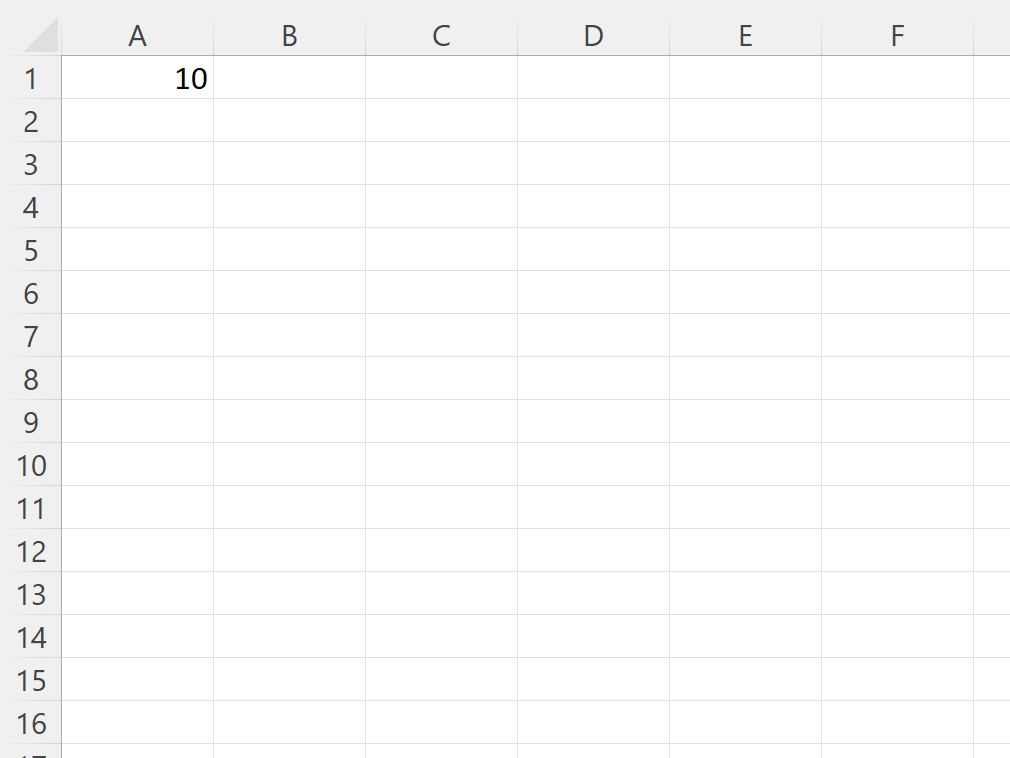

The following examples show how to use each method in practice with a sheet in Microsoft Excel that contains the value 10 in cell A1:

Applying Absolute Referencing in Practical Scenarios

An absolute reference is essentially a “locked” coordinate. In the world of Microsoft Excel automation, there are many instances where you want your formula to always point to a specific cell, regardless of where that formula is eventually placed or copied. This is particularly useful for global variables, such as a specific interest rate, a discount percentage, or a header value that remains in a fixed position at the top of a spreadsheet. Using FormulaR1C1 with absolute coordinates ensures that your VBA code remains precise and predictable.

We can create the following macro to multiply the value of the cell in row 1 and column 1 by 20 and display the results in cell C5:

Sub MultipyCell()

Range("C5").FormulaR1C1 = "=R1C1*20"

End Sub

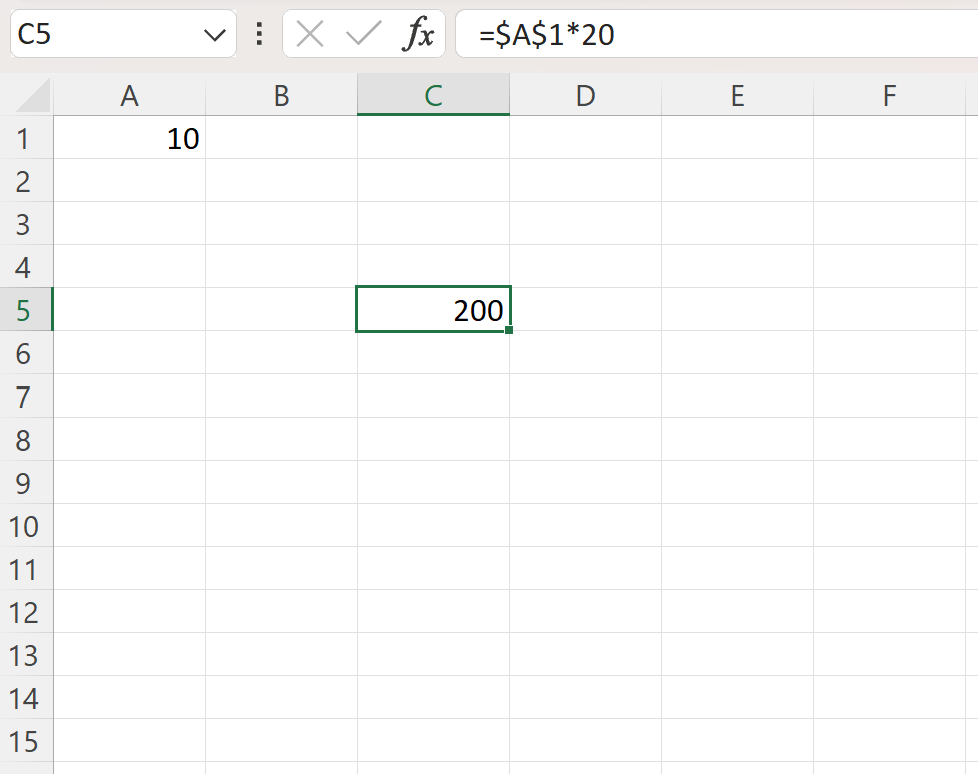

When we run this macro, we receive the following output:

We can see that Excel used the formula =$A$1*20 to calculate the result in cell C5.

Since we used R1C1 in our formula in VBA, we made an absolute reference to the cell in the first row and the first column, which is cell A1. This ensures that even if we were to move the code to target cell D10 or E20, the reference to R1C1 would remain steadfastly pointed at cell A1. This behavior is crucial for maintaining data integrity in complex financial models where certain inputs must never be shifted.

Mastering Relative Referencing for Dynamic Data Structures

A relative reference is the cornerstone of dynamic spreadsheet design. By using square brackets in your FormulaR1C1 notation, you define a relationship based on distance rather than a static address. This is incredibly helpful when you are writing VBA scripts that need to perform calculations on adjacent cells. For example, if you are processing a list of sales figures and need to calculate a tax for each row, a relative reference allows you to write one piece of logic that applies to the cell “one column to the left,” no matter which row the script is currently processing.

We can create the following macro to multiply the value of the cell that is 4 rows above and 2 columns to the left of cell C5 by 20 and display the results in cell C5:

Sub MultipyCell()

Range("C5").FormulaR1C1 = "=R[-4]C[-2]*20"

End Sub

When we run this macro, we receive the following output:

We can see that Excel used the formula =A1*20 to calculate the result in cell C5.

Since we used brackets with R[-4]C[-2] in our formula in VBA, we made a relative reference to the cell that is 4 rows above and 2 columns to the left of cell C5, which is cell A1. This relative logic is what allows Microsoft Excel to handle vast amounts of data efficiently. If this formula were applied to cell C6, it would automatically look at A2, maintaining the same spatial relationship. This makes the R1C1 notation a superior choice for algorithm developers who prioritize flexible and reusable code.

Advanced Automation Strategies with FormulaR1C1

Beyond simple multiplication, FormulaR1C1 is a powerful tool for complex data analysis and large-scale automation. One of the most common implementations involves using VBA to loop through rows of data and apply formulas dynamically. By using variables within the R1C1 string, developers can create highly sophisticated scripts that adjust to the dimensions of a dataset. This is far more efficient than hard-coding cell addresses, which often leads to errors when new rows or columns are added to a spreadsheet.

Another significant advantage is the ease of creating array formulas and multi-cell calculations. Because the R1C1 notation is consistent, you can apply a single formula string to an entire range of cells in one line of code. This reduces the overhead on the Excel calculation engine and makes the macro run significantly faster. For business intelligence professionals, this means that reports can be generated in seconds rather than minutes, providing a smoother user experience and more reliable results.

Furthermore, FormulaR1C1 simplifies the process of auditing and debugging VBA code. When looking at a script, seeing “R[0]C[-1]” immediately tells the developer that the formula is looking at the cell directly to the left. In contrast, seeing “B5” in a script requires the developer to know where the formula is being placed to understand the context. This self-documenting nature of R1C1 notation helps teams maintain codebases over long periods, reducing the “technical debt” associated with poorly understood legacy macros.

Troubleshooting and Best Practices for VBA Formulas

When working with FormulaR1C1, it is important to remember that Microsoft Excel treats the formula as a string. This means that any syntax errors within the quotation marks will not be caught by the VBA compiler but will instead cause an error when the macro attempts to run. To avoid this, developers should always test their R1C1 strings by manually entering them into the Excel formula bar (after switching the Excel options to R1C1 mode) to ensure the logic produces the expected result. This proactive approach saves time and prevents logic errors in critical data analysis tasks.

Another best practice is to use the FormulaR1C1 property instead of the basic Formula property whenever you are dealing with relative logic in VBA. While Microsoft Excel is capable of interpreting A1 notation in VBA, it often leads to confusion during the translation process. By sticking to R1C1, you are speaking the “native language” of the Excel calculation engine when it comes to range offsets. This consistency is especially important when sharing workbooks across different versions of Excel or different international locales, where A1 notation might occasionally vary in behavior.

Finally, always provide comments in your VBA code to explain the purpose of complex R1C1 offsets. While the notation is logical, a string like “R[-10]C[2]” can be difficult to interpret at a glance. Adding a simple comment such as “Reference the subtotal from 10 rows above” makes your code much more accessible to others. You can find the complete documentation for the FormulaR1C1 property on official Microsoft resource pages to further expand your technical knowledge.
