How to Split a String in Excel by Length Using LEFT and RIGHT Functions

The Importance of String Manipulation in Modern Data Workflows

In the contemporary landscape of data management, the ability to efficiently manipulate and reorganize information within a spreadsheet environment is a fundamental skill for professionals across various industries. Whether you are dealing with large-scale database exports or localized administrative records, the raw data provided is often formatted as a continuous string of characters that requires structural decomposition. Splitting a string into distinct, manageable components is not merely a task of aesthetic organization; it is a critical step in data cleansing and preparation, ensuring that each piece of information is isolated for accurate analysis, reporting, and integration into other software systems.

Microsoft Excel offers a robust suite of tools specifically designed to handle these challenges, ranging from dynamic formulas to intuitive graphical user interface wizards. The necessity for splitting strings by a specific length frequently arises when handling standardized identifiers, such as ISBN numbers, employee identification codes, or legacy system outputs where data fields are concatenated into a single cell. By mastering these techniques, users can transform a monolithic column of text into a structured table, thereby unlocking the potential for advanced sorting, filtering, and pivot table analysis that would otherwise be impossible with unparsed data.

Understanding the underlying logic of how Microsoft Excel interprets text is essential for any power user. Each character within a cell—including spaces, punctuation, and numerical digits—occupies a specific index or position. By leveraging this positional data, we can instruct the software to “cut” the text at precise intervals. This methodological approach to data handling reduces the risk of manual entry errors and significantly increases productivity, especially when processing datasets containing thousands of individual entries. In this guide, we will explore the primary methodologies for achieving this, focusing on both the efficiency of built-in functions and the visual precision of the Text to Columns feature.

Utilizing Built-in Logical Functions for String Extraction

One of the most precise ways to split a string in Microsoft Excel is through the application of text-based functions. The primary tools for this operation are the LEFT, RIGHT, and MID functions. These formulas allow users to extract a specific number of characters from a given starting point within a cell. For instance, if a user needs to isolate the first three characters of a serial number, the LEFT function provides a direct and non-destructive method to retrieve that data without altering the original cell content.

Complementary to these extraction tools is the LEN function, which calculates the total number of characters in a string. By integrating LEN into more complex nested formulas, users can create dynamic solutions that adapt to varying text lengths. For example, a combination of these functions can be used to split a string exactly in half or to remove a specific prefix while retaining the remainder of the text. This formulaic approach is particularly advantageous when the data is expected to change or update regularly, as the results will automatically recalculate to reflect the new input.

While formulas offer high levels of automation and flexibility, they do require a foundational understanding of Excel syntax. Furthermore, they typically require the creation of helper columns to store the extracted results. For users who prefer a more visual, manual, or one-time transformation of their data, Excel provides a highly effective utility known as the Text to Columns wizard. This feature streamlines the process of splitting text by allowing users to define physical boundaries within the data stream, effectively converting a single column into multiple structured columns in a few clicks.

Comprehensive Overview of the Text to Columns Wizard

The Text to Columns feature is one of the most powerful built-in utilities in Microsoft Excel for structural data reorganization. Located within the Data tab of the ribbon, this tool is designed to parse data that is either separated by a specific character (delimited) or formatted with a constant number of characters (fixed width). When the objective is to split a string by a specific length, the Fixed Width option is the most appropriate choice, as it grants the user total control over the exact position of each split point.

Using this wizard is often more intuitive for beginners than writing complex regular expression patterns or nested formulas. It provides a visual preview of the data, allowing the user to see exactly where the breaks will occur before the final transformation is applied. This “what you see is what you get” approach minimizes the likelihood of errors and provides an immediate feedback loop. The tool is especially useful for processing fixed-format files, such as flat files from legacy mainframe systems, where data fields are often padded with spaces to maintain a consistent column width.

Beyond simple splitting, the Text to Columns wizard also allows for basic data formatting during the conversion process. Users can specify whether the resulting columns should be treated as text, dates, or numbers, which is vital for maintaining data integrity. For instance, if a string representing a date is split, ensuring the output column is formatted as a “Date” rather than “General” prevents Excel from misinterpreting the values. In the following sections, we will walk through a practical example to demonstrate the efficacy of this tool in a real-world scenario.

Step-by-Step Preparation: Selecting and Auditing Source Data

Before initiating any data transformation in Microsoft Excel, it is imperative to conduct a thorough audit of the source information. Ensuring that the data is consistent in length and format will prevent unexpected results during the splitting process. In our practical example, we are working with a set of employee identification numbers. These IDs are stored in a single column, and each entry follows a standardized format that we intend to break down into smaller segments for better categorization.

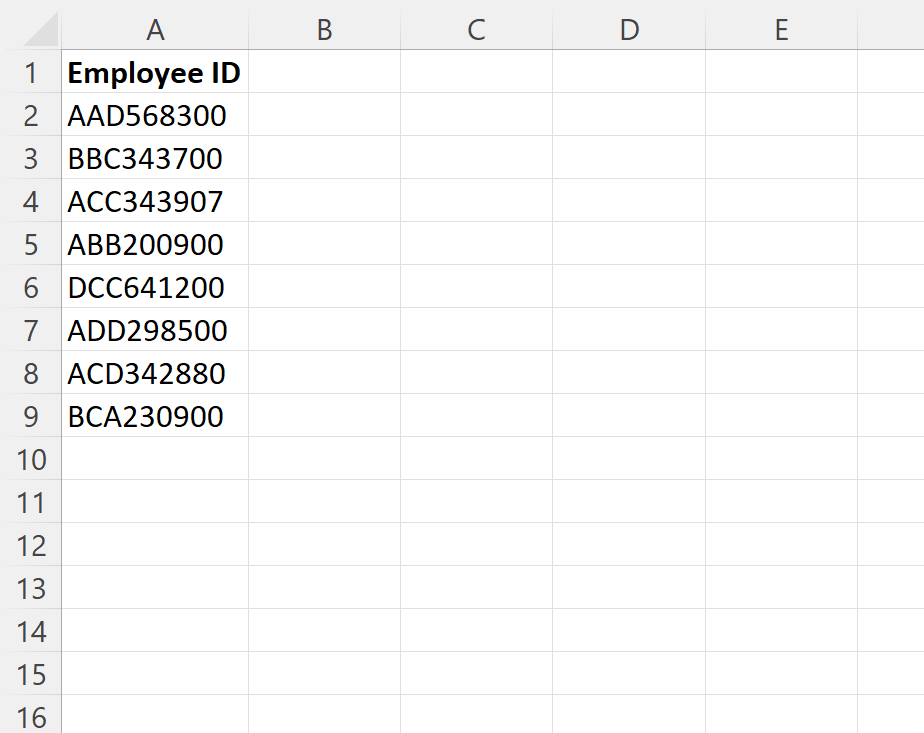

The first step in this process is to highlight the specific cell range that contains the strings you wish to split. In the example provided below, we have identified a range of employee IDs from cell A2 to cell A9. Highlighting the range ensures that the Text to Columns tool only targets the relevant information, leaving the surrounding data and headers untouched. It is also advisable to ensure there are empty columns to the right of your selection to accommodate the new data segments, preventing the software from overwriting existing information.

As observed in the image above, each employee ID consists of exactly nine characters. Our objective is to split these strings into three distinct segments, each containing three characters. This type of uniform data is the ideal candidate for a Fixed Width split. Once the range is selected, navigate to the Data tab on the Excel ribbon. Within the Data Tools group, you will find the Text to Columns icon, which serves as the gateway to the parsing wizard.

Executing the Fixed Width Delimitation Process

Upon clicking the Text to Columns icon, a dialog box titled “Convert Text to Columns Wizard” will appear. This wizard consists of three distinct steps designed to guide the user through the configuration of the split. The first step requires you to choose the file type that best describes your data. Because we are splitting the string based on a specific character count rather than a comma or tab character, you must select the Fixed Width radio button. This selection informs Microsoft Excel that the alignment of the columns is based on character position.

Selecting Fixed Width is particularly effective when dealing with data that has been exported from systems that do not use modern CSV standards but instead rely on strictly defined column spans. After ensuring that Fixed Width is selected, click the Next button to proceed to the visual configuration stage. This is where the actual logic of the split is defined by the user through a graphical interface.

In this phase of the wizard, Excel provides a “Data Preview” window. This window displays the first few rows of your selected data and a ruler at the top to indicate character positions. To create a split point, simply click on the desired position on the ruler. A vertical line will appear, representing the “break” where the string will be severed. This interactive approach allows for high precision, as you can manually align the breaks to the exact character count required for your dataset.

Advanced Breakpoint Management and Visual Alignment

In the second step of the wizard, you have the opportunity to refine the locations of your column breaks. This is the most critical part of the process when you need to split a string by a specific length. For our employee ID example, we want to split the nine-character string into three-character chunks. Consequently, we will place a break line after the third character and another after the sixth character. This will result in three separate segments: characters 1-3, 4-6, and 7-9.

The interface is designed to be user-friendly: you can click to create a line, click and drag an existing line to move it, or double-click a line to remove it entirely. This flexibility ensures that even if you make a mistake in the initial placement, you can easily correct it before committing to the final transformation. The visual nature of this tool makes it far superior to manual data entry for complex strings, as it maintains perfect consistency across all selected rows simultaneously.

Once the vertical lines are correctly positioned according to your desired lengths, take a moment to review the preview. Ensure that the lines do not bisect any characters and that they align perfectly with the logical divisions of your data. If everything appears correct, click Next to move to the final stage of the configuration, where you will define the destination and data type for your newly created columns.

Configuring Destination Parameters and Data Formats

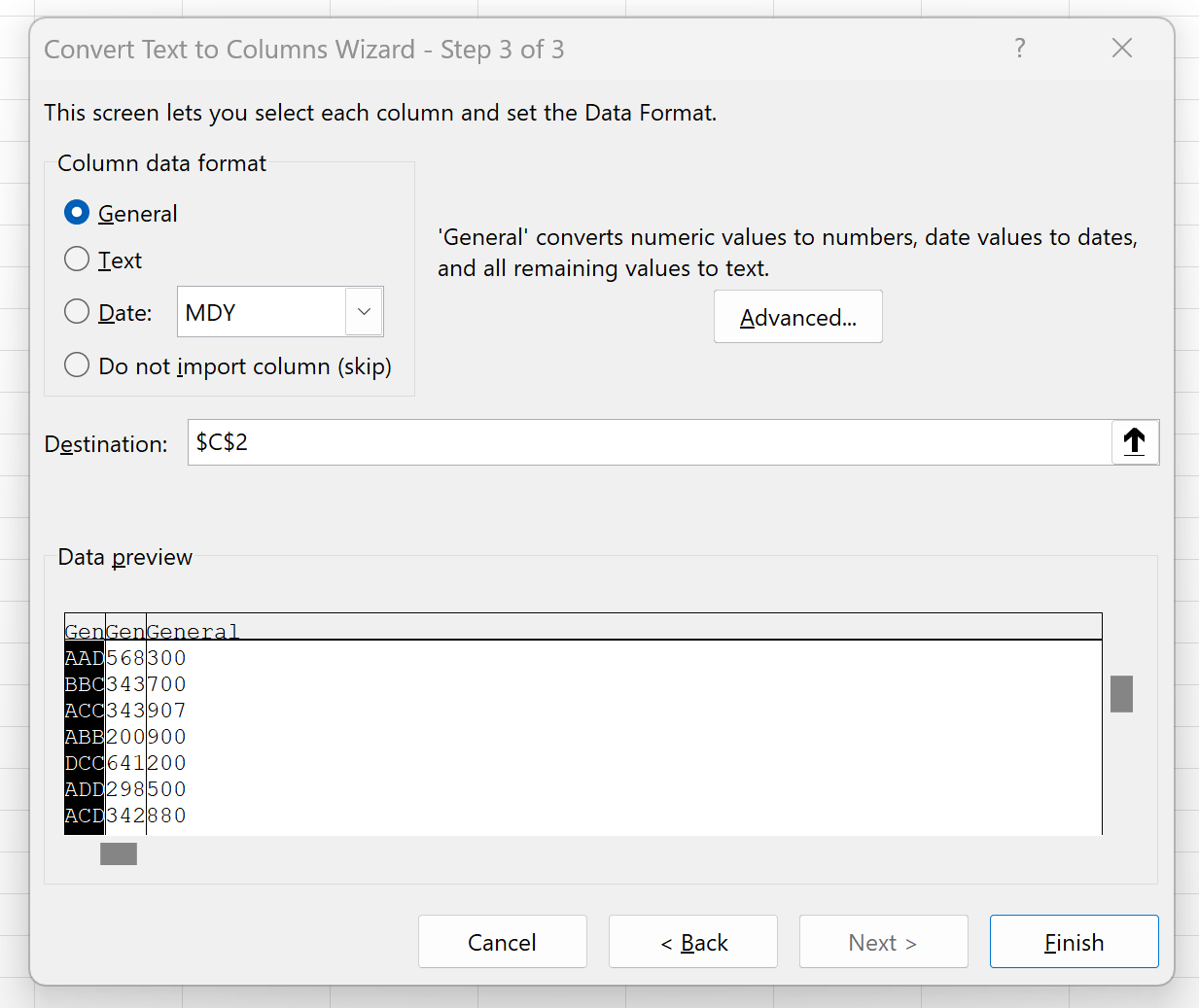

The final step of the Text to Columns wizard is perhaps the most important for preserving the integrity of your spreadsheet. Here, you can specify the Column data format for each of the new columns. By default, Excel uses the “General” format, which converts numeric-looking text into actual numbers and dates into date objects. However, if your string contains leading zeros (e.g., “001”), you should change the format to Text to prevent Excel from stripping those zeros away—a common frustration in data cleansing.

Crucially, you must also define the Destination for the split data. By default, Excel will set the destination to the first cell of your selection (e.g., $A$2), which means the original data will be overwritten by the first segment of the split. To preserve your original data, you should change the destination to an empty cell in a different column. In our example, we will set the destination to $C$2. This ensures that the original employee IDs remain in column A, while the three new segments are populated in columns C, D, and E.

After clicking Finish, Excel will execute the split based on your parameters. The result is a clean, multi-column representation of the original string. This transformation is permanent (though it can be undone immediately using Undo), providing a stable dataset for further manipulation. As shown in the final output image below, the employee IDs have been successfully parsed into three separate columns, significantly enhancing the readability and utility of the data.

Comparison Between Static Tools and Dynamic Formula Solutions

While the Text to Columns wizard is an exceptional tool for quick, static transformations, it is important for advanced users to understand when a formula-based approach might be more appropriate. The wizard is a “one-and-done” utility; if you add new rows of data to your list, you must run the wizard again to split the new entries. In contrast, using functions like LEFT, MID, and RIGHT creates a dynamic link. If the original string changes, the split segments update automatically.

For large datasets that require regular updates, formulas are often the superior choice for automation. However, formulas can become cumbersome if you need to split a string into many segments (e.g., 10 or more), as each segment requires its own unique formula and careful management of character offsets. The Text to Columns wizard handles multiple splits with ease, requiring only a few clicks regardless of the number of columns being created.

Another factor to consider is the use of Power Query, a more modern data transformation engine within Microsoft Excel. Power Query offers a “Split Column by Number of Characters” feature that combines the visual ease of the wizard with the refreshability of formulas. For users working with truly big data or complex extract-transform-load (ETL) processes, Power Query is the most robust option available, providing a repeatable script for all data parsing tasks.

Best Practices for Maintaining Data Integrity During Parsing

Regardless of the method you choose to split your string, adhering to data integrity best practices is essential. Always maintain a backup of your original data before performing a Fixed Width split. Because the Text to Columns wizard can overwrite data, having a copy of the raw information ensures that you can recover from any errors in the split logic or destination settings.

Furthermore, be mindful of non-printing characters, such as whitespace or carriage returns, which may be hidden within your strings. These characters count toward the length of the string and can cause your splits to become misaligned. Utilizing the TRIM or CLEAN functions prior to splitting can help remove these unwanted characters, ensuring a much cleaner and more accurate result.

Finally, always verify the data types of your output. As mentioned previously, Excel’s tendency to automatically format cells can lead to the loss of significant data, such as leading zeros in zip codes or ID numbers. By explicitly setting the column format to “Text” during the wizard process or using the TEXT function in formulas, you maintain control over how the information is stored and displayed. This attention to detail is what distinguishes a proficient data analyst from a casual user, ensuring that the resulting spreadsheet is both accurate and professional.
