This tutorial provides a step-by-step example of how to label in boxplots in ggplot2.

Step 1: Create the Data Frame

First, let’s create the following data frame that contains information on points scored by 60 different basketball players on three different teams:

#make this example reproducible
set.seed(1)

#create data frame
df <- data.frame(team=rep(c('A', 'B', 'C'), each=20),
                 player=rep(LETTERS[1:20], times=3),
                 points=round(rnorm(n=60, mean=30, sd=10), 2))

#view head of data frame
head(df)

  team player points
1    A      A  23.74
2    A      B  31.84
3    A      C  21.64
4    A      D  45.95
5    A      E  33.30
6    A      F  21.80

Note: We used the function to ensure that this example is reproducible.

Step 2: Define a Function to Identify Outliers

In ggplot2, an observation is defined as an outlier if it meets one of the following two requirements:

• The observation is 1.5 times the interquartile range less than the first quartile (Q1)
• The observation is 1.5 times the interquartile range greater than the third quartile (Q3).

We can create the following function in R to label observations as outliers if they meet one of these two requirements:

find_outlier <- function(x) {
  return(x < quantile(x, .25) - 1.5*IQR(x) | x > quantile(x, .75) + 1.5*IQR(x))
}

Related:

Step 3: Label Outliers in Boxplots in ggplot2

Next, we can use the following code to label outliers in boxplots in ggplot2:

library(ggplot2)
library(dplyr)

#add new column to data frame that indicates if each observation is an outlier
df <- df %>%
        group_by(team) %>%
        mutate(outlier = ifelse(find_outlier(points), points, NA))

#create box plot of points by team and label outliers
ggplot(df, aes(x=team, y=points)) +
  geom_boxplot() +
  geom_text(aes(label=outlier), na.rm=TRUE, hjust=-.5)

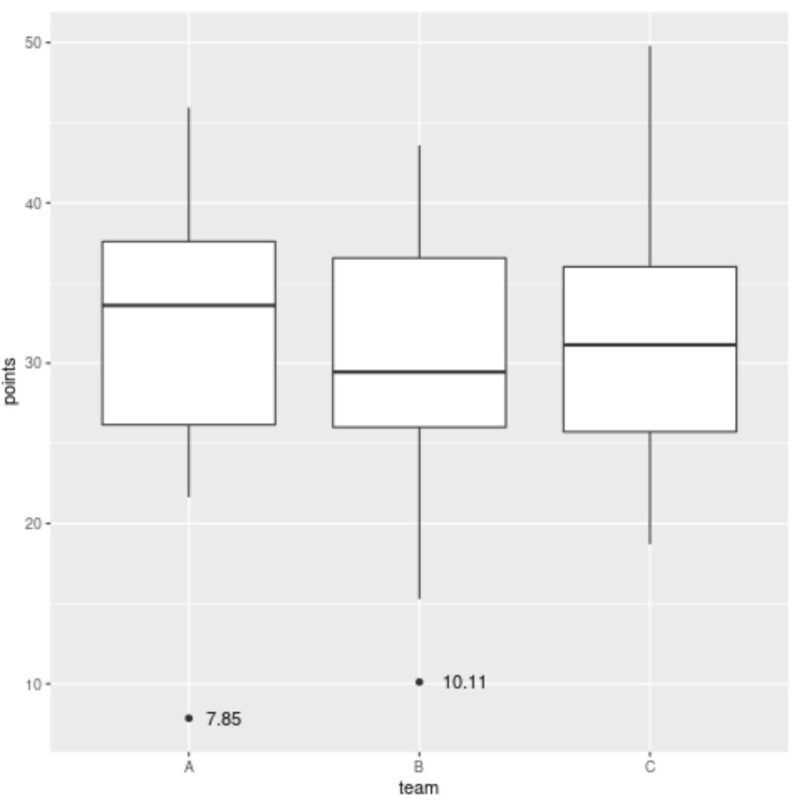

Notice that two outliers are labeled in the plot.

The first outlier is a player on team A who scored 7.85 points and the other outlier is a player on team B who scored 10.11 points.

For example, we could swap out points for player in the mutate() function to instead label the outliers based on the player name:

library(ggplot2)
library(dplyr)

#add new column to data frame that indicates if each observation is an outlier
df <- df %>%
        group_by(team) %>%
        mutate(outlier = ifelse(find_outlier(points), player, NA))

#create box plot of points by team and label outliers
ggplot(df, aes(x=team, y=points)) +
  geom_boxplot() +
  geom_text(aes(label=outlier), na.rm=TRUE, hjust=-.5)

The outlier on team A now has a label of N and the outlier on team B now has a label of D, since these represent the player names who have outlier values for points.

Note: The argument in geom_text() is used to push the label horizontally to the right so that it doesn’t overlap the dot in the plot.
