A scatterplot matrix is a matrix of scatterplots that lets you understand the pairwise relationship between different variables in a dataset.

This tutorial explains how to create the following scatterplot matrix in Excel:

Let’s jump in!

Step 1: Enter the Data

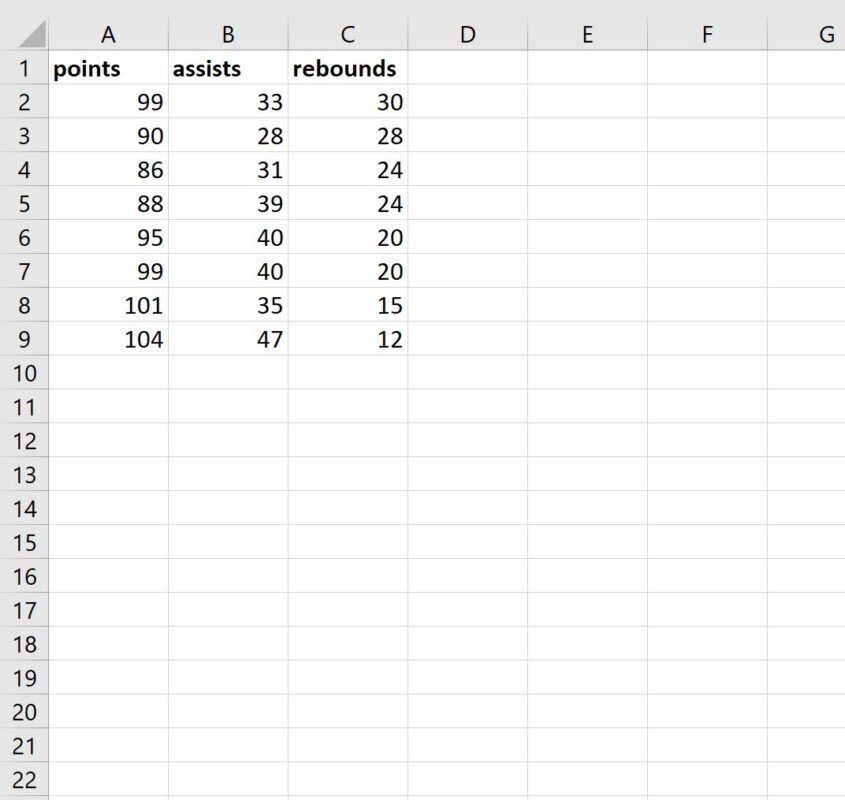

First, let’s enter the following values for a dataset that contains three variables: points, assists, and rebounds.

Step 2: Create the Scatterplots

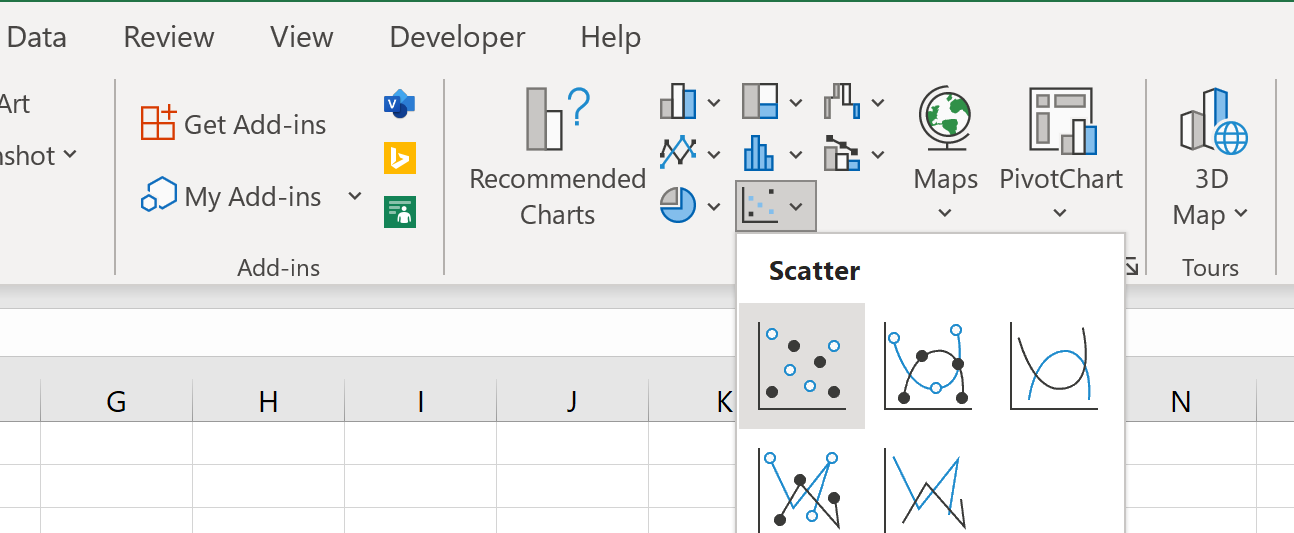

Next, let’s highlight the cell range A2:B9, then click the Insert tab, then click the Scatter button within the Charts group.

The following scatterplot of points vs. assists will automatically be created:

Next, perform the following steps:

• Click on the values on the x-axis and change the minimum axis bound to 80.
• Click the y-axis and change the minimum axis bound to 20.
• Click the Chart Title and delete it.
• Click on the gridlines in the chart and delete them.
• Lastly, resize the chart to make it smaller.

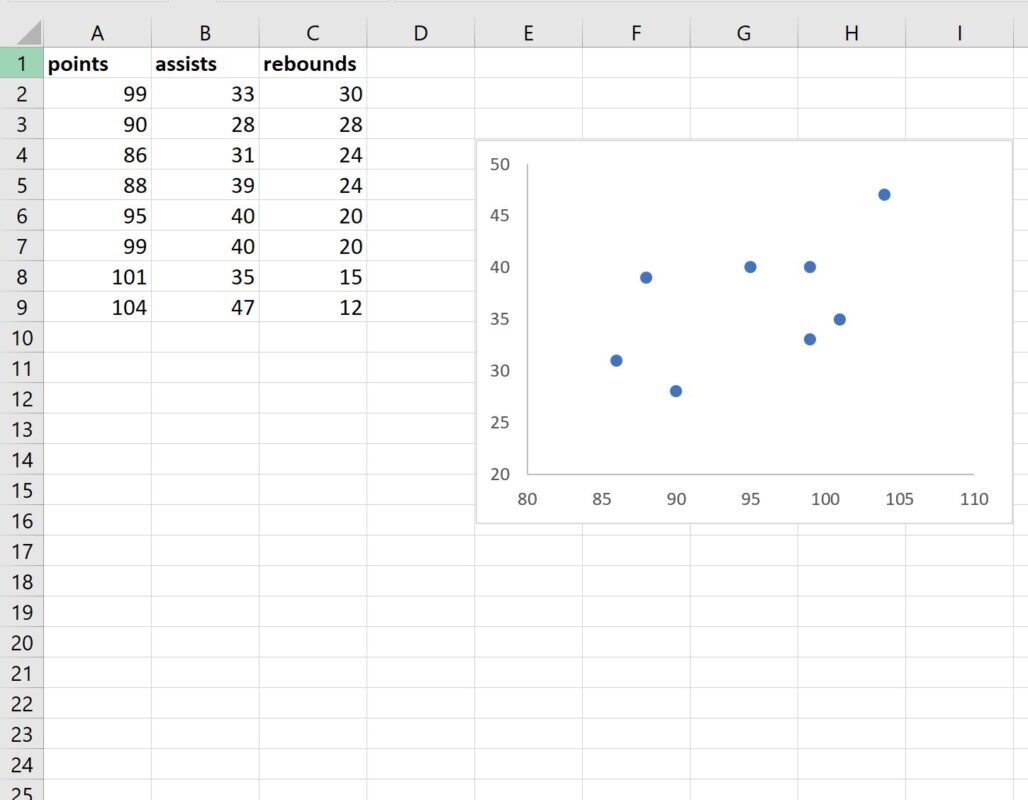

The end result should looking something like this:

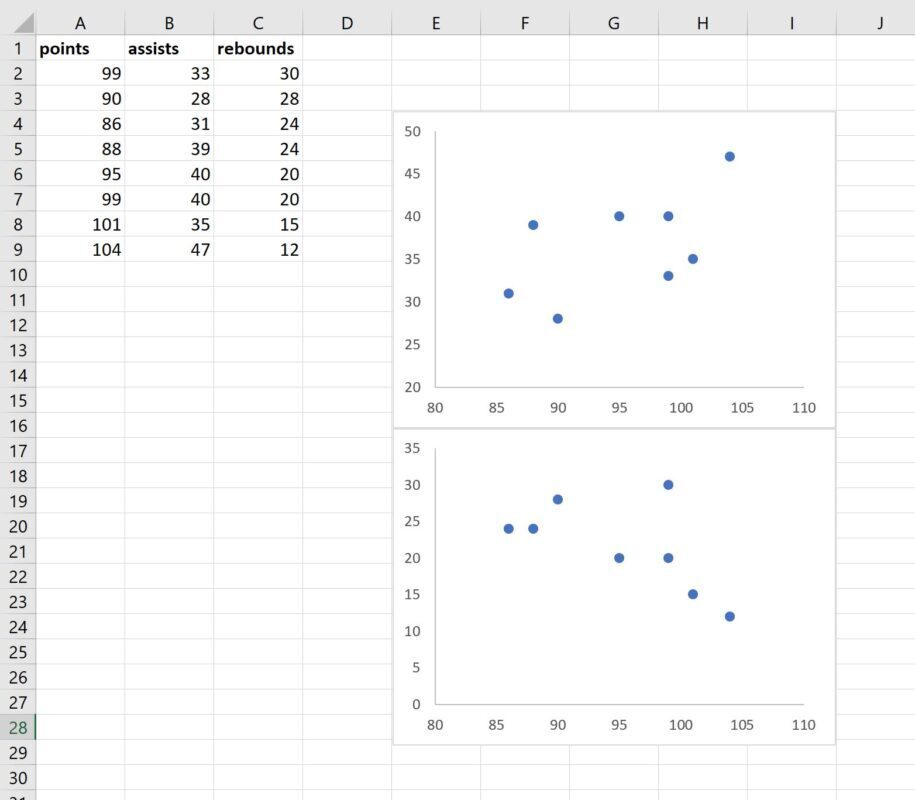

Next, repeat these exact same steps for the points and rebounds variables and place the scatterplot under the existing scatterplot:

Lastly, repeat these steps for the assists and rebounds variables and place the scatterplot in the bottom right corner:

Step 3: Label the Scatterplots

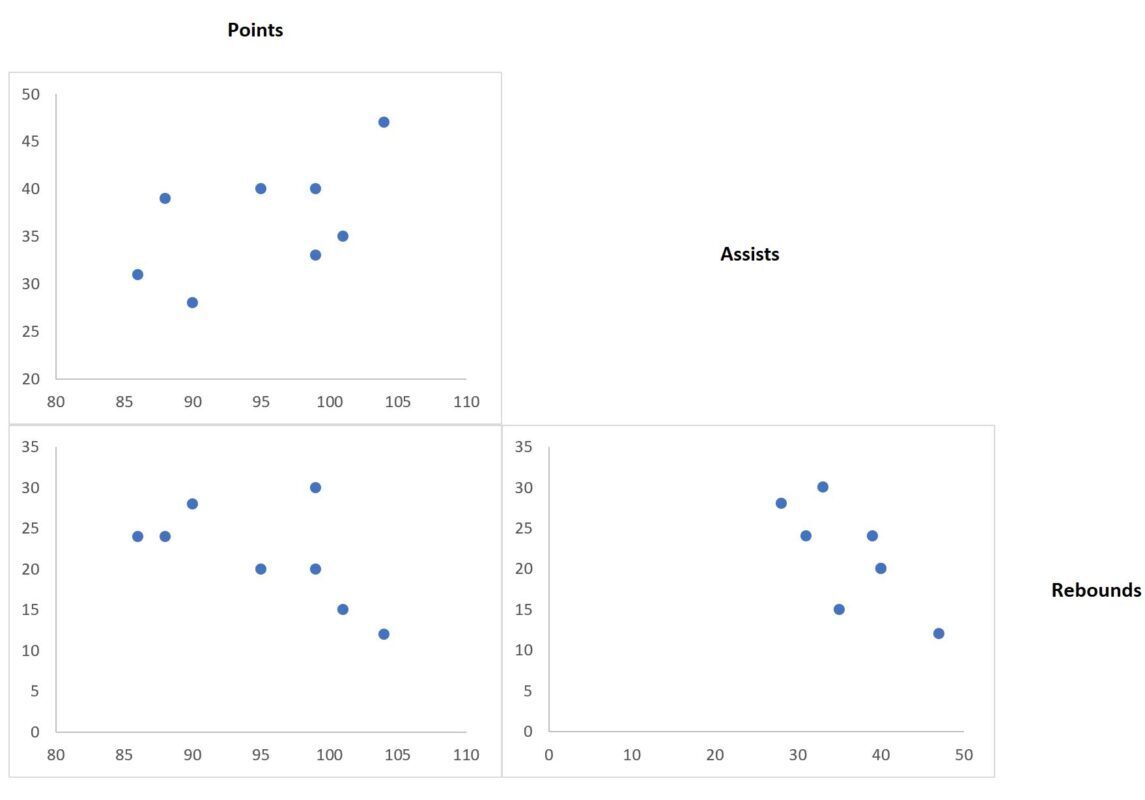

Lastly, type the variable names next to the scatterplots so that it’s easy to understand which scatterplots represent which variables:

Here’s how to interpret the plots:

• The scatterplot in the top left corner represents the relationship between points and assists.
• The scatterplot in the bottom left corner represents the relationship between points and rebounds.
• The scatterplot in the bottom right corner represents the relationship between assists and rebounds.

Note: Feel free to modify the color and size of the points in the scatterplots to make them appear however you’d’ like.
