How to Easily Count Used Columns in Your Dataset

Understanding the Core VBA Syntax for Column Detection

To effectively count the number of used columns in a Microsoft Excel worksheet, we leverage specific properties and methods within the VBA object model. The most reliable approach involves starting from the far right of the spreadsheet (the maximum column count) and navigating leftwards until the first cell containing data is encountered. This technique is superior to simply counting the UsedRange property, as it precisely identifies the boundary of a contiguous or semi-contiguous dataset originating from the left side of the sheet, thereby bypassing potential issues related to residual cell formatting.

The standard, streamlined syntax employs the combination of the Cells property, the Columns.Count property, and the End property used with the xlToLeft constant. Specifically, we target a reference row (typically Row 1, which usually contains headers) and combine it with the maximum possible column index using Columns.Count. The code then uses End(xlToLeft) to simulate pressing Ctrl + Left Arrow on the keyboard, stopping reliably at the last populated cell in that row. The resulting column index is then extracted using the .Column property, providing an accurate count.

The following basic syntax demonstrates how to execute this operation to count the number of used columns in a specified sheet, with the result immediately written back to a predefined cell location. This approach is highly efficient and forms the bedrock of most VBA column-counting procedures when automation is required:

Sub CountColumns()
    Range("A10") = Sheet1.Cells(1, Columns.Count).End(xlToLeft).Column
End Sub

In this particular execution of the macro, the system counts the number of occupied columns exclusively within the sheet named Sheet1, using the first row as the reference point. Once the calculation is complete, the final numeric output, representing the count, is immediately deposited into the specified Range object, cell A10. This method ensures that the count is recorded directly into the spreadsheet for documentation or further programmatic use.

Method 2: Utilizing the Message Box for Instant Feedback

While outputting the column count directly into a worksheet cell is beneficial for recording results or feeding into subsequent calculations, often a user requires immediate, transient feedback without altering the worksheet data. For such scenarios, employing the MsgBox function is the preferred method in VBA. The Message Box displays the result in a modal dialog window, providing instant confirmation to the user, a feature particularly useful during testing or interactive user sessions.

To implement this method, we introduce a variable, typically of the Long data type, to store the calculated column index. By assigning the result of the complex calculation (Sheet1.Cells(1, Columns.Count).End(xlToLeft).Column) to this variable, we isolate the calculation step and enhance code clarity. This stored integer value is then concatenated with a descriptive string and passed as the primary argument to the MsgBox function. This ensures that the user receives context along with the numerical result.

If you prefer to have the column count displayed instantly in a dialog box rather than written to a cell, the following augmented syntax should be utilized. This approach requires the declaration of a variable (Dim LastCol As Long) to temporarily hold the calculated index, which is then passed to the user interface element:

Sub CountColumns()
    Dim LastCol As Long
    LastCol = Sheet1.Cells(1, Columns.Count).End(xlToLeft).Column
    MsgBox "Column Count: " & LastCol
End Sub

This approach offers distinct advantages in terms of debugging and user interaction, as it immediately reports the metric without requiring the user to locate a specific output cell. It is invaluable for quick diagnostic checks where modifying the worksheet is undesirable.

Demonstration Dataset: A Basketball Player Roster

To fully grasp the practical implications of these two VBA methods, we will apply them to a concrete example dataset. This dataset is structured as a roster containing comprehensive information regarding various basketball players, which is a common format encountered in professional spreadsheet management. This scenario allows us to visualize precisely which columns are counted as “used” by the VBA procedure and why the result is definitive.

Consider the structure below. The data includes categorical and numerical variables organized neatly starting from column A. For the VBA script to function correctly, the data must be present in the designated reference row (Row 1). The End(xlToLeft) method will scan Row 1 until it identifies the furthest column that contains header information.

In this visualization, the dataset clearly occupies columns A, B, C, and D, extending through Row 8. When the VBA column counting procedure executes on Row 1 (which contains the headers: Player, Position, Team, Points), it will correctly identify the column index corresponding to the last header, which is column D. Since D is the fourth column in the spreadsheet, the expected output from the macro is the integer 4, regardless of the method chosen for displaying the result.

Example 1: Counting Used Columns and Displaying Results in a Cell

Our first detailed example focuses on implementing the initial method: calculating the number of used columns and directing the numerical result to a designated cell within the worksheet. This technique is essential for operations where the column count needs to be integrated into the worksheet structure, perhaps serving as an input parameter for other formulas, pivot table ranges, or subsequent macro steps that rely on knowing the exact data width.

The objective is to establish a permanent, verifiable record of the dataset’s width. We utilize the precise macro defined earlier, specifically targeting the output cell A10. This placement is strategic, ensuring the result is visible but remains segregated from the primary data block (A1:D8). To execute this, the user must access the VBA editor (Alt + F11), insert a new module, and paste the following code block:

Sub CountColumns()
    Range("A10") = Sheet1.Cells(1, Columns.Count).End(xlToLeft).Column
End Sub

Upon successful execution of the CountColumns macro, the targeted Range object A10 is updated with the calculated index. The output confirms the successful detection of the data boundaries based on the content found in Row 1. Observing the output below demonstrates the macro’s direct impact on the sheet:

As clearly shown, cell A10 now contains the numerical value of 4. This quantitative output explicitly informs us that the analyzed dataset on Sheet1 spans exactly four contiguous columns, from A through D. This robust method provides crucial structural metadata for effective workbook management and automation.

Example 2: Counting Used Columns and Displaying Results in a Message Box

The second implementation demonstrates utilizing the MsgBox function, which offers a non-intrusive and immediate way to retrieve the column count. This approach is highly valued by developers and users who need rapid, temporary diagnostics without modifying the underlying worksheet data. The primary difference from the first example lies entirely in the output mechanism.

The workflow for calculation remains identical, relying on the End(xlToLeft) method to pinpoint the index of the last used column. However, instead of assigning this value directly to a cell, we use the temporary variable LastCol to hold the integer value. This intermediate variable storage is essential for passing the metric cleanly to the user interface function. The final step involves calling the MsgBox function, which formats the output string for clear presentation.

The complete code for this second example is presented below. Note the use of the Dim keyword for explicit variable declaration, a practice that enhances code reliability, and the final call to the user interface element:

Sub CountColumns()
    Dim LastCol As Long
    LastCol = Sheet1.Cells(1, Columns.Count).End(xlToLeft).Column
    MsgBox "Column Count: " & LastCol
End Sub

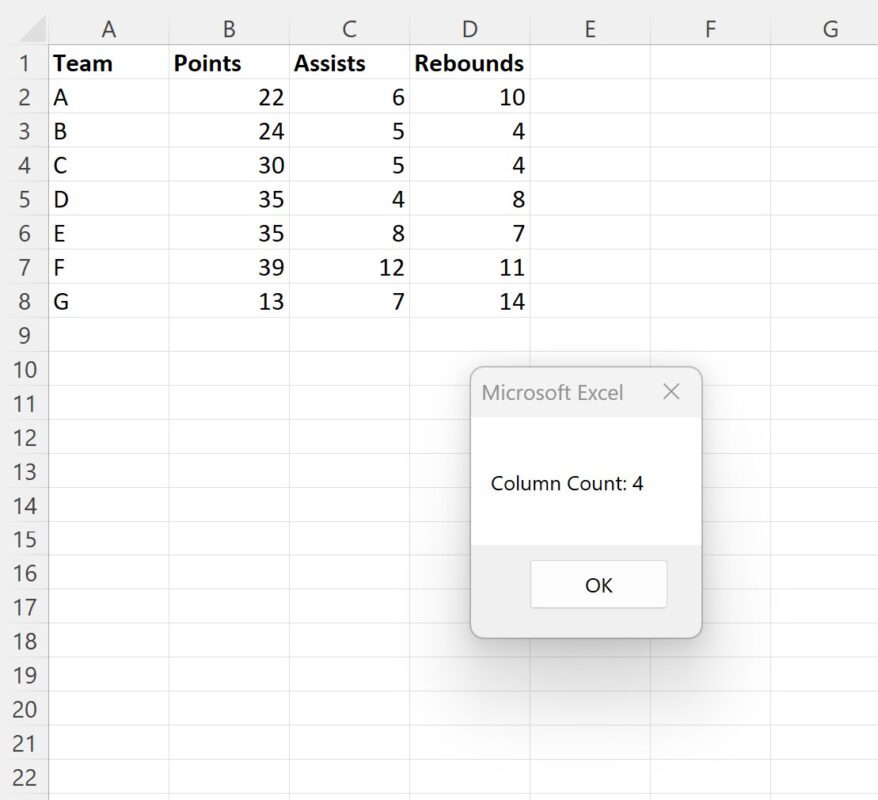

Executing this macro produces a clean, modal dialog box that halts interaction with the spreadsheet until it is acknowledged by the user. This graphical output clearly communicates the derived metric, fulfilling the requirement for instant, explicit feedback regarding the dataset’s structure:

As demonstrated by the message box, the calculated value confirms that there are precisely 4 used columns detected in the sheet. This result is consistent with the output generated in Example 1, validating the robustness and accuracy of the underlying VBA logic across different output formats.

Crucial Caveats and Considerations for VBA Column Counting

While the End(xlToLeft) method is remarkably effective and reliable for most structured data, developers must be aware of certain edge cases and behaviors inherent to how Excel and VBA interpret “used” columns. Understanding these nuances is essential for writing robust and error-resistant code, particularly when dealing with non-standard or sparse datasets where data density is inconsistent.

The method Sheet1.Cells(1, Columns.Count).End(xlToLeft).Column relies exclusively on finding the last non-empty cell in the designated reference row (Row 1). A crucial implication is its performance when dealing with datasets that contain interior empty columns followed by columns that contain data. For instance, if data headers exist in columns A, B, D, and F, with C and E being empty, the procedure will correctly identify column F as the last used column, resulting in a count of 6. The method successfully captures the entire data breadth, irrespective of interior gaps.

However, a significant note for developers regarding the definition of “used” range must be considered. If data has been deleted from a column, but that column still retains non-default formatting (e.g., a specific fill color, border, or number format), Excel might internally mark that column as part of the “used range.” If you were to use alternative methods, such as ActiveSheet.UsedRange.Columns.Count, you might receive an inflated count that includes these empty, but formatted, columns. By explicitly focusing on a single row using End(xlToLeft), we minimize the influence of these formatting artifacts, relying only on actual cell content in the header row.

Note: The key takeaway is that the chosen method is highly effective for identifying the furthest extent of data based on cell content. If there are empty columns followed by columns with data, the VBA script successfully counts up to the very last column containing information in the reference row. If your dataset headers are not in Row 1, you must adjust the .Cells(1, Columns.Count) portion of the code to reflect the correct row number (e.g., .Cells(2, Columns.Count) for headers in Row 2).
