How to Chart the Difference Between Two Data Series in Excel

The Role of Comparative Visuals in Modern Business Analytics

In the contemporary landscape of data-driven decision-making, the ability to effectively communicate differences between distinct datasets is paramount. When professionals utilize Microsoft Excel to manage financial or operational records, they often encounter the need to visualize how performance metrics fluctuate over specific intervals. Whether you are tracking revenue growth, inventory changes, or marketing conversion rates, a standard chart may not provide enough context on its own. By focusing on the variance between two series, analysts can pinpoint specific months or categories where goals were exceeded or where the business fell short of expectations.

Effective data visualization serves as a bridge between complex raw numbers and actionable insights. A well-constructed bar chart that highlights the delta between two time periods allows stakeholders to bypass dense tables and immediately grasp the magnitude of change. This approach is particularly useful in executive reporting, where clarity and speed of interpretation are highly valued. By adding a layer of comparative analysis directly onto the visual representation, you transform a static report into a dynamic tool for strategic planning and business intelligence.

The following guide details a sophisticated method for creating a clustered column chart that not only displays two series side-by-side but also integrates dynamic data labels to show the exact percentage difference. This technique ensures that your audience understands the “why” behind the numbers, providing a clear narrative of year-over-year performance. Mastering these advanced formatting steps in a spreadsheet environment will significantly elevate the quality of your professional presentations and internal audits.

Before diving into the technical steps, it is essential to recognize that the strength of any analytical chart lies in the quality of the underlying data. Structured preparation is the first step toward generating a visual that is both accurate and persuasive. By following a rigorous methodology, you ensure that the final output is not only aesthetically pleasing but also factually robust and easy to update as new data becomes available in future cycles.

Step 1: Structuring Your Data for Efficient Chart Creation

To initiate the process of creating a comparative chart, you must first organize your information within a clean and logical tabular format. In Microsoft Excel, the most effective way to manage multiple series is to place your independent variables, such as months or categories, in the first column. This serves as the X-axis for your visualization. Following this, the dependent variables—the actual numerical data points for each series—should be placed in adjacent columns. This structure allows the software to correctly identify the data range and automatically assign labels to the appropriate series.

As illustrated in the example below, we are focusing on the total product sales of a company across two consecutive years. Ensuring that there are no empty rows or formatting inconsistencies within this range is critical, as any gaps can lead to errors in the charting engine or misleading gaps in the visual output. Each cell should contain standardized numerical values to allow for accurate mathematical calculations in the subsequent steps of the tutorial.

Once your primary data is entered, take a moment to verify that the headers are descriptive. Using labels like “Year 1” and “Year 2” or specific dates helps the Legend Entries in the chart stay clear and understandable. This foundation in data hygiene is what separates basic users from advanced data analysts. A well-organized spreadsheet layout simplifies the selection process when you eventually navigate to the Insert tab to generate the visual components of your report.

Step 2: Calculating Temporal Variances Using Advanced Formulas

A standard clustered column chart shows two bars side-by-side, but it does not inherently tell the reader the exact percentage change between them. To provide this level of detail, we must manually calculate the difference between the two series in a dedicated column. This supplemental data will eventually serve as our custom data labels. By calculating these values beforehand, we can leverage Excel’s ability to reference cell values directly within a chart’s graphical interface.

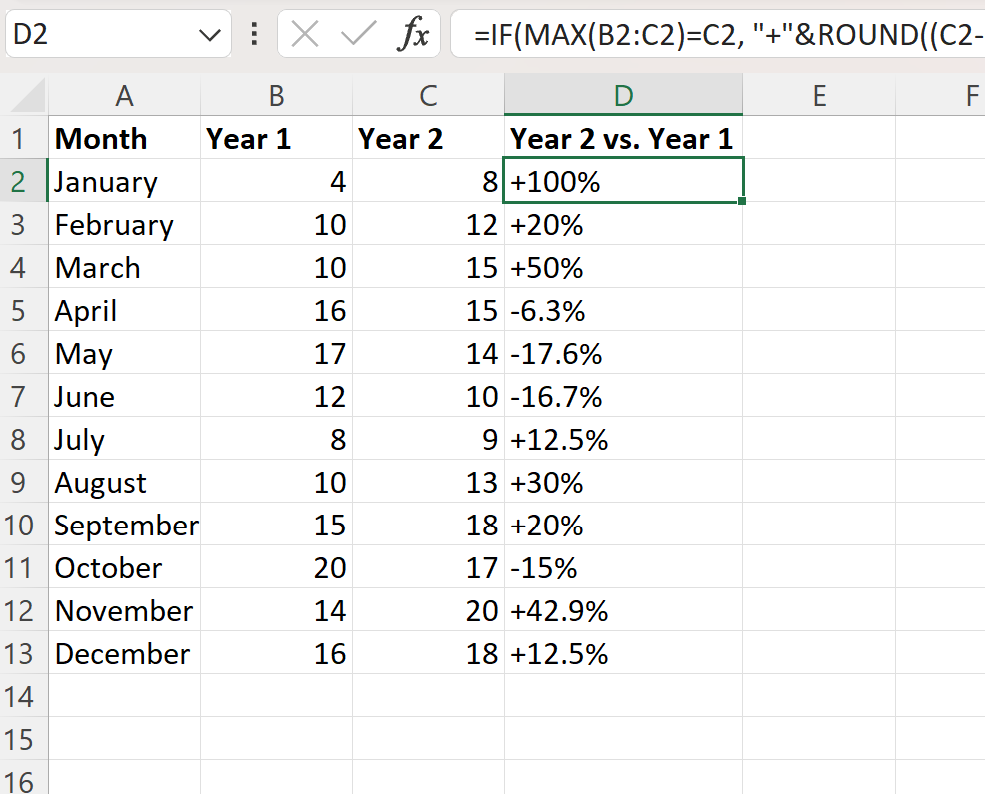

In cell D2, we will input a comprehensive formula designed to determine the percentage difference between the two years. This formula is sophisticated enough to include a “+” sign if the second year outperformed the first, and it rounds the result to a single decimal place for better readability. This type of conditional logic ensures that the labels are consistent and professional in appearance across the entire dataset.

=IF(MAX(B2:C2)=C2,"+"&ROUND((C2-B2)/B2*100,1)&"%",ROUND((C2-B2)/B2*100,1)&"%")

After entering the formula, use the fill handle to drag the logic down through all twelve months in column D. This action applies the relative cell referencing needed to calculate the specific variance for each month. The resulting column provides a clear mathematical representation of growth or decline, which is far more informative than raw totals alone. You will now see a list of percentages that represent the month-over-month performance shifts between Year 1 and Year 2.

This calculated column is the engine behind our enhanced visualization. While column D will not be plotted as a bar itself, its values will be “mapped” onto the chart in a later stage. This approach demonstrates a high-level mastery of Microsoft Excel features, combining mathematical accuracy with advanced design techniques to produce a truly insightful business document.

Step 3: Constructing the Primary Clustered Column Visualization

With the data and calculations prepared, the next objective is to generate the visual framework. Begin by highlighting the range A1:C13, which includes your month labels and the sales data for both years. It is important not to include column D in this initial selection, as we want the chart to focus solely on the primary sales volumes first. Navigate to the Ribbon at the top of the interface and select the Insert tab to view the various charting options available.

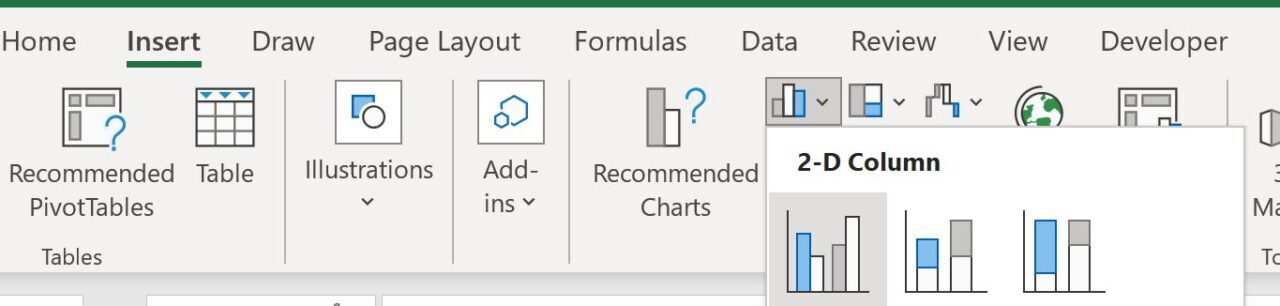

Within the Charts group, locate the icon for column charts and select the Clustered Column option. This specific column chart style is ideal for side-by-side comparisons because it groups the data points for each month together, making it easy to see which year had higher sales volume at a glance. Upon selection, the chart will automatically populate on your current worksheet, displaying two distinct colors for the two series.

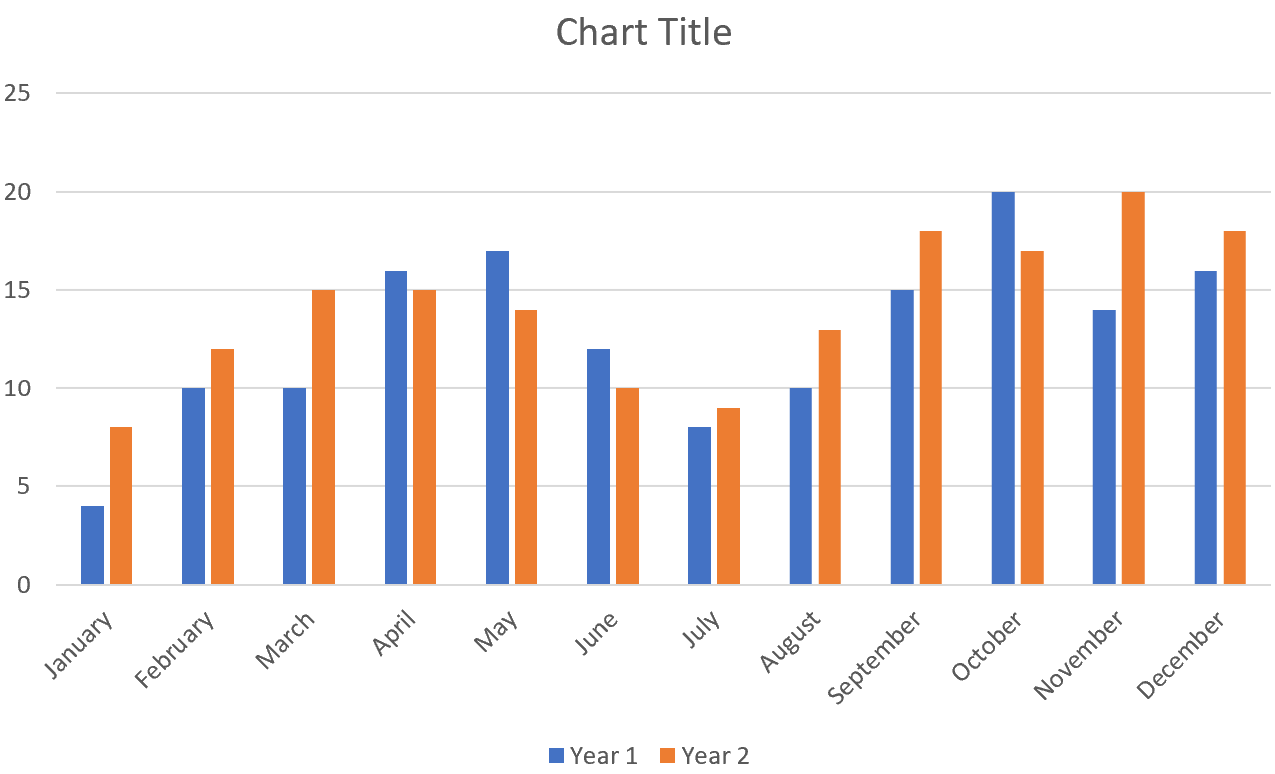

At this stage, the blue bars represent the initial series (Year 1) and the orange bars represent the secondary series (Year 2). While this provides a basic comparison, the viewer still has to estimate the differences between the bar heights. To make the chart more effective, we will move beyond these defaults. The user interface in Microsoft Office provides deep customization options that allow us to overlay the percentages we calculated in the previous step, transforming the chart into a much more powerful analytical asset.

Step 4: Integrating Custom Data Labels for Enhanced Contextual Detail

To bridge the gap between visual comparison and numerical precision, we must add data labels that pull information from our calculated variance column. Start by clicking on any of the bars belonging to the second series (the orange bars). This action selects the entire series. Look for the Chart Elements button, represented by a green plus sign in the upper-right corner of the chart area. This menu allows you to toggle various visual aids, such as gridlines, legends, and labels.

Hover over the Data Labels option, click the small arrow to the right, and select More Options. This will open the Format Data Labels task pane on the right side of the screen. This pane is where the most significant customization occurs. Instead of displaying the default Y-axis values, we want to display the percentage changes we calculated earlier. This feature allows for a much more nuanced interpretation of the data series than standard settings permit.

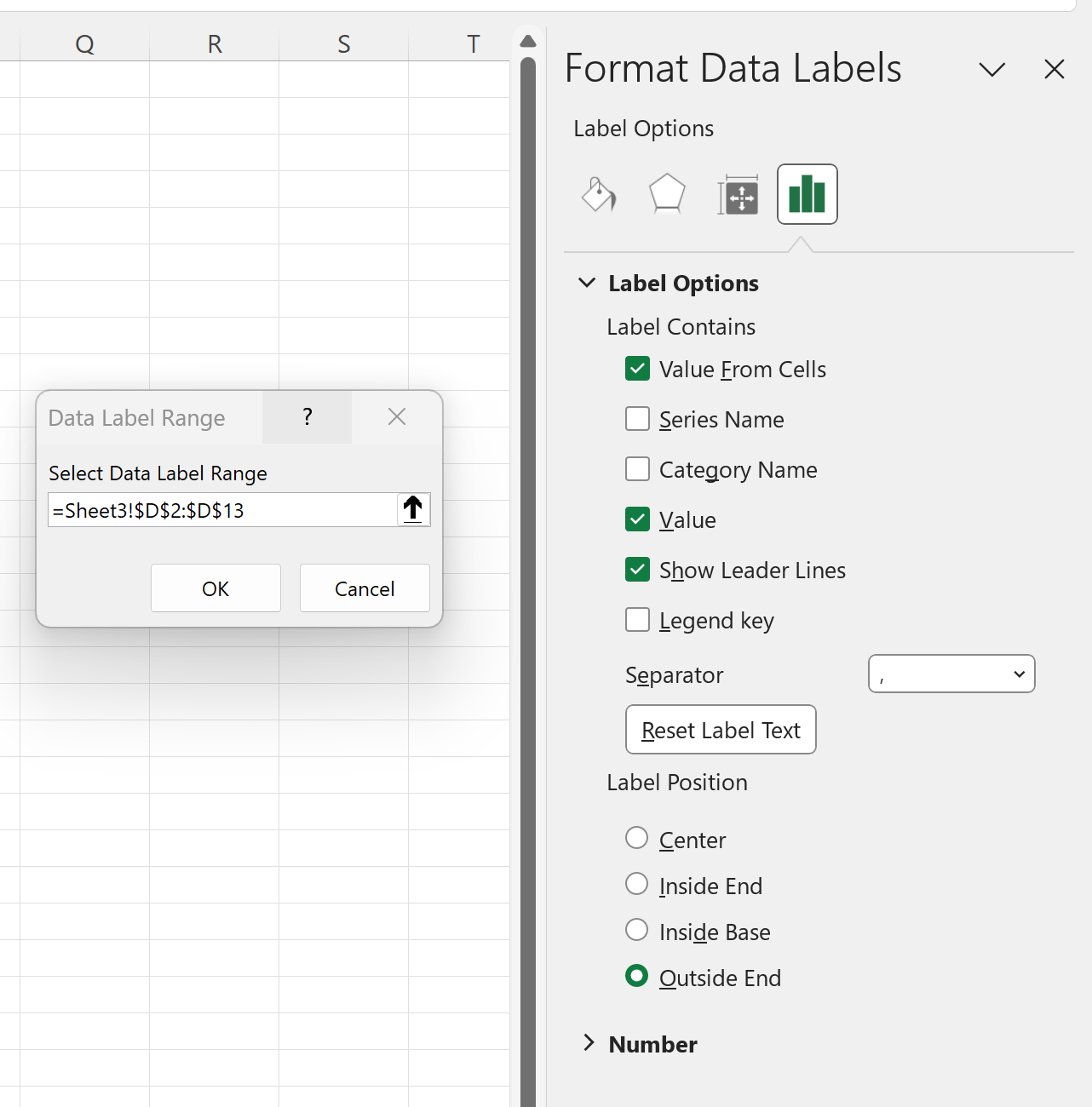

In the Label Options section, check the box labeled Value From Cells. A dialog box will appear, prompting you to select the Data Label Range. Highlight cells D2:D13, which contain your percentage calculations. After clicking OK, ensure you uncheck the standard Value and Show Leader Lines boxes. This ensures that only the percentage difference is visible above the bars, creating a clean and professional infographic style that highlights the relative variance between the two years.

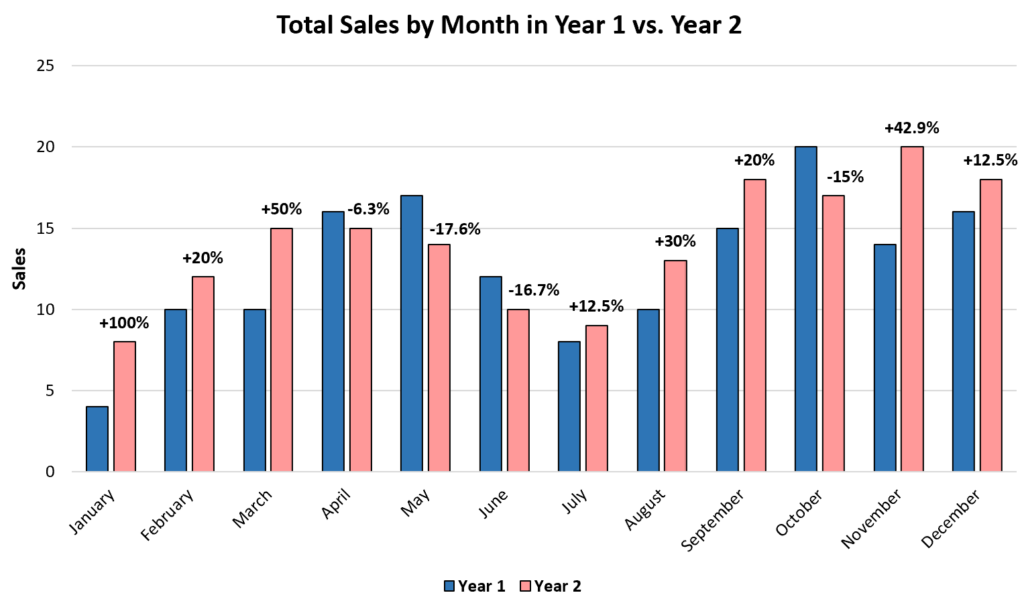

The resulting visual now clearly displays the percentage growth or decline directly above the relevant data points. This eliminates the need for the viewer to perform mental arithmetic, as the quantitative difference is explicitly stated. By leveraging this “Value From Cells” feature, you create a dynamic link; if the sales numbers in your original table change, both the bar heights and the percentage labels will update automatically, maintaining the integrity of your business reporting.

Step 5: Fine-Tuning Aesthetic Elements for Executive-Level Presentations

Once the functional components of the chart are in place, the final phase involves aesthetic refinement. Professionalism in data visualization is often found in the details, such as color choice, font clarity, and white space management. You may want to adjust the Gap Width of the bars by right-clicking a series and selecting Format Data Series. Reducing the gap width makes the bars wider, which can make the chart feel more substantial and easier to read from a distance during a presentation.

Furthermore, consider the color palette. Using high-contrast colors helps differentiate between the two series, but you should ensure they align with your organization’s branding guidelines. You can also add a descriptive Chart Title that summarizes the key takeaway, such as “Monthly Sales Comparison: Year 1 vs. Year 2.” Adding Axis Titles provides necessary context for the units of measurement, ensuring there is no ambiguity regarding whether the numbers represent currency, units sold, or other key performance indicators.

Lastly, review the Legend placement. Positioning the legend at the top or bottom can free up horizontal space, allowing the bar chart to expand and reveal more detail. If your chart feels cluttered, you might also consider adjusting the font size of your data labels or changing their color to strong black or grey to ensure they stand out against the background. These final touches transform a standard Excel output into a bespoke visualization suitable for high-stakes business environments.

Step 6: Best Practices for Maintaining Scalable and Dynamic Excel Dashboards

Creating a one-off chart is useful, but building a scalable system within Microsoft Excel is the hallmark of a truly efficient professional. To ensure your chart remains useful over time, consider using Excel Tables (Ctrl+T) for your source data. When data is formatted as a table, any new rows added to the bottom will be automatically included in the chart range, and your percentage formulas will auto-fill into the new cells. This automation reduces the risk of manual entry errors and saves significant time during monthly updates.

Another advanced tip is to utilize conditional formatting within your data labels. While we manually added the “+” sign via a formula, you could also use custom number formats to color-code the labels—for instance, making positive changes green and negative changes red. This adds another layer of pre-attentive processing for the viewer, allowing them to instantly identify months of concern versus months of success. Such visual cues are essential for effective communication in complex financial modeling.

Always remember to document your process if the spreadsheet is shared with a team. Briefly explaining how the variance labels are generated ensures that others can maintain the file in your absence. By combining technical proficiency with collaborative best practices, you create a robust analytical tool that serves not just as a static image, but as a living component of your company’s data ecosystem. This holistic approach to Excel ensures that your charts are always accurate, relevant, and visually compelling.

Conclusion and Further Learning Resources

Visualizing the difference between two series in Microsoft Excel is a fundamental skill that enhances any analytical report. By moving beyond basic charting and incorporating custom data labels and calculated variances, you provide your audience with a deeper level of insight. The ability to see both the absolute values and the relative change simultaneously is a powerful way to communicate performance trends and operational efficiency.

As you continue to develop your skills in data visualization, explore other chart types such as waterfall charts or combination charts, which can also be used to show variances in different contexts. The principles of clarity, accuracy, and professional design remain the same regardless of the specific tool or chart type you choose. Continuous improvement in these areas will ensure your data storytelling remains impactful and persuasive.

To further expand your expertise in Microsoft Office applications, consider exploring additional tutorials on PivotTables, advanced lookup functions, and dashboard design. Mastering the full suite of Excel’s capabilities will empower you to handle increasingly complex datasets with confidence and precision. The following resources and tutorials provide deeper dives into related topics to help you on your journey toward data mastery:
