Multivariate adaptive regression splines (MARS) can be used to model nonlinear relationships between a set of predictor variables and a response variable.

This method works as follows:

1. Divide a dataset into k pieces.

2. Fit a regression model to each piece.

3. Use k-fold cross-validation to choose a value for k.

This tutorial provides a step-by-step example of how to fit a MARS model to a dataset in R.

Step 1: Load Necessary Packages

For this example we’ll use the Wage dataset from the ISLR package, which contains the annual wages for 3,000 individuals along with a variety of predictor variables like age, education, race, and more.

Before we fit a MARS model to the data, we’ll load the necessary packages:

library(ISLR)      #contains Wage datasetlibrary(dplyr)     #data wranglinglibrary(ggplot2)   #plottinglibrary(earth)     #fitting MARS modelslibrary(caret)     #tuning model parameters

Step 2: View Data

Next, we’ll view the first six rows of the dataset we’re working with:

#view first six rows of data
head(Wage)

       year age           maritl     race       education             region
231655 2006  18 1. Never Married 1. White    1. < HS Grad 2. Middle Atlantic
86582  2004  24 1. Never Married 1. White 4. College Grad 2. Middle Atlantic
161300 2003  45       2. Married 1. White 3. Some College 2. Middle Atlantic
155159 2003  43       2. Married 3. Asian 4. College Grad 2. Middle Atlantic
11443  2005  50      4. Divorced 1. White      2. HS Grad 2. Middle Atlantic
376662 2008  54       2. Married 1. White 4. College Grad 2. Middle Atlantic
             jobclass         health      health_ins  logwage      wage
231655  1. Industrial      1. <=Good      2. No       4.318063     75.04315
86582   2. Information     2. >=Very Good 2. No       4.255273     70.47602
161300  1. Industrial      1. <=Good      1. Yes      4.875061     130.98218
155159  2. Information     2. >=Very Good 1. Yes      5.041393     154.68529
11443   2. Information     1. <=Good      1. Yes      4.318063     75.04315
376662  2. Information     2. >=Very Good 1. Yes      4.845098     127.11574

Step 3: Build & Optimize the MARS Model

Next, we’ll build the MARS model for this dataset and perform k-fold cross-validation to determine which model produces the lowest test RMSE (root mean squared error).

#create a tuning grid
hyper_grid <- expand.grid(degree = 1:3,
                          nprune = seq(2, 50, length.out = 10) %>%                          floor())

#make this example reproducible
set.seed(1)

#fit MARS model using k-fold cross-validation
cv_mars <- train(
  x = subset(Wage, select = -c(wage, logwage)),
  y = Wage$wage,
  method = "earth",
  metric = "RMSE",
  trControl = trainControl(method = "cv", number = 10),
  tuneGrid = hyper_grid)

#display model with lowest test RMSE
cv_mars$results %>%filter(nprune==cv_mars$bestTune$nprune, degree =cv_mars$bestTune$degree)
degree	nprune	RMSE	 Rsquared   MAE	      RMSESD	RsquaredSD   MAESD
1	12	33.8164  0.3431804  22.97108  2.240394	0.03064269   1.4554

From the output we can see that the model that produced the lowest test MSE was one with only first-order effects (i.e. no interaction terms) and 12 terms. This model produced a root mean squared error (RMSE) of 33.8164.

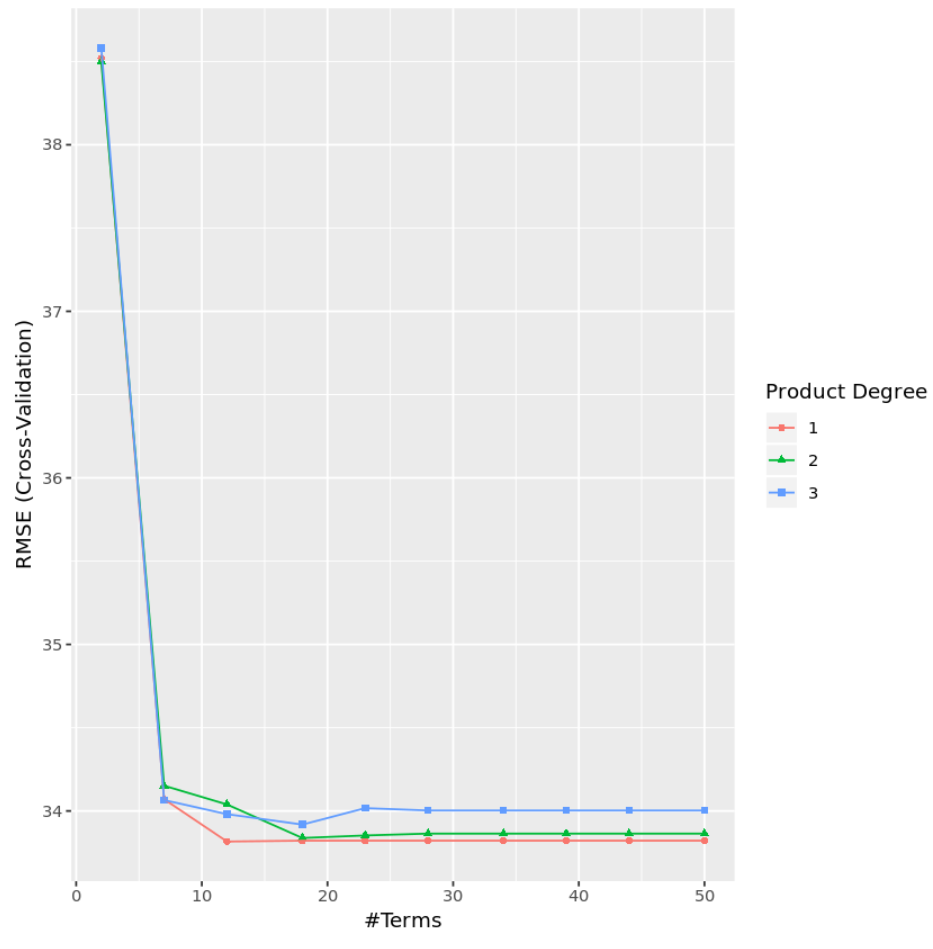

We can also create a plot to visualize the test RMSE based on the degree and the number of terms:

#display test RMSE by terms and degree
ggplot(cv_mars)

In practice we would fit a MARS model along with several other types of models like:

• Multiple Linear Regression
• Polynomial Regression
• Ridge Regression
• Lasso Regression
• Principal Components Regression
• Partial Least Squares

We would then compare each model to determine which one lead to the lowest test error and choose that model as the optimal one to use.

The complete R code used in this example can be found here.
