How to Easily Plot a Subset of Your Data Frame in R

Introduction: The Power of Subsetting in R Visualization

The ability to visualize specific portions of a dataset is fundamental to effective data analysis. When working within the R programming environment, plotting a targeted subset of a data frame rather than the entire structure allows analysts to focus on relevant trends, identify outliers within specific segments, and confirm hypotheses related to particular data characteristics. This process typically involves two coordinated steps: first, identifying and isolating the desired rows or columns using specialized functions or indexing techniques—a process known as subsetting; and second, passing this reduced data structure to a graphical function, such as the standard plot() function, to render the visualization.

R provides immense flexibility in how this subsetting is performed. Analysts can define criteria based on the values within one or more columns using logical operators. For instance, one might only wish to visualize data points where a particular variable exceeds a certain threshold, or where multiple conditions are simultaneously met. Mastering these subsetting techniques is crucial because poorly defined subsets can lead to misleading visualizations, whereas precise subsetting yields high-impact, focused graphical summaries.

This detailed guide will explore the robust methods available in R for executing conditional plotting. We will focus specifically on base R indexing combined with the efficient with() function to streamline the code, ensuring the resulting plots accurately reflect the specified conditions. We will cover both scenarios: plotting based on a single condition and plotting when multiple, compounded logical constraints are required. This approach is highly valued for its speed and clarity in exploratory data analysis.

Understanding Data Subsetting in R

A data frame in R is essentially a rectangular table, where columns represent variables and rows represent observations. Subsetting involves selecting specific rows (observations) and/or columns (variables) based on certain criteria. When our goal is visualization, we usually seek to subset the rows based on values contained within one or more variables. This operation is achieved by supplying a logical vector within the square brackets ([]) that follow the data frame name.

For conditional plotting, the logical vector determines which rows are kept (TRUE) and which are discarded (FALSE). For example, if we have a data frame named df and we want to keep only the rows where the value in the column var3 is less than 15, we construct the logical vector using the expression df$var3 < 15. When this expression is placed inside the row index position of the data frame (e.g., df[df$var3 < 15, ]), R returns a new, temporary data frame containing only the rows meeting that criterion. The comma after the condition ensures that all columns are retained in the subsetted structure.

While functions like subset() exist and are often used for general data management, direct indexing using square brackets is highly efficient, especially when immediately chaining the result into a plotting function. Furthermore, wrapping the subsetting and plotting operations within the with() function simplifies the syntax significantly. The with() function allows expressions to be evaluated in a specified environment—in this case, the subsetted data frame—meaning we do not need to repeatedly prefix variable names with the data frame identifier (e.g., using var1 instead of df$var1). This promotes cleaner, more readable code, which is vital for reproducible analysis.

Key Functions for Conditional Plotting: Indexing and the with() Function

The foundation of visualization in base R rests on the generic plot() function. This function is highly versatile and can generate different types of graphs depending on the data types supplied to it. When two numeric vectors are provided, plot() defaults to producing a scatter plot, which is the most common visualization technique used when examining relationships between two continuous variables within a dataset subset.

However, simply calling plot(df$var1, df$var2) plots the entire dataset. To incorporate the subsetting logic efficiently, we pair the index-based subsetting operation with the with() function. The structure with(data_source, expression) evaluates the expression (in our case, the plot() call) using the columns available in the data_source. By defining the data_source as the conditionally subsetted data frame, we ensure that the plot only receives the filtered observations, thereby focusing the visual output precisely on the required data points.

The complete syntax pattern for conditional plotting therefore becomes: with(df[logical_condition, ], plot(X_variable, Y_variable)). This structure is powerful because it performs the filtering and the visualization command simultaneously in one concise line of code. It is an optimized approach frequently used by experienced R programmers when generating quick, targeted visualizations, avoiding the need to create and store intermediate subset data frames in memory, which can be inefficient when dealing with very large datasets.

Practical Demonstration: Setting Up the Sample Data Frame

To effectively illustrate the methods for conditional plotting, we must first establish a representative sample data frame. This synthetic dataset, named df, contains four numeric variables (A, B, C, and D) and a limited number of observations, allowing us to easily verify the results of our subsetting operations by hand. The variables are intentionally designed to overlap in value ranges, providing fertile ground for testing various logical operators.

We will use this standardized setup throughout the examples to demonstrate both single and multiple condition subsetting, ensuring clarity and consistency. The resulting data frame structure will serve as the baseline against which all conditional plots are generated, with variables A and B typically serving as the axes for the visualization, and variables C and D supplying the filtering criteria.

The following code block shows the creation and structure of our sample data frame in R:

#create data frame
df <- data.frame(A=c(1, 3, 3, 4, 5, 7, 8),
                 B=c(3, 6, 9, 12, 15, 14, 10),
                 C=c(10, 12, 14, 14, 17, 19, 20),
                 D=c(5, 7, 4, 3, 3, 2, 1))

#view data frame
df

  A  B  C D
1 1  3 10 5
2 3  6 12 7
3 3  9 14 4
4 4 12 14 3
5 5 15 17 3
6 7 14 19 2
7 8 10 20 1

Note that variables A and B will typically serve as the X and Y axes for our visualizations, while variables C and D will supply the conditional criteria for row selection during the subsetting process.

Method 1: Plotting Based on a Single Logical Condition

The simplest form of conditional plotting involves filtering the data based on a single criterion applied to a single column. This is useful when you want to isolate a specific segment of the population—for instance, observations below a threshold, above a threshold, or exactly equal to a particular value. For this method, the logical expression within the subsetting brackets will utilize only one logical operator (such as <, >, ==, or !=).

Consider the scenario where we want to visualize the relationship between Variable A and Variable B, but only for observations where Variable C is strictly less than 15. In our sample data frame, this condition will select the first four rows (where C values are 10, 12, 14, and 14). The remaining three rows, where C is 17, 19, or 20, will be excluded from the visualization entirely. This highly targeted approach ensures that the resulting plot focuses exclusively on the data points meeting the specified single criterion, preventing potentially obscuring data points from skewing the visual perception of the trend within the subset.

The structure used here combines the subsetting index df[df$C < 15, ] with the with() function and the plot() function. The general syntax for this approach, using arbitrary variables, is summarized below, followed by the specific implementation using our sample data frame:

#plot var1 vs. var2 where var3 is less than 15
with(df[df$var3 < 15,], plot(var1, var2))

Applying this structure to our specific example, where we create a scatter plot of A vs. B conditional on C being less than 15:

#plot A vs. B where C is less than 15
with(df[df$C < 15,], plot(A, B))

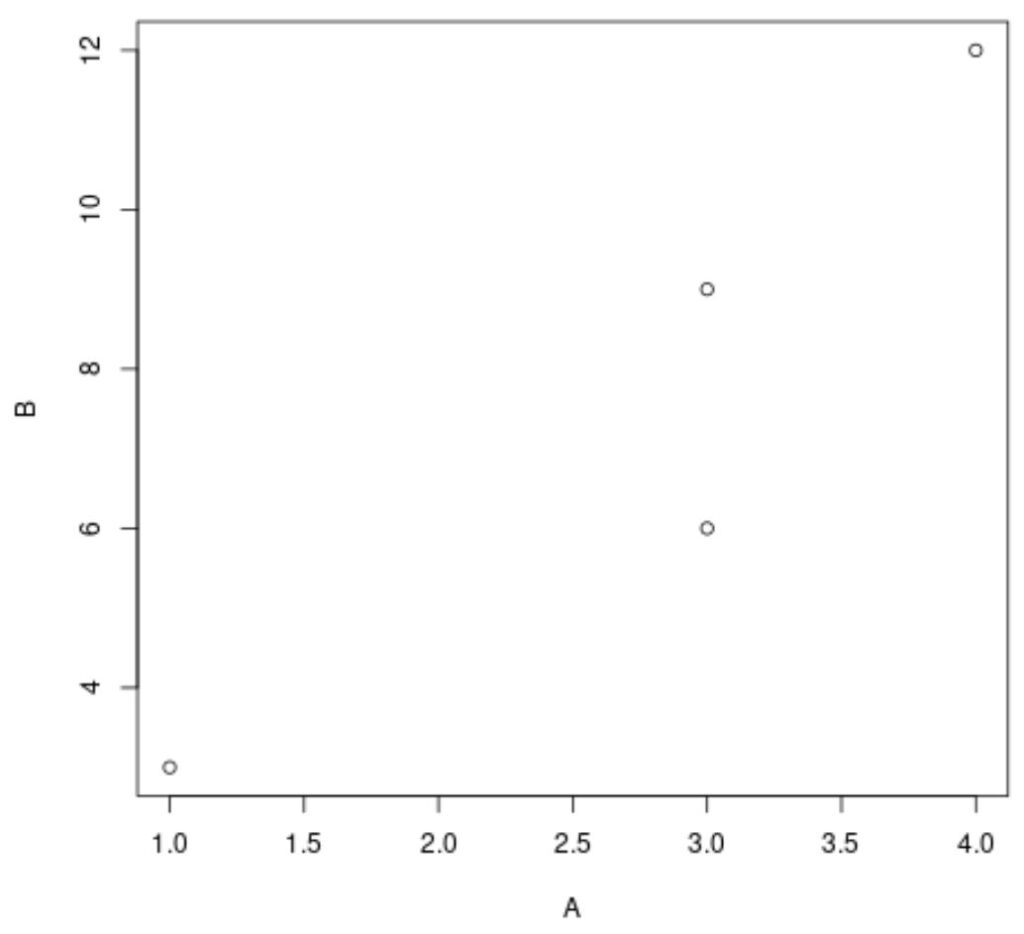

The resulting graphical output clearly demonstrates that only the four observations satisfying the condition are plotted:

It is important to notice that the dimensions of the axes adjust automatically to encompass only the range of the subsetted data. Only the rows in the data frame where variable C is less than 15 are shown in the plot, confirming the effectiveness of the single-condition subsetting operation.

Method 2: Handling Complex Visualization with Multiple Conditions

Often, real-world data analysis requires filtering observations based on the simultaneous satisfaction of two or more criteria. For example, we might need to plot data only if Variable C is below 15 AND Variable D is above 3. This necessitates the use of logical operators to combine individual conditions into a single, cohesive filtering expression.

In R, the primary logical operator for combining conditions is the AND operator (&). This operator returns TRUE only if both conditions it links are simultaneously TRUE for a given observation. Alternatively, the OR operator (|) can be used if we wish to include observations that meet at least one of the specified conditions. When using multiple conditions, it is best practice to wrap each individual condition in parentheses to ensure correct order of operations and improve readability, especially when mixing different types of constraints.

Let us extend the previous example: we want to create a scatter plot of Variable A vs. Variable B, specifically where Variable C is less than 15 AND Variable D is greater than 3. Reviewing our sample data frame, the rows that satisfy both conditions are Row 1 (C=10, D=5), Row 2 (C=12, D=7), and Row 3 (C=14, D=4). Row 4 (C=14, D=3) is excluded because D is not strictly greater than 3, demonstrating how the conjunction operator strictly enforces all criteria.

The syntax for plotting with multiple conditions requires enclosing the entire combined logical expression within the row index of the data frame subsetting operation:

#plot var1 vs. var2 where var3 is less than 15 and var4 is greater than 3
with(df[(df$var3 < 15) & (df$var4 > 3),], plot(var1, var2))

Applying this approach using our specific variables A, B, C, and D:

#plot A vs. B where C is less than 15 and D is greater than 3
with(df[(df$C< 15) & (df$D> 3),], plot(A, B))

The visualization confirms that only the three observations meeting the joint criteria are included in the output:

This clearly illustrates the efficiency of combining logical operators within the subsetting mechanism. Notice that only the rows in the data frame where variable C is less than 15 and variable D is greater than 3 are shown in the plot, yielding a highly refined visualization focusing only on the observations that satisfy the complex filter.

Advanced Considerations for R Data Visualization

While the methods demonstrated using base R indexing and the with() function are highly effective for quick visualizations, data analysts often need to refine the appearance and structure of the resulting graph beyond the default settings. The standard plot() function accepts numerous additional arguments, known as graphical parameters, that control elements such as titles, axis labels, colors, and point shapes, allowing for publication-quality customization.

For instance, to add a descriptive title and customize the appearance of the points in our complex conditional plot, we could modify the plotting expression to include arguments like main (title), xlab (x-axis label), col (color), and pch (plotting character):

# Advanced plot customization
with(df[(df$C< 15) & (df$D> 3),],
     plot(A, B,
          main="Subsetted Plot: C < 15 AND D > 3",
          xlab="Variable A",
          ylab="Variable B",
          col="blue",
          pch=19)
)

Furthermore, while base R provides excellent foundational tools, modern R visualization often incorporates packages like ggplot2, which uses a sophisticated grammar of graphics approach. Although the core principle of subsetting remains the same—filtering the data frame before or during the plotting call—the syntax shifts significantly. Using ggplot2, the filtering step is usually handled first, often utilizing helper functions from the dplyr package (e.g., using filter()), making the visualization layer simpler and more declarative. However, for rapid, direct conditional plotting without relying on external packages, the base R approach detailed here remains the most powerful and lightweight solution.

In summary, efficiently plotting subsets of data frames in R is achieved by tightly integrating logical filtering operations directly into the visualization command via array indexing and the with() function. Whether filtering by a single condition or compounding multiple criteria using logical operators, this method ensures reproducible and highly focused graphical insights into complex datasets. Mastering this technique is a cornerstone skill for anyone performing analytical tasks in R.
