Curve fitting in R can be done by using the different functions available in the base package and the different packages available in R such as the ‘stats’ and ‘graphics’ packages. The most common functions used for curve fitting in R are the ‘lm’, ‘nls’ and ‘glm’ functions. These functions can be used to fit a variety of linear, nonlinear, and generalized linear models to the data. The parameters of the model can then be examined and the best fitting model can be chosen.
Often you may want to find the equation that best fits some curve in R.
The following step-by-step example explains how to fit curves to data in R using the poly() function and how to determine which curve fits the data best.
Step 1: Create & Visualize Data
First, let’s create a fake dataset and then create a scatterplot to visualize the data:
#create data frame df <- data.frame(x=1:15, y=c(3, 14, 23, 25, 23, 15, 9, 5, 9, 13, 17, 24, 32, 36, 46)) #create a scatterplot of x vs. y plot(df$x, df$y, pch=19, xlab='x', ylab='y')
Step 2: Fit Several Curves
Next, let’s fit several polynomial regression models to the data and visualize the curve of each model in the same plot:
#fit polynomial regression models up to degree 5 fit1 <- lm(y~x, data=df) fit2 <- lm(y~poly(x,2,raw=TRUE), data=df) fit3 <- lm(y~poly(x,3,raw=TRUE), data=df) fit4 <- lm(y~poly(x,4,raw=TRUE), data=df) fit5 <- lm(y~poly(x,5,raw=TRUE), data=df) #create a scatterplot of x vs. y plot(df$x, df$y, pch=19, xlab='x', ylab='y') #define x-axis values x_axis <- seq(1, 15, length=15) #add curve of each model to plot lines(x_axis, predict(fit1, data.frame(x=x_axis)), col='green') lines(x_axis, predict(fit2, data.frame(x=x_axis)), col='red') lines(x_axis, predict(fit3, data.frame(x=x_axis)), col='purple') lines(x_axis, predict(fit4, data.frame(x=x_axis)), col='blue') lines(x_axis, predict(fit5, data.frame(x=x_axis)), col='orange')
To determine which curve best fits the data, we can look at the of each model.
This value tells us the percentage of the variation in the response variable that can be explained by the predictor variable(s) in the model, adjusted for the number of predictor variables.
#calculated adjusted R-squared of each model summary(fit1)$adj.r.squared summary(fit2)$adj.r.squared summary(fit3)$adj.r.squared summary(fit4)$adj.r.squared summary(fit5)$adj.r.squared [1] 0.3144819 [1] 0.5186706 [1] 0.7842864 [1] 0.9590276 [1] 0.9549709
From the output we can see that the model with the highest adjusted R-squared is the fourth-degree polynomial, which has an adjusted R-squared of 0.959.
Step 3: Visualize the Final Curve

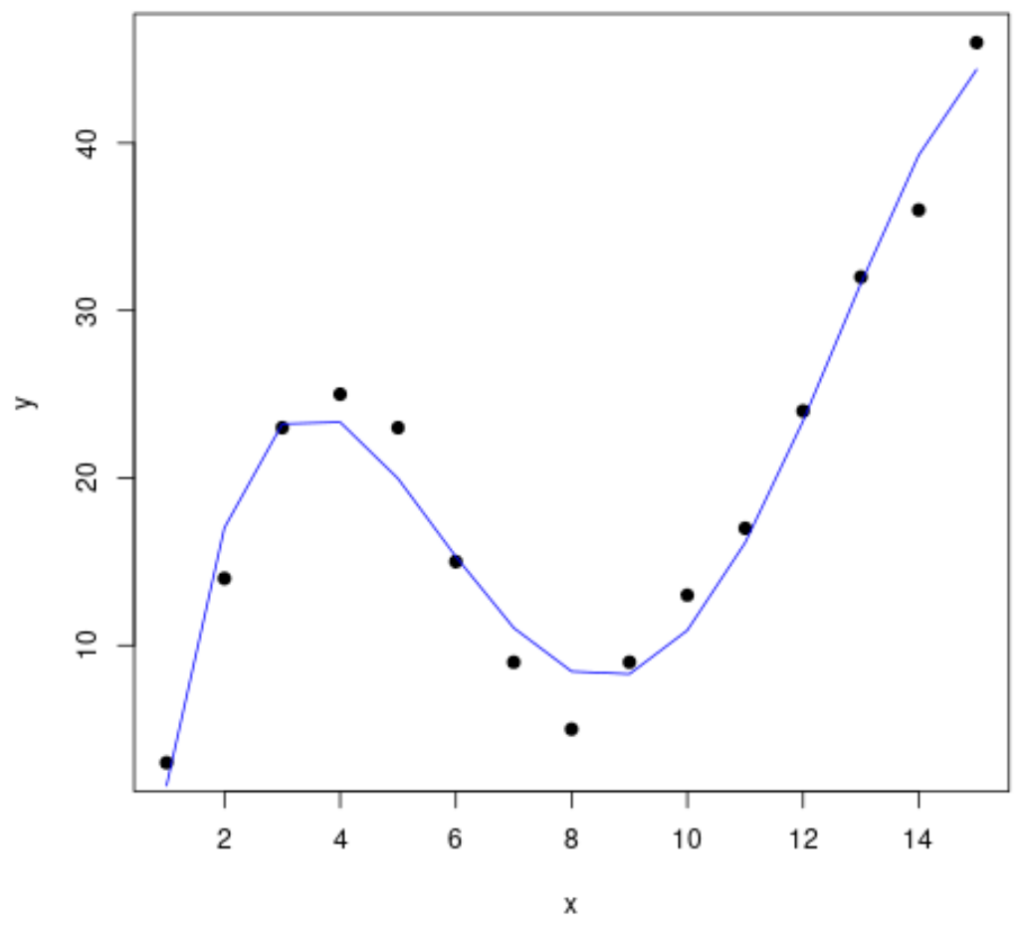

Lastly, we can create a scatterplot with the curve of the fourth-degree polynomial model:
#create a scatterplot of x vs. y plot(df$x, df$y, pch=19, xlab='x', ylab='y') #define x-axis values x_axis <- seq(1, 15, length=15) #add curve of fourth-degree polynomial model lines(x_axis, predict(fit4, data.frame(x=x_axis)), col='blue')
We can also get the equation for this line using the summary() function:
summary(fit4) Call: lm(formula = y ~ poly(x, 4, raw = TRUE), data = df) Residuals: Min 1Q Median 3Q Max -3.4490 -1.1732 0.6023 1.4899 3.0351 Coefficients: Estimate Std. Error t value Pr(>|t|) (Intercept) -26.51615 4.94555 -5.362 0.000318 *** poly(x, 4, raw = TRUE)1 35.82311 3.98204 8.996 4.15e-06 *** poly(x, 4, raw = TRUE)2 -8.36486 0.96791 -8.642 5.95e-06 *** poly(x, 4, raw = TRUE)3 0.70812 0.08954 7.908 1.30e-05 *** poly(x, 4, raw = TRUE)4 -0.01924 0.00278 -6.922 4.08e-05 *** --- Signif. codes: 0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1 Residual standard error: 2.424 on 10 degrees of freedom Multiple R-squared: 0.9707, Adjusted R-squared: 0.959 F-statistic: 82.92 on 4 and 10 DF, p-value: 1.257e-07
The equation of the curve is as follows:
y = -0.0192x4 + 0.7081x3 – 8.3649x2 + 35.823x – 26.516
We can use this equation to predict the value of the based on the predictor variables in the model. For example if x = 4 then we would predict that y = 23.34:
y = -0.0192(4)4 + 0.7081(4)3 – 8.3649(4)2 + 35.823(4) – 26.516 = 23.34
