How to Easily Change the Legend Position in ggplot2

The following syntax demonstrates the basic structure for specifying the position of a ggplot2 legend:

theme(legend.position = "right")

The subsequent examples utilize this powerful syntax in practice, demonstrating its application using the well-known iris dataset built into R.

The Core Mechanism: Utilizing the theme() Function

The cornerstone of aesthetic customization in ggplot2 is the theme() function. This function is designed to manage all non-data ink on the plot, including titles, axis labels, gridlines, background colors, and, most importantly for this discussion, the legend. By adding a theme() call as a layer to your plot object, you override the default settings established by the package, enabling granular control over the final output. This modular approach is characteristic of the grammar of graphics framework that ggplot2 is built upon, ensuring that visual modifications are clearly separated from data mapping and geometric representation.

To change the location of the legend, we focus specifically on setting the legend.position argument within the theme() function. The basic syntax for this operation is straightforward, allowing users to quickly specify a new general location for the legend box relative to the entire plot area. This simplicity is crucial for rapid prototyping and visualization refinement. The argument accepts a variety of inputs, making it versatile for both quick adjustments and highly precise fine-tuning.

When preparing your code, the theme() layer is typically the final element added to the ggplot object before rendering, ensuring that the visual styling is applied last. Below is the fundamental syntax structure used to define the legend’s position using one of the predefined directional strings. This syntax forms the basis for all external legend placements and should be memorized as a core technique in ggplot2 manipulation.

Positioning the Legend Outside the Plot (Keywords: “top”, “bottom”, “left”, “right”)

The most common requirement for legend placement is positioning it adjacent to the plotting panel. ggplot2 simplifies this process by accepting explicit string values that correspond to the four cardinal directions relative to the plot area: “top”, “bottom”, “left”, and “right”. When one of these character strings is passed to legend.position, the plot automatically resizes the plotting panel to accommodate the legend box without overlap, ensuring a clean separation between the data visualization and its explanatory key.

Choosing the correct side depends heavily on the plot’s aspect ratio and the density of the data. For instance, if the plot is tall and narrow, moving the legend to the “top” or “bottom” often conserves horizontal space. Conversely, if the plot is wide, retaining the default “right” position or moving it to the “left” may be more efficient. Furthermore, placing the legend at the “bottom” or “top” generally encourages a horizontal arrangement of legend items, which can be further controlled using the legend.direction argument (not explicitly detailed here, but relevant for advanced fine-tuning).

The key benefit of using these external positioning keywords is reliability and simplicity. The placement is always guaranteed to be outside the data panel, making the code highly readable and robust across different device sizes and rendering contexts. We will now examine specific implementations of the “top” and “bottom” positions, demonstrating how these simple adjustments drastically alter the overall layout and flow of the visualization.

Example: Placing the Legend at the Top or Bottom

When the legend is placed at the top of the plot, it typically adopts a horizontal orientation, stacking the keys and labels side-by-side. This arrangement is particularly useful for wide visualizations or when the legend contains only a few discrete categories, such as the three species in the iris dataset. Placing the legend above the plot often helps guide the reader’s eye, allowing them to identify the aesthetic mappings before they examine the spatial relationships of the data points themselves.

To place the legend above the plotting area, we simply assign the string “top” to the legend.position argument within the theme() function. The following code snippet demonstrates this operation, utilizing the aes (aesthetics) mapping to color the points based on the Species variable and employing geom_point() to generate a scatter plot of sepal dimensions.

Observe the concise nature of the command: the entire modification is contained within the final theme() layer, ensuring that the structure of the data mapping and geometric layer remains untouched, adhering to the best practices of the grammar of graphics.

library(ggplot2)

ggplot(iris, aes(x=Sepal.Length, y=Sepal.Width, color=Species)) +
       geom_point() +
       theme(legend.position = "top")

Conversely, placing the legend at the bottom follows the exact same pattern, replacing “top” with “bottom”. This position is often preferred when the top area is reserved for a primary title or subtitle, maintaining a visual hierarchy where explanatory text precedes the data, and the key follows the visual representation. This placement is particularly effective when the plot itself is visually busy, providing a clear visual break at the bottom margin for the legend information.

library(ggplot2)

ggplot(iris, aes(x=Sepal.Length, y=Sepal.Width, color=Species)) +
       geom_point() +
       theme(legend.position = "bottom")

Positioning the Legend Inside the Plot Using Coordinates

While external positioning (top, bottom, left, right) is sufficient for many scenarios, advanced customization often requires placing the legend directly within the data panel itself. This technique, known as “insetting,” is highly valuable when space is extremely limited or when the legend naturally fits into a low-density region of the plot, preventing the visualization from expanding unnecessarily. To achieve insetting, the legend.position argument must be supplied with a numeric vector of length two: c(x, y).

These (x, y) coordinates represent relative positions within the plotting area, normalized between 0 and 1. The origin (0, 0) corresponds to the bottom-left corner of the plot, and (1, 1) corresponds to the top-right corner. Therefore, specifying c(0.5, 0.5) would center the legend precisely in the middle of the plot. It is crucial to remember that these coordinates determine where the anchor point of the legend box is positioned, although the exact alignment relative to this anchor point can be further controlled using the legend.justification argument (which defaults to centering the box).

Using coordinate pairs offers unparalleled precision, allowing the analyst to place the legend exactly where it causes the least interference with the underlying data trends. For example, if the top-right corner of the scatter plot contains very few data points, it becomes an ideal candidate for legend placement, ensuring that the visual evidence remains clear while still providing the essential key. Let’s examine how to place the legend in the top-right and bottom-right corners using this coordinate system.

Implementing Internal Coordinate Placement

To demonstrate placing the legend in the top-right corner, we use coordinates close to (1, 1), such as c(.9, .9). These values place the anchor point near the maximum x and y bounds, pushing the legend box into the upper-right region of the visual space. It is important to experiment with these values, as choosing (1, 1) might sometimes push part of the legend box slightly off-panel, depending on the legend’s overall size. Using slightly smaller values like (.95, .95) or (.9, .9) often yields better results by providing a small buffer from the edge.

The following code block updates the legend.position argument to accept this coordinate vector instead of a directional string. Notice the shift in syntax, where the input is now a numeric vector rather than a quoted character string, signaling to ggplot2 that internal positioning based on relative coordinates is required.

library(ggplot2)

ggplot(iris, aes(x=Sepal.Length, y=Sepal.Width, color=Species)) +
       geom_point() +
       theme(legend.position = c(.9, .9))

For the bottom-right corner, we keep the x-coordinate high (near 1) and set the y-coordinate low (near 0). Using c(.9, .1) anchors the legend near the intersection of the right edge and the bottom edge of the plot. This position is frequently used when the bottom-left area is dedicated to a footnote or source citation, ensuring the legend is easily accessible but does not overlap with axis labels or other important graphical elements. The successful placement of the legend within the plot boundaries confirms the power and precision afforded by the coordinate system approach, making it a favorite technique for bespoke visualizations.

library(ggplot2)

ggplot(iris, aes(x=Sepal.Length, y=Sepal.Width, color=Species)) +
       geom_point() +
       theme(legend.position = c(.9, .1))

Example: Remove Legend Completely

In specific contexts, the legend may become redundant or unnecessary. This usually occurs when the aesthetic mapping is self-explanatory, if the categories are labelled directly on the plot, or if the visualization is part of a larger, faceted display where a single, common legend is used elsewhere. In such cases, removing the legend entirely can greatly simplify the visual appearance and maximize the area dedicated to the data itself, enhancing data-ink ratio. ggplot2 provides a specific value for the legend.position argument to achieve this deletion.

To suppress the legend, the string value “none” is passed to legend.position. This command instructs the theme() function to discard the generated legend graphical object completely. It is important to note that removing the legend does not remove the aesthetic mapping itself (e.g., the points are still colored by Species); it only removes the explanatory key. If the colors need to be standardized across multiple plots even without the key, this method is highly effective, allowing the visual attributes to persist without the accompanying informational box.

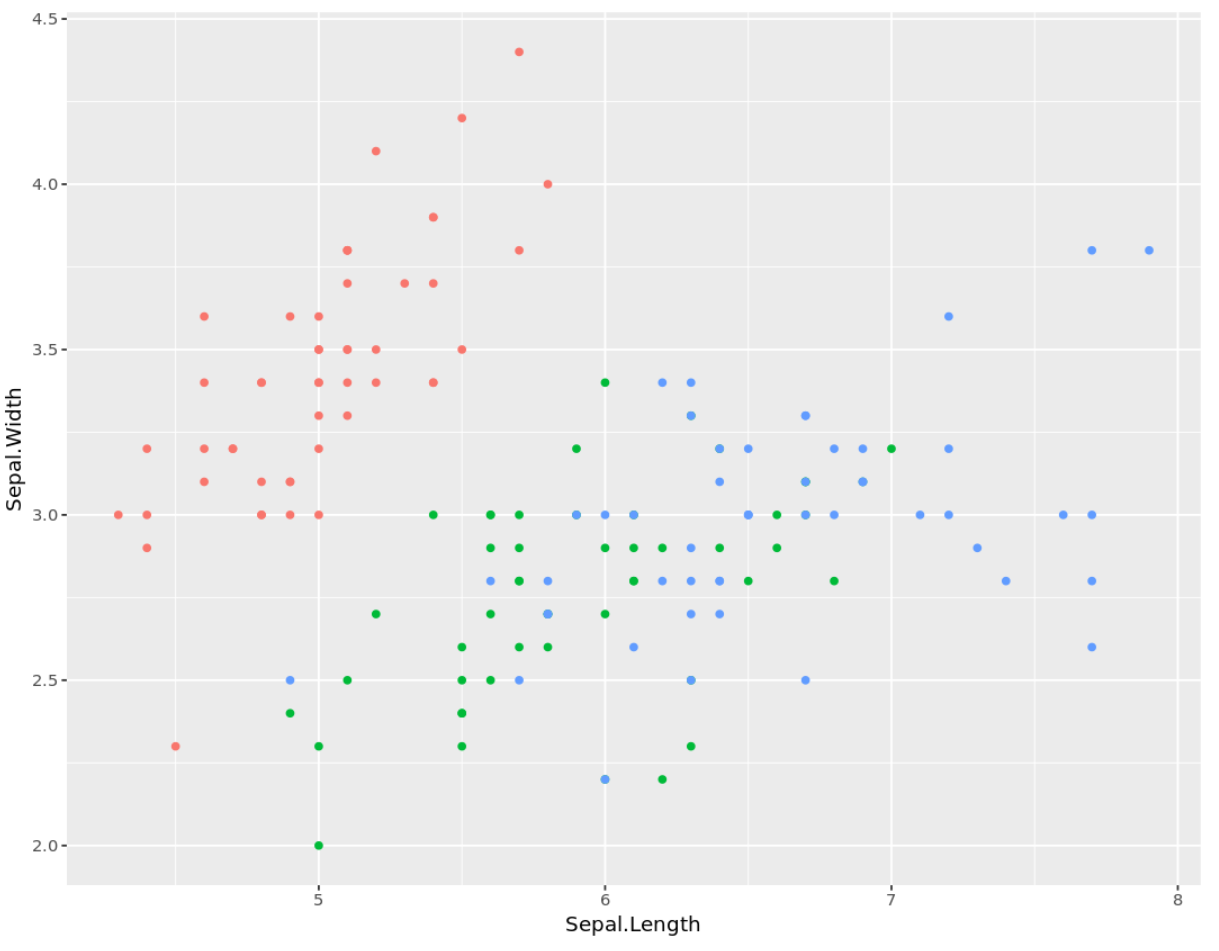

The final example below illustrates the clean and uncluttered plot that results from setting legend.position=”none”. This technique is a fundamental tool for expert ggplot2 users who prioritize visual economy and data density in their final outputs, ensuring that the visual focus remains entirely on the distribution and relationships within the data.

library(ggplot2)

ggplot(iris, aes(x=Sepal.Length, y=Sepal.Width, color=Species)) +
       geom_point() +
       theme(legend.position = "none")

Summary of Legend Positioning Strategies

The ability to precisely control the placement and visibility of the legend is a key component of generating high-quality visualizations using ggplot2. Whether the goal is to save space by moving the legend internally, or to adjust the layout using external directional keywords, the theme() function provides the necessary toolkit. Users should always prioritize clarity and ensure the legend placement complements the data being presented, rather than obstructing it.

In summary, there are three primary approaches for modifying the legend position, each tailored to different design requirements:

• Setting legend.position to a predefined string (“top”, “bottom”, “left”, “right”) for reliable external placement, which automatically adjusts plot margins.
• Setting legend.position to a normalized numeric vector c(x, y) (0 to 1) for precise, internal placement within the data panel.
• Setting legend.position to the string “none” to completely suppress the legend when it is unnecessary or redundant.

By mastering these arguments and understanding the implications of each placement strategy on the overall visual hierarchy, developers can ensure their ggplot2 outputs are both aesthetically pleasing and scientifically rigorous. Further customization can be achieved by exploring related arguments like legend.justification and legend.box, which offer even finer control over layout and alignment, but the core positioning remains defined by the legend.position argument.
