How to Easily Calculate Time Differences in VBA

Understanding Date and Time Data Types in VBA

Before executing any time-related calculations in VBA, it is critical to grasp how dates and times are stored internally. VBA employs the specialized Date data type, which is essentially a double-precision floating-point number. This numerical representation is derived from the serial date system commonly used across Microsoft applications, where the integer portion of the number represents the number of days since a baseline date (January 1, 1900, in Windows environments), and the fractional portion represents the time of day. This internal structure is what enables simple arithmetic operations to yield meaningful results when dealing with time spans.

Since a full 24-hour day is represented by the integer value of 1.0, any time value is simply a fraction of 1. For instance, noon (12:00 PM) is 0.5, and 6 hours (a quarter of a day) is 0.25. This serial representation is the foundation for the direct subtraction method, allowing us to treat dates and times as continuous numerical values. When two date/time values are subtracted, the result is a decimal number representing the exact time difference in days. This resulting decimal must then be multiplied by appropriate conversion factors (24 for hours, 1440 for minutes, etc.) to convert the fractional day into the desired unit of measurement.

It is important to ensure that when reading date and time values from an Excel worksheet into VBA, they are correctly handled as the Date data type. Although VBA can implicitly convert between different types, explicitly declaring variables as Date promotes cleaner code and prevents potential type mismatch errors, especially when dealing with ambiguous strings that might not be parsed correctly as time values. Understanding this foundational numerical storage method is key to debugging and optimizing time calculations within complex macros.

Method 1: Calculating Time Difference Using Direct Subtraction

The most common and often quickest method for calculating time differences when working directly with cells in Excel via VBA is straightforward subtraction. Since the date and time values are stored as serial numbers, subtracting the start time from the end time produces the difference in fractional days. This method is particularly efficient when dealing with large datasets within specific cell ranges, as it leverages Excel’s native handling of these values. The complexity lies not in the subtraction itself, but in the subsequent conversion of the resulting fractional day value into standard units like hours, minutes, or seconds, which requires multiplication by constant factors.

The core syntax for direct subtraction within a macro involves accessing the relevant cells using the Range object and assigning the result to a destination cell. For example, if the end time is in column B and the start time is in column A, the operation Range(“B” & i) – Range(“A” & i) returns the time difference in days for the row specified by the loop counter i. This result can be directly displayed in a destination cell if the desired unit is days, or if the cell format is customized to display elapsed time. However, to display the difference strictly as a count of hours or minutes, explicit multiplication is mandatory.

The provided code snippet below illustrates this direct subtraction methodology, calculating the difference between two times across a range of rows and then converting that difference into four common units: days, hours, minutes, and seconds. Notice how the base difference (End Time – Start Time) is multiplied incrementally to achieve finer granularity in the measurements. This technique is highly scalable and forms the backbone of many time-tracking and operational macros.

You can use the following basic syntax in VBA to calculate the difference between two times and output the results to adjacent columns:

Sub FindTimeDifference()

    Dim i As Integer

    For i = 2 To 7
        'calculate time difference in days
        Range("C" & i) = Range("B" & i) - Range("A" & i)

        'calculate time difference in hours
        Range("D" & i) = (Range("B" & i) - Range("A" & i)) * 24

        'calculate time difference in minutes
        Range("E" & i) = (Range("B" & i) - Range("A" & i)) * 24 * 60

        'calculate time difference in seconds
        Range("F" & i) = (Range("B" & i) - Range("A" & i)) * 24 * 60 * 60
    Next i

End Sub

Detailed Explanation of the Subtraction Code Example

The provided macro, FindTimeDifference(), iterates through a defined set of rows (2 through 7) to process time entries stored in columns A and B. The use of a For…Next loop, controlled by the integer variable i, ensures that the calculation is applied systematically to each corresponding pair of start and end times. This looping mechanism is essential for handling worksheet data efficiently, especially when dealing with extensive records. The Range object is dynamically referenced using string concatenation (e.g., “C” & i) to target the specific cell for output in the current iteration.

The first line inside the loop calculates the difference in days: Range(“C” & i) = Range(“B” & i) – Range(“A” & i). This is the base calculation, resulting in a decimal value where the integer part represents whole days and the fractional part represents the remaining hours, minutes, and seconds. Moving to column D, the difference is converted to hours by multiplying the base result by 24, as there are 24 hours in a day. This conversion is crucial because, without it, the resulting numerical value would be less intuitive for users accustomed to standard clock measurements.

Subsequent calculations progressively increase the conversion factor. For minutes (column E), the difference is multiplied by 24 (to get hours) and then by 60 (to get minutes), resulting in a conversion factor of 1440. Finally, for seconds (column F), the entire base calculation is multiplied by 24 * 60 * 60, which equals 86,400, the total number of seconds in a day. This step-by-step conversion ensures accurate representation of the time duration in different units.

Upon execution, this macro processes the corresponding times in the ranges A2:A7 (Start Time) and B2:B7 (End Time) and populates the subsequent columns with the calculated duration:

• C2:C7 will contain the time difference in days (fractional).
• D2:D7 will contain the time difference in hours (decimal).
• E2:E7 will contain the time difference in minutes (decimal).
• F2:F7 will contain the time difference in seconds (decimal).

Unit Conversion Factors for Time Calculation

When performing direct time subtraction in VBA, the resulting value is always expressed in days according to the underlying serial date system. To present this difference in a more user-friendly format, such as hours or minutes, specific mathematical constants must be applied. These conversion factors are derived directly from the standard definition of time units relative to a 24-hour day (or 1.0 serial unit). Understanding these factors is paramount for maintaining accuracy in time-based calculations, especially in high-precision applications.

The hierarchy of conversion begins with the day (1.0). To convert the fractional day into hours, we multiply by 24. If the difference is 0.5 days, multiplying by 24 yields 12 hours. This is the foundation of the second calculation step in the example macro. To achieve minutes, we must consider that there are 60 minutes in an hour, thus the total conversion factor from days to minutes is 24 * 60 = 1440. If we have 0.5 days, multiplying by 1440 results in 720 minutes.

For the highest granularity typically used in standard reporting—seconds—the conversion factor becomes the product of hours, minutes, and seconds per minute: 24 * 60 * 60 = 86,400. This factor, 86,400, is used to convert the base fractional day difference into the total number of seconds elapsed. For scenarios requiring millisecond precision, further multiplication by 1000 would be necessary, although this is less common in standard Excel VBA work where the underlying Date data type precision may impose limits.

Method 2: Utilizing the DateDiff Function for Specific Intervals

While direct subtraction is highly effective for range operations in Excel, the DateDiff function provides a more structured and often safer alternative when the requirement is strictly for an integer count of elapsed units (e.g., how many whole hours passed, rather than the exact fractional hour value). The DateDiff function calculates the number of time intervals between two specified dates. Its strength lies in its ability to handle complex calendar intervals such as months, quarters, and years, which simple subtraction cannot easily accommodate due to varying month lengths and leap years.

The syntax is defined as DateDiff(interval, date1, date2, [firstdayofweek], [firstweekofyear]). The essential argument is the interval string, which dictates the unit of the result. For instance, using “h” calculates the difference in hours, “n” calculates the difference in minutes, and “s” calculates the difference in seconds. It is critical to note that the DateDiff function returns a Long integer and does not account for fractional parts of the interval. If the time difference is 1.5 hours, DateDiff(“h”, date1, date2) will return 1, rounding down to the nearest whole unit.

Developers must choose between direct subtraction and DateDiff function based on the desired output format. If a precise, decimal representation of the time elapsed is needed (e.g., 1.75 hours), direct subtraction with conversion is the superior method. If the goal is simply to count how many complete units (e.g., days or months) have passed, or if calendar logic (like month boundaries) must be respected, DateDiff is the appropriate tool.

Practical Example: Calculating Time Differences in an Excel Range

To demonstrate the practical application of the direct subtraction method within a worksheet environment, consider a scenario where we track the start and end times of various tasks or processes. The data is organized into two columns: Column A containing the start timestamp and Column B containing the end timestamp. Our objective is to populate adjacent columns (C, D, E, and F) with the corresponding time differences, measured in days, hours, minutes, and seconds, respectively, utilizing the power of a VBA macro acting upon the Range object.

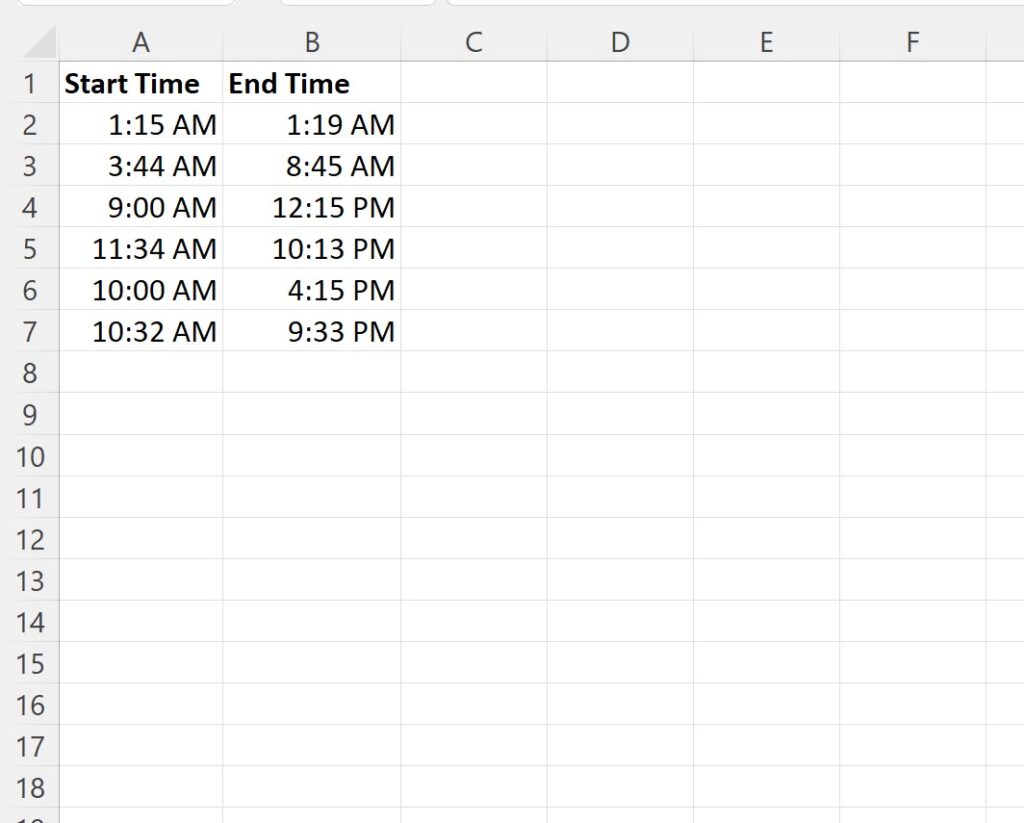

Suppose we have the following two columns of start and end times in Excel, spanning rows 2 through 7:

This input data set visually represents the time entries we need to process. The times are stored as standard Excel date/time values, which are internally represented as serial numbers. Our macro must loop through these six pairs of times, perform the subtraction, apply the appropriate multiplication factors for unit conversion, and write the resulting numerical values back into the respective output columns, ensuring that the results are displayed accurately as numerical duration values rather than formatted dates.

Implementing the VBA Macro for Range Operations

We will now use the previously detailed FindTimeDifference() macro to operate on the data shown above. This implementation strategy is ideal for scenarios where bulk time calculation is required, avoiding manual formula entry in hundreds or thousands of cells. By embedding the calculation logic within the macro, we ensure consistency and speed across all processed records. The macro effectively treats the worksheet as an array of data, iterating efficiently row by row.

We can create the following macro to calculate the time difference between each start and end time and display the results in columns C through F:

Sub FindTimeDifference()

    Dim i As Integer

    For i = 2 To 7
        'calculate time difference in days
        Range("C" & i) = Range("B" & i) - Range("A" & i)

        'calculate time difference in hours
        Range("D" & i) = (Range("B" & i) - Range("A" & i)) * 24

        'calculate time difference in minutes
        Range("E" & i) = (Range("B" & i) - Range("A" & i)) * 24 * 60

        'calculate time difference in seconds
        Range("F" & i) = (Range("B" & i) - Range("A" & i)) * 24 * 60 * 60
    Next i

End Sub

Interpreting the Results

When the FindTimeDifference() macro is executed, the numerical results of the duration calculations are populated into the target columns. It is essential to understand how these numerical values relate to the standard time units. The output visually confirms that the direct subtraction method successfully extracts the time duration and converts it into the specified units using the established conversion factors of 24, 1440, and 86,400.

The final output, after running the macro on the provided data set, appears as follows:

Reviewing the results, Columns C through F now display the time difference between the start and end times in various units. For example, focusing on the first row (row 2), the difference between 8:00 AM and 10:30 AM is exactly 2.5 hours. Column C shows this as 0.104166666666667 days (2.5/24). Column D shows the expected 2.5 hours. Column E shows 150 minutes (2.5 * 60). Finally, Column F shows 9000 seconds (150 * 60). This demonstrates the reliability and precision of the direct subtraction method when coupled with accurate unit conversion factors within VBA.
