How to Conditionally Format a Cell Based on Another Cell’s Value in Excel: A Step-by-Step Guide

Implementing Dynamic Conditional Formatting Rules

The core mechanism for applying conditional formatting rules that reference external cells involves utilizing the New Rule option found within the Conditional Formatting dropdown menu under the Home tab of the Excel Ribbon. This method grants the user full control over the logical test applied to the data, moving beyond the predefined options typically available in the menu. By selecting the “Use a formula to determine which cells to format” option, we unlock the ability to compare values in the selected range against a specific criteria cell located anywhere else in the workbook, thereby creating highly flexible and maintainable data visualizations. This approach ensures that updates to the criteria are reflected instantly across the entire highlighted range without requiring manual adjustments to the individual rules.

This sophisticated application of conditional formatting is particularly effective when dealing with comparisons involving dates, variable score benchmarks, or budget thresholds that are subject to frequent adjustments. Instead of hardcoding the comparison value directly into the formatting rule, we establish a single input cell—often referred to as a control cell—which acts as the centralized reference point for the entire formatting operation. This design pattern significantly enhances data integrity and streamlines the updating process, making it a critical best practice for professional spreadsheet development and maintenance. The following detailed example demonstrates precisely how to implement a date-based conditional formatting rule that relies entirely on a dynamically referenced cell.

Establishing the Practical Scenario for Date Comparison

To clearly illustrate this powerful technique, let us consider a common administrative scenario: tracking application deadlines and identifying late submissions. We are working with a simple dataset in Excel that contains the dates on which various people applied for a position. Our primary organizational goal is to visually highlight any application dates that fall after a specified cutoff date, thereby immediately flagging them as late submissions requiring specific action or review.

Our sample data is contained in Column B, which holds the application dates. The crucial requirement here is that the cutoff date is not embedded within the conditional formatting rule itself but is stored in an easily accessible cell. This setup ensures that if management needs to change the cutoff date—perhaps granting an extension due to unforeseen circumstances—the user only needs to update that single control cell, and the visual alerts across the dataset will update instantaneously without altering the underlying logic.

Defining the Comparison Reference Cell

The first essential step in creating a dynamic conditional rule is to clearly define and place the external criterion against which all cells in the range will be judged. For our specific example, let us assume the original application cutoff date was set for 10/15/2022. To maintain adaptability, we will input this date into a designated control cell, which we assign as cell E1. It is imperative that this control cell is distinct from the data range being formatted.

By isolating the criterion in cell E1, we ensure that the conditional formatting rule remains robust, easily verifiable, and highly adaptable. This adheres to fundamental good spreadsheet design principles, separating input variables from the processing logic. When dealing with date fields, Excel internally handles dates as sequential serial numbers. Therefore, standard comparison operators (such as greater than, less than, or equal to) function perfectly, comparing the numerical date value in the application range against the numerical date value in the control cell E1.

Initiating the Conditional Formatting Rule Creation Process

With the dataset populated and the cutoff date established in cell E1, the next phase is to initiate the application of the rule to the data range. We must begin by carefully highlighting the target range—the cells containing the application dates—which in this specific example is the range B2:B11. It is extremely important that the first cell highlighted, B2, serves as the anchor point for the subsequent formula creation, as its reference determines the relative movement of the rule across the rest of the selected range.

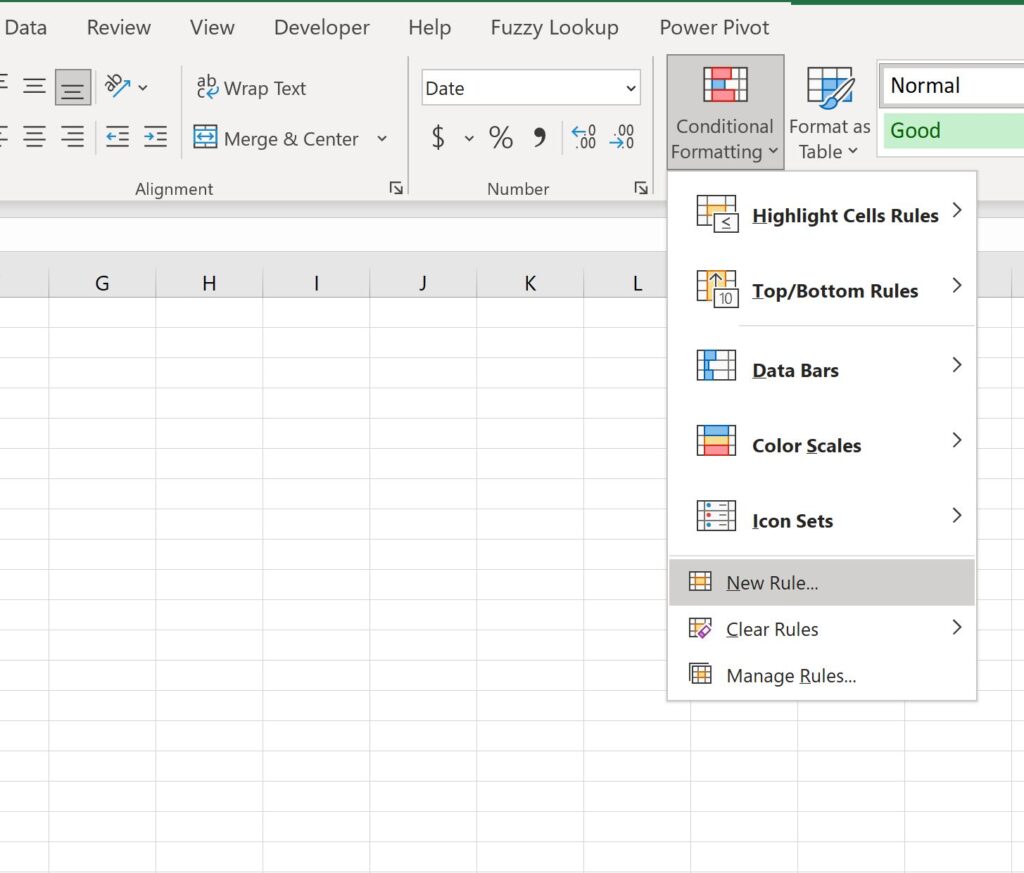

Once the range B2:B11 is accurately selected, navigate to the Home tab on the Ribbon. Locate and click the Conditional Formatting dropdown menu. From the subsequent options, select New Rule…. This action opens the dedicated dialog box necessary for defining advanced, formula-based formatting rules that rely on external criteria.

This step is critical because standard, built-in rules usually default to comparing the cell against a fixed number or a predefined range within the selection. By choosing New Rule, we gain the ability to bypass these defaults and implement a custom logical test that references variables external to the selected range, providing the dynamic control essential for linking the formatting in B2:B11 to the value in E1.

Constructing the Comparative Formula Using Absolute References

Inside the New Formatting Rule window, we must select the appropriate rule type: Use a formula to determine which cells to format. This selection provides a dedicated input box where the logical condition will be meticulously defined. The rule’s objective is to return a TRUE result for the cells that should be formatted and FALSE otherwise. Since we specifically want to highlight dates that are after the established cutoff date, we must use the greater than operator (>).

The core logic of the formula must be written from the perspective of the very first cell in the selected range, which is cell B2. The precise formula to input is:

=B2>$E$1

.

A deep understanding of cell references is paramount here. The reference to the first data cell, B2, must be a relative reference (i.e., it lacks dollar signs). When Excel iterates this rule across the range B2:B11, the B2 reference correctly adjusts, or “floats,” to B3, B4, B5, and so on, ensuring that every application date is compared individually. Conversely, the reference to the cutoff date, $E$1, must be an absolute reference. The inclusion of dollar signs locks both the column (E) and the row (1) in place, guaranteeing that every single cell in the B2:B11 range compares its value exclusively against the fixed cutoff date stored in E1. Failure to use absolute reference ($E$1) would result in the comparison cell shifting (E2, E3, etc.) as the rule is applied, leading to severe and incorrect formatting results.

After successfully entering the formula, click the Format button to choose the desired aesthetic changes, such as a fill color, font modification, or border changes, which will visually mark the late submissions.

Applying the Format and Reviewing Immediate Results

Once the fill color (or any chosen styling) has been selected and confirmed in the formatting preview window, pressing OK on the main New Formatting Rule dialog box immediately activates the rule. Excel instantaneously evaluates the condition

=B2>$E$1

for every cell within the selected range B2:B11, comparing each application date against the static cutoff date defined in E1 (10/15/2022).

The outcome is a clearly visualized list where all applications submitted after October 15, 2022, are highlighted according to the chosen color scheme. For instance, dates such as 11/1/2022 and 12/1/2022, which represent serial numbers larger than the date value in E1, will satisfy the TRUE condition of the formula and receive the special formatting. This immediate visual confirmation is incredibly useful for data auditing, rapid assessment of compliance with deadlines, and focusing attention on necessary follow-up actions.

The Power of Dynamic Rule Updates

The true, game-changing advantage of referencing an external cell (E1) using an absolute reference in conditional formatting lies in its immediate dynamic responsiveness. Unlike formatting rules that require manual adjustment if the criteria changes, this setup automatically recalculates and updates the formatting upon any change to the value in the control cell E1.

For instance, suppose the management team decides to extend the application deadline significantly, shifting the cutoff date to 1/5/2023. As soon as the value in cell E1 is edited to reflect this new date, Excel instantly re-evaluates the condition for every cell in B2:B11. Dates that were previously highlighted (e.g., 11/1/2022) now fall before the new, extended cutoff and will automatically revert to standard formatting, while only submissions truly after 1/5/2023 will retain the highlight. This seamless, automatic adjustment saves considerable time, maintains data accuracy, and significantly reduces the potential for manual error associated with rule modification.

Customization and Advanced Considerations

While this example utilized a simple date comparison and a light green fill color, the possibilities for customization are extensive. When clicking the Format button during the rule creation process, users are able to modify not only the cell fill color but also the font color, font style (e.g., bold, italic), and cell borders. It is strongly recommended to utilize a color scheme that offers high visual contrast and aligns with organizational reporting standards, ensuring that highlighted data is instantly recognizable and understandable without causing visual fatigue.

Furthermore, this methodology of formula-based conditional formatting is not restricted to simple greater-than comparisons. Expert users can incorporate complex logical functions like

AND()

,

OR()

, and

ISBLANK()

directly into the rule formula to handle multi-criteria requirements, such as highlighting entries that are both late AND submitted by a specific department or individual. This ability to handle complex conditions further reinforces the importance of using an external cell to house the primary comparison criteria, providing a single, auditable, and easily modifiable point of reference for all formatting decisions.

Note: We chose to use a light green fill for the conditional formatting in this example for clarity, but you have complete control to choose any color and style that best suits your data visualization needs. Selecting high-contrast colors generally ensures the maximum visibility of critical data points.
