How to Sum a Range of Cells in VBA: A Step-by-Step Guide

Introduction to Summing Ranges in VBA

Calculating the sum of numerical values within a specified cell range is one of the most fundamental operations in Microsoft Excel. While standard spreadsheet formulas handle this efficiently, automating this task using VBA (Visual Basic for Applications) provides immense power for complex automation projects, large datasets, and integrating calculations into custom user interfaces. The primary tool for achieving this summation within the Excel object model is the WorksheetFunction.Sum method, which allows your code to leverage the robust calculation engine built into Excel itself.

The WorksheetFunction.Sum method is preferred in VBA because it mimics the behavior of the native SUM() function used in Excel formulas, ensuring accuracy and familiarity. When implementing this method, you pass the desired input Range object as a required parameter. This integration allows developers to perform mathematical operations directly within their code without writing complex loop structures for simple summation, thereby improving code efficiency and readability. Understanding how to correctly reference the target Range is crucial for accurate results.

Beyond simple, static range summation, this method can be integrated into powerful automation sequences. For instance, you could combine the WorksheetFunction.Sum calculation with loops or conditional statements to sum values across multiple sheets, based on specific criteria, or recalculate sums dynamically after data changes. This flexibility is what makes VBA an essential tool for advanced Excel users who need custom financial models or data processing utilities.

The Core VBA Syntax for Summation

To effectively calculate the sum of values within a defined area, we utilize the standard syntax which assigns the result of the calculation to a specific cell or a variable. The core operation involves calling the WorksheetFunction.Sum method and passing a valid Range reference. When assigning the result directly back into the worksheet, the syntax is particularly concise, making it ideal for macros designed for rapid data manipulation.

The most basic syntax calculates the total of a specified range and immediately outputs the numeric result to a designated cell. This approach avoids the need for temporary variables, streamlining simple summation tasks. Below illustrates the structure where the result is immediately placed into cell D2, based on the summation of values in the range B2:B11.

Sub SumValues()
    Range("D2") = WorksheetFunction.Sum(Range("B2:B11"))
End Sub

In this example, the code snippet initiates a procedure named SumValues. The entire formula, WorksheetFunction.Sum(Range("B2:B11")), executes the summation of all numeric entries located within the defined Range B2 through B11. The resulting numerical total is then assigned directly to the value property of cell D2 on the active worksheet. This straightforward method ensures that the calculation is performed and immediately reflected in the Excel interface, making it perfect for generating summary statistics adjacent to the source data.

Displaying Results Using the MsgBox Function

While placing the sum directly into a cell is common, there are scenarios where displaying the result immediately to the user without altering the worksheet layout is preferable, such as for quick validation checks or interactive scripts. In such cases, the result of the summation is stored in a variable, and then presented using the MsgBox function. This involves declaring a variable to hold the numerical value before the calculation is performed.

This method requires the declaration of a variable using the Dim keyword, typically as a Single or Double data type, to ensure it can accurately store large numerical sums or decimals. Once the variable is defined, the output of the WorksheetFunction.Sum method is assigned to it. This approach provides greater control over the data, allowing it to be used in subsequent calculations or displayed in a user-friendly format via a dialog box.

The following Macro demonstrates how to calculate the sum of the range B2:B11 and output the final result using the MsgBox function, complete with informative comments that explain each step of the process, which is a critical best practice in VBA programming.

Sub SumValues()
    'Create variable to store sum of values
    Dim sum As Single

    'Calculate sum of values in range
    sum = WorksheetFunction.Sum(Range("B2:B11"))

    'Display the result
    MsgBox "Sum of Values in Range: " & sum
End Sub

The structure above ensures that the calculation is performed behind the scenes, and the concatenated string within the MsgBox provides clear context for the resulting number. This method is particularly useful when creating utilities where the user only needs confirmation of a calculated total rather than having the result permanently written to a worksheet cell.

Prerequisites: Setting Up the Sample Dataset

To illustrate these summation techniques in a practical setting, we will use a sample dataset compiled in an Excel worksheet. This dataset contains information related to various basketball players, providing a clear column of numerical scores (points) that we intend to sum using our Macros. This hands-on example will make the application of the code clear and immediately demonstrable.

The dataset is structured with player names and corresponding statistics, but our focus will be strictly on the ‘Points’ column, which resides in column B, starting from row 2 (B2) down to row 11 (B11). Understanding the exact coordinates of the data is essential, as the Range references in the VBA code must precisely match these addresses to ensure accurate calculation using the WorksheetFunction.Sum method.

As shown in the image above, the points we wish to sum are located in cells B2 through B11. We will use two separate examples to show the different ways the result can be displayed: first, by placing the output directly into a specified cell, and second, by using a dialog box powered by the MsgBox function.

Example 1: Outputting the Sum Result to a Specified Cell

In our first practical demonstration, we aim to calculate the total points scored by all players listed in the dataset and place this aggregate total into an empty, designated cell on the worksheet. This approach is highly practical when creating summary reports or dashboard elements where the total must be visibly displayed alongside the source data. We will choose cell D2 as the destination for our calculated sum.

The Macro required for this task is the most concise form of the summation routine. It directly assigns the output of the WorksheetFunction.Sum method, operating on the specific range B2:B11, to the target cell D2. This single line of executable code handles both the calculation and the output placement, emphasizing the efficiency of using built-in Excel functions through VBA.

Here is the specific code used to execute this function:

Sub SumValues()
    Range("D2") = WorksheetFunction.Sum(Range("B2:B11"))
End Sub

Upon executing the SumValues Macro, the result of the summation is immediately populated into the worksheet. The visual confirmation of the successful operation is essential for verifying the code’s accuracy and ensuring that the correct Range was targeted.

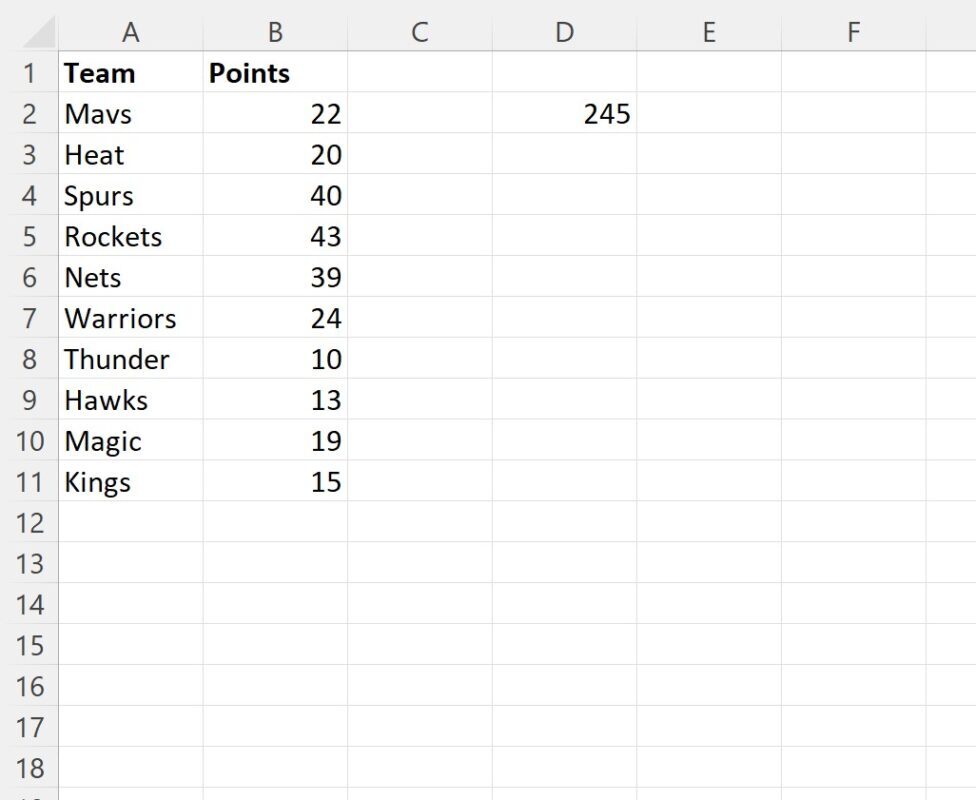

As illustrated by the resulting output, cell D2 now displays the value 245. This numerical result confirms that the sum of all points in the range B2:B11 totals 245. This method is highly effective for automating reporting tasks where calculated summaries need to be permanently recorded alongside the data.

Example 2: Displaying the Sum Result in a Message Box

For our second example, we demonstrate how to perform the exact same calculation—summing the values in the points column (B2:B11)—but instead of writing the result to a cell, we present it to the user in a pop-up dialog box. This technique is often employed during debugging, quality checks, or when the script needs to provide immediate, non-intrusive feedback to the end-user.

This approach necessitates the use of a temporary variable to hold the calculated sum before it is passed to the MsgBox function. Using a variable, such as sum, ensures that the result is correctly typed and easily referenced. We utilize the exact same WorksheetFunction.Sum method as before, focusing on the same data Range (B2:B11), but the output destination is fundamentally different.

Sub SumValues()
    'Create variable to store sum of values
    Dim sum As Single

    'Calculate sum of values in range
    sum = WorksheetFunction.Sum(Range("B2:B11"))

    'Display the result
    MsgBox "Sum of Values in Range: " & sum
End Sub

When we run this Macro, the user is presented with a standard Windows dialog box that confirms the total sum. This visual confirmation is instantaneous and does not require the user to navigate to a specific cell to view the outcome of the calculation.

The message box clearly states that the sum of the values in the range B2:B11 is 245, confirming consistency with the result obtained in Example 1. Utilizing the MsgBox function is a highly effective method for providing user feedback within automated scripts, especially in environments where immediate, temporary information display is required.

Advanced Considerations: Summing Entire Columns

While the previous examples focused on summing a specific, bounded Range (B2:B11), VBA offers the flexibility to sum an entire column or row dynamically. This is particularly valuable when dealing with datasets that frequently grow or shrink, eliminating the need to constantly update the hardcoded row numbers within the script.

To sum every cell containing numerical data within a column, you simply need to specify the column reference itself in the Range() function, such as Range("B:B"). When the WorksheetFunction.Sum method processes a full column range, it intelligently scans all non-header cells in that column and computes their total, ignoring any blank or non-numeric entries, thus ensuring comprehensive coverage regardless of the data’s vertical extent.

For instance, if you wished to calculate the sum of values for every cell in column B, modifying the code is straightforward:

Sub SumFullColumn()
    Range("D2") = WorksheetFunction.Sum(Range("B:B"))
End Sub

This calculation will include every number found in column B, providing maximum flexibility for data management. It is important to remember that if the column contains header text or other non-numerical data points, the WorksheetFunction.Sum method handles these gracefully by excluding them from the calculation, focusing only on valid numerical input.

Key Takeaways and Best Practices

Mastering the use of the WorksheetFunction.Sum method in VBA is crucial for efficient data automation. Whether you choose to output the result directly to a cell or present it temporarily using the MsgBox function, the fundamental process involves correctly defining the input Range object.

When writing summation Macros, best practices dictate the use of clear variable names, especially when storing intermediate results, and adding comments to complex code blocks, as demonstrated in Example 2. Furthermore, developers should always consider the scope of the range—using specific boundaries (e.g., B2:B11) for fixed data or full column references (e.g., B:B) for dynamic datasets—to ensure the script remains robust and future-proof against data expansions.

By leveraging the built-in power of Excel’s calculation engine through WorksheetFunction.Sum, you can create highly reliable and performant VBA solutions for all your summation requirements, significantly enhancing the automation capabilities of your spreadsheets.
